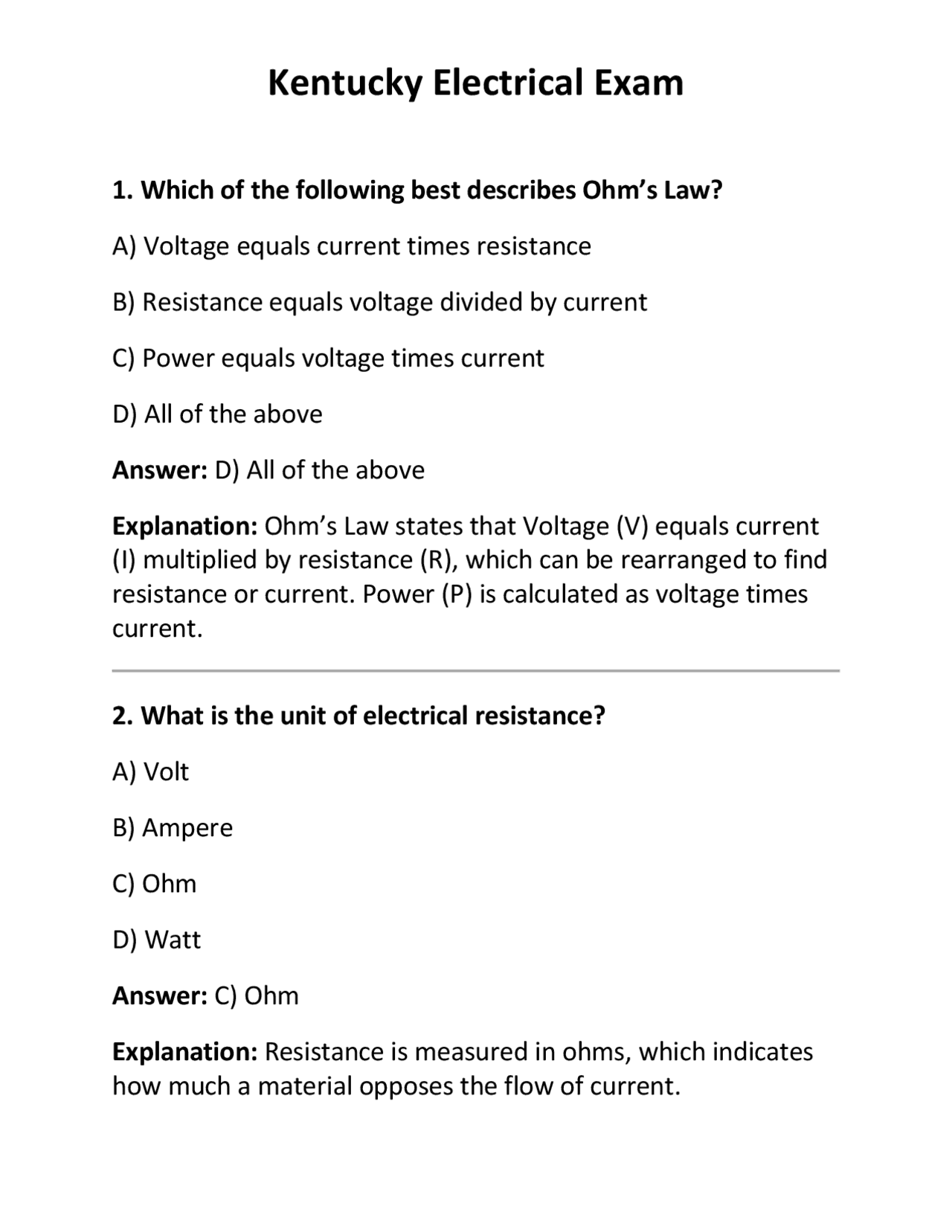

1. Which of the following best describes Ohm’s Law? A) Voltage equals current times resistance B) Resistance equals voltage divided by current C) Power equals voltage times current D) All of the above Answer: D) All of the above Explanation: Ohm’s Law states that Voltage (V) equals current (I) multiplied by resistance (R), which can be rearranged to find resistance or current. Power (P) is calculated as voltage times current. 2. What is the unit of electrical resistance? A) Volt B) Ampere C) Ohm D) Watt Answer: C) Ohm Explanation: Resistance is measured in ohms, which indicates how much a material opposes the flow of current.
3. In a series circuit, the total resistance is: A) Less than any individual resistor B) Equal to the sum of all resistances C) The reciprocal of the sum of reciprocals of resistances D) Always constant regardless of the number of resistors Answer: B) Equal to the sum of all resistances Explanation: Series circuits add resistances directly; total resistance is the sum of individual resistances. 4. Which type of current flows in only one direction? A) Alternating current (AC) B) Direct current (DC) C) Both AC and DC D) Neither AC nor DC Answer: B) Direct current (DC) Explanation: DC flows in a single direction, whereas AC periodically reverses direction.
7. Which safety regulation organization is primarily concerned with occupational electrical safety standards? A) NEC B) OSHA C) IEC D) UL Answer: B) OSHA Explanation: OSHA (Occupational Safety and Health Administration) sets and enforces safety standards in workplaces, including electrical safety. 8. When working on energized electrical equipment, which PPE is essential? A) Insulated gloves and safety glasses B) Steel-toed boots only C) Hard hat only D) No PPE is necessary if experienced Answer: A) Insulated gloves and safety glasses
Explanation: Proper PPE, including insulated gloves and safety glasses, reduces the risk of electrical shock and injury when working on live equipment.
9. Which is the correct procedure for lockout/tagout (LOTO)? A) Tag the equipment and proceed with work B) Turn off power and lock out the disconnect device before working C) Only use tags, no lock needed D) Remove all fuses and leave the equipment energized Answer: B) Turn off power and lock out the disconnect device before working Explanation: LOTO procedures require de-energizing equipment and physically locking it to prevent accidental re- energization, ensuring safety. 10. Which of the following best describes a grounding system? A) Provides a safe path for fault current to prevent shock hazards B) Is only used in industrial facilities
12. Which NEC article covers grounding and bonding requirements? A) Article 250 B) Article 300 C) Article 410 D) Article 110 Answer: A) Article 250 Explanation: Article 250 of the NEC details grounding and bonding rules for electrical installations. 13. What is the purpose of a circuit breaker? A) To limit current flow by opening the circuit during overloads or faults B) To convert AC to DC C) To regulate voltage D) To act as a switch only during maintenance Answer: A) To limit current flow by opening the circuit during overloads or faults
Explanation: Circuit breakers automatically disconnect circuits when abnormal conditions occur, preventing damage and hazards.
14. Which type of wiring method is most commonly used in residential buildings? A) Conduit B) Non-metallic sheathed cable (NM cable) C) Rigid metal conduit D) Underground feeder cable Answer: B) Non-metallic sheathed cable (NM cable) Explanation: NM cable, often called Romex, is widely used in residential wiring due to its ease of installation and cost- effectiveness. 15. When reading electrical blueprints, symbols such as a circle with an ‘X’ inside typically represent: A) Light fixtures B) Outlets C) Switches
C) Step down voltage to low levels D) Measure energy consumption Answer: A) Distribute power to branch circuits and protect wiring with circuit breakers Explanation: Load centers house circuit breakers that control and protect individual circuits.
18. Which device is used to measure electrical voltage? A) Multimeter B) Clamp meter C) Oscilloscope D) Megohmmeter Answer: A) Multimeter Explanation: A multimeter can measure voltage, current, and resistance, making it essential for troubleshooting. 19. In a three-phase system, the phases are separated by: A) 90 degrees B) 120 degrees
C) 180 degrees D) 240 degrees Answer: B) 120 degrees Explanation: Three-phase systems have phases spaced 120 degrees apart, providing balanced power delivery.
20. Which is a common type of lighting control system used to reduce energy consumption? A) Dimmers B) Occupancy sensors C) Timers D) All of the above Answer: D) All of the above Explanation: Dimmers, occupancy sensors, and timers help optimize lighting use and conserve energy. 21. What is the primary purpose of a transformer in electrical systems? A) To convert AC to DC
B) Power distribution in residential wiring C) Measuring electrical energy D) Providing backup power Answer: A) Automating industrial control processes Explanation: PLCs control machinery and processes in industrial automation systems.
24. When performing insulation resistance testing, a reading of very low resistance indicates: A) Good insulation B) Possible insulation failure or fault C) Proper wiring D) No issues detected Answer: B) Possible insulation failure or fault Explanation: Low resistance readings suggest insulation degradation or faults needing correction. 25. Which Kentucky regulation governs electrical licensing? A) Kentucky Building Code
B) Kentucky Electrical Licensing Act C) OSHA Kentucky Standards D) National Electrical Code Answer: B) Kentucky Electrical Licensing Act Explanation: Kentucky law specifies licensing requirements for electrical work to ensure safety and competency.
26. In energy-efficient lighting, which technology is most widely adopted for its longevity and low energy consumption? A) Incandescent bulbs B) Fluorescent tubes C) LED lights D) Halogen lamps Answer: C) LED lights Explanation: LEDs are energy-efficient, long-lasting, and increasingly used in modern lighting. 27. Which component is used to protect a circuit from overcurrent by disconnecting when a fault occurs?
29. Which of the following best describes a combination circuit? A) Circuits with both series and parallel components B) Circuits with only series components C) Circuits with only parallel components D) Circuits that alternate between series and parallel Answer: A) Circuits with both series and parallel components Explanation: Combination circuits contain both series and parallel elements to meet specific design needs. 30. When selecting a circuit breaker, what factor is most important? A) The color of the breaker B) The current rating matching the conductor size and load C) The brand of the breaker only D) The length of the circuit Answer: B) The current rating matching the conductor size and load
Explanation: Proper sizing ensures safety and compliance; the breaker’s rating must match the load and conductor capacity.
31. Which of the following is an example of a control device used in industrial automation? A) Relay B) Circuit breaker C) Fuse D) Receptacle Answer: A) Relay Explanation: Relays are electrically operated switches used to control circuits in automation systems. 32. What is the primary purpose of a surge protection device (SPD)? A) To regulate voltage B) To protect electrical equipment from voltage spikes C) To increase current capacity D) To act as a fuse
Answer: A) To turn off power for maintenance or emergency Explanation: Disconnect switches safely de-energize circuits for servicing or emergencies.
35. Which code article covers the requirements for branch circuits in commercial buildings? A) Article 220 B) Article 410 C) Article 210 D) Article 430 Answer: C) Article 210 Explanation: Article 210 of the NEC specifies branch circuit requirements, including wiring methods and sizing. 36. Which type of lighting is most energy-efficient? A) Incandescent B) Fluorescent C) LED D) Halogen
Answer: C) LED Explanation: LEDs consume less energy and have longer lifespans compared to other lighting types.
37. What is the function of a VFD (Variable Frequency Drive)? A) To control motor speed and torque B) To transform voltage levels C) To switch circuits on and off D) To regulate current flow Answer: A) To control motor speed and torque Explanation: VFDs modulate motor input frequency and voltage to control speed and efficiency. 38. In Kentucky, what is typically required to become a licensed electrician? A) Completion of an apprenticeship and passing a licensing exam B) Only a high school diploma C) Certification from a trade school only
