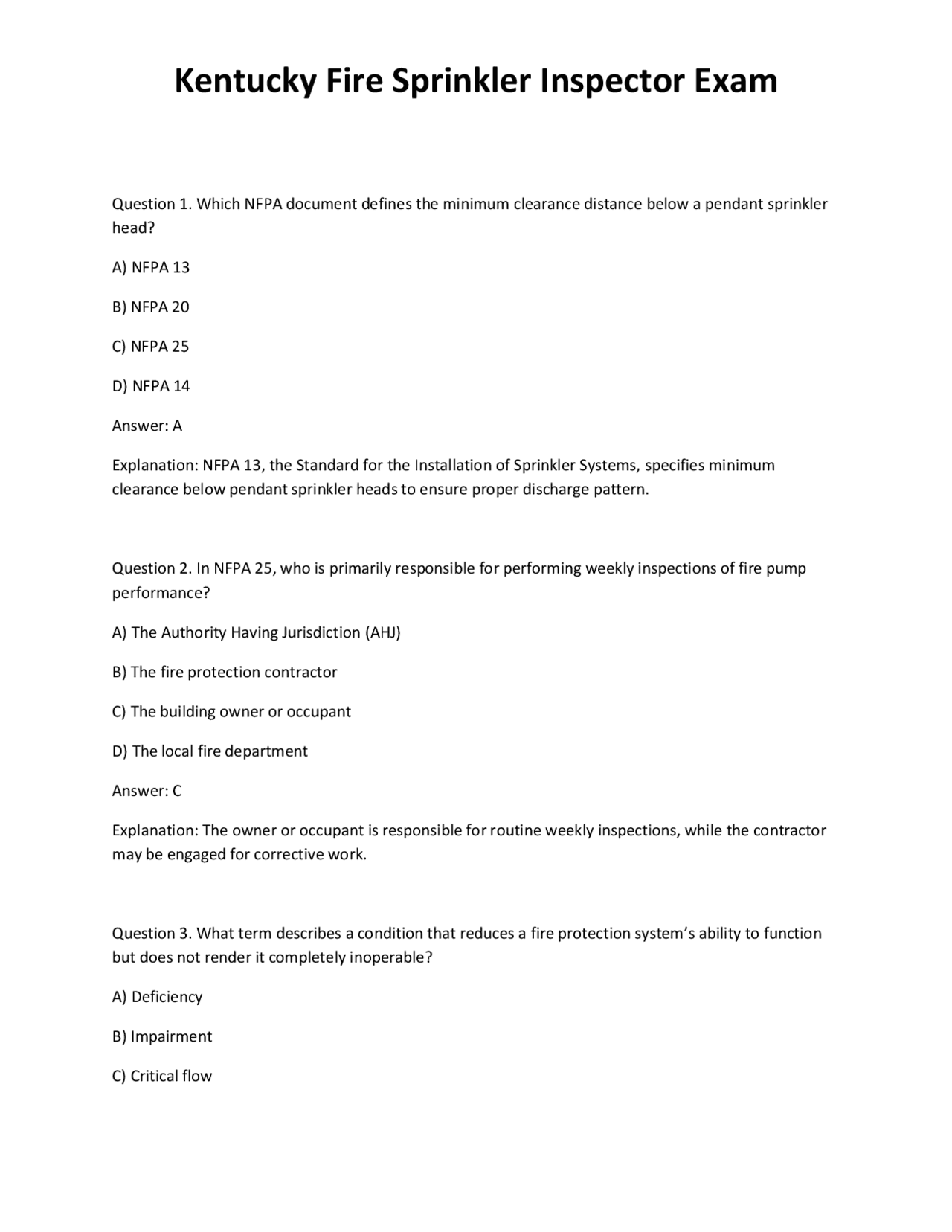

Question 1. Which NFPA document defines the minimum clearance distance below a pendant sprinkler head? A) NFPA 13 B) NFPA 20 C) NFPA 25 D) NFPA 14 Answer: A Explanation: NFPA 13, the Standard for the Installation of Sprinkler Systems, specifies minimum clearance below pendant sprinkler heads to ensure proper discharge pattern. Question 2. In NFPA 25, who is primarily responsible for performing weekly inspections of fire pump performance? A) The Authority Having Jurisdiction (AHJ) B) The fire protection contractor C) The building owner or occupant D) The local fire department Answer: C Explanation: The owner or occupant is responsible for routine weekly inspections, while the contractor may be engaged for corrective work. Question 3. What term describes a condition that reduces a fire protection system’s ability to function but does not render it completely inoperable? A) Deficiency B) Impairment C) Critical flow
D) Obsolete Answer: B Explanation: An impairment is a condition that adversely affects performance but may still allow limited operation, unlike a deficiency which is a deviation from required condition. Question 4. How often must a waterflow alarm be tested according to NFPA 25? A) Monthly B) Quarterly C) Annually D) Every 5 years Answer: B Explanation: Mechanical and electric waterflow alarms must be tested quarterly to verify proper operation. Question 5. Which of the following is NOT a required component of a fire pump acceptance test per NFPA 20? A) Performance curve verification B) Vibration analysis C) Suction and discharge pressure measurements D) Motor amperage reading Answer: B Explanation: NFPA 20 does not require vibration analysis for acceptance; the focus is on performance curves, pressures, and motor amperage. Question 6. The “acceptable loss” term in NFPA 25 refers to:
Explanation: Corrosion is a deficiency; it must be documented and the head replaced at the next scheduled major inspection. Question 9. The minimum retention period for fire protection inspection records is: A) 1 year B) 3 years C) 5 years D) 10 years Answer: C Explanation: NFPA 25 requires that inspection and test records be retained for at least five years. Question 10. Which of the following is a “qualified person” under NFPA 25? A) Any building occupant B) A person with documented training and experience in fire protection systems C) The property manager without technical training D) The local fire chief only Answer: B Explanation: A qualified person is defined as someone with the necessary training, experience, and knowledge to perform inspections and tests. Question 11. During a full‑flow test of a fire pump, the discharge pressure must be measured at: A) The pump suction inlet B) The pump discharge nozzle only C) The most remote fire department connection point
D) The nearest sprinkler head Answer: C Explanation: NFPA 25 requires measurement at the most remote point to ensure adequate pressure throughout the system. Question 12. Which type of fire sprinkler system requires an air‑pressure test each year? A) Wet pipe system B) Dry pipe system C) Pre‑action system D) Deluge system Answer: C Explanation: Pre‑action systems rely on air pressure to hold back water; an annual air‑leakage test verifies integrity. Question 13. The purpose of a “trip test” on a dry‑pipe system is to: A) Verify the sprinkler heads’ discharge pattern B) Confirm the dry‑pipe valve opens at the correct pressure C) Measure the water supply flow rate D) Test the fire alarm interface Answer: B Explanation: A trip test confirms that the dry‑pipe valve releases water when the set pressure is reached. Question 14. What is the required inspection interval for calibration or replacement of system pressure gauges?
Question 17. Which component’s annual inspection includes checking for proper anti‑freeze solution concentration? A) Fire pump suction pipe B) Sprinkler heads C) Fire service main hydrants D) Fire water storage tank Answer: D Explanation: Anti‑freeze solution is used in water storage tanks in cold climates; annual concentration checks are required. Question 18. A “5‑year internal assessment” of piping is performed to detect: A) Valve position errors B) Foreign organic material and MIC C) Incorrect pipe diameter D) Missing pipe hangers Answer: B Explanation: The internal assessment focuses on detecting microbiologically influenced corrosion and other organic deposits inside the pipe. Question 19. For a standpipe system, the hydrostatic test frequency for an automatic wet standpipe is: A) Every 1 year B) Every 3 years C) Every 5 years D) Every 10 years
Answer: C Explanation: NFPA 25 requires a hydrostatic test of automatic wet standpipe systems at five‑year intervals. Question 20. Which of the following is NOT a required step before conducting a fire pump flow test? A) Notifying the building owner B) Notifying the fire department or monitoring company C) Isolating the pump from the water supply D) Recording ambient temperature Answer: C Explanation: The pump must remain connected to the system during a flow test; isolation would prevent measurement of actual performance. Question 21. The term “obsolescence” in NFPA 25 most closely refers to: A) A component that no longer meets current code requirements B) A temporary shutdown of a system C) A minor leakage in a pipe D) An outdated inspection form Answer: A Explanation: Obsolescence means a component is outdated and does not comply with current standards, requiring replacement. Question 22. Which of the following is the correct procedure when a deficiency is found during a weekly inspection? A) Immediately shut down the entire system
Question 25. Which of the following fire pump types requires a fuel supply inspection at least annually? A) Electric motor‑driven pump B) Diesel engine‑driven pump C) Steam‑driven pump D) Hand‑operated pump Answer: B Explanation: Diesel engines rely on fuel; NFPA 25 requires annual inspection of fuel supply, filters, and tanks. Question 26. The correct action when a fire alarm indicates a waterflow alarm activation but no water is flowing is to: A) Reset the alarm and ignore the signal B) Perform a full flow test immediately C) Investigate the cause and treat it as a critical impairment if unresolved D) Replace the waterflow alarm device Answer: C Explanation: A false waterflow alarm may indicate a system problem; it must be investigated and reported as a critical impairment if not quickly resolved. Question 27. Which of the following is the proper frequency for testing a fire pump’s battery backup system? A) Weekly B) Monthly C) Quarterly
D) Annually Answer: D Explanation: NFPA 25 requires an annual test of the battery backup to ensure it can start the pump during a power outage. Question 28. In a deluge system, the detection device that triggers the system is typically: A) A heat‑sensitive sprinkler head B) A smoke detector C) A manual pull station D) A flame detector or heat detector Answer: D Explanation: Deluge systems are usually activated by flame or heat detectors, not by individual sprinkler heads. Question 29. Which of the following statements about “fire watch” is correct? A) It is optional during any system impairment B) It must be performed by a qualified person when a critical impairment exists C) It replaces the need for a system test D) It can be delegated to any building occupant Answer: B Explanation: A fire watch is mandatory during critical impairments and must be performed by a qualified individual to monitor for fire until the system is restored. Question 30. The required clearance between a sprinkler head and a ceiling surface for a pendant sprinkler is:
Question 33. Which inspection activity must be performed before the start of each heating season on a fire water tank in a cold climate? A) Visual inspection of the tank’s exterior paint B) Verification of anti‑freeze solution concentration C) Replacement of all internal linings D) Installation of a new pump Answer: B Explanation: Anti‑freeze solution concentration must be checked annually, especially before heating season, to prevent freezing. Question 34. When a fire pump’s performance curve shows a flow rate lower than design at required pressure, the appropriate corrective action is: A) Adjust the pump speed B) Replace the pump or modify the system to meet design flow C. Increase the suction pressure manually D. Ignore if the pressure is within acceptable loss limits Answer: B Explanation: If the pump cannot meet design flow at required pressure, it must be repaired, replaced, or the system re‑designed to comply. Question 35. Which of the following is the correct documentation required when placing a system into “impairment” status? A) A verbal note to the owner only B) A written impairment notice signed by a qualified person and retained in the inspection file
C) An email to the fire department without owner notification D) No documentation is required if the impairment is temporary Answer: B Explanation: NFPA 25 mandates a written impairment notice, signed by a qualified person, and retained for record‑keeping. Question 36. The minimum interval for testing a fire pump’s suction relief valve is: A) Monthly B) Quarterly C) Annually D) Every 5 years Answer: C Explanation: NFPA 25 requires annual testing of suction relief valves to verify they open at the correct pressure. Question 37. Which of the following is a required feature of a fire pump controller? A) Automatic temperature control B) Remote start capability C) Over‑current protection for the motor D) Integrated fire alarm panel Answer: C Explanation: Controllers must include over‑current protection to prevent motor damage during abnormal conditions.
Explanation: Critical flow testing identifies the flow at which the pump can still meet design pressure, confirming system adequacy. Question 41. Which type of valve must be tested annually for proper operation in a sprinkler system? A) Manual shut‑off valve B) Pressure‑reducing valve C) Main drain valve D) Air‑release valve Answer: C Explanation: NFPA 25 requires annual testing of the main drain valve to ensure it can be opened and closed correctly. Question 42. In a pre‑action system, the “double‑interlock” feature is intended to: A) Prevent accidental water discharge when the fire alarm is not activated B) Increase the flow rate of water through the system C) Reduce the time required for the system to trip D) Allow simultaneous operation of two pumps Answer: A Explanation: Double‑interlock ensures that both a fire detection signal and a valve command are required before water is released, preventing accidental discharge. Question 43. The required minimum number of fire pump tests per year for a building with a single pump is: A) One B) Two
C) Four D) Six Answer: B Explanation: NFPA 25 requires at least two performance tests per year for each fire pump (e.g., weekly and annual). Question 44. Which of the following is the correct method for verifying the correct operation of a pressure‑reducing valve in a sprinkler system? A) Visual inspection only B) Measuring inlet and outlet pressures and confirming the setpoint is met C) Listening for audible clicks during operation D) Checking the valve label for correct size Answer: B Explanation: Proper verification involves measuring pressures upstream and downstream to ensure the valve reduces pressure to the design setpoint. Question 45. When inspecting fire service mains, the presence of rust on the exterior surface is considered: A) An immediate critical impairment B) A deficiency that must be documented and monitored C) Acceptable as long as the interior is clean D) Irrelevant to system performance Answer: B Explanation: Exterior rust indicates potential corrosion; it must be documented and addressed before it compromises the pipe wall.
Answer: C Explanation: NFPA 25 requires both hydrostatic and flow testing of Class I standpipe systems at five‑year intervals. Question 49. The correct action when a fire pump’s suction pressure falls below the minimum required during a weekly test is: A) Continue operation and record the low pressure B) Shut down the pump, investigate the cause, and correct before next test C. Increase the pump speed to compensate D. Ignore if the discharge pressure is adequate Answer: B Explanation: Low suction pressure indicates a potential issue (e.g., cavitation) and must be investigated and corrected. Question 50. Which of the following is a required component of a fire water storage tank’s annual inspection? A) Painting the exterior surface B) Testing the internal coating for adhesion C. Installing a new overflow pipe D. Re‑pressurizing the tank to full capacity Answer: B Explanation: NFPA 25 requires inspection of internal coatings every five years, but an annual visual check for coating condition is also required. Question 51. The minimum required pressure setting for a dry‑pipe valve’s supervisory switch is:
A) 0 psi B) 5 psi above design pressure C) 10 psi below design pressure D) 2 psi above design pressure Answer: D Explanation: Supervisory switches are set to a low pressure (typically 2 psi) to indicate the valve is ready to open. Question 52. Which of the following best describes a “deficiency” in NFPA 25 terminology? A) A temporary shutdown of the system B) A condition that does not meet code or design requirements C) A minor cosmetic issue with no functional impact D) An outdated component that still works Answer: B Explanation: A deficiency is a deviation from required conditions that may affect system performance. Question 53. The required frequency for testing a fire pump’s automatic start‑on controller is: A) Weekly B) Monthly C) Quarterly D) Annually Answer: D Explanation: NFPA 25 requires annual testing of automatic start‑on controllers to verify proper operation.
