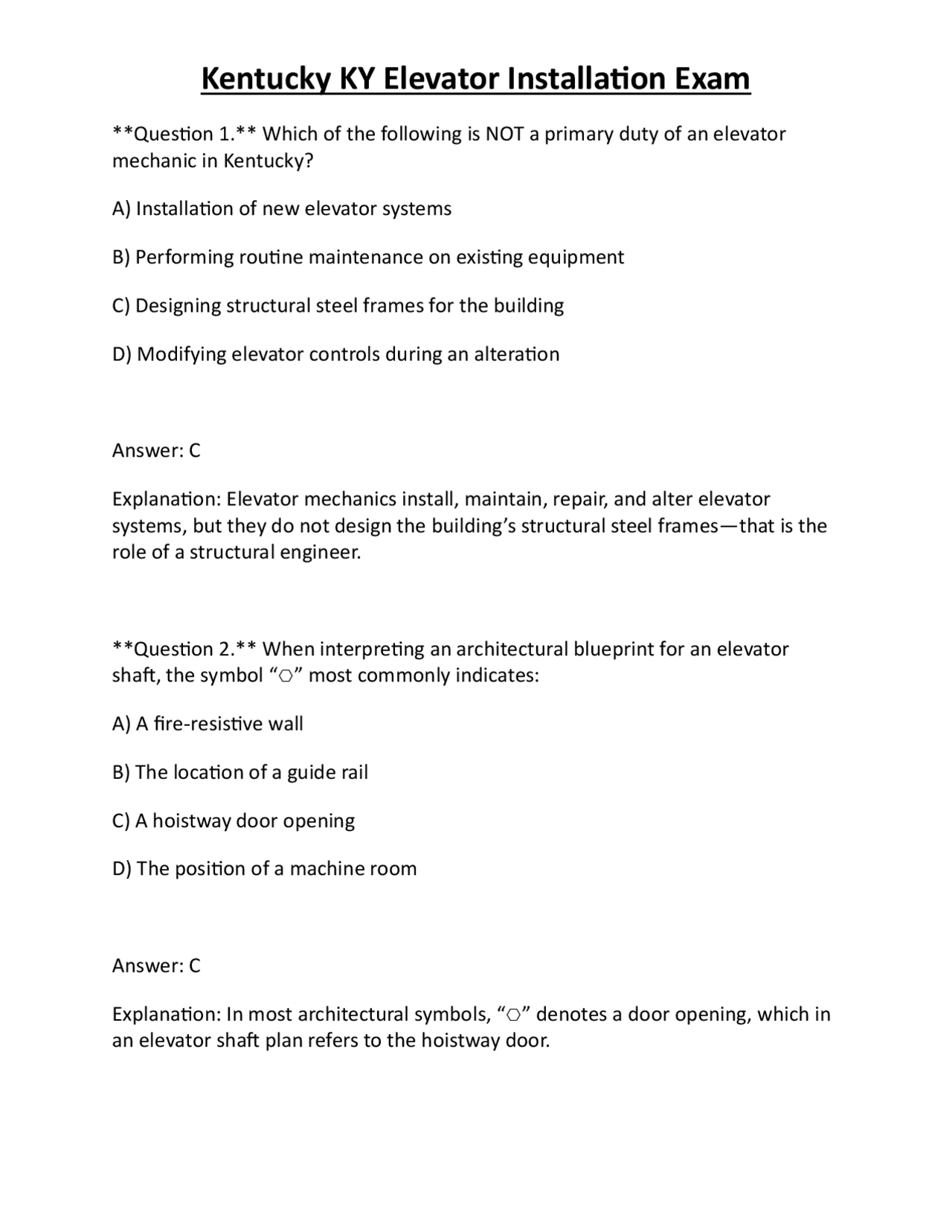

Question 1. Which of the following is NOT a primary duty of an elevator mechanic in Kentucky? A) Installation of new elevator systems B) Performing routine maintenance on existing equipment C) Designing structural steel frames for the building D) Modifying elevator controls during an alteration Answer: C Explanation: Elevator mechanics install, maintain, repair, and alter elevator systems, but they do not design the building’s structural steel frames—that is the role of a structural engineer. Question 2. When interpreting an architectural blueprint for an elevator shaft, the symbol “⎔” most commonly indicates: A) A fire‑resistive wall B) The location of a guide rail C) A hoistway door opening D) The position of a machine room Answer: C Explanation: In most architectural symbols, “⎔” denotes a door opening, which in an elevator shaft plan refers to the hoistway door.
Question 3. Under OSHA regulations, which of the following PPE is required when rigging a 2,500 lb elevator motor to a hoist? A) Hard hat only B) Steel‑toed boots and hearing protection C) Full‑body harness, hard hat, steel‑toed boots, and gloves D) Safety glasses and reflective vest Answer: C Explanation: Rigging heavy equipment requires a full‑body harness for fall protection, a hard hat, steel‑toed boots, and gloves to protect against crush injuries. Question 4. The proper Lockout/Tagout (LOTO) procedure for an elevator machine room requires the disconnect to be: A) Locked in the “ON” position B) Locked in the “OFF” position and tagged with the installer’s name C) Tagged only, without a lock D) Removed entirely from the panel Answer: B Explanation: LOTO requires the disconnect to be locked in the OFF position and tagged to identify the person who applied the lockout.
Question 7. According to ASME A17.1, the minimum fire‑resistive rating for a hoistway enclosure in a commercial building is: A) 30 minutes B) 1 hour C) 2 hours D) No rating required Answer: B Explanation: The code requires a minimum 1‑hour fire‑resistive rating for hoistway enclosures in most commercial installations. Question 8. The purpose of a pit ladder in an elevator pit is to: A) Provide a means for passengers to exit during an emergency B) Allow maintenance personnel safe access to the pit floor C) Serve as a fire‑escape route D) Support the pit’s structural load Answer: B Explanation: Pit ladders are installed to give maintenance workers safe, code‑compliant access to the pit for inspection and repairs.
Question 9. For a hydraulic elevator, the pit must include which of the following to protect the hydraulic cylinder? A) A sump pump with automatic shut‑off B) A fire‑sprinkler head directly above the cylinder C) A pressure relief valve installed inside the pit D) A dedicated grounding electrode Answer: A Explanation: Hydraulic pits often contain a sump pump to prevent water accumulation, which could damage the cylinder. Question 10. The minimum top‑of‑car refuge space required by ASME A17. for a traction elevator is: A) 24 in. × 24 in. × 30 in. B) 30 in. × 30 in. × 48 in. C) 36 in. × 36 in. × 60 in. D) No refuge space is required at the top Answer: B Explanation: The code specifies a minimum refuge space of 30 in. × 30 in. × 48 in. at the top of the car for traction elevators.
Question 13. The required minimum clear headroom in a machine room around a traction machine is: A) 6 ft B) 7 ft 6 in. C) 8 ft D) 9 ft Answer: C Explanation: ASME A17.1 mandates a minimum of 8 ft of clear headroom to allow safe access and service of the machine. Question 14. Guide rails for the car are typically installed using which method to ensure alignment? A) Welded directly to the concrete slab B) Bolted with adjustable shims and plumbed with a laser level C) Suspended from steel cables D) Secured with epoxy only Answer: B Explanation: Bolting with adjustable shims allows precise alignment, and a laser level ensures the rails are plumb and level.
Question 15. When assembling the car frame, the term “sling” refers to: A) The safety rope used during installation B) The steel framework that supports the car floor C) The hydraulic jack used to lift the car D) The decorative panel covering the car Answer: B Explanation: The sling is the steel structural framework that forms the base of the elevator car. Question 16. The function of compensating ropes in a traction elevator is to: A) Reduce the load on the motor during start‑up B) Balance the weight of the car and counterweight as the car moves C) Act as a secondary safety device in case of rope failure D) Provide a backup power source Answer: B Explanation: Compensating ropes offset the varying weight of the car and counterweight over the travel range, keeping the system balanced. Question 17. According to the ASME A17.1, the maximum allowable rope wear before replacement is:
B) Mechanical bump stop C) Hydraulic shock absorber D) Magnetic eddy‑current buffer Answer: A Explanation: Spring‑loaded oil buffers are standard for absorbing impact energy at the bottom of hydraulic pits. Question 20. In a geared traction machine, the “gear ratio” refers to: A) The number of teeth on the drive gear divided by the number of teeth on the sheave gear B) The speed of the motor relative to the speed of the car C) The torque multiplication factor between motor and sheave D) The voltage reduction from the motor to the control panel Answer: C Explanation: The gear ratio determines how motor torque is multiplied to drive the sheave, affecting acceleration and speed. Question 21. NEC Article 620 primarily addresses: A) Electrical safety for residential wiring B) Wiring requirements for elevators, escalators, and moving walks
C) Fire alarm system installation D) Ground‑fault circuit interrupters Answer: B Explanation: NEC Article 620 contains the electrical code requirements specific to elevators, escalators, and moving walks. Question 22. The main line disconnect for an elevator must be located: A) Inside the car’s operating panel B) Within sight of the drive machine and capable of being locked out C) In the building’s main electrical room, far from the machine D) On the same panel as the building’s lighting circuits Answer: B Explanation: The main line disconnect must be within sight of the drive machine and lockable for safety and maintenance. Question 23. Which of the following is a required feature of a Variable Frequency Drive (VFD) used in modern traction elevators? A) Built‑in fire‑alarm interface B) Automatic overload protection set at 150 % of rated current C) Capability to provide regenerative braking
D) Activate the emergency alarm Answer: B Explanation: The final limit switch monitors travel and shuts off the drive if the car exceeds its designed travel limits, preventing over‑travel. Question 26. A Car Operating Panel (COP) must be located at a height of: A) 30 in. to 48 in. above the floor, measured from the finished floor B) 24 in. to 36 in. above the floor, measured from the pit floor C) 48 in. to 60 in. above the floor, measured from the car floor D) No specific height requirement Answer: A Explanation: ADA and ASME A17.1 require COP controls to be between 30 in. and 48 in. above the finished floor for accessibility. Question 27. The required two‑way emergency communication system for elevators must: A) Operate only when the car is at the lobby level B) Provide a direct voice link to a location outside the building, such as a fire command center C) Use a wireless radio system that does not require wiring
D) Be limited to a visual alarm light Answer: B Explanation: The emergency communication system must provide a direct voice link to a location outside the building for rescue coordination. Question 28. In a hydraulic elevator, the cylinder’s “hole‑less” design primarily eliminates the need for: A) A pressure relief valve B) A hydraulic fluid filter C) A large pit for cylinder clearance D) A vent pipe in the pit Answer: C Explanation: Hole‑less cylinders do not require a pit deep enough to accommodate the cylinder’s rod travel, reducing pit size. Question 29. The correct method for setting a hydraulic relief valve is to: A) Adjust it to a pressure 10 % above the system’s maximum operating pressure B) Set it exactly at the manufacturer’s rated maximum system pressure C) Install it with a preset pressure of 150 psi regardless of system design D) Bypass the relief valve and rely on a pressure gauge
Answer: D Explanation: Hoistway door locking devices serve all listed functions, ensuring safety and security. Question 32. When installing a power‑operated car door, the door operator must be positioned: A) Directly above the door pivot point B) Within 12 in. of the door’s top rail C) At least 6 in. away from the door’s trailing edge to avoid interference D) On the opposite wall of the car Answer: C Explanation: The operator must be spaced to avoid contact with the moving door while providing adequate torque. Question 33. A hoistway access switch is required to be installed at which locations? A) Only at the top of the hoistway B) Only at the pit level C) Both the top of the car and the pit level D) No access switch is required for MRL elevators
Answer: C Explanation: Access switches provide safe entry points at both the pit and the top of the car for maintenance personnel. Question 34. Phase I Firefighter’s Service (FEO) for an elevator provides: A) In‑car operation of the elevator by the fire department B) Automatic recall of the car to a designated floor with doors open C) A manual override that disables all car controls D) A fire‑resistive enclosure for the machine room Answer: B Explanation: Phase I FEO recalls the car to a designated floor and holds the doors open for firefighter entry. Question 35. Phase II Firefighter’s Service allows: A) Only the fire department to operate the elevator from the fire command center B) Full in‑car operation of the elevator by the fire department after recall C) Automatic shutdown of the elevator power supply during fire alarm D) None of the above Answer: B
Explanation: A shunt‑trip disconnects power to prevent electrical hazards when water from sprinklers is present. Question 38. The Kentucky Revised Statutes (KRS) that specifically governs elevator licensing is: A) KRS 198B. B) KRS 207. C) KRS 401. D) KRS 123. Answer: A Explanation: KRS 198B outlines the licensing requirements for elevator contractors and mechanics in Kentucky. Question 39. According to Kentucky Administrative Regulations (KAR), the permit for a new elevator installation must be obtained from: A) The local fire marshal only B) The Kentucky Department of Buildings and Construction C) The county health department D) The state licensing board Answer: B
Explanation: The Kentucky Department of Buildings and Construction issues permits for new elevator installations. Question 40. The ADA requirement for elevator car dimensions in a public building is a minimum clear floor area of: A) 36 in. × 48 in. B) 48 in. × 48 in. C) 54 in. × 54 in. D) 60 in. × 60 in. Answer: B Explanation: ADA specifies a minimum clear floor area of 48 in. × 48 in. for wheelchair access. Question 41. The Category 5 acceptance test for a newly installed elevator includes which of the following? A) Load testing with 150 % of rated capacity B) Visual inspection only, no functional testing C) Testing of every safety device, door operation, and emergency system under normal conditions D) Annual inspection after one year of service Answer: C
