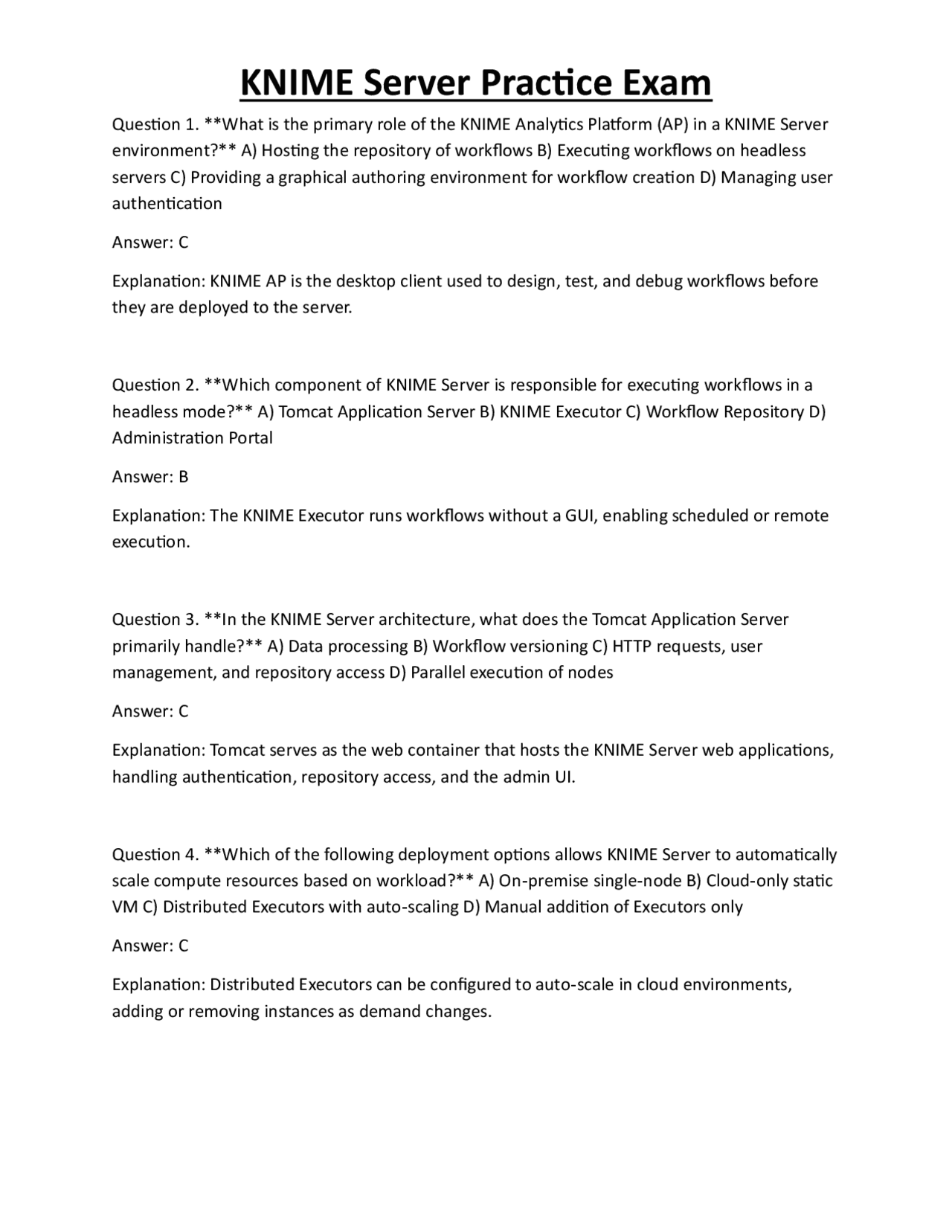

Question 1. What is the primary role of the KNIME Analytics Platform (AP) in a KNIME Server environment? A) Hosting the repository of workflows B) Executing workflows on headless servers C) Providing a graphical authoring environment for workflow creation D) Managing user authentication Answer: C Explanation: KNIME AP is the desktop client used to design, test, and debug workflows before they are deployed to the server. Question 2. Which component of KNIME Server is responsible for executing workflows in a headless mode? A) Tomcat Application Server B) KNIME Executor C) Workflow Repository D) Administration Portal Answer: B Explanation: The KNIME Executor runs workflows without a GUI, enabling scheduled or remote execution. Question 3. In the KNIME Server architecture, what does the Tomcat Application Server primarily handle? A) Data processing B) Workflow versioning C) HTTP requests, user management, and repository access D) Parallel execution of nodes Answer: C Explanation: Tomcat serves as the web container that hosts the KNIME Server web applications, handling authentication, repository access, and the admin UI. Question 4. Which of the following deployment options allows KNIME Server to automatically scale compute resources based on workload? A) On‑premise single‑node B) Cloud‑only static VM C) Distributed Executors with auto‑scaling D) Manual addition of Executors only Answer: C Explanation: Distributed Executors can be configured to auto‑scale in cloud environments, adding or removing instances as demand changes.
Question 5. When a workflow is uploaded to KNIME Server, where is the file system representation stored? A) In a relational database B) Inside the Tomcat webapps folder C) In the Workflow Repository directory D) In the user’s home directory on the Executor Answer: C Explanation: The Workflow Repository is a file‑system based storage that contains workflow files, snapshots, and permission metadata. Question 6. What is the effect of enabling “offloading” in KNIME Server configuration? A) Workflows run on the Tomcat JVM B) All data is stored in the cloud C) Compute‑intensive nodes are sent to Executors D) Users can edit workflows remotely Answer: C Explanation: Offloading sends heavy processing to dedicated Executors, freeing the server’s resources. Question 7. Which of the following is NOT a valid KNIME Server installation prerequisite? A) Java JDK 8 or higher B) Sufficient disk space for the repository C) PostgreSQL database for user management D) An NVIDIA GPU for node execution Answer: D Explanation: While GPUs can accelerate certain nodes, they are not a prerequisite for installing KNIME Server. Question 8. During initial KNIME Server setup, which file is used to configure server properties such as port numbers and database connections? A) knime-server.properties B) server.xml C) knime-server.config D) executor.ini Answer: C Explanation: The knime-server.config file holds key server configuration parameters. Question 9. What type of change requires a full KNIME Server restart (ST) to take effect? A) Adding a new user group B) Modifying the executor JVM heap size C) Changing the HTTPS keystore D) Updating a workflow’s node configuration
Question 14. If a workflow fails because an Executor cannot be reached, what is the most likely cause? A) Insufficient disk space on the server B) Network firewall blocking the Executor’s port C) Incorrect node configuration D) Missing user permissions on the workflow Answer: B Explanation: Executors communicate over a dedicated port; a firewall rule can prevent the server from contacting the Executor. Question 15. What is the purpose of the “mount point” when connecting KNIME Analytics Platform to KNOME Server? A) To map a local folder to the server repository B) To enable direct editing of remote workflows C) To synchronize user preferences D) To store secret credentials locally Answer: B Explanation: A mount point presents the server repository as a virtual folder, allowing remote editing of workflows. Question 16. When a workflow is edited directly on the server (remote editor), what happens to the local copy on the client? A) It is automatically overwritten B) It remains unchanged until manually refreshed C) It is deleted D) It is merged automatically with the server version Answer: B Explanation: The client’s local copy stays static; users must refresh or pull the latest version to see changes. Question 17. How does KNIME Server handle workflow versioning? A) By storing each change as a Git commit B) By creating snapshot files with timestamps C) By overwriting the previous file without backup D) By using a relational database to track differences Answer: B Explanation: Each time a workflow is saved, the server creates a snapshot that can be commented and later restored.
Question 18. What information is typically included in a workflow snapshot comment? A) Node execution times B) User who made the change and a description C) Database connection strings D) License information Answer: B Explanation: Snapshot comments help users understand the purpose of a version, often including the author and rationale. Question 19. If a user wants to compare two workflow snapshots, which feature should they use? A) Workflow Diff Viewer B) Node Execution Log C) Executor Statistics D) Repository Browser Answer: A Explanation: The Diff Viewer highlights differences between selected snapshots. Question 20. What happens when a workflow is overwritten on the server without creating a new snapshot? A) The previous version is permanently lost B) The server automatically creates an implicit snapshot C) Users are prevented from saving D) The workflow is locked for editing Answer: B Explanation: KNIME Server always creates a snapshot before overwriting, ensuring a backup exists. Question 21. Which component allows reusable workflow pieces to be shared across multiple workflows on the server? A) Nodes B) Components C) Templates D) Macros Answer: B Explanation: Components encapsulate sub‑workflows that can be stored, versioned, and reused. Question 22. When a Component stored on the server is updated, how are dependent workflows affected? A) They automatically receive the updated Component B) They remain
Question 27. If a workflow folder has “Read” permission for a group, what can members of that group do? A) Edit workflows B) Delete workflows C) Execute workflows D) Change folder permissions Answer: C Explanation: Read permission on a folder grants view access; Execute permission on the workflow itself is required to run it. However, in KNIME Server, folder “Read” also permits execution of contained workflows. Question 28. What does the “Owner” permission level grant a user? A) Only read access B) Read, write, and execute rights plus permission management C) Execute rights only D) Ability to view logs only Answer: B Explanation: Owners can fully manage the workflow, including changing permissions and deleting it. Question 29. Which setting improves security when storing configuration files on the server? A) Using plain‑text passwords B) Setting file permissions to 777 C) Encrypting sensitive values with the Secret Store D) Disabling HTTPS Answer: C Explanation: The Secret Store encrypts credentials, preventing exposure in config files. Question 30. What protocol must be enabled to ensure encrypted communication between clients and KNIME Server? A) HTTP B) FTP C) HTTPS/TLS D) SSH Answer: C Explanation: HTTPS/TLS provides encrypted transport for web UI and API calls. Question 31. Which of the following is a recommended practice for running KNIME Server in production? A) Running Tomcat as root B) Storing logs in the user’s home directory C) Using a dedicated non‑root service account D) Disabling firewall rules on the server host
Answer: C Explanation: Running services under a non‑root account limits potential damage from exploits. Question 32. When configuring LDAP authentication, which attribute typically maps to the KNIME Server username? A) uid B) cn C) mail D) sn Answer: A Explanation: The “uid” attribute is commonly used as the login identifier in LDAP. Question 33. What is the primary purpose of the “Job” concept in KNIME Server? A) To store workflow versions B) To represent a single execution instance of a workflow C) To define user permissions D) To schedule recurring executions only Answer: B Explanation: A Job is a snapshot of a workflow at the moment it is executed, containing its state and parameters. Question 34. Which of the following actions can be performed on a completed job via the Administration Portal? A) Edit the workflow nodes B) Restart the job with the same parameters C) Delete the job’s history D) Change the job’s owner Answer: C Explanation: Completed job records can be removed to free storage; editing the workflow is not possible through a job. Question 35. What does “job swapping” refer to in KNIME Server? A) Replacing a running job with a newer version B) Moving a job from memory to disk when inactive C) Switching execution between Executors D) Changing the job’s priority queue Answer: B Explanation: Inactive jobs are swapped out to disk to conserve memory, allowing the server to handle many concurrent jobs.
Question 40. In a WebPortal page, how are multiple components arranged visually? A) By dragging them in the Workflow Editor B) Using the “Layout” tab of the Component node C) Through the WebPortal Designer’s drag‑and‑drop canvas D) By editing the HTML source directly Answer: C Explanation: The WebPortal Designer provides a canvas where components can be placed and resized. Question 41. What happens when a user clicks “Re‑execute” on a WebPortal page? A) The entire server restarts B) The underlying workflow is triggered with the current widget values C) Only the selected node is re‑run D) The page is refreshed without running the workflow Answer: B Explanation: “Re‑execute” sends the current widget inputs to the server, launching a new job. Question 42. Which node defines the input schema for a workflow deployed as a REST service? A) REST Service Node B) Container Input Node C) JSON Reader D) HTTP Retriever Answer: B Explanation: The Container Input node specifies expected inputs (tables, files, primitives) for the service. Question 43. How can an external application invoke a KNIME REST service? A) By sending an HTTP POST request to the service URL B) By uploading a workflow zip file C) By using the KNIME Java API only D) By editing the server’s web.xml file Answer: A Explanation: REST services are accessed via HTTP methods; POST is used for sending data to the service. Question 44. When deploying a workflow as a REST service, which node is used to return results to the caller? A) Container Output Node B) CSV Writer C) HTTP Response Node D) REST Output Node Answer: A
Explanation: The Container Output node defines what data is sent back in the service response. Question 45. What is the purpose of the “Secret Store” in KNIME Server? A) To version control workflow snapshots B) To store encrypted credentials and API keys C) To log execution history D) To manage user groups Answer: B Explanation: The Secret Store securely holds sensitive information, preventing exposure in plain text. Question 46. How does a workflow retrieve a password from the Secret Store? A) Using a “String Input” node B) By referencing a “Secret Key” node C) Through a “Database Reader” node D) By hard‑coding the value in a Java Snippet Answer: B Explanation: The Secret Key node fetches encrypted values at runtime. Question 47. Which of the following is a best practice when using the Secret Store? A) Store the same secret in multiple keys B) Grant read access to all users C) Rotate secrets regularly D) Keep secrets in plain‑text configuration files as a backup Answer: C Explanation: Regular rotation reduces the risk of compromised credentials. Question 48. What file format is used for BIRT reports generated on KNIME Server? A) .pdf B) .html C) .rptdesign D) .docx Answer: C Explanation: BIRT reports are defined in .rptdesign files, which can be rendered to various output formats. Question 49. How can a BIRT report be attached to an email notification from a scheduled job? A) By adding a “Send Mail” node in the workflow B) By configuring the “Report” tab in
Question 53. Which configuration file controls the number of concurrent jobs a KNIME Executor may run? A) executor.config B) knime-server.config C) tomcat-users.xml D) knime- executor.properties Answer: A Explanation: executor.config contains executor‑specific settings, including max concurrent jobs. Question 54. In a hybrid deployment, where are the workflow repositories typically stored? A) Only on the on‑premise server B) Only in a cloud object store C) In a shared network file system accessible by both on‑premise and cloud Executors D) In each Executor’s local disk only Answer: C Explanation: A shared repository (e.g., NFS, S3 mounted) enables both environments to access the same workflows. Question 55. Which of the following is NOT a valid way to trigger a workflow on KNIME Server? A) Manual start from the WebPortal B) Scheduled execution C) REST API call D) Direct execution of a .knwf file on the server file system Answer: D Explanation: Workflows must be executed via the server’s job management; direct file execution bypasses server controls. Question 56. What does the “Execute on Server” option in the KNIME Analytics Platform do? A) Runs the workflow locally B) Uploads the workflow and starts a job on the server C) Generates a PDF report D) Opens the workflow in a remote editor only Answer: B Explanation: Selecting “Execute on Server” sends the workflow to the server, creates a job, and runs it remotely. Question 57. When configuring an Executor, which parameter defines the maximum heap size for the JVM? A) - Xms B) - Xmx C) - XX:MaxPermSize D) - Djava.security.manager Answer: B
Explanation: - Xmx sets the maximum heap allocation for the Java process. Question 58. Which of the following actions requires the user to have “Write” permission on a workflow? A) Viewing the workflow in the WebPortal B) Executing the workflow C) Editing nodes and saving changes D) Scheduling the workflow Answer: C Explanation: Write permission allows modification of the workflow’s design. Question 59. What is the effect of assigning a user the “Administrator” role in KNIME Server? A) Ability to edit all workflows B) Full access to the Administration Portal, including user and server settings C) Only read access to server logs D) Ability to create Executors but not manage users Answer: B Explanation: Administrators have unrestricted control over server configuration, users, groups, and global settings. Question 60. Which of the following authentication methods supports Single Sign‑On (SSO) via external identity providers? A) Local database B) LDAP C) OpenID Connect D) HTTP Basic Auth Answer: C Explanation: OpenID Connect is designed for SSO integration with providers such as Azure AD, Keycloak, or Okta. Question 61. If a workflow uses a Python node, where must the Python environment be configured for server execution? A) In the client’s local preferences only B) In the server’s global preferences or via a Preference Profile C) Inside the workflow zip file D) In the Tomcat server.xml file Answer: B Explanation: Server‑side Python environments are defined in the global KNIME Server preferences or distributed via .epf files.
Question 66. What is the main advantage of using the “Component Linking” feature in KNIME Server? A) Reduces the size of the workflow repository B) Allows multiple workflows to share a single component instance C) Enables automatic version upgrades of the component across all linked workflows D) Provides real‑time synchronization of node parameters between workflows Answer: C Explanation: Linking a component ensures that updates to the component are propagated to all workflows that reference it. Question 67. Which of the following is true about workflow snapshots stored on the server? A) They are stored as binary .knwf files only B) Each snapshot includes a comment and timestamp C) Snapshots cannot be restored once overwritten D) Snapshots are automatically deleted after 30 days Answer: B Explanation: Snapshots contain metadata such as user comments and timestamps for auditability. Question 68. In the Administration Portal, where can you view the history of all executed jobs? A) Users → Activity Log B) Jobs → Overview C) Monitoring → Executor Stats D) System → Log Files Answer: B Explanation: The Jobs → Overview page lists all jobs with status, start/end times, and owner. Question 69. What does the “Execute as Service” option do when publishing a workflow as a REST service? A) Runs the workflow on the client machine B) Starts a persistent service that can be called repeatedly C) Executes the workflow once and stops D) Converts the workflow into a Java JAR file Answer: B Explanation: Publishing as a service creates a persistent endpoint that can be invoked multiple times.
Question 70. Which node is required to expose a workflow’s output as a downloadable file in a WebPortal application? A) File Upload node B) File Download node C) Container Output node D) Export to CSV node Answer: C Explanation: Container Output can return files (e.g., CSV, ZIP) that the WebPortal presents as download links. Question 71. When using LDAP authentication, which configuration file stores the LDAP server URL? A) knime-server.config B) ldap.properties C) tomcat-users.xml D) server.xml Answer: A Explanation: knime-server.config includes entries such as knime.server.ldap.url. Question 72. What is the effect of setting “knime.server.security.enableHttps=true” in the server configuration? A) Enables HTTP basic authentication B) Forces all client connections to use HTTPS C) Disables all remote execution D) Enables LDAP over SSL only Answer: B Explanation: This flag tells Tomcat to require HTTPS for all web traffic. Question 73. Which of the following statements best describes “auto‑scaling” of Executors? A) Executors automatically increase their JVM heap size B) New Executor instances are launched based on queue length C) Executors duplicate workflow files to improve redundancy D) Executors switch between on‑premise and cloud resources automatically Answer: B Explanation: Auto‑scaling monitors job queues and spins up additional Executor containers when demand exceeds capacity. Question 74. How can you restrict a workflow so that only members of a specific group can schedule it? A) Set the workflow’s Execute permission to “Group” only B) Assign the workflow to a private folder owned by the group C) Use a custom Java policy D) Disable scheduling globally and enable per‑workflow via a script
Question 79. What does the “Execute on Server” checkbox do in the KNIME WebPortal page editor? A) Forces the workflow to run locally in the browser B) Allows the page to trigger a server‑side job when the user presses “Run” C) Disables all widgets on the page D) Sends the workflow to a remote Git repository Answer: B Explanation: This setting ensures that the WebPortal triggers a server‑side execution rather than a client‑side run. Question 80. Which of the following log levels is most appropriate for debugging a failing REST service? A) INFO B) WARN C) DEBUG D) ERROR Answer: C Explanation: DEBUG provides detailed internal information useful for troubleshooting service failures. Question 81. In KNIME Server, what is the effect of enabling “Read‑Only” mode for a workflow folder? A) Users can execute workflows but not edit them B) Workflows cannot be executed at all C) All files inside the folder become hidden D) New versions cannot be created, but existing jobs continue to run Answer: A Explanation: Read‑Only permission allows execution while preventing modifications. Question 82. Which node type is essential for exposing a workflow as an interactive Guided Analytics application? A) Table Writer B) Widget Node C) Loop End D) CSV Reader Answer: B Explanation: Widgets provide UI controls that end‑users interact with in the WebPortal. Question 83. When deploying a workflow as a REST service, how are input parameters passed to the service? A) As URL query strings only B) Via JSON payload, multipart form‑data, or
query parameters depending on node configuration C) Only through HTTP headers D) Through a separate configuration file uploaded with the request Answer: B Explanation: The Container Input node defines accepted parameter types; the service can accept JSON, multipart, or query parameters. Question 84. Which of the following statements about the KNIME Secret Store is correct? A) Secrets are stored in plain text on the Executor B) Secrets can be accessed by any user with Execute permission C) Secrets are encrypted using a server‑wide master key D) Secrets are only available during workflow design, not at runtime Answer: C Explanation: The Secret Store encrypts values with a master key, protecting them from unauthorized access. Question 85. What is the primary purpose of the “Workflow Execution History” view in the WebPortal? A) To edit past workflow runs B) To display a list of previously executed jobs with status and timestamps C) To configure scheduling D) To manage user permissions Answer: B Explanation: The Execution History shows past runs, allowing users to view results or re‑execute. Question 86. Which component of KNIME Server is responsible for handling HTTPS termination? A) KNIME Executor B) Tomcat Application Server C) KNIME Analytics Platform D) REST Service Node Answer: B Explanation: Tomcat manages TLS/SSL termination for inbound HTTP(S) traffic. Question 87. When a workflow includes a “Database Writer” node, where should the database driver JAR be placed for server execution? A) In the client’s local KNIME plugins
