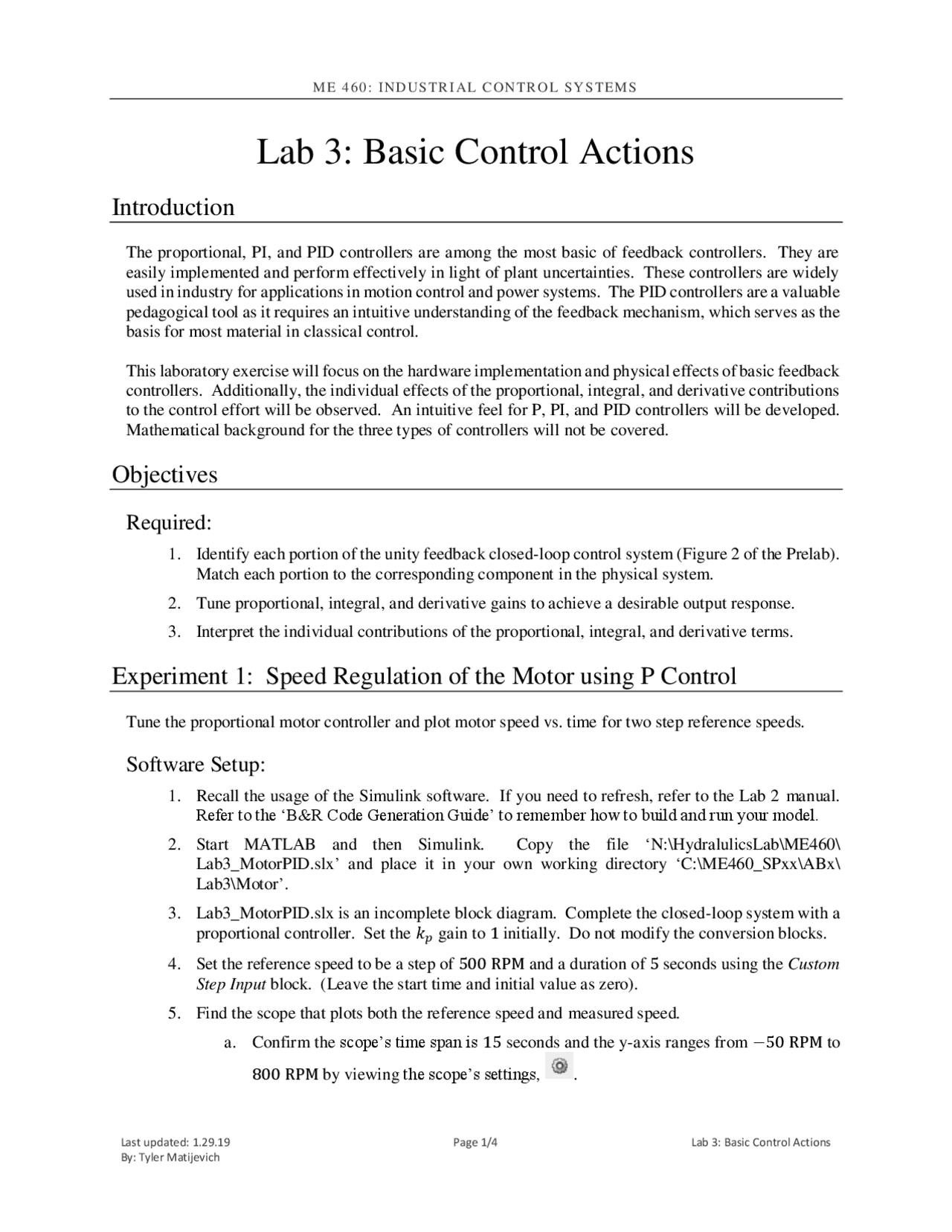

ME 460: INDUSTRIAL CONTROL SYSTEMS
Last updated: 1.29.19
By: Tyler Matijevich
Page 1/4
Lab 3: Basic Control Actions
Lab 3: Basic Control Actions
Introduction
The proportional, PI, and PID controllers are among the most basic of feedback controllers. They are
easily implemented and perform effectively in light of plant uncertainties. These controllers are widely
used in industry for applications in motion control and power systems. The PID controllers are a valuable
pedagogical tool as it requires an intuitive understanding of the feedback mechanism, which serves as the
basis for most material in classical control.
This laboratory exercise will focus on the hardware implementation and physical effects of basic feedback
controllers. Additionally, the individual effects of the proportional, integral, and derivative contributions
to the control effort will be observed. An intuitive feel for P, PI, and PID controllers will be developed.
Mathematical background for the three types of controllers will not be covered.
Objectives
Required:
1. Identify each portion of the unity feedback closed-loop control system (Figure 2 of the Prelab).
Match each portion to the corresponding component in the physical system.
2. Tune proportional, integral, and derivative gains to achieve a desirable output response.
3. Interpret the individual contributions of the proportional, integral, and derivative terms.
Experiment 1: Speed Regulation of the Motor using P Control
Tune the proportional motor controller and plot motor speed vs. time for two step reference speeds.
Software Setup:
1. Recall the usage of the Simulink software. If you need to refresh, refer to the Lab 2 manual.
Refer to the ‘B&R Code Generation Guide’ to remember how to build and run your model.
2. Start MATLAB and then Simulink. Copy the file ‘N:\HydralulicsLab\ME460\
Lab3_MotorPID.slx’ and place it in your own working directory ‘C:\ME460_SPxx\ABx\
Lab3\Motor’.
3. Lab3_MotorPID.slx is an incomplete block diagram. Complete the closed-loop system with a
proportional controller. Set the 𝑘𝑝 gain to 1 initially. Do not modify the conversion blocks.
4. Set the reference speed to be a step of 500 RPM and a duration of 5 seconds using the Custom
Step Input block. (Leave the start time and initial value as zero).
5. Find the scope that plots both the reference speed and measured speed.
a. Confirm the scope’s time span is 15 seconds and the y-axis ranges from −50 RPM to
800 RPM by viewing the scope’s settings, .
