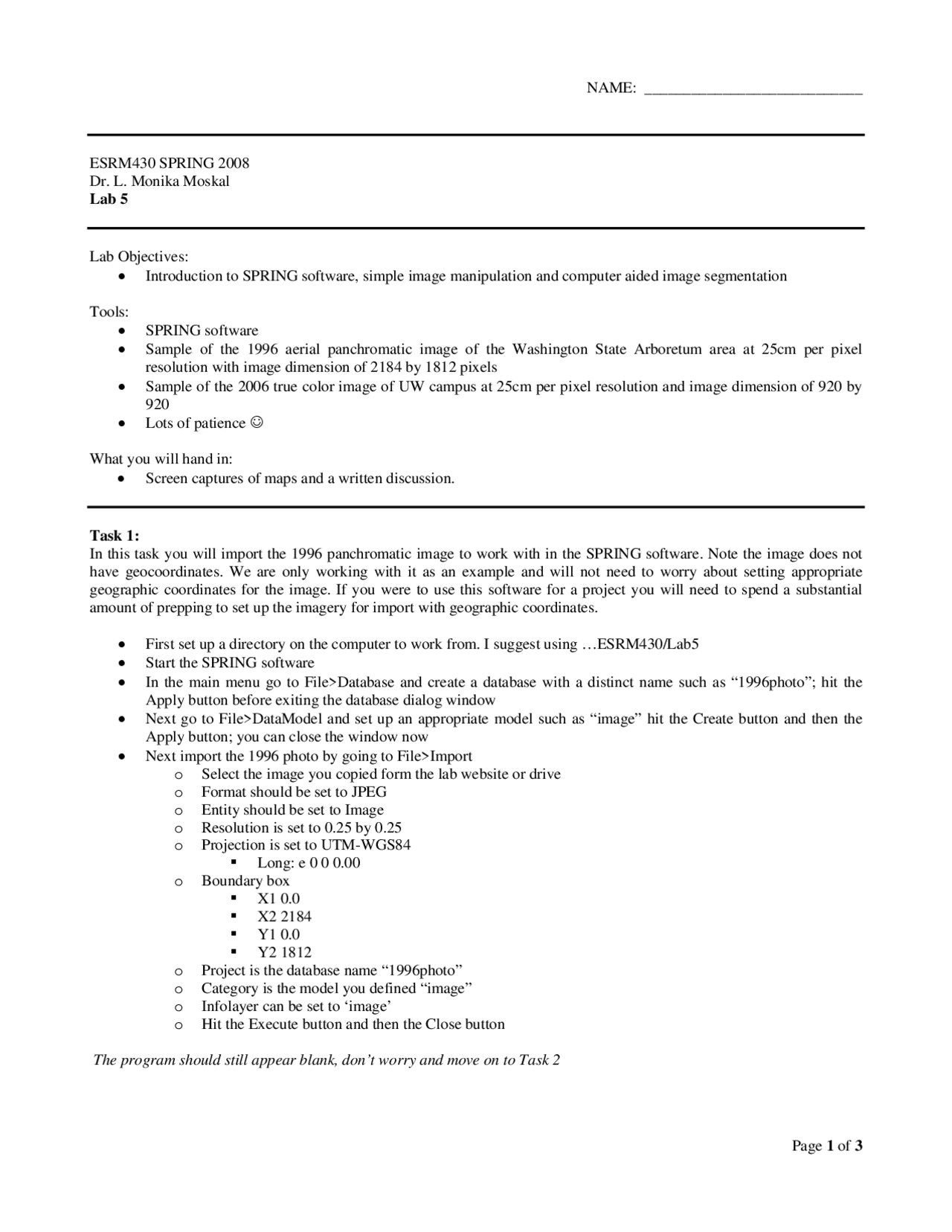

Page 1 of 3
NAME: ____________________________
ESRM430 SPRING 2008
Dr. L. Monika Moskal
Lab 5
Lab Objectives:
• Introduction to SPRING software, simple image manipulation and computer aided image segmentation
Tools:
• SPRING software
• Sample of the 1996 aerial panchromatic image of the Washington State Arboretum area at 25cm per pixel
resolution with image dimension of 2184 by 1812 pixels
• Sample of the 2006 true color image of UW campus at 25cm per pixel resolution and image dimension of 920 by
920
• Lots of patience ☺
What you will hand in:
• Screen captures of maps and a written discussion.
Task 1:
In this task you will import the 1996 panchromatic image to work with in the SPRING software. Note the image does not
have geocoordinates. We are only working with it as an example and will not need to worry about setting appropriate
geographic coordinates for the image. If you were to use this software for a project you will need to spend a substantial
amount of prepping to set up the imagery for import with geographic coordinates.
• First set up a directory on the computer to work from. I suggest using …ESRM430/Lab5
• Start the SPRING software
• In the main menu go to File>Database and create a database with a distinct name such as “1996photo”; hit the
Apply button before exiting the database dialog window
• Next go to File>DataModel and set up an appropriate model such as “image” hit the Create button and then the
Apply button; you can close the window now
• Next import the 1996 photo by going to File>Import
o Select the image you copied form the lab website or drive
o Format should be set to JPEG
o Entity should be set to Image
o Resolution is set to 0.25 by 0.25
o Projection is set to UTM-WGS84
Long: e 0 0 0.00
o Boundary box
X1 0.0
X2 2184
Y1 0.0
Y2 1812
o Project is the database name “1996photo”
o Category is the model you defined “image”
o Infolayer can be set to ‘image’
o Hit the Execute button and then the Close button
The program should still appear blank, don’t worry and move on to Task 2
