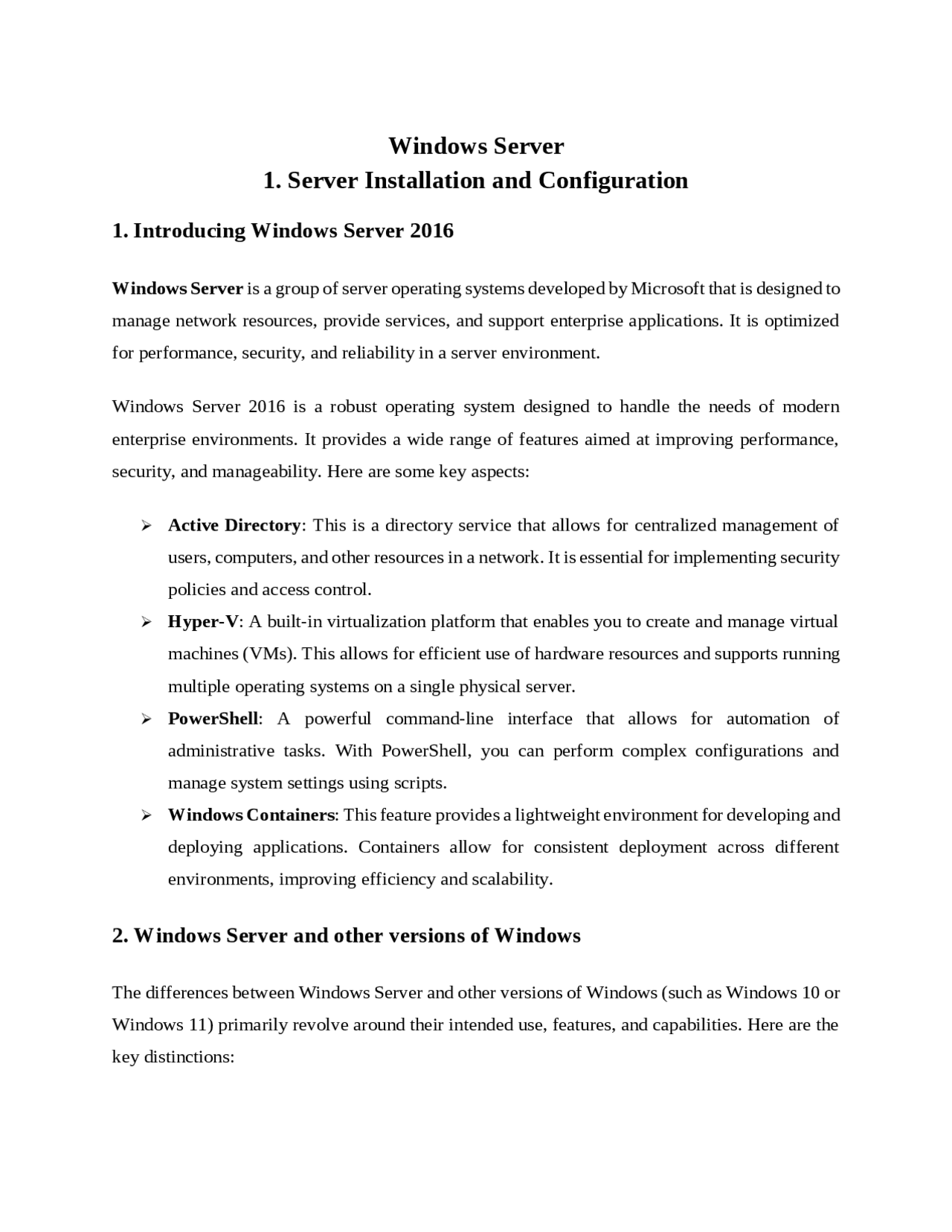

Windows Server
1. Server Installation and Configuration
1. Introducing Windows Server 2016
Windows Server is a group of server operating systems developed by Microsoft that is designed to
manage network resources, provide services, and support enterprise applications. It is optimized
for performance, security, and reliability in a server environment.
Windows Server 2016 is a robust operating system designed to handle the needs of modern
enterprise environments. It provides a wide range of features aimed at improving performance,
security, and manageability. Here are some key aspects:
Active Directory: This is a directory service that allows for centralized management of
users, computers, and other resources in a network. It is essential for implementing security
policies and access control.
Hyper-V: A built-in virtualization platform that enables you to create and manage virtual
machines (VMs). This allows for efficient use of hardware resources and supports running
multiple operating systems on a single physical server.
PowerShell: A powerful command-line interface that allows for automation of
administrative tasks. With PowerShell, you can perform complex configurations and
manage system settings using scripts.
Windows Containers: This feature provides a lightweight environment for developing and
deploying applications. Containers allow for consistent deployment across different
environments, improving efficiency and scalability.
2. Windows Server and other versions of Windows
The differences between Windows Server and other versions of Windows (such as Windows 10 or
Windows 11) primarily revolve around their intended use, features, and capabilities. Here are the
key distinctions:
pf3
pf4
pf5

Partial preview of the text

Download Windows Server 2016 Installation and Configuration Guide and more Summaries Computer Science in PDF only on Docsity!

Windows Server

1. Server Installation and Configuration

1. Introducing Windows Server 2016

Windows Server is a group of server operating systems developed by Microsoft that is designed to manage network resources, provide services, and support enterprise applications. It is optimized for performance, security, and reliability in a server environment. Windows Server 2016 is a robust operating system designed to handle the needs of modern enterprise environments. It provides a wide range of features aimed at improving performance, security, and manageability. Here are some key aspects:  Active Directory : This is a directory service that allows for centralized management of users, computers, and other resources in a network. It is essential for implementing security policies and access control.  Hyper-V : A built-in virtualization platform that enables you to create and manage virtual machines (VMs). This allows for efficient use of hardware resources and supports running multiple operating systems on a single physical server.  PowerShell : A powerful command-line interface that allows for automation of administrative tasks. With PowerShell, you can perform complex configurations and manage system settings using scripts.  Windows Containers : This feature provides a lightweight environment for developing and deploying applications. Containers allow for consistent deployment across different environments, improving efficiency and scalability.

2. Windows Server and other versions of Windows

The differences between Windows Server and other versions of Windows (such as Windows 10 or Windows 11) primarily revolve around their intended use, features, and capabilities. Here are the key distinctions:

I. Purpose and Use CaseWindows Server :  Designed for server environments and enterprise applications.  Used to manage network resources, run applications, host websites, and provide services (like file storage, print services, and Active Directory).  Optimized for handling multiple users and processes simultaneously.  Windows (e.g., Windows 10/11) :  Designed for personal computing and end-user environments.  Used primarily on desktops, laptops, and tablets for general tasks like browsing, gaming, and productivity applications.  Focused on a user-friendly interface for individual users. II. Features and FunctionalityWindows Server : o Includes server-specific features like Active Directory, DNS, DHCP, Hyper-V (for virtualization), and advanced networking capabilities. o Supports extensive remote management and automation through PowerShell. o Offers features for clustering and load balancing for high availability.  Windows (e.g., Windows 10/11) : o Features a graphical user interface (GUI) geared towards user experience. o Includes apps for productivity, entertainment, and personal use but lacks server- specific features. o Focuses on local device management rather than centralized network management. III. Licensing and PricingWindows Server : o Requires different licensing models, often based on the number of users or cores. o Generally, more expensive than consumer versions due to its advanced capabilities and enterprise features.  Windows (e.g., Windows 10/11) :

Processor : A 64-bit processor with a minimum speed of 1.4 GHz.  RAM : At least 512 MB for the Server Core installation, and 2 GB for the Server with Desktop Experience.  Disk Space : A minimum of 32 GB of available disk space.  Network Adapter : A network adapter that supports the physical network being used. Installation Steps

  1. Obtain the Installation Media :  Download the Windows Server 2016 ISO file from Microsoft’s official website or through a licensed distributor.
  2. Create a Bootable USB Drive (if necessary):  Use a tool like Rufus to create a bootable USB drive. Select the ISO file and choose the appropriate partition scheme for your system.
  3. Boot from the Installation Media :  Insert the USB drive or DVD into the server and restart it. Access the boot menu (usually by pressing F12 or Esc) to select the installation media.
  4. Installation Process :  Language and Preferences : Choose your language, time format, and keyboard layout.  Install Now : Click the "Install now" button to start the installation process.  Edition Selection : Choose between Standard or Datacenter editions based on your needs, and accept the license agreement.  Installation Type : Select “Custom: Install Windows only (advanced)” for a fresh installation.  Disk Selection : Choose the disk on which to install Windows Server. If needed, format or partition the disk.
  5. Complete the Installation :

 Follow the prompts to complete the installation. The server will restart several times. Set a strong administrator password when prompted.

4. Configuring Windows Server 2016 Basic Settings

Once the installation is complete, you need to configure basic settings to prepare the server for use.  Set the Computer Name :  Open Server Manager from the Start menu.  Click on Local Server on the left pane.  Under Computer Name , click on the link to change the name. Enter a meaningful name that reflects its role in your organization.  Configure IP Address :  Go to Network and Sharing Center.  Click on Change adapter settings.  Right-click on the network adapter and select Properties.  Select Internet Protocol Version 4 (TCP/IPv4) and click on Properties. Set a static IP address, subnet mask, default gateway, and DNS servers.  Update Windows :  Open Settings > Update & Security > Windows Update.  Click on Check for updates and install any available updates to ensure your system is secure and up-to-date.

5. Configuring Server Roles and Services

Configuring roles and services is essential to tailor the server to meet the specific needs of your organization.  Add Roles and Features :

Storage Spaces :  Use Storage Spaces to create a virtual pool of storage from multiple drives.  This allows for redundancy and scalability. In Server Manager , go to File and Storage Services > Storage Spaces to create and manage storage pools.
