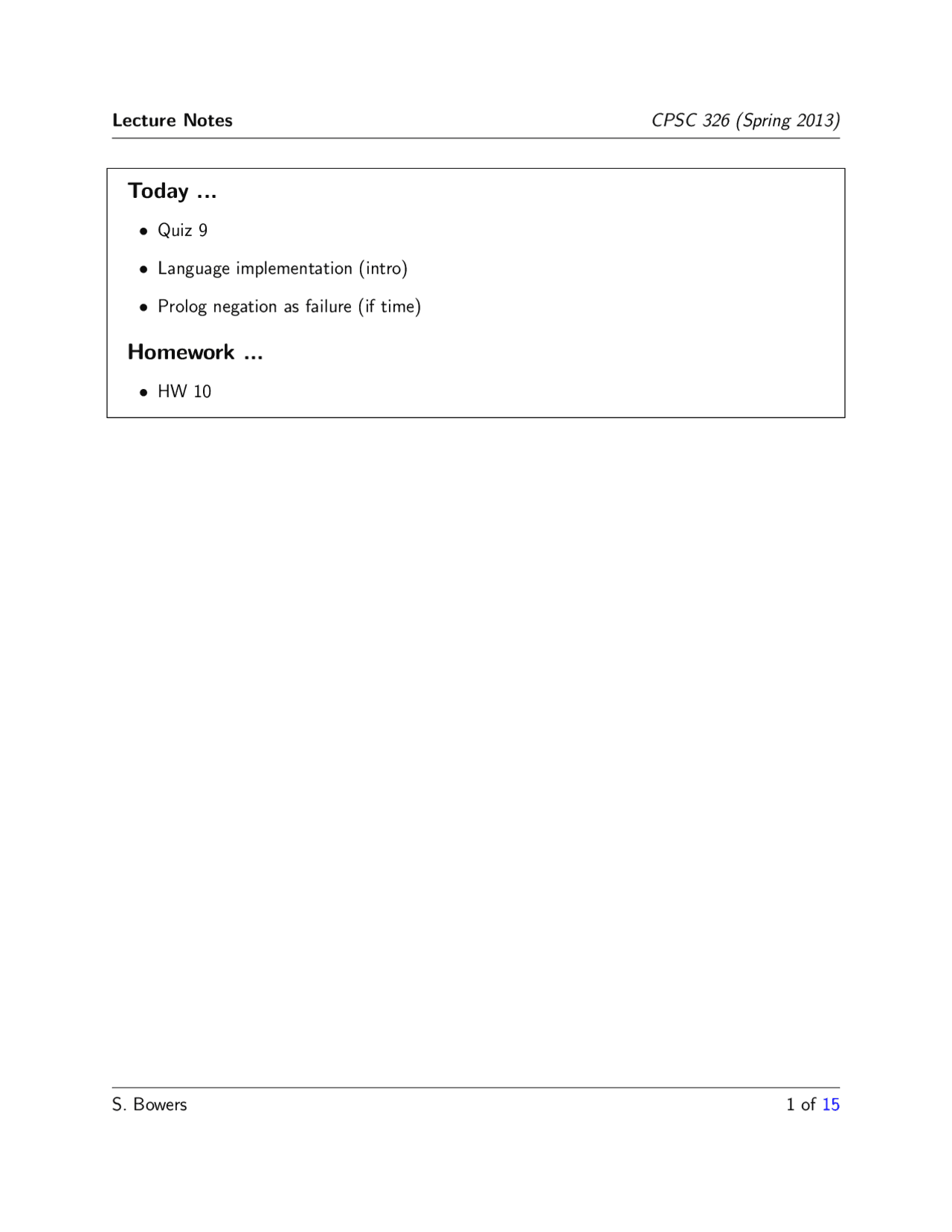

Today ...

• Quiz 9
• Language implementation (intro)
• Prolog negation as failure (if time)

Homework ...

• HW 10

Compilation and Interpretation

Compiler (think C/C++)

---

---

______^ Compiler^

Target Program

input (^) output

Source Code (^) (a program)

input

output

#include int main() { std::cout << “Hello World!\n”; return 0; }

pushq %rbp movq %rsp, %rbp movq %rdi, -8(%rbp) cmpq %rax, %rdx jae L

55 89 e5 53 83 ec 04 83 e4 f0 e8 31 00 00 00 89 c3 e8 2a 00 00 00 39 c 74 10 8d b6 00 00 00 00 39 c3 7e 13 29 c3 39 c Source Code Assembly Machine code

• translates source code into a target program
• target program often written in machine code

Compilation generally results in faster programs

• use various optimizations for target machine, memory management, etc.

Interpretation is often convenient

• debugging, learning a language, ad hoc scripting

Many interpreted languages can also be compiled

• including ghci and swi

Many compiled languages often use interpretation

• e.g., Java and C#
• debuggers as another example

Blurring the lines

Many language implementations include both

---

---

---

Translator

Interpreter (VM)

input output

Source Language

input

output

---

---

---

Intermediate Language

input

• Interpreted language implementations
  • simple translators ... all work is in the interpreter
  • straight-forward mapping to intermediate language
• Compiled language implementations
  • complex translators ... all work is in the translator
  • perform syntax and semantic analysis (e.g., optimization)
• Java is a hybrid
  • has both a translator (to bytecode)
  • and an interpreter (JIT compilation)
  • and both are complex

Lexical Analysis (“Scanning”)

Tokens are the smallest meaningful units of a program

Examples:

• Special words (the “reseverved” words)
  • int, if, while, new, class, public, this, etc.
• Operators
  • +, =, ==, <=, etc.
• Identifiers
  • variable names, function names, class names, etc.
• Constants (or the “literals”)
  • int, float, double, Boolean, string values

White space and comments are (usually) not tokens

In lexical analysis ...

• The goal is to simplify syntax analysis (parsing) ... and detect errors early

int main() { int x = 0; }

INT, ID(main), LPAREN, RPAREN, LBRACKET, INT, ID(x), OP(=), CONST(0), SEMICOLON, RBRACKET

• Input code is converted to a sequence (a stream) of tokens
• Removes non-tokens (white space, comments)
• Tokens stored with with their corresponding line and column numbers

In syntax analysis ...

INT, ID(main), LPAREN, RPAREN, LBRACKET, INT, ID(x), OP(=), CONST(0), SEMICOLON, RBRACKET

fun-def

decl-spec

type-spec

INT

decl

ID(main)

…

• token stream is analyzed to ensure it follows the language syntax
• the syntax is defined by the language’s grammar
• the grammer is used to create a derivation (parse tree)

In semantic analysis ...

• represent and analyze the “meaning” of the program
• representation via an Abstract Syntax Tree (AST)
  • distills syntax down to basic operations
  • built as the program is parsed
• usually includes a “symbol table”
  • symbol ids, names, and their types
• enforces “language rules” not represented by the grammar
  • identifiers declared before use
  • functions called with correct number of arguments
  • type checking

Scanning (Lexical analysis)

Basic idea

• takes the program code
• produces a stream of identified tokens
• removes whitespace, comments, etc.

Implemented using either

• a lexical analyzer tool (Lex, Flex, JFlex, ...)
• or as an ad hoc program (hand written)

Scanner usually called one token at a time

Scanner Parser

---

---

---

Source Code

read more input nextToken()

Ad hoc scanning (see textbook)

Define a set of token symbols

#define LPAREN 0 #define RPAREN 1 #define SEMICOLON 2 ...

Define a Token class

class token { private: int token_type; // the type of symbol int token_line; // line number int token_column; // column number string token_lexeme; // "lexeme" (nums, vars, etc) public: token(int type, int line, int col, int lexeme); int type() const; int line() const; int column() const; string lexeme() const; };

• lexer (scanner) converts program text to a stream of tokens
• each token is returned by scanner as a token object

Negation as Failure

Queries (goals) are always true or false in Prolog

?- member(a, [a, b]). true. ?- member(c, [a, b]). false.

• when true ...
  • prolog has proved (or solved) the query
  • the “proof” (solution) is given by the proof tree
• when false ...
  • prolog failed to prove the goal

Negation as failure

• In prolog, failure to prove the goal means:
  • the goal cannot be derived from the KB
  • and since it cannot be derived, it is assumed false
• Also known as the “closed world assumption”
  • the KB is assumed to have all the facts
  • if a fact is not in the KB, it is assumed to be false
  • similar to relational databases
  • differs from the “open world assumption” (just because it isn’t a fact, doesn’t mean it is false).

Prolog provides a not predicate

?- not(member(c, [a, b])). true.

• not is true if its argument is false
• in swi, we can also use the + operator

?- + member(c, [a, b]). true.

?= + member(a, [a, b]). false.

Consider this rule

sibling(X, Y) :- parent(P, X), parent(P, Y).

Q: can you see a problem?

• Lets say we have these facts:

parent(alice, bob). parent(alice, charlie).

• What does this query return?

?- sibling(bob, bob).

• Sibling should be anti-reflexive!
