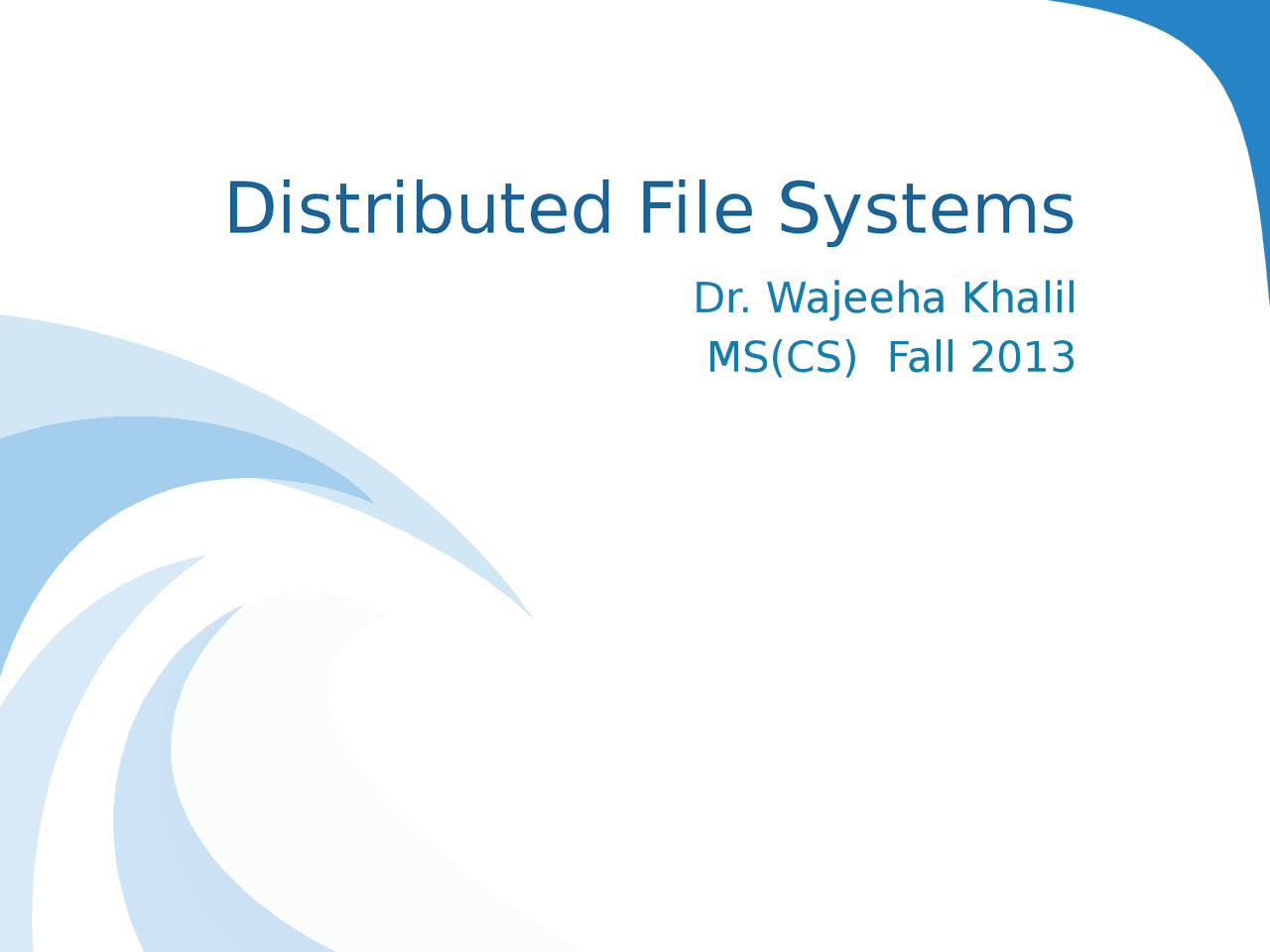

Distributed File Systems
Dr. Wajeeha Khalil MS(CS) Fall 2013
Introduction
- (^) File: named object that comes into existence by explicit creation
- (^) Immune to temporary failure in the system
- (^) Persists until explicitly destroyed
- (^) Two main served purposes
- (^) Permanent Storage of Information
- (^) Storing a file on secondary storage device
- (^) Sharing of Information
- (^) File created by one application and shared with different applications
- (^) Permanent Storage of Information
File System Vs Distributed File
System
- (^) Subsystem of OS that performs file management activities - (^) Organization, Storing, Retrieval, Naming, Sharing and Protection - (^) Allows programs to use a set of operations that characterize the file abstraction and free the programmers from concerns about - (^) Space allocation, and Layout of the secondary storage device
- (^) Distributed File System
- (^) Provides Similar Abstraction to the users
- (^) More Complex than Conventional File System
Advantages of DFS
- (^) Remote Information Sharing
- (^) User Mobility
- (^) Availability
- (^) Diskless Workstations
Desirable Features of a Good
DFS
- (^) Transparency
- (^) Structure
- (^) Access
- (^) Naming
- (^) Replication
- (^) User Mobility
- (^) Performance
- (^) Simplicity and Ease of Use
- (^) Scalability
- (^) High Availability
Desirable Features of a Good
DFS
- (^) High Reliability
- (^) Data Integrity
- (^) Security
- (^) Heterogeneity
Distributed File System Requirements
- (^) Concurrent File Updates
- (^) Changes to a file by one client should not interfere with the operation of other clients simultaneously accessing or changing the same file - (^) Concurrency control - (^) File locking
Distributed File System Requirements
- (^) File Replication
- (^) A file may be represented by several copies of its contents at different locations - (^) Sharing of load - (^) Fault tolerance
- (^) Caching is implemented by some DFS (partial replication)
Distributed File System Requirements
- (^) Consistency
- (^) Non-DFS offer one-copy semantics
- (^) For replicated files, delay in update propagation - (^) May result in deviation from one-copy semantics
- (^) Strict consistency must be achieved
- (^) Efficiency
- (^) DFS should provide a service that is comparable with, or better than, local file system in performance
- (^) Convenient to administer
File Models
- (^) Different Conceptual Models
- (^) Two most commonly used criteria for file modeling are - (^) Structure - (^) Modifiability
- (^) Unstructured and Structured
- (^) Unstructured
- (^) No substructure known to the file server
- (^) Contents of each filer appear to the file server as an uninterrupted sequence of bytes
- (^) Meaning and Structure of the Data stored in files are entirely up to the application Programs
- (^) UNIX and MS-DOS use this file Model
- (^) Unstructured
File Models
- (^) Immutable
- (^) Example: Cedar File System
- (^) A file cannot be modified once it has been created except to be deleted.
- (^) File Versioning approach is normally used to implement the file updates.
- (^) Each file is represented by a history of immutable versions
File- Accessing Models
- (^) Manner in which a Client’s request to access a files is serviced depends on the file accessing model used by a FS
- (^) Accessing Remote Files
- (^) Unit of Data Transfer
Distributed File Systems
- (^) Support the sharing of information in the
form of files throughout an intranet
- (^) Performance and reliability similar to files stored on local disks
- (^) Sun Network File System, NFS
- (^) Andrew File System, AFS
- (^) Coda [TS]
- (^) xFS [TS]
- (^) SFS [TS]
File Service
- (^) A file service enables programs to store and access remote files exactly as they do local ones - (^) Persistent storage at a few servers - (^) Reduces the need for local disk storage - (^) Management and archiving facilities
- (^) Web servers are reliant on filing systems
