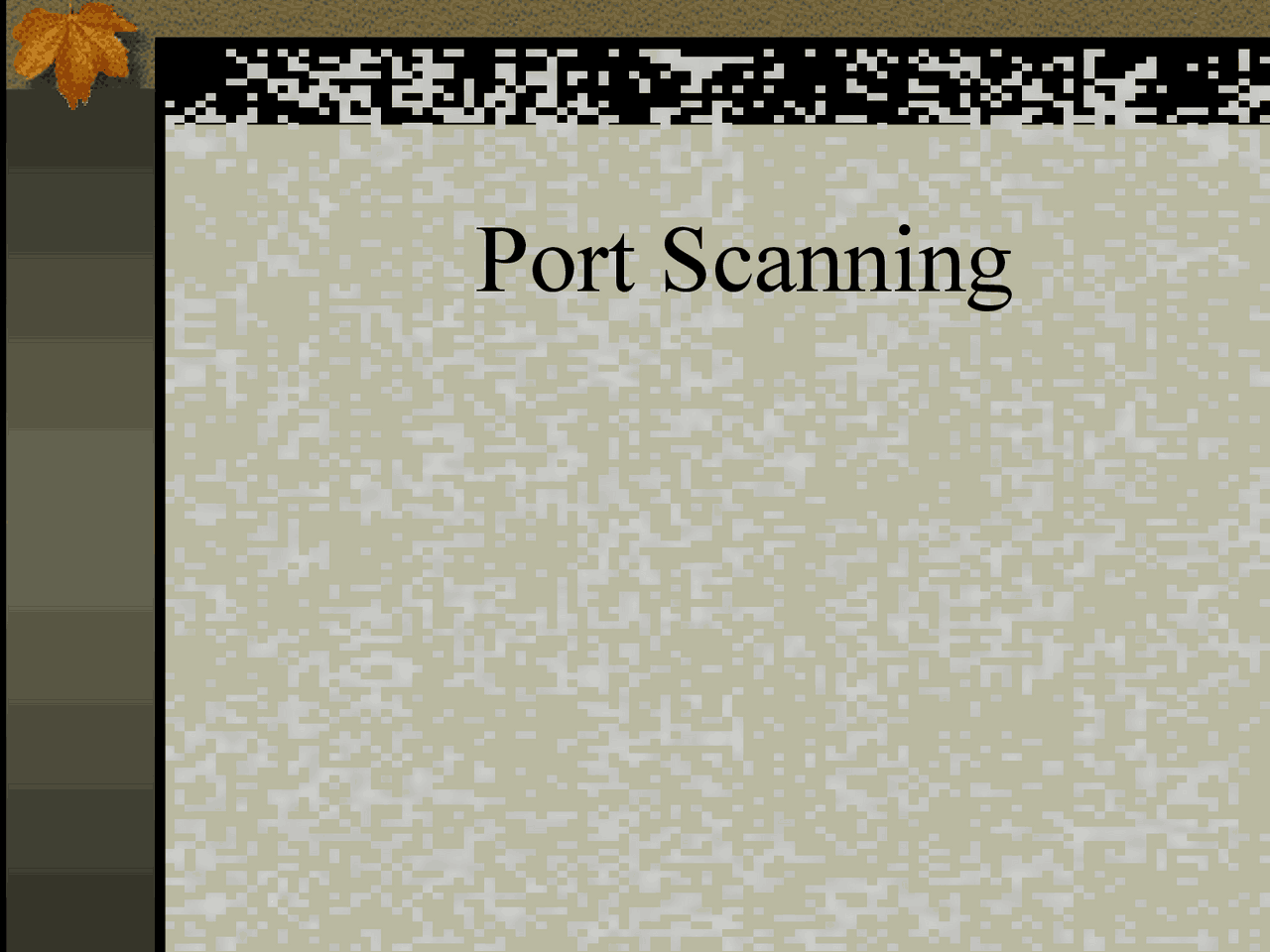

Port Scanning

What is Port Scanning?

■ port scanning is equivalent to knocking on the

walls to find all the doors and windows.

■ determine what systems are listening & reachable from the Internet. ■ Analyzing underlying weaknesses. ■ Using the weakness for later use.

Port Scanning Techniques

■ Vanilla:

■ Simplest form of port scan. ■ Tries each of the ports 65535 on the victim. ■ sending a carefully constructed packet. ■ with a chosen port number.

Stealth Scan

■ Port scanning is easily logged by the services

listening at the ports.

■ Designed to go undetected by auditing tools.

■ Scanning at a slow pace.

■ inverse mapping:

■ Generating "host unreachable" ICMP-messages for IPs that do not exist.

Bounce Scans

■ The ability to hide tracks is important to attackers.

■ FTP bounce scan:

■ allows the hacker to force the FTP server to do the port scan and send back the results. This bouncing through an FTP server hides where the attacker comes from.

■ The advantage to this approach is harder to trace.

The disadvantages are that it is slow.

UDP Scanning

■ In order to find UDP ports, the attacker generally

sends empty UDP datagrams. If

■ The port is listening, the service should send back an error message or ignore the incoming datagram. ■ The port is closed, then most operating systems send back an "ICMP Port Unreachable" message. Thus determine which ports are open. ■ Neither UDP packets nor the ICMP errors are guaranteed to arrive, so UDP scanners must also implement retransmission of packets that appear to be lost.

Port Scanning Tools

■ nmap

■ Widely known port scanner. ■ Utility for port scanning large networks, although it works fine for single hosts. ■ The guiding philosophy for the creation of nmap was TMTOWTDI (There's More Than One Way To Do It). ■ CMD: nmap –sS 192.168.1. ■ Output: Port State Protocol Service ■ 21 open tcp ftp

Port Scanning Tools

■ netcat

■ The Swiss army knife in our security toolkit. ■ Provides basic TCP and UDP port scanning capabilities. By default, netcat uses TCP ports, so for UDP scanning, we need to specify the –u option. For example, ■ CMD: netcat –v –z –w2 192.168.1.1 1- ■ Output: [192.168.1.1] 25 (smtp) open
