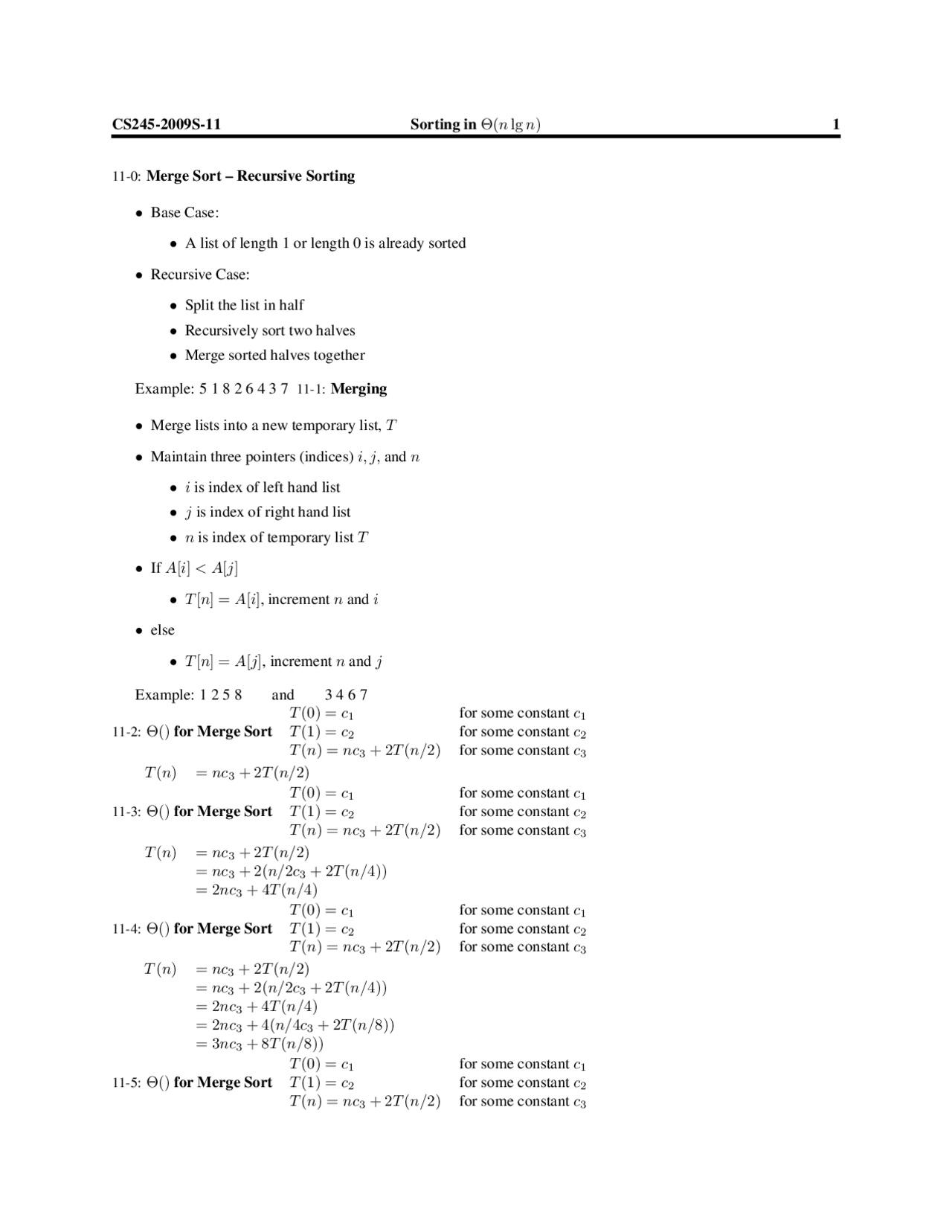

11-0: Merge Sort – Recursive Sorting
- Base Case:
- A list of length 1 or length 0 is already sorted
- Recursive Case:
- Split the list in half
- Recursively sort two halves
- Merge sorted halves together
Example: 5 1 8 2 6 4 3 7 11-1: Merging
- Merge lists into a new temporary list, T
- Maintain three pointers (indices) i, j, and n
- i is index of left hand list
- j is index of right hand list
- n is index of temporary list T
- If A[i] < A[j]
- T [n] = A[i], increment n and i
- else
- T [n] = A[j], increment n and j
Example: 1 2 5 8 and 3 4 6 7
11-2: Θ() for Merge Sort
T (0) = c 1 for some constant c 1 T (1) = c 2 for some constant c 2 T (n) = nc 3 + 2T (n/2) for some constant c 3 T (n) = nc 3 + 2T (n/2)
11-3: Θ() for Merge Sort
T (0) = c 1 for some constant c 1 T (1) = c 2 for some constant c 2 T (n) = nc 3 + 2T (n/2) for some constant c 3 T (n) = nc 3 + 2T (n/2) = nc 3 + 2(n/ 2 c 3 + 2T (n/4)) = 2nc 3 + 4T (n/4)
11-4: Θ() for Merge Sort
T (0) = c 1 for some constant c 1 T (1) = c 2 for some constant c 2 T (n) = nc 3 + 2T (n/2) for some constant c 3 T (n) = nc 3 + 2T (n/2) = nc 3 + 2(n/ 2 c 3 + 2T (n/4)) = 2nc 3 + 4T (n/4) = 2nc 3 + 4(n/ 4 c 3 + 2T (n/8)) = 3nc 3 + 8T (n/8))
11-5: Θ() for Merge Sort
T (0) = c 1 for some constant c 1 T (1) = c 2 for some constant c 2 T (n) = nc 3 + 2T (n/2) for some constant c 3
T (n) = nc 3 + 2T (n/2) = nc 3 + 2(n/ 2 c 3 + 2T (n/4)) = 2nc 3 + 4T (n/4) = 2nc 3 + 4(n/ 4 c 3 + 2T (n/8)) = 3nc 3 + 8T (n/8)) = 3nc 3 + 8(n/ 8 c 3 + 2T (n/16)) = 4nc 3 + 16T (n/16)
11-6: Θ() for Merge Sort
T (0) = c 1 for some constant c 1 T (1) = c 2 for some constant c 2 T (n) = nc 3 + 2T (n/2) for some constant c 3 T (n) = nc 3 + 2T (n/2) = nc 3 + 2(n/ 2 c 3 + 2T (n/4)) = 2nc 3 + 4T (n/4) = 2nc 3 + 4(n/ 4 c 3 + 2T (n/8)) = 3nc 3 + 8T (n/8)) = 3nc 3 + 8(n/ 8 c 3 + 2T (n/16)) = 4nc 3 + 16T (n/16) = 5nc 3 + 32T (n/32)
11-7: Θ() for Merge Sort
T (0) = c 1 for some constant c 1 T (1) = c 2 for some constant c 2 T (n) = nc 3 + 2T (n/2) for some constant c 3 T (n) = nc 3 + 2T (n/2) = nc 3 + 2(n/ 2 c 3 + 2T (n/4)) = 2nc 3 + 4T (n/4) = 2nc 3 + 4(n/ 4 c 3 + 2T (n/8)) = 3nc 3 + 8T (n/8)) = 3nc 3 + 8(n/ 8 c 3 + 2T (n/16)) = 4nc 3 + 16T (n/16) = 5nc 3 + 32T (n/32) = knc 3 + 2kT (n/ 2 k) 11-8: Θ() for Merge Sort
T (0) = c 1 T (1) = c 2 T (n) = knc 3 + 2kT (n/ 2 k) Pick a value for k such that n/ 2 k^ = 1: n/ 2 k^ = 1 n = 2 k lg n = k T (n) = (lg n)nc 3 + 2lg^ nT (n/ 2 lg^ n) = c 3 n lg n + nT (n/n) = c 3 n lg n + nT (1) = c 3 n lg n + c 2 n ∈ O(n lg n)
11-9: Θ() for Merge Sort
T(n)
11-10: Θ() for Merge Sort
c*n
c(n/2) c(n/2)
c(n/4) c(n/4) c(n/4) c(n/4)
c*n
c*n
c*n
c*n
lg n levels
... (^) ... (^) ... ...
Total time = c*n lg n Θ(n lg n)
11-15: Divide & Conquer Merge Sort:
- Divide the list two parts
- No work required – just calculate midpoint
- Recursively sort two parts
- Combine sorted lists into one list
- Some work required – need to merge lists
11-16: Divide & Conquer Quick Sort:
- Divide the list two parts
- Some work required – Small elements in left sublist, large elements in right sublist
- Recursively sort two parts
- Combine sorted lists into one list
11-17: Quick Sort
- Pick a pivot element
- Reorder the list:
- All elements < pivot
- Pivot element
- All elements > pivot
- Recursively sort elements < pivot
- Recursively sort elements > pivot
Example: 3 7 2 8 1 4 6 11-18: Quick Sort - Partitioning Basic Idea:
- Swap pivot elememt out of the way (we’ll swap it back later)
- Maintain two pointers, i and j
- i points to the beginning of the list
- j points to the end of the list
- Move i and j in to the middle of the list – ensuring that all elements to the left of i are < the pivot, and all elememnts to the right of j are greater than the pivot
- Swap pivot element back to middle of list
11-19: Quick Sort - Partitioning Pseudocode:
- Pick a pivot index
- Swap A[pivotindex] and A[high]
- Set i ← low, j ← high− 1
- while (i <= j)
- while A[i] < A[pivot], increment i
- while A[j] > A[pivot], decrement i
- swap A[i] and A[j]
- increment i, decrement j
- swap A[i] and A[pivot]
11-20: Θ() for Quick Sort
- Coming up with a recurrence relation for quicksort is harder than mergesort
- How the problem is divided depends upon the data
size 0 , size n − 1 size 1 , size n − 2
... size ⌊(n − 1)/ 2 ⌋, size ⌈(n − 1)/ 2 ⌉ ... size n − 2 , size 1 size n − 1 , size 0
T (n) = T (n − k) + (
∑k− 1 i=0 (n^ −^ i)c^3 ) +^ kc^2 = T (n − n) + (
∑n− 1 i=0 (n^ −^ i)c^3 ) +^ kc^2 = T (0) + (
∑n− 1 i=0 (n^ −^ i)c^3 ) +^ kc^2 = T (0) + (
∑n− 1 i=0 ic^3 ) +^ kc^2 = c 1 + c 3 n(n + 1)/2 + kc 2 ∈ Θ(n^2 ) 11-28: Θ() for Quick Sort
T(n)
11-29: Θ() for Quick Sort
c*n
T(n-1) T(0)
11-30: Θ() for Quick Sort
c*n
c*(n-1) c
T(n-2) T(0)
11-31: Θ() for Quick Sort
c*n
c*(n-1) c
c*(n-2) c
T(n-3) T(0)
11-32: Θ() for Quick Sort
c*n
c*(n-1) c
c*n
c*(n-1)+c
n
levels
c(n-2) c2 c(n-2)+c
c(n-3) c2 c(n-3)+c
c*(n-k)+c
11-33: Θ() for Quick Sort
c*n
c*(n-1) c
c*n
c*(n-1)+c
n
levels
Total time = cn(n+1)/2 + nc
c(n-2) c2 c(n-2)+c
c(n-3) c2 c(n-3)+c
Θ(n )^2
c*(n-k)+c
11-34: Θ() for Quick Sort
Best case performance occurs when break list into size ⌊(n − 1)/ 2 ⌋ and size ⌈(n − 1)/ 2 ⌉ T (0) = c 1 for some constant c 1 T (1) = c 2 for some constant c 2 T (n) = nc 3 + 2T (n/2) for some constant c 3
This is the same as Merge Sort: Θ(n lg n) 11-35: Quick Sort? If Quicksort is Θ(n^2 ) on some lists, why is it called quick?
- Most lists give running time of Θ(n lg n): The average case running time (assuming all permutations are equall likely) is Θ(n lg n) - We could prove this by finding the running time for each permutation of a list of length n, and averaging them - Math required to do this is a little beyond the prerequisites for this class) - Consider what happens when the list is always partitioned into a list of length n/ 9 and a list of lenth 8 n/ 9 (recursion tree, on whiteboard) - Consider what happenswhen the list is always partitioned into a list of length n/k and a list of length (k − 1)n/k, for any k
11-36: Quick Sort?
If Quicksort is Θ(n^2 ) on some lists, why is it called quick?
- Most lists give running time of Θ(n lg n)
- Average case running time is Θ(n lg n)
- Constants are very small
- Constants don’t matter when complexity is different
- Constants do matter when complexity is the same
- We can modify heapsort so that it does not use extra space
- Build a heap out of the original array, with two differences:
- Consider element 0 to be the root of the tree
- for element i, children are at 2i +1 and 2i+2, and parent is at (i − 1)/ 2
- (examples)
- Max-heap instead of a standard min-heap
- For each subtree, element stored at root ≥ element stored in that subtree (instead of ≤, as in a standard heap)
11-42: Heap Sort
- Build a heap out of the original array, with two differences:
- Consider element 0 to be the root of the tree
- for element i, children are at 2i +1 and 2i+2, and parent is at (i − 1)/ 2
- (examples)
- Max-heap instead of a standard min-heap
- For each subtree, element stored at root ≥ element stored in that subtree (instead of ≤, as in a standard heap)
- Repeatedly remove the largest element, and insert it in the back of the heap
Example: 3 1 7 2 5 4 11-43: Θ() for Heap Sort
- Building the heap takes time Θ(n)
- Each of the n RemoveMax calls takes time O(lg n)
- Total time: Ø(n lg n) (also Θ(n lg n))
