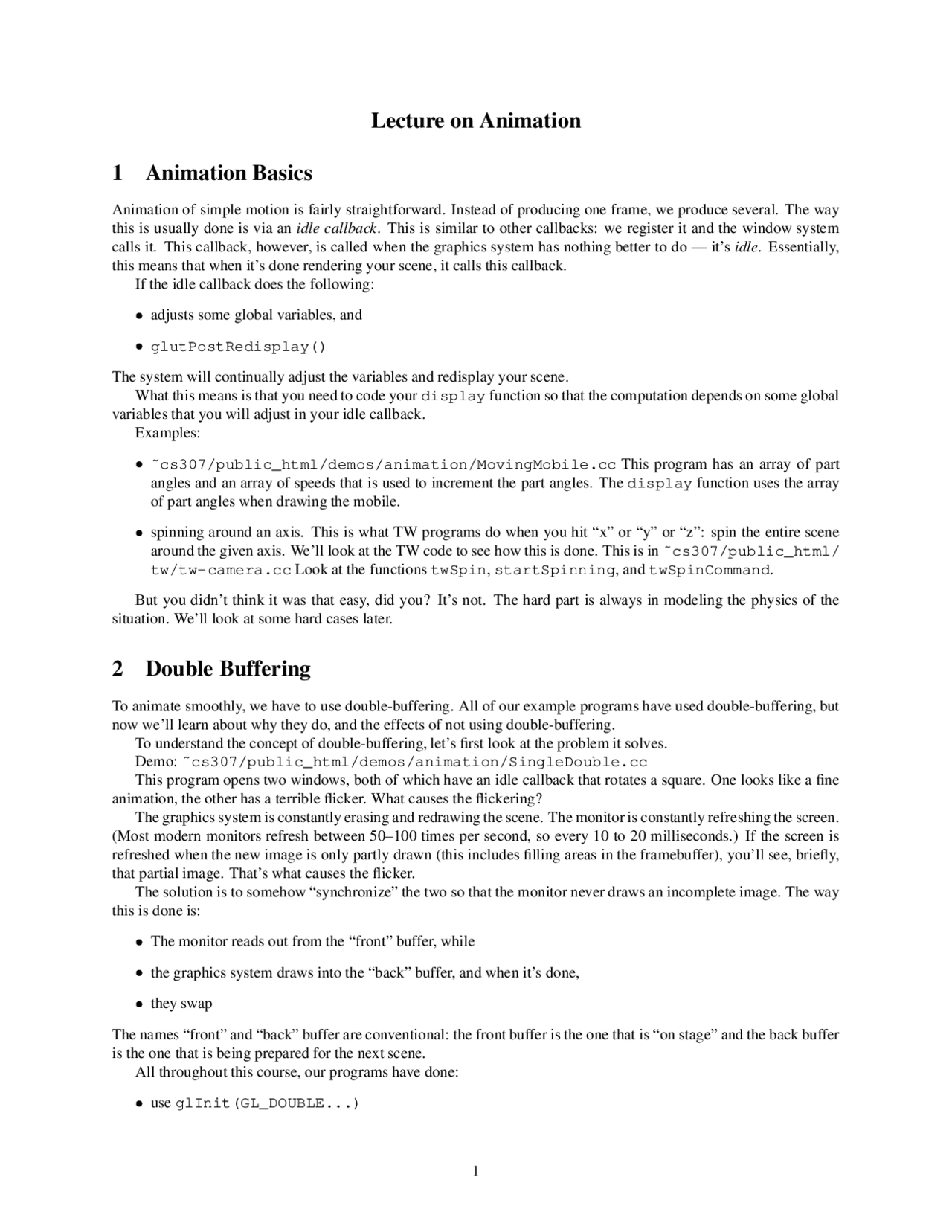

Lecture on Animation
1 Animation Basics
Animation of simple motion is fairly straightforward. Instead of producing one frame, we produce several. The way this is usually done is via an idle callback. This is similar to other callbacks: we register it and the window system calls it. This callback, however, is called when the graphics system has nothing better to do — it’s idle. Essentially, this means that when it’s done rendering your scene, it calls this callback. If the idle callback does the following: adjusts some global variables, and
glutPostRedisplay()
The system will continually adjust the variables and redisplay your scene. What this means is that you need to code your display function so that the computation depends on some global variables that you will adjust in your idle callback. Examples: ˜cs307/public_html/demos/animation/MovingMobile.cc This program has an array of part angles and an array of speeds that is used to increment the part angles. The display function uses the array of part angles when drawing the mobile. spinning around an axis. This is what TW programs do when you hit “x” or “y” or “z”: spin the entire scene around the given axis. We’ll look at the TW code to see how this is done. This is in ˜cs307/public_html/ tw/tw-camera.cc Look at the functions twSpin, startSpinning, and twSpinCommand.
But you didn’t think it was that easy, did you? It’s not. The hard part is always in modeling the physics of the situation. We’ll look at some hard cases later.
2 Double Buffering
To animate smoothly, we have to use double-buffering. All of our example programs have used double-buffering, but now we’ll learn about why they do, and the effects of not using double-buffering. To understand the concept of double-buffering, let’s first look at the problem it solves. Demo: ˜cs307/public_html/demos/animation/SingleDouble.cc This program opens two windows, both of which have an idle callback that rotates a square. One looks like a fine animation, the other has a terrible flicker. What causes the flickering? The graphics system is constantly erasing and redrawing the scene. The monitor is constantly refreshing the screen. (Most modern monitors refresh between 50–100 times per second, so every 10 to 20 milliseconds.) If the screen is refreshed when the new image is only partly drawn (this includes filling areas in the framebuffer), you’ll see, briefly, that partial image. That’s what causes the flicker. The solution is to somehow “synchronize” the two so that the monitor never draws an incomplete image. The way this is done is:
The monitor reads out from the “front” buffer, while
the graphics system draws into the “back” buffer, and when it’s done,
they swap
The names “front” and “back” buffer are conventional: the front buffer is the one that is “on stage” and the back buffer is the one that is being prepared for the next scene. All throughout this course, our programs have done: use glInit(GL_DOUBLE...)
use glutSwapBuffers()
Now you know why. The first tells OpenGL that you want to use double-buffering, so it sets up two buffers and it automatically draws in the “back” buffer. The second says that the program is done drawing in the back buffer and to swap it with the front buffer. The combination means that when we do animations or even just move the viewpoint with the mouse, we don’t get any flicker. Note: if you are using double buffering and you forget to do glutSwapBuffers, your screen will be blank! Why? Because you are drawing in the back buffer and there is nothing in the front buffer. In my view, the only reason to ever use single-buffering is when you know you’re only drawing a static scene and you’re short on memory on the graphics card. Pretty rare nowadays. Note that this double-buffering idea is a general notion that is also used in database I/O and lots of other areas of CS.
3 MPEGs
Once we have an animation, we’d like to capture it for posterity. We can do that using MPEG files. The file types discussed before are for single images (except for GIF, which can also do animations). Another file format is called MPEG, devised by the Motion Picture Experts Group. It is a multi-frame format with fancy cross- frame compression (since most frames are pretty similar). It actually comes in versions. The MP3 format that we all know and love is the audio track of MPEG version 3. There is a program called ppmtompeg that will convert a collection of PPM files to an MPEG movie. It requires a parameter file, but I found a useful shell script that can create that parameter file and run the program for us. The shell script is called make-mpeg. It lives in ˜cs307/public_html/demos/animation/. The script assumes that the frames are in files named in a pattern like “baseNNN.ppm”: that means that there is some base name, three frame number digits, starting with 001, and the “.ppm” extension. So, we will make sure that happens. Returning to the MovingMobile demo, try the following callbacks: ’3’ This does just a single frame of the animation. Being able to go one frame at a time is a tremendous help to debugging, so I recommend it. ’2’ Start spinning. This starts and stops the animation, but setting up the idle callback.
’1’ toggle saving of frames. This writes each frame of the animation to a file in the current directory, as long as the animation proceeds. Each time to start saving frames, it starts over again, overwriting previous animations. When you use this, make sure you are running the MovingMobile demo in a directory you own (or /tmp)! For example:
cd /tmp ˜cs307/public_html/demos/animation/MovingMobile
If you turn on saving frames and turn on the animation, you’ll get a collection of PPM files in the current directory, all named MovingMobileXYZ.ppm, where XYZ is the frame number. Once you have this collection of saved frames, you can turn them into an MPEG animation by Then:
% ˜cs307/pub/demos/animation/make-mpeg MovingMobile
Check out the result on our web site! Note that PPM files are pretty big. You should do your work in /tmp, so that the temporary files won’t count against your quota, then delete the PPM files and move the MPEG file back to your regular account. It takes a little while to make an MPEG. It took 6 minutes to make the 360 frame MPEG of the moving mobile.
void idleCallback() { massA = - springK / mass * massX; massV += massA * DT; massX += massV * DT; glutPostRedisplay(); }
The nature of this particular model is such that the velocity is sometimes negative and sometimes positive, so the mass moves back and forth, oscillating endlessly. There are variant mass-spring models with damping (friction) that slows the mass down based on its velocity. A google search for “mass-spring” yields many results, so feel free to investigate if you like.
4.2 Positional Techniques
A limitation of the derivative approach is that, because time is absent from the computation, you can’t have things start and stop, or change direction. The derivative approach works very well for continuous, unchanging models like the mobile and the mass-spring, but not so well for, say, cars that start, speed up, turn, slow down, and stop. To do that, we need to explicitly introduce time as a variable. In general, what we’d love to have is a position function that tells us where the object is at a particular time. If so, our idle callback could be as simple as:
void idleCallback() { Time += DeltaT; glutPostRedisplay(); }
Our display callback would then use the Time variable as an argument to the position function to compute where everything is supposed to be right now:
void display() { ... x = position(Time); glTranslatef(x,0,0); drawObject(); ... }
For example, suppose we had an object that we wanted to move smoothly from point A to point B. Using the ideas of parametric equations, and using the Time variable as the parameter, we would come up with something like this:
void display() { ... twTriple A = { ... }; twTriple B = { ... }; twTriple dir; // direction of motion twTriple currPos; // current position twVector(dir,B,A); // computes dir = B-A twPointOnLine(currPos,A,dir,Time); // computes currPos = A + dir*Time glTranslatef(currPos[0],currPos[1],currPos[2]); drawObject(); ... }
This idea is captured in the Laser demo, in which a UFO drifts across the scene and fires laser bolts (like photon torpedoes) downwards. The laser bolts are drawn with up to five frames, unless the laser bolt hits something, in which case successively larger spheres are drawn, to represent the explosion. Try it! Look at the code.
What if we want to have the object, such as a car, be motionless for a while, then start moving from A to B, then stop, then do something else, and so on? For that, we need to start thinking about particular values of the Time variable. If Time starts at 0 and increments with each frame, that might mean we want to have the car start at time 15, move from A to B during time units 15 to 25, then stop. Our code would look something like:
void display() { ... if( Time >= 15 && Time <= 25 ) { param = (Time - 15)/(25-15); twTriple A = { ... }; twTriple B = { ... }; twTriple dir; // direction of motion twTriple currPos; // current position twVector(dir,B,A); // computes dir = B-A twPointOnLine(currPos,A,dir,param); // computes currPos = A + dir*param glTranslatef(currPos[0],currPos[1],currPos[2]); drawObject(); ... } }
Notice the computation of param. Remember that as the parameter for our line goes from 0 to 1, the object moves from A to B. So, we have to map the Time units 15 to 25 onto the time interval [0,1]. This is simply another example of translation and scaling. You’ll notice that in the example above, the object isn’t drawn except when the time is between 15 and 25. To take care of that problem just requires a bit more coding.
4.3 Solid Objects
One problem is that objects can pass right through each other: we’ve always been able to draw overlapping objects in OpenGL. In order to handle this, your program has to detect collisions (when two objects intersect) and decide what to do (does the moving one stop, bounce off, and if so where?). Computing intersections isn’t easy. Imagine computing whether two teapots intersect! One approximation that can be helpful is to use bounding boxes and bounding spheres. Consider bounding spheres first. If you imagine that each of your objects exists inside a bubble of a particular radius, you can compute the distance between each pair of bubbles, using just the pythagorean theorem. If the distance between the bubbles is greater than the combined radii of the bubbles, the two objects can’t intersect. You can then go on to consider another pair of objects. If the distance isn’t greater than the combined radii, the objects may intersect, and you can, if you want, try to do additional geometric tests to determine if they do. In some cases, it might be sufficient to simply use the bounding bubble. Using bounding boxes is similar, although the geometry isn’t quite as easy. For example, if the minimum of one object is greater than the maximum of the other, they cannot intersect. Considering the other two dimensions gives you a rough idea of whether they can intersect. Thus, bounding boxes gives you a quick-and-dirty way to eliminate certain pairs of objects from more exacting geometry tests.
