copyright 1997 Jeffrey K. Hollingsworth

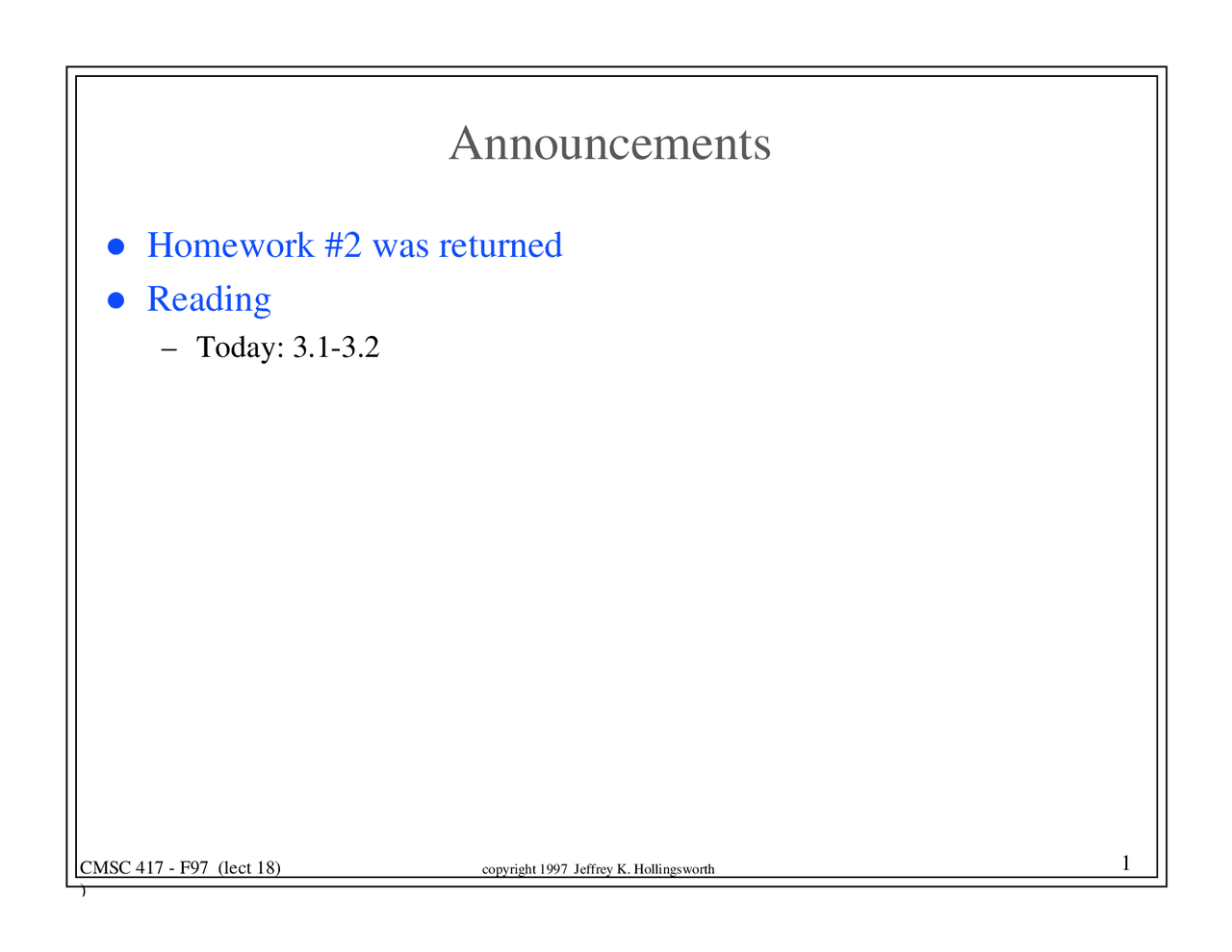

Announcements

l

Homework #2 was returned

l

Reading^ –

Today: 3.1-3.

copyright 1997 Jeffrey K. Hollingsworth

Data Link Layer

l

Goal: transmit error free frames over the physical link

l

Sample Issues:^ –

how big is a frame?

-^

can I detect an error in sending the frame?

-^

what demarks the end of the frame?

-^

how to control access to a shared channel?

l

Examples:^ –

Ethernet framing

copyright 1997 Jeffrey K. Hollingsworth

Other Link Functions

l

Error Control^ –

may want to do sequence numbers and re-transmission

-^

this introduces overhead, but useful if probability of failure is high

l

Flow Control^ –

provide rate matching between sender and receiver

-^

sender has rules about when it can send: credits, etc.

copyright 1997 Jeffrey K. Hollingsworth

Error Correcting Codes

l

Idea: add redundant information to permit recovery^ –

this is the dual of data compression (remove redundancy)

l

Hamming distance (n)^ –

number of bit positions that differ in two words

-^

key idea: need n single bit errors to go from one word to the other

-^

to detect d errors, need a hamming distance of d+1 from

any other valid

word.

-^

to recover d errors, need a hamming distance of 2d + 1

• any error of d bits is still closer to correct word

l

Parity bit^ –

ensure that every packet has an odd (or even) # of 1’s

-^

permits detection of one 1 bit error

copyright 1997 Jeffrey K. Hollingsworth

Hamming Code Example

Cha r

AS CII

Ha mming

H

a^

m

I^

l

Burst Errors^ –

can send hamming codes by column rather than row

-^

if use k rows, then can detect any burst error up to k bits

• uses kr bits to check a block km bits long
