Case Study 1—Design Document for Structured Design
1 Overview
The goal of this project is to develop a system for scheduling the courses in a computer sci-
ence department, based on the input about classrooms, lecture times, and time preferences
of the different instructors. Different conditions have to be satisfied by the final schedule
and which have been specified in the SRS.
This document specifies the final system design for the system. It also gives some
explanations on how the design evolved and why some design decisions were taken.
1.1 DFD of the System
The DFD of the system which describes the various inputs and outputs and the flow of
data in the system is shown in Figure 1. The DFD gives an overall idea of how this system
processes the data and satisfies the various constraints.
1.2 Structure Chart
The structure chart of the proposed system describes the overall structure of the initial
design that was created is given in Figure 2. After analysis, this design was enhanced. How
this structure chart was evolved using the structured design methodology is discussed in
the book in detail.
Note that this design is consistent with the architecture of the system given in its
architecture document. Mapping the modules in this design to the components in the
architecture is also quite straightforward.
• “Process File 1” component maps to “Validate File 1” module and its subtree.

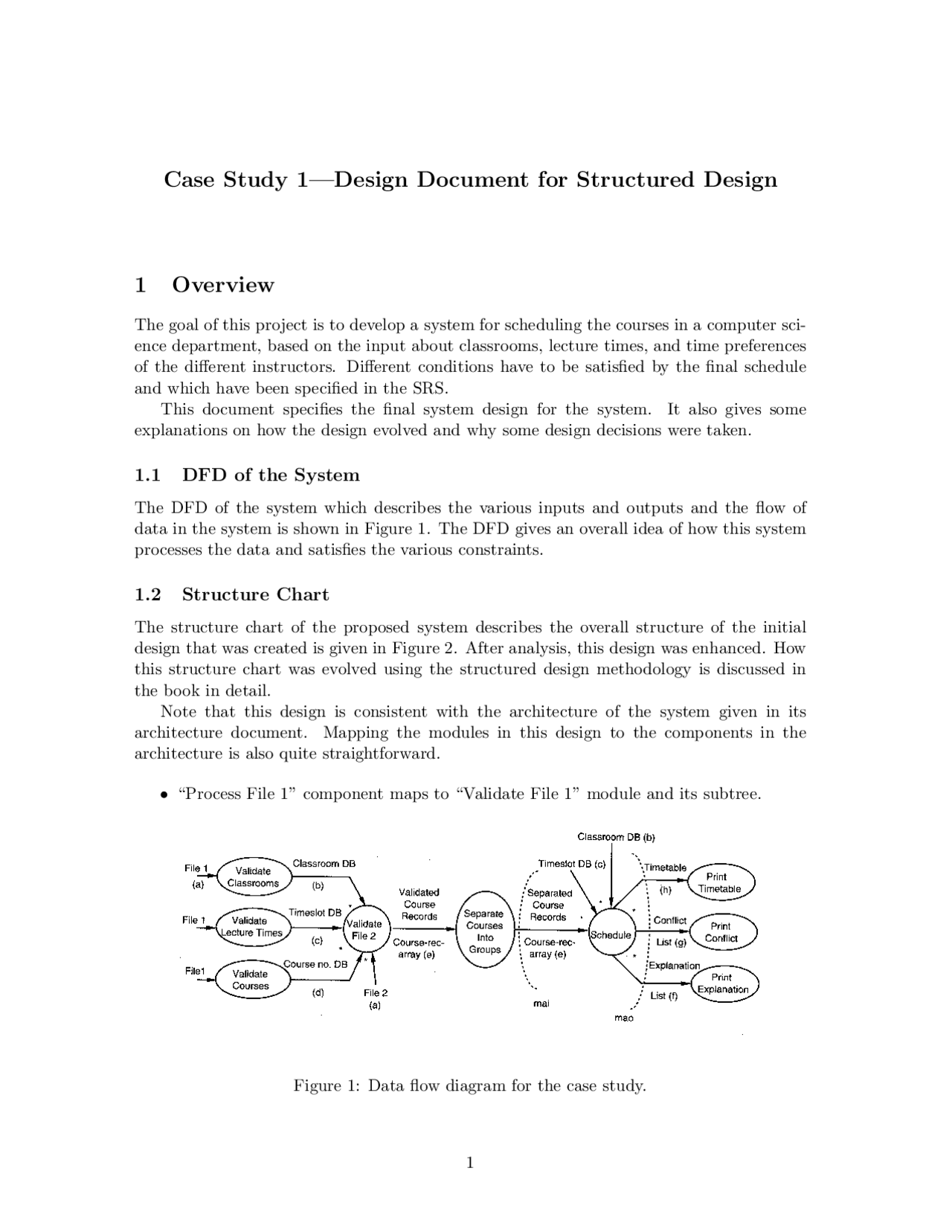

Figure 1: Data flow diagram for the case study.
Figure 2: Structure chart for the system.
• “Process File 2” component maps to “Validate File 2” and “Separate Courses” mod-
ules (and their subtrees).
• “Schedule the courses” components maps to the “Schedule” and “Output” modules
(and their subtrees)
• The pipes in the architecture are implemented in this design by the parameter passing
mechanism.
2 Design Specification
The modules in the structure chart give the name and the main parameters passing between
the modules. We first specified these modules precisely, and then we analyzed them using the
information flow complexity metrics. Result of this analysis is given later in this document.
Based on this analysis, the initial design was modified—the modifications made are also
discussed later in the document. Here we specify the interface of each of the functions
precisely in the final design of the system.
/* Revised version. Last modification 24 Feb 1995 */
/* This software is for scheduling a set of courses offered by the Computer
- Science Department - requirements of which are given in the SRS.
- The design was done using structured design methodology, and the structure
- chart is given elsewhere. This design document specifies the design formally.
- It contains all descriptions of the major data structures and the modules
- that are needed to implement a solution. This design was analyzed using
- the dmetric tool for analyzing information flow complexity and was
- found to be acceptable */
main(IN:file1,file2) char *file1, *file2; { SUBORDINATES : get_validated_input(),schedule(),print_output(); SIZE: 10 }
/*******************************************************************/
/* This module validates the contents of file1 and file2 and produces
- lists for valid courses, classrooms, time slots, and courses to be
- scheduled. If errors are found in the input file format, it exits if
- scheduling is not possible, else ignores the erroneous data */
get_validated_input(IN:fd1,fd2, OUT:TimeslotDB,ClassroomDB,CourseDB,SchCourses) FILE fd1,fd2; timeslot *TimeslotDB; room *ClassroomDB; courseno *CourseDB; course *SchCourses; { SUBORDINATES :validate_file1(),validate_file2(),separate_courses(); SIZE: 20 }
/---------------------------------------------/
/* Top-level module to schedule courses. Besides timetable, it
- gives explanation for courses/prefs that could not be satisfied */
schedule(IN:ClassroomDB,TimeslotDB,CourseDB,SchCourses, OUT:TimeTable,ConflLst,ExplnLst) room *ClassroomDB; timeslot *TimeslotDB; courseno *CourseDB; course *SchCourses; int **TimeTable; error *ConflLst; error *ExplnLst; { SUBORDINATES : sched_pg_pref(), sched_ug_pref(), sched_ug_no_pref(), sched_pg_no_pref(); SIZE: }
/---------------------------------------------/
/* Top-level Print module to produce all outputs */
print_output(IN:TimeTable,ExplnLst,ConflLst) int **TimeTable; error *ConflLst; error *ExplnLst; {
SUBORDINATES :print_TimeTable(), print_explanation(), print_conflict(); SIZE: }
/*******************************************************************/
validate_file1(IN:fd,OUT:ClassroomDB,CourseDB,TimeslotDB) FILE *fd; room *ClassroomDB; char *CourseDB; char *TimeslotDB; { SUBORDINATES :validate_classrooms(), validate_dept_courses(), validate_lec_times(); SIZE: 10 }
/---------------------------------------------/
validate_file2(IN:fd, OUT:SchCourses) FILE *fd; course *SchCourses; { SUBORDINATES :get_course_index(),chk_dup_sched_course(), get_next_line(),form_pref_list();
SIZE: 100 }
/* Rearrange courses in this order: PG courses with preferences, UG courses
- with prefs, PG courses with no prefs, UG courses with no prefs */
separate_courses(IN:CourseDB,IN_OUT:SchCourses) char *CourseDB; course *SchCourses; { SUBORDINATES : SIZE: }
/---------------------------------------------/
/* Schedules PG courses with prefs - allots highest possible preference
- (records in PgAlloc also). For prefs it cannot satisfy, makes entry in ExplnLst.
- If cannot schedule a course, makes entry in ConflLst */
sched_pg_pref(IN:SchCourses,OUT:TimeTable,ExplnLst,ConflLst,PgAlloc) course *SchCourses; int **TimeTable; error *ExplnLst; error *ConflLst; int *PgAlloc;
int is_safe_allotment(IN:time_slot,roomno,SchedPgNoPrefs,TimeTable,PgAlloc,SchCourses) int time_slot,roomno; int SchedPgNoPrefs; /* initially schedulable pg_no_pref courses */ int **TimeTable; int *PgAlloc; course *SchCourses; { SUBORDINATES : PgNoPrefSchlable(); SIZE: }
/---------------------------------------------/
/* Returns the number of schedulable pg_no_pref courses without modifying
- the timetable and PgAlloc */
int PgNoPrefSchlable(IN:TimeTable,PgAlloc,SchCourse) int TimeTable[][MAX_TIMES]; int *PgAlloc; course *SchCourse;
{ SUBORDINATES : sched_pg_no_pref(); SIZE : 15
}
/* Get validated classroom info and build ClassroomDB. If any error, continue
- parsing, ignoring that room no. Room records sorted in increasing capacity */
validate_classrooms(IN:fd,OUT:ClassroomDB) FILE *fd; room *ClassroomDB; { SUBORDINATES :get_next_line(),chk_fmt_room_no(), chk_range_cap(),chk_dup_room(),sort_rooms(); SIZE: }
/---------------------------------------------/
/* Get validated list of courses from File 1*/ validate_dept_courses(IN:fd,OUT:CourseDB) FILE *fd; char *CourseDB; { SUBORDINATES :get_next_line(),chk_dup_course(),chk_fmt_course_no(); SIZE: }
/---------------------------------------------/
/* Get validated time slots from File 1*/ validate_lec_times(IN:fd,OUT:TimeslotDB) FILE *fd; timeslot *TimeslotDB; { SUBORDINATES :get_next_line(),chk_fmt_time_slot(), chk_dup_slot(); SIZE: }
/---------------------------------------------/
/* Forms a list of validated preferences in the given order */ form_pref_list(IN:line,TimeslotDB,OUT:pref_list) char *line; timeslot *TimeslotDB; lstnode *pref_list; { SUBORDINATES : SIZE: 45 }
print_TimeTable(IN:TimeslotDB,ClassroomDB,CourseDB,TimeTable) timeslot *TimeslotDB; room *ClassroomDB; courseno *CourseDB; int **TimeTable; { SUBORDINATES : SIZE: }
/---------------------------------------------/
/* Print the reasons why higher prefs for a course could not be honored */ print_explanation(IN:ExplnLst,CourseDB,TimeslotDB,TimeTable,ClassroomDB) error *ExplnLst; courseno *CourseDB; timeslot *TimeslotDB; room *ClassroomDB; { SUBORDINATES : SIZE: }
/---------------------------------------------/
/* Print the list of courses that are not scheduled in the final table
- and specify the conflicts that prevented their scheduling */
print_conflict(IN:ConflLst,CourseDB)
int get_room(IN:ClassroomDB,enrol) room *ClassroomDB; int enrol; { SUBORDINATES : SIZE:15 }
/* returns first nonempty line from the input file */ get_next_line(IN:fd,OUT:line) FILE *fd; char *line; { SUBORDINATES : SIZE : 25 }
/* checks the format of the room number */ int chk_fmt_room_no(IN:room_no) char *room_no; { SUBORDINATES : SIZE: 25 }
/* checks the format of the given course number */ int chk_fmt_course_no(IN:course_no) char *course_no; { SUBORDINATES : SIZE : 25 }
/* checks the format of the given time slot */ int chk_fmt_time_slot(IN:time_slot) char *time_slot; { SUBORDINATES : SIZE : 25 }
/* checks whether given SchCourses_index is a duplicate occurrence */ int chk_dup_sched_course(IN:SchCourses,SchCourses_index) course SchCourses; int SchCourses_index; { SUBORDINATES : SIZE : 25 }
3 Requirements Tracing
Here we list each major requirement and then list the modules in the structure chart that
implement that requirement. The tracing shows that each requirement has been handled
in the design:
1. No more than one course should be scheduled at the same time in the same room:
sched pg pref, sched ug pref, sched pg no pref, sched ug no pref
2. The class capacity should be more than the expected enrollment of the course: sched pg pref,
sched ug pref, sched pg no pref, sched ug no pref
3. Preference is given to PG courses over UG courses for scheduling: sched pg pref,
sched ug pref, sched pg no pref, sched ug no pref
4. The courses should be scheduled so that the highest possible priority of an instructor
is given: sched pg pref, sched ug pref, sched pg no pref, sched ug no pref
If no priority is specified, any room and time can be assigned: sched pg no pref,
sched ug no pref
5. If any priority is incorrect, it is to be discarded: get pre valid
6. No two PG courses should be scheduled at the same time: sched pg pref, sched pg no pref
7. If no preference is specified for a course, the course should be scheduled in any manner
that does not violate the preceding constraints: sched pg no pref, sched ug no pref
8. The validity of the data in input file1 should be checked where possible: validate file
and its subordinates.
9. The data in input file2 should be checked for validity against the data provided in
input file1: validate file
4 Design Analysis Using Information Flow Metrics
Based on the structure chart, the design of the system was first specified completely. We
then analyzed the design using information flow metrics. Results of this analysis are given
here. Based on this analysis, the design was modified—the final design which has been
specified earlier, is an outcome of this modification. We first give portions of the intial
design, particularly the parts that we changed as a result of the analysis.
/* Following are for reserving slots for PgNoPrefs courses. A 3-D linked list
- is maintained. For each PgNoPref course (in the list of all courses), list
- of time slots is kept. For each time slot, list of possible rooms is kept.
- Using this structure, before allotting a UgPref course, it can be checked
- if by allotting it we are making a PgNoPref course unallottable. If that
- is the case, that allotment for the UG course is not done */
typedef struct R_Node /* list of indices into class room_db; contains rooms with capacity greater than enrol of PgNoPref course */ { int r_index; struct R_Node *next; }r_node;
typedef struct T_Slot_Node /* list of possible time slots for pg_no_prefs */ { int time_slot; r_node *roomlist; struct T_Slot_Node *next; }t_slot_node;
typedef struct Pg_Res_Node /* list of pg_no_pref courses */ { int pgcourse; t_slot_node *time_slots; struct Pg_Res_Node *next; }pg_res_node;
/---------------------------------------------/
selves and then highlight the “error-prone” and “complex modules”, as described in the
book. In the case study we used the metric where complexity of a module is defined as
Dc = f an in ∗ f an out + inf low ∗ outf low. The definition of error-prone and complex is
as given in the book, except that we also use size for classification; the size of the module
must also be above average or above (average + standard deviation) for it to be classified
as complex or error prone. A locally developed tool called dmetric was used to extract the
information flow metrics. The overall metrics for the design and the metrics for the modules
highlighted by the tool are given here.
OVERALL METRICS
#modules: 35 Total size: 1330 Avg. size: 38 Std.Deviation: 27 Total complexity: 595 Avg. complexity: 17 Std.Deviation: 33
Deviation of the structure chart from a tree = 0 (without considering leaves)
ERROR-PRONE MODULES
- sched_ug_pref call_in: 1 call_out: 4 inflow: 5 outflow:13 size: design complexity: 69
COMPLEX MODULES
validate_file call_in: 1 call_out: 4 inflow: 4 outflow: 8 size: design complexity: 36
sched_pg_pref call_in: 1 call_out: 1 inflow: 1 outflow: 6 size: design complexity: 7
is_safe_allotment call_in: 1 call_out: 0 inflow: 3 outflow: 1 size: design complexity: 3
validate_classrooms call_in: 1 call_out: 5 inflow: 3 outflow: 7 size: design complexity: 26
validate_dept_courses call_in: 1 call_out: 3 inflow: 2 outflow: 5 size: design complexity: 13
validate_lec_times call_in: 1 call_out: 3 inflow: 2 outflow: 5 size: design complexity: 13
This data flow analysis clearly points out that the module to schedule UG courses with
preferences is the most complex, with a complexity considerably higher than the average. It
also shows that the overall structure is a tree (with a 0 deviation). Hence, we considered the
structure to be all right. Based on this analysis, parts of the design dealing with scheduling
of UG courses was re-examined in an effort to reduce complexity.
During analysis we observed that much of the complexity was due to the 3-D linked
data structure being used for determining safety. Through discussions, we then developed a
different approach for determining safety. The idea was that instead of using a separate data
structure, before allocating a UG course, we will “simulate” the scheduling of the PgNoPref
courses, using the regular function for scheduling these courses. If the number of courses
the function sched pg no prefs() returns is the same before and after the planned UG course
scheduling, then the current allocation is safe. For this approach, we just have to make sure
that is safe allotment() invokes sched pg no prefs() with temporary data structures such
that the actual timetable is not affected during this “simulation.” The design was then
modified to incorporate this approach. On analyzing the complexity again, we found that
this approach reduced the complexity of the sched ug pref() module significantly and the
complexity of this module was now similar to complexity of other modules. Overall, we
considered the modified design satisfactory. The final design was given earlier.
