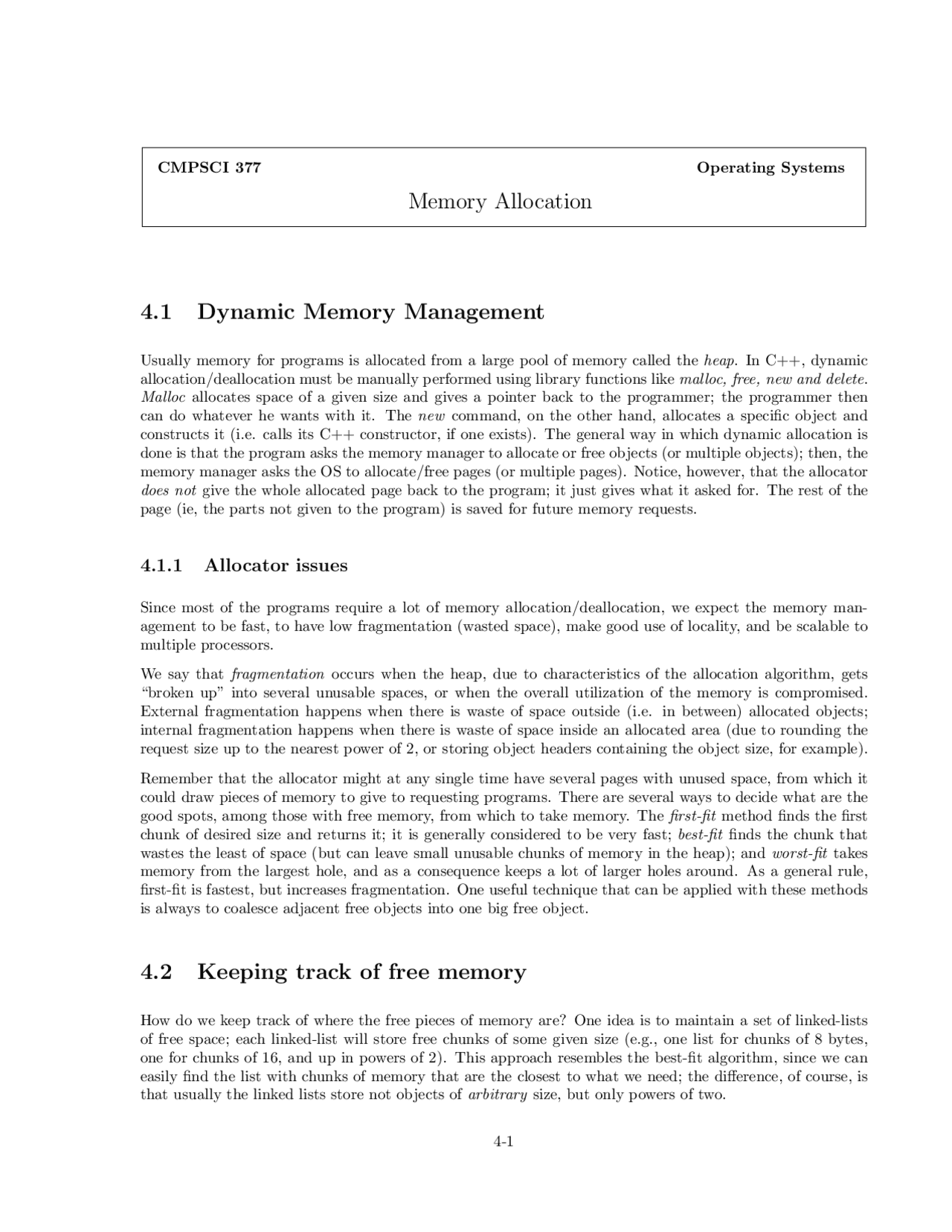

CMPSCI 377 Operating Systems
Memory Allocation
4.1 Dynamic Memory Management
Usually memory for programs is allocated from a large pool of memory called the heap. In C++, dynamic allocation/deallocation must be manually performed using library functions like malloc, free, new and delete. Malloc allocates space of a given size and gives a pointer back to the programmer; the programmer then can do whatever he wants with it. The new command, on the other hand, allocates a specific object and constructs it (i.e. calls its C++ constructor, if one exists). The general way in which dynamic allocation is done is that the program asks the memory manager to allocate or free objects (or multiple objects); then, the memory manager asks the OS to allocate/free pages (or multiple pages). Notice, however, that the allocator does not give the whole allocated page back to the program; it just gives what it asked for. The rest of the page (ie, the parts not given to the program) is saved for future memory requests.
4.1.1 Allocator issues
Since most of the programs require a lot of memory allocation/deallocation, we expect the memory man- agement to be fast, to have low fragmentation (wasted space), make good use of locality, and be scalable to multiple processors.
We say that fragmentation occurs when the heap, due to characteristics of the allocation algorithm, gets “broken up” into several unusable spaces, or when the overall utilization of the memory is compromised. External fragmentation happens when there is waste of space outside (i.e. in between) allocated objects; internal fragmentation happens when there is waste of space inside an allocated area (due to rounding the request size up to the nearest power of 2, or storing object headers containing the object size, for example).
Remember that the allocator might at any single time have several pages with unused space, from which it could draw pieces of memory to give to requesting programs. There are several ways to decide what are the good spots, among those with free memory, from which to take memory. The first-fit method finds the first chunk of desired size and returns it; it is generally considered to be very fast; best-fit finds the chunk that wastes the least of space (but can leave small unusable chunks of memory in the heap); and worst-fit takes memory from the largest hole, and as a consequence keeps a lot of larger holes around. As a general rule, first-fit is fastest, but increases fragmentation. One useful technique that can be applied with these methods is always to coalesce adjacent free objects into one big free object.
4.2 Keeping track of free memory
How do we keep track of where the free pieces of memory are? One idea is to maintain a set of linked-lists of free space; each linked-list will store free chunks of some given size (e.g., one list for chunks of 8 bytes, one for chunks of 16, and up in powers of 2). This approach resembles the best-fit algorithm, since we can easily find the list with chunks of memory that are the closest to what we need; the difference, of course, is that usually the linked lists store not objects of arbitrary size, but only powers of two.
4-2 Chapter 4: Memory Allocation
Another possible technique to keep track of free memory is called Big Bag of Pages (BiBOP). In this technique, a bunch of pages, usually segregated by size classes, is maintained such that there is a header on each page; on this header, among other things, we can find a pointer to the next page of objects of that given size, and also a pointer to the first free “slot” inside that page. Given a pointer to an object on a page, we can find the header by masking off bits to find the start of the page. With some care, we can make BiBoP find and manage free slots of memory in O(1). Also, we can obviously never coalesce adjacent elements of the lists, since then the very idea of segregating by size classes wouldn’t make sense anymore.
4.3 Custom memory allocation
Some people write custom memory allocators to meet their specific needs. Although this is not needed for most of the applications, it is also not uncommon. The goal, of course, is to replace the OS allocator in an optimized version that deals more efficiently with the most frequently used data structures of some given application. Ideally, we expect the new allocator to require reduced runtime, provide expanded functionality (sometimes) and run on reduced space (rarely). Examples of applications that use custom allocators are the Apache webserver, GCC, the STL and most database servers. Unfortunatly, there are also some drawbacks regarding the use of custom memory allocators, such as the fact that they seldom allow the use of memory debuggers.
4.4 Kinds of allocators
We can imagine several types of memory allocators. Per-class allocators, for instance, are usefull when we know that we’re going to allocate the same type of object again and again. Then, instead of segregating by object sizes (ie, maintaing a list for all 8, 16,... byte objects), we can create a list of memory slots for objects of, say, 18 bytes. This can be seen as a big pool of free memory chunks used by some commonly occurring structure/object. Per-class allocators are typically very fast and simple, but might also be space-inefficient.
Custom pattern allocators, on the other hand, are useful whenever we know we’re going to have a specific type of allocation dynamics. For instance, suppose we know that we’ll always have to allocate a lot of objects, and then we’ll delete them all, but we will never allocate anything after we started deleting (eg: alloc, alloc, delete, delete, delete). In this case, a custom pattern allocator could simply use a stack and a pointer to the last occupied position of that stack; then, when allocating, we can just request the size of the object from the memory pointed to by our pointer. Allocation and deallocation are O(1). In fact, this type of pattern allocator can be implemented just by bumping a pointer instead of performing linked-list operations. Notice that if we use this type allocator (ie, one that assumes a specific pattern of allocation) on some program that does not exhibit that pattern, we can end up with tons of unused memory, since a free slot n of memory cannot be reclaimed until we free the very last piece of occupied memory following n.
Allocation can also be done using regions. A region is a block of allocated memory that is only freed en masse. That is, the program allocates small objects from the region, but no objects can be freed until the entire region is deallocated. This is useful if we are dealing with modular applications, eg, a web browser that has to load a plug-in and then free all the memory used by that plug-in. In this case, we don’t have to free each individual object created by the plug-in; in fact we don’t care what are the objects used internally by the plug-in. We can simply delete all the region of memory used by it. Although very fast when dealing with these specific scenarios, allocation by regions can be prone to programmer error (if some object escapes its region) and can be difficult to maintain. Region allocators are used often in compilers, where lots of objects die simultaneously at the end of an analysis phase.
As a final remark, notice that there is no single best allocator; different types of programs perform differently
