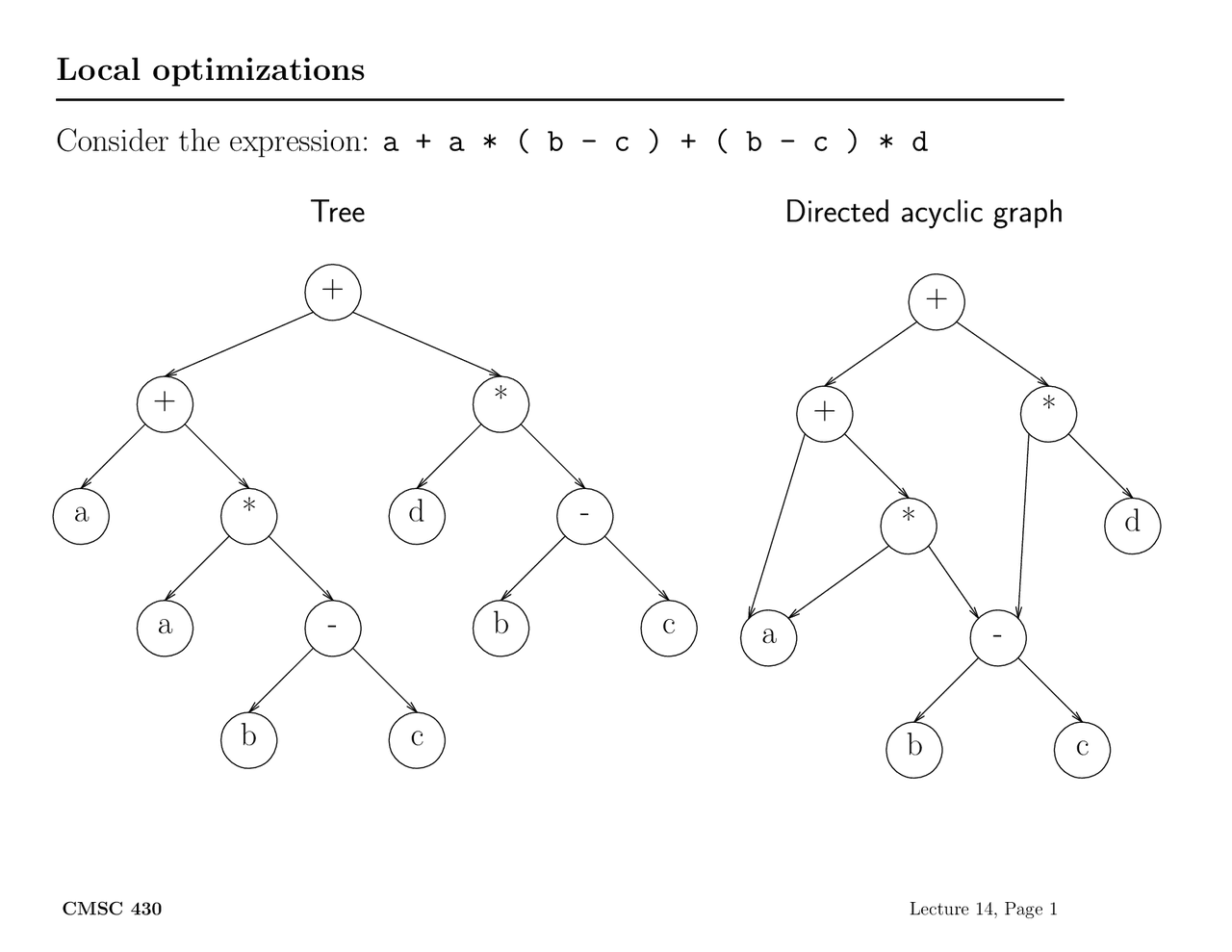

Local optimizations

Consider the expression: a + a * ( b - c ) + ( b - c ) * d

Tree Directed acyclic graph

a *

a -

b c

b c

d

a -

b c

d

Local optimizations

Common subexpressions (CSE)

• portion of expressions
• repeated multiple times
• computes same value
• can reuse previously computed value

Directed acyclic graph (DAG)

• program representation
• nodes can have multiple parents
• no cycles allowed
• exposes common subexpressions

Building a DAG for an expression

• maintain hash table for leafs, expressions
• unique name for each node — its value number
• reuse nodes found in hash table

Directed acyclic graph example

Code After Renaming a = b + c a 0 = b 0 + c 0 b = a - d b 1 = a 0 - d 0 c = b + c c 1 = b 1 + c 0 d = a - d d 1 = a 0 - d 0

b 0 c 0

d 0

c 1

b 1 ,d 1

a 0

Common subexpressions

Going beyond basic blocks

• can no longer build DAGs
• must consider control flow

Examples

• possible kill

c = a+b if (...) a = ... d = a+b

• possible gen

if (...) c = a+b d = a+b

We handle these conditions using data-flow analysis

Data-flow analysis

Algorithm

1. build control flow graph (CFG)
2. initial (local) data gathering
3. propagate information around the graph
4. post-processing (if needed)

Example control flow graph

a = 1 if (b) then c = a+b else b = 1 c = a+b ...

Available expressions

Definition

• An expression is defined at point p if its value is computed at p.
• An expression is killed at a point p if one of its argument variables is defined at p.
• an expression e is available at a point p in a procedure if every path leading to p contains a prior definition of e that is not killed between its definition and p.

Global common subexpression elimination

• If, at some definition point for p = e, e is available with name x, we can replace the evaluation with a reference to x.
• requires a global naming scheme
• natural analog to parts of value numbering

Available expressions example

Node KILL GEN A a+b ∅ B ∅ a+b C a+b a+b D ∅ ∅

AVAIL(A) = ∅

AVAIL(B) = GEN(A) ∪ (AVAIL(A) – KILL(A)) = ∅ ∪ (∅ – { a+b }) = ∅ AVAIL(C) = GEN(A) ∪ (AVAIL(A) – KILL(A)) = ∅ ∪ (∅ – { a+b }) = ∅ AVAIL(D) = (GEN(B) ∪ (AVAIL(B) – KILL(B))) ∩ (GEN(C) ∪ (AVAIL(C) – KILL(C))) = ({ a+b } ∪ (∅ – ∅)) ∩ ({ a+b } ∪ (∅ – { a+b })) = { a+b }

Solving data-flow equations

Iterative algorithm

change = true; while (change) change = false; for each basic block // faster in reverse PostOrder: solve data-flow equations for b if (old 6 = new) change = true; end for end while

Speed of solution

• node may change only if some predecessor changes
• try to visit node after all its predecessors
• reverse PostOrder propagates information quickly
• programs usually converge after 3–4 passes
• use bitvectors for more efficiency

Reaching definitions

• The problem: What are the assignments (or definitions) of a variable x that may reach a particular reference to x?
• Why is this useful?

Constant propagation:

a = 1 a = 2 a = 2 b = 3 = a = b

Loop invariant code motion:

L: a = a + 4 b = 20 c = b + a if (...) goto L

Reaching definitions

• A definition of a variable x is a statement that assigns, or may assign, a value to x.
• A definition d reaches a program point p if there exists a path from the point immediately following d to p such that d is not killed along that path.
• REACH(b) is the set of definitions reaching the entry of basic block b
• DEF(b) is the set of local definitions in b that reach the end of b
• KILL(b) is the set of variables killed by b
• Equations:

REACH(b) =

⋃ x∈pred(b)

(DEF(x) ∪ (REACH(x) − KILL(x)))

Best case for REACH(b) = ∅

Worse case for REACH(b) = { all definitions }

Live variables

• Slightly different, since information at basic block is based on what happens later in the program.
• A backward data-flow problem.
• LIVE(b) is the set of definitions live on exit from block b.
• KILL(b) is as before.
• USE(b) is the set of locally exposed uses
• succ(b) is the set of basic blocks that are immediate successors of b in the control flow graph.
• Equations:

LIVE(b) =

⋃ x∈succ(b)

(USE(x) ∪ (LIVE(x) − KILL(x)))

Best case for LIVE(b) = ∅

Worse case for LIVE(b) = { all definitions }

What do these have in common?

AVAIL(b) =

⋂ x∈pred(b)

(GEN(x) ∪ (AVAIL(x) − KILL(x)))

REACH(b) =

⋃ x∈pred(b)

(DEF(x) ∪ (REACH(x) − KILL(x)))

LIVE(b) =

⋃ x∈succ(b)

(USE(x) ∪ (LIVE(x) − KILL(x)))

• Confluence Operator or Meet Function: union or intersection
• Behavior for block: GEN and KILL
• A direction: forward (confluence over predecessors) or backward (over successors)
• Best case set value: >
• Worst case set value: ⊥

General equations:

IN(b) = ∧p∈pred(b) OUT(p)† OUT(b) = GEN(b) ∪ (IN(b) - KILL(b))

† Reverse graph for backward problem.

Data-flow lattices

Definitions

1. a lattice is a set L and a meet operation ∧ such that, ∀ a, b, c ∈ L (a) a ∧ a = a [idempotent] (b) a ∧ b = b ∧ a [commutative] (c) a ∧ (b ∧ c) = (a ∧ b) ∧ c [associative]
2. ∧ imposes a partial order on L, ∀ a, b ∈ L (a) a ≥ b ⇔ a ∧ b = b (b) a > b ⇔ a ≥ b and a 6 = b
3. a lattice may have a bottom element ⊥ (a) ∀ a ∈ L, ⊥ ∧ a = ⊥ (b) ∀ a ∈ L, a ≥ ⊥
4. a lattice may have a top element > (a) ∀ a ∈ L, > ∧ a = a (b) ∀ a ∈ L, > ≥ a

Data-flow lattices

Available expressions example: let D = { x | x ⊆ {e 1 , e 2 , e 3 }}, ∧ = ∩

Partial ordering {e 1 , e 2 } vs. {e 3 }

Single lattice vs. one for each variable
