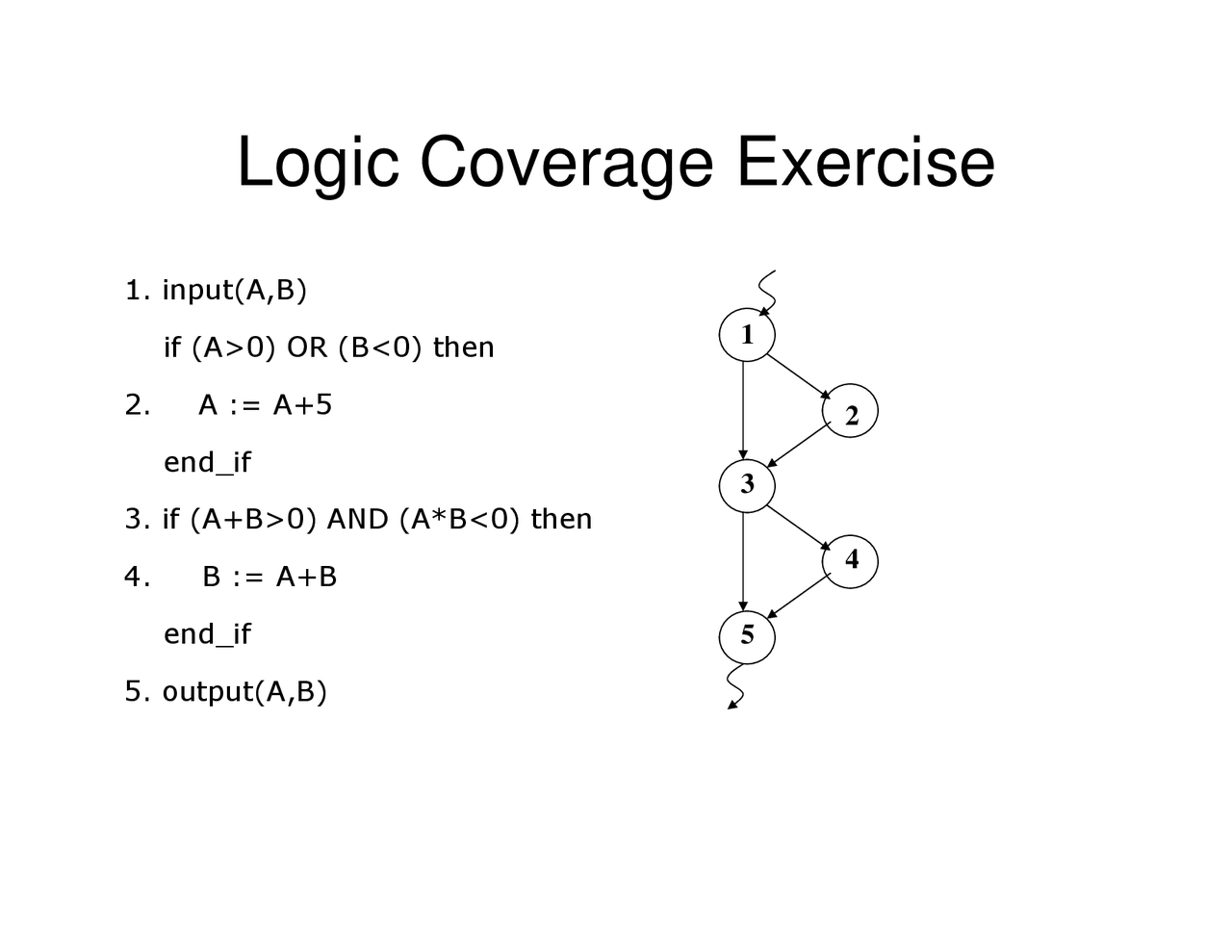

Logic Coverage Exercise
1. input(A,B)
if (A>0) OR (B<0) then
2. A := A+5
end_if
3. if (A+B>0) AND (A*B<0) then
4. B := A+B
end_if
5. output(A,B)
1
2
3
4
5
