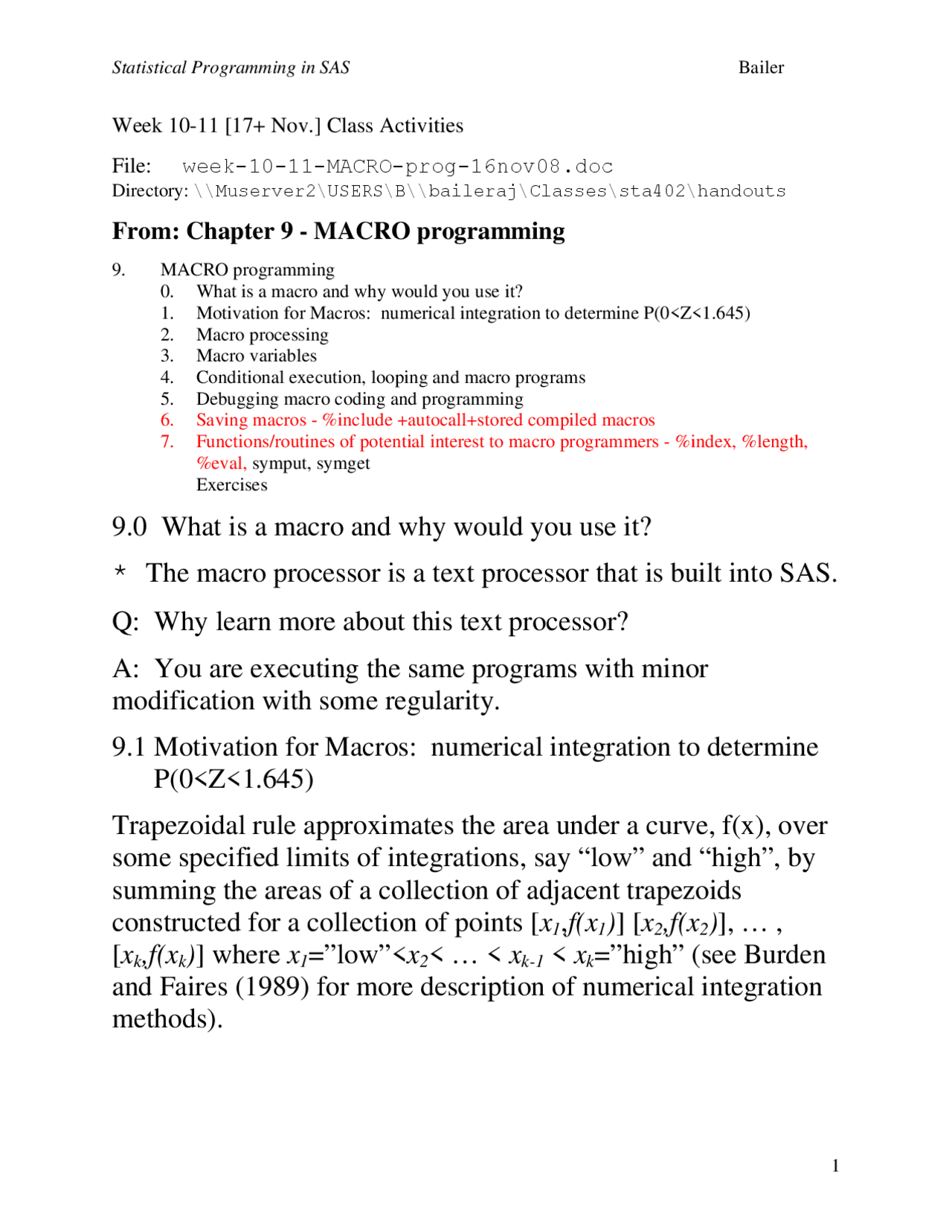

Week 10-11 [17+ Nov.] Class Activities
File: week-10-11-MACRO-prog-16nov08.doc
Directory: \Muserver2\USERS\B\baileraj\Classes\sta402\handouts
From: Chapter 9 - MACRO programming
9. MACRO programming
0. What is a macro and why would you use it?
1. Motivation for Macros: numerical integration to determine P(0<Z<1.645)
2. Macro processing
3. Macro variables
4. Conditional execution, looping and macro programs
5. Debugging macro coding and programming
6. Saving macros - %include +autocall+stored compiled macros
7. Functions/routines of potential interest to macro programmers - %index, %length,
%eval, symput, symget
Exercises
9.0 What is a macro and why would you use it?
- The macro processor is a text processor that is built into SAS.
Q: Why learn more about this text processor?
A: You are executing the same programs with minor
modification with some regularity.
9.1 Motivation for Macros: numerical integration to determine
P(0<Z<1.645)
Trapezoidal rule approximates the area under a curve, f(x), over
some specified limits of integrations, say “low” and “high”, by
summing the areas of a collection of adjacent trapezoids
constructed for a collection of points [ x 1 , f(x1) ] [ x2,f(x2) ], … ,
[ x (^) k,f(xk) ] where x 1 =”low”< x 2 < … < xk-1 < xk =”high” (see Burden
and Faires (1989) for more description of numerical integration
methods).
If xi+1 - xi = h for i=1,…,k-1, then the estimated area can be
written as A = { f x + f x + + f xk − + f ( xk )}× h
( ) ( ) ( )^1
1 2 L^1. This area
estimator is implemented in the program listed in Display 9.
where k =25, x 1 =0, xk =1.645, h =( xk - x 1 )/24 and exp( / 2 )
f ( x )= − x^2
Display 9.1: Program for estimating P(0<Z<1.645) using the
trapezoidal rule
Calculate P(0 < Z < 1.645) using the trapezoidal rule
data trapper;
retain trapsum 0;
array x_value(25) x1-x25;
array f_value(25) y1-y25;
low = 0;
high = 1.645;
incr = (high-low)/24;
pi = arcos(-1);
do i= 1 to 25;
x_value[i] = low + incr*(i-1);
f_value[i] = (1/sqrt(2pi))exp(-x_value[i]*x_value[i]/2);
if i=1 or i=25 then trapsum = trapsum + f_value[i]/2;
else trapsum = trapsum + f_value[i];
end;
area_est = trapsum*incr;
output;
ods rtf bodytitle;
proc print data=trapper;
title "Trapezoidal Rule area estimate for P(0 < Z < 1.645)";
var low high incr area_est;
run;
data trapper2;
set trapper;
array x_value(25) x1-x25;
array f_value(25) y1-y25;
do ii=1 to 25;
xout = x_value[ii];
yout = f_value[ii];
output;
end;
proc print data=trapper2;
title "Interpolation points for Trapezoidal Rule";
var ii low high incr area_est xout yout;
run;
Obs ii low High incr area_est xout Yout
[Q] could you modify this program to have vertical lines
connecting the density values to the x-axis and connect the
density values to display the trapezoids being summed to obtain
the estimated area? It would be even cooler to superimpose the
true density.
Display 9.4: Output containing the [ x,f(x) ] values used in the
trapezoidal rule estimated of P(0<Z<1.645)
yout
xout
Plot of function values vs. x-values
A number of questions arise at this point. We have a very
specific implementation for a particular problem. What might
you want to do now?
Q (^) 1: How hard would it be to modify this code if we wanted
k =50 points vs. k =25 points?
Q (^) 2: Could we generalize this code to specify different limits
of integration?
Q (^) 3: Could we set up a “switch” to produce graphics only
when requested?
Q (^) 4: Is it possible to package this estimator into a callable
“subroutine” or “function?”
Q (^) 5: Could we generalize this code for any arbitrary (corrected
coded) function?
(For the impatient, the answers to these questions are: not too hard, easily, easily, yes and yes,
respectively. The common denominator to respond to all the questions is that macros in SAS
will be employed. )
9.2 Macro processing
and this interchange will continue until the input stack has been
completely processed. This will be clearer when we look at how
code with macro statements and variables are resolved.
9.3 Macro variables, parameters and functions
A macro variable …
- can be referenced anywhere in a SAS program (other than in
data lines that are being read into SAS).
- can be assigned text values, and the value of such a variable is
stored in either local or global symbol tables.
is named using a valid SAS name
is preceded by an & when it is referenced in a SAS program.
if it follows text, then it is referenced as text¯o-
variable.
- if it precedes text, then it is referenced with a period delimiting
the value from text, i.e. ¯o-variable.text.
- can be “automatic macro variables,” while a program can
define others, so-called “user-defined macro variables.”
How will you usually start using MACROS in SAS?
A: most likely use macro variables to define simple
substitutions in a program. In Display 9.5, we modify the
trapezoidal numerical integration routine to address Q 1 and Q (^2)
from above -
Q 1 : How hard would it be to modify this code if we
wanted k =50 points vs. k =25 points?
Q 2 : Could we generalize this code to specify different
limits of integration?
Use %LET to assign values to macro variables NPTS (the macro
variable for k ), along with LOW and HIGH (the macro variables
that correspond to the limits of integration).
Display 9.5: Replacing the limits of integration and number of
points to evaluation in a trapezoidal rule estimation of
P(low < Z < high).
/* Calculate P(low < Z < high) using the trapezoidal rule */
%let npts = 50;
%let LOW = -1.645;
%let HIGH = 1.645;
data trapper;
file "C:\Users\baileraj\BAILERAJ\BOOK-stat-prog-may05\ch-
09\est.out" MOD;
retain trapsum 0;
array x_value(&npts) x1-x&npts;
array f_value(&npts) y1-y&npts;
low = &LOW;
high = &HIGH;
incr = (high-low)/( &npts -1);
pi = arcos(-1);
do i= 1 to &npts;
x_value[i] = low + incr*(i-1);
f_value[i] = (1/sqrt(2pi))exp(-x_value[i]*x_value[i]/2);
if i=1 or i=&npts then trapsum = trapsum + f_value[i]/2;
else trapsum = trapsum + f_value[i];
end;
area_est = trapsum*incr;
output;
put;
put "est. P(&LOW < Z < &HIGH) =" area_est "(based on &NPTS
points)";
put;
ods rtf bodytitle;
proc print data=trapper;
title "Trapezoidal Rule area estimate for P(&LOW < Z < &HIGH)";
title2 "(based on &NPTS equally spaced points)";
var low high incr area_est;
run;
equivalent statements of the DO-END data step statements, here
%DO and %END.
9.4 Conditional execution, looping and macros
- %LET macro statement above can be used anywhere in a
program, in so-called “open code.”
- Other macro statements such as %do-%end and %if-
%then, can only be used in the context of a defined macro.
- A macro is a collection of commands that are evaluated by
the macro processor when invoked. The general construction
of a macro involves the declaration of the macro along with
any variables that might be passed to it, the statements that are
to be invoked in the macro, and statement declaring the end of
the macro. In particular, a macro program looks like the
following
%macro prog-name;
%mend prog-name;
which is invoked by a reference to %prog-name omitting the
“;” here. The semi-colon is not needed. The %prog-name is
talking to the macro processor, not to other SAS components.
Parameters can be passed to macro programs. (Parameter has technical
meaning to the statistical community and a different meaning to the programming community.
Here, a parameter is simply an argument to a macro whose value may influence what a macro
does.)
First macro programming example: we explore complicated
macro variable constructions. Consider the example in Display 9.8 in which two
macro variables need to be resolved to define a third macro variable. Here, we have variables
that are hypothetical values of weights (weight1, weight2) measured on two separate
occasions (week1, week2). In this simple macro, we use two macro parameters
(variable, obs) to identify the variable and occasion of interest. Our macro is designed to
echo the input to the LOG and to print the value of the variable of interest.
Display 9.8: A simple macro to demonstrate resolution of a more complex macro variable name
%let var1=week;
%let var2=weight;
%let time1=1;
%let time2=2;
%let var1time1 = week1;
%let var1time2 = week2;
%let var2time1 = weight1;
%let var2time2 = weight2;
data tester;
input week1 weight1 week2 weight2;
datalines;
%macro showvalue(variable, obs);
%put Value of '&variable' = &variable;
%put Value of '&obs' = &obs;
%put Value of '&&&variable&obs' = &&&variable&obs;
proc print;
var &&&variable&obs;
run;
%mend showvalue;
% showvalue (variable=var1, obs=time1)
% showvalue (variable=var2, obs=time2)
One interesting feature of this program is the construct &&&variable&obs which allows us to
make a few additional observations about macro variables. First, macro variable names are
resolved from left to right. Second, && is resolved to & by the macro processor. In this example,
when &variable=var1(=week) and &obs=time1(=1), &&&variable&obs has value
var1time1(=week1). The SAS LOG from the first invocation of this macro is given in
Display 9.9.
Display 9.9: Output from LOG associated with invocating the macro showvalue
%showvalue(variable=var1, obs=time1) Value of '&variable' = var Value of '&obs' = time Value of '&&&variable&obs' = week
Macro defined below (trap_area_Z):
As part of the trap_area_Z macro construction, we explicitly
address the two questions:
Q 3 : Could we set up a “switch” to produce graphics only
when requested?
Q 4 : Is it possible to package this estimator into a callable
“subroutine” or “function?”
We start with the naming of this macro along with input
parameters. These input parameters are assigned default values
in the macro declaration.
- macro comments were added to describe the input parameters
to this macro. These comments begin with a %* and end with a
semi-colon. (Aside: Now if you used standard comments, e.g. start with an asterisk and
end with a semi-colon, these would be displayed on the LOG. The macro comments won’t be
displayed until particular options are set.)
* We have already converted hard-coded values into macro variables in Display 9.5. These were
assigned values in Display 9.5 using %LET statements. In the macro below, control of printing,
graph generation and the use of ODS RTF are all based on parameters of the macro. The %IF-
%THEN conditional statements are used to check whether these displays are requested. For
example, in the macro defined below, the block of code
%if &display_graph=TRUE %then %do;
proc gplot data=trapper2;
title "Plot of function values vs. x-values";
plot yout*xout;
run;
%end;
causes the lines
proc gplot data=trapper2;
title "Plot of function values vs. x-values";
plot yout*xout;
run;
to be included in the input stack for processing WHEN the macro parameter display_graph
= TRUE. In other words, the %IF-%THEN condition is evaluated by the macro processor. If
TRUE, then the code between the %DO and %END statements are processed as part of the input
stack. Finally, the macro has the option to evaluate the integral based on a range of values. This
is accomplished via the %do-%to-%by command paired with a %end statement, here
%do npts = &npts_lo %to &npts_hi %by &npts_by; *loop over npts values;
Putting these ideas together yields the macro that is given in Display 9.10.
Display 9.10: Macro for constructing a trapezoidal rule estimate
of the area under a standard normal curve
%macro trap_area_Z(LOW=-1.645, HIGH=1.645, npts_lo=10, npts_hi=10, npts_by=2,
fout=C:\Users\baileraj\BAILERAJ\BOOK-stat-prog-may05\ch-09\est3.out,
print_est=FALSE, print_pts=FALSE, display_graph=FALSE, ODS_on=FALSE);
%* Purpose: estimate P{LOW < Z < HIGH) using the trapezoidal rule;
%* Macro variables: ;
%* LOW, HIGH: interval of interest;
%* NPTS_LO, NPTS_HI, NPTS_BY: # function values evaluated in area calc.;
%* FOUT: output data file containing area estimate for each NPTS value;
%* PRINT_EST: display PROC PRINT with area estimate;
%* PRINT_PTS: display PROC PRINT with
%* DISPLAY_GRAPH: generate PROC GPLOT with function values;
%* ODS_ON: generate ODS RTF output;
%do npts = &npts_lo %to &npts_hi %by &npts_by; *loop over npts values;
data trapper;
file "&fout" MOD;
retain trapsum 0;
array x_value(&npts) x1-x&npts;
array f_value(&npts) y1-y&npts;
low = &LOW;
high = &HIGH;
incr = (high-low)/( &npts -1);
pi = arcos(-1);
do i= 1 to &npts;
x_value[i] = low + incr*(i-1);
f_value[i] = (1/sqrt(2pi))exp(-x_value[i]*x_value[i]/2);
if i=1 or i=&npts then trapsum = trapsum + f_value[i]/2;
else trapsum = trapsum + f_value[i];
end;
area_est = trapsum*incr;
output;
put "est. P(&LOW < Z < &HIGH) =" area_est "(based on &NPTS points)";
%if &ODS_ON=TRUE %then ods rtf bodytitle;
%if &print_est=TRUE %then %do;
proc print data=trapper;
title "Trapezoidal Rule area estimate for P(&LOW < Z < &HIGH)";
title2 "(based on &NPTS equally spaced points)";
var low high incr area_est;
run;
%end;
% ncheck (0.5)
The results from applying the range checking macro is given in Display 9.12.
Display 9.12: LOG displaying ncheck macro applied to 3 different arguments
%ncheck(1) Value of '&npts' = 1 %ncheck(-2) ERROR: '&npts' must exceed 1 ERROR: value of '&npts' = - %ncheck(0.5) ERROR: '&npts' must exceed 1 ERROR: value of '&npts' = 0.
We started with 5 questions. We have not yet addressed the 5
th
question: Q (^) 5: Could we generalize this code for any arbitrary
(corrected coded) function? We will not work through it here;
however, here is a hint to try at home. Where in the code is the
standard normal density function defined? Could you define a
macro variable that would contain this arbitrary function and
pass it as a parameter to some general trap_area macro?
Would you need to change more than one line in the macro
above?
As a final remark, if you were producing this as a macro that
would be used in a production environment, then you would
need to add checks for valid parameter values. How would you
do this in the trap_area_Z macro?
Now, I could claim that this code matches my first attempt at
constructing this macro; however, that would be a lie. Alas, the
truth is that debugging and error correction was required. The
next section touches on some basic strategies for exploring and
debugging errors in macro coding.
9.5. Debugging macro coding and programming
The first place to start exploring non-working macro code is to
write out the contents or values of macro variables.
- Can write out to the LOG the value of a macro variable that
you have defined using the statement %PUT ¯o-var-
name.
- Can display the SAS automatic macro variables (%PUT
automatic;), the user-defined macros (%PUT user;)
or both types (%PUT all;). For debugging, either
specifying particular macro variables or all user-defined macro
variables would be more useful.
- As an aside, it is interesting to see what macro variables are
defined by SAS (you might be interested in using some of these
variables in your programs). The SYSDATE, SYSDAY,
SYSTIME are useful for extracting date and time information
while SYSLAST is useful for defining a default data set use in a
macro.
Display 9.13 includes a request to display the values of macro
variables that are automatically defined in SAS.
Display 9.13: Subset of SAS automatic macro variables (edited from %put automatic;)
656 %put automatic; AUTOMATIC SYSDATE 06JUL AUTOMATIC SYSDATE9 06JUL AUTOMATIC SYSDAY Sunday AUTOMATIC SYSDSN WORK TRAPPER AUTOMATIC SYSERR 0 AUTOMATIC SYSLAST WORK.TRAPPER AUTOMATIC SYSPROCNAME GPLOT AUTOMATIC SYSTIME 09: AUTOMATIC SYSVER 9.
There are three main “options” that are useful for constructing
and debugging macros, namely, macrogen mprint
mlogic.
SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable LOW resolves to 0 SYMBOLGEN: Macro variable HIGH resolves to 1. SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable ODS_ON resolves to FALSE SYMBOLGEN: Macro variable PRINT_EST resolves to FALSE
NOTE: The file "C:\Users\baileraj\BAILERAJ\BOOK-stat-prog-may05\ch-09\est3.out" is: Filename=C:\Users\baileraj\BAILERAJ\BOOK-stat-prog-may05\ch-09\est3.out, RECFM=V,LRECL=256,File Size (bytes)=757, Last Modified=06Jul2008:10:39:57, Create Time=02Jul2008:15:41:
NOTE: 1 record was written to the file "C:\Users\baileraj\BAILERAJ\BOOK-stat-prog-may05\ch- 09\est3.out". The minimum record length was 54. The maximum record length was 54. NOTE: The data set WORK.TRAPPER has 1 observations and 17 variables. NOTE: DATA statement used (Total process time): real time 0.03 seconds cpu time 0.03 seconds
SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable NPTS resolves to 5 SYMBOLGEN: Macro variable PRINT_PTS resolves to FALSE SYMBOLGEN: Macro variable DISPLAY_GRAPH resolves to TRUE
NOTE: There were 1 observations read from the data set WORK.TRAPPER. NOTE: The data set WORK.TRAPPER2 has 5 observations and 20 variables. NOTE: DATA statement used (Total process time): real time 0.02 seconds cpu time 0.01 seconds
SYMBOLGEN: Macro variable ODS_ON resolves to FALSE
NOTE: There were 5 observations read from the data set WORK.TRAPPER2. NOTE: PROCEDURE GPLOT used (Total process time): real time 0.47 seconds cpu time 0.32 seconds
Display 9.15 presents a portion of the SAS LOG output when the mprint option is set
prior to the invocation of the trap_area_Z macro. This option writes the SAS code resulting
from the execution of a macro. After the looping over npts values, the first lines of this macro
include
data trapper;
file "&fout" MOD;
retain trapsum 0;
array x_value(&npts) x1-x&npts;
array f_value(&npts) y1-y&npts;
low = &LOW;
high = &HIGH;
incr = (high-low)/( &npts -1);
pi = arcos(-1);
do i= 1 to &npts;
x_value[i] = low + incr*(i-1);
f_value[i] = (1/sqrt(2pi))exp(-x_value[i]*x_value[i]/2);
if i=1 or i=&npts then trapsum = trapsum + f_value[i]/2;
else trapsum = trapsum + f_value[i];
end;
which results in the SAS LOG output
MPRINT(TRAP_AREA_Z): data trapper; MPRINT(TRAP_AREA_Z): file "C:\Users\baileraj\BAILERAJ\BOOK-stat-prog-may05\ch- 09\est3.out" MOD; MPRINT(TRAP_AREA_Z): retain trapsum 0; MPRINT(TRAP_AREA_Z): array x_value(5) x1-x5; MPRINT(TRAP_AREA_Z): array f_value(5) y1-y5; MPRINT(TRAP_AREA_Z): low = 0; MPRINT(TRAP_AREA_Z): high = 1.96; MPRINT(TRAP_AREA_Z): incr = (high-low)/( 5 -1); MPRINT(TRAP_AREA_Z): pi = arcos(-1); MPRINT(TRAP_AREA_Z): do i= 1 to 5; MPRINT(TRAP_AREA_Z): x_value[i] = low + incr(i-1); MPRINT(TRAP_AREA_Z): f_value[i] = (1/sqrt(2pi))exp(-x_value[i]x_value[i]/2); MPRINT(TRAP_AREA_Z): if i=1 or i=5 then trapsum = trapsum + f_value[i]/2; MPRINT(TRAP_AREA_Z): else trapsum = trapsum + f_value[i]; MPRINT(TRAP_AREA_Z): end;
The values of the macro variables are substituted here (e.g. 5 for &npts, 0 for &low, 1.96 for
&high, etc.), and this is the SAS code that is now processed and executed. While it doesn’t
have the nice indenting for ease of reading, it does show the code that will be executed.
Display 9.15: LOG output produced by the mprint option when using with the macro
invocation % trap_area_Z (LOW=0,HIGH=1.96,npts_lo=5,npts_hi=25,npts_by=5,
display_graph=TRUE)
MPRINT(TRAP_AREA_Z): data trapper; MPRINT(TRAP_AREA_Z): file "C:\Users\baileraj\BAILERAJ\BOOK-stat-prog-may05\ch-09\est3.out" MOD; MPRINT(TRAP_AREA_Z): retain trapsum 0; MPRINT(TRAP_AREA_Z): array x_value(5) x1-x5; MPRINT(TRAP_AREA_Z): array f_value(5) y1-y5; MPRINT(TRAP_AREA_Z): low = 0; MPRINT(TRAP_AREA_Z): high = 1.96; MPRINT(TRAP_AREA_Z): incr = (high-low)/( 5 -1); MPRINT(TRAP_AREA_Z): pi = arcos(-1); MPRINT(TRAP_AREA_Z): do i= 1 to 5; MPRINT(TRAP_AREA_Z): x_value[i] = low + incr(i-1); MPRINT(TRAP_AREA_Z): f_value[i] = (1/sqrt(2pi))exp(-x_value[i]x_value[i]/2); MPRINT(TRAP_AREA_Z): if i=1 or i=5 then trapsum = trapsum + f_value[i]/2; MPRINT(TRAP_AREA_Z): else trapsum = trapsum + f_value[i]; MPRINT(TRAP_AREA_Z): end; MPRINT(TRAP_AREA_Z): area_est = trapsum*incr; MPRINT(TRAP_AREA_Z): output;
