EECS 482
1

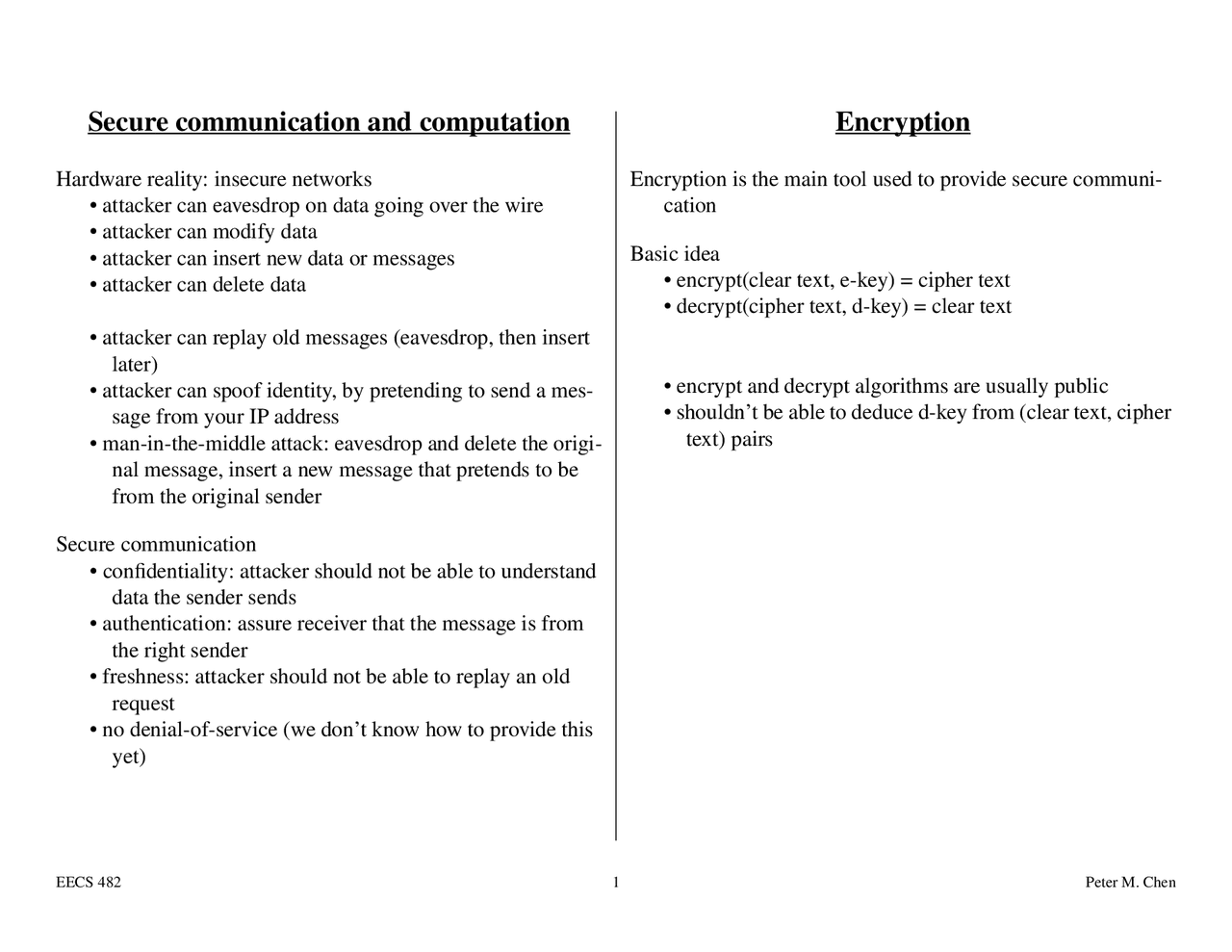

Secur
e communication and computation
Hardware reality: insecure networks
- attacker can eavesdrop on data going over the wire• attacker can modify data• attacker can insert new data or messages• attacker can delete data• attacker can replay old messages (eavesdrop, then insert
later)
- attacker can spoof identity, by pretending to send a mes-
sage from your IP address
- man-in-the-middle attack: eavesdrop and delete the origi-
nal message, insert a new message that pretends to befrom the original sender
Secure communication
- confidentiality: attacker should not be able to understand
data the sender sends
- authentication: assure receiver that the message is from
the right sender
- freshness: attacker should not be able to replay an old
request
- no denial-of-service (we don’t know how to provide this
yet)
Encryption
Encryption is the main tool used to provide secure communi-
cation
Basic idea
- encrypt(clear text, e-key) = cipher text• decrypt(cipher text, d-key) = clear text• encrypt and decrypt algorithms are usually public• shouldn’t be able to deduce d-key from (clear text, cipher
text) pairs
EECS 482
2
Symmetric k
ey encryption
e-key = d-key (i.e. symmetric)
- only sender and receiver know the key (sometimes this is
called “secret key” encryption)
Analogous to writing data on a floppy and placing the floppy
inside a box with a padlock, then sending the box to thereceiver via an untrusted courier. When the receiver getsthe box and opens it, he/she knows:• the true sender wrote the data on the floppy (authentica-
tion)
- nobody other than the sender has read the floppy (confi-
dentiality)
Symmetric-key encryption algorithms are fastE.g. I send message to registrar with a student’s grade
- encrypt(“B”, key)• can someone modify the message?
How do sender and receiver get a shared secret key in the first
place?
EECS 482
4
Public-key encryption used in
- SSL (secure sockets layer, used in web https)• ssh (secure shell)• pgp (secure mail)
Problems with public-key encryption
- more computationally expensive than symmetric-key
encryption. Solve by using public-key to exchange ashort-lived symmetric key (session key)
- how to change my public key?• how to trust authenticity of published public keys?
E.g. A wants to communicate with B, so A and B must learn
each other’s public keys (A-public and B-public). Villainhas two public keys V-public1 and V-public2.• what if villain manages to convince A that B’s public key
is V-public1? And what if villain can convince B thatA’s public key is V-public2?
- A sends signed and sealed message with the wrong key:
crypt(“From A” crypt(message, A-private), V-public1)
How to authenticate the published public key?pgp: verify the “fingerprint” of a public key via the telephone
or a trusted web server
SSL example: your web browser wants to communicate with
e-trade. You want to ensure that only e-trade can see yourmessages; e-trade wants to be sure that you are really whoyou say you are.
step 1: assure you that your messages can be read only be e-
trade• e-trade has public key, but how to learn this securely?• certification authority (e.g. verisign) vouches for the
authenticity of e-trade’s public key
- e-trade sends you their public key, digitally signed by
verisign: crypt(“e-trade’s public key is X”, verisign-pri-vate)
- I decrypt with verisign’s public key and see that verisign
is vouching for e-trade’s public key
- once I have e-trade’s public key, e-trade and I can set up a
shared session key (could be secret key)
EECS 482
5
step 2: assure e-trade that you are really who you say you are
- most clients don’t have a certified public key from veri-
sign
- you send your password (encrypted with the secret ses-
sion key)
- e-trade decrypts with your password to verify that this
session key is really from you.
Replay attacks
Example using symmetric-key encryption (same is possible
with public-key encryption)• I send message to bank using symmetric-key encryption
encrypt(“transfer $100 to U-M”, key)
- evil U-M administrator eavesdrops and saves the
encrypted message, then replays it later. Bank transfers another
$100 to U-M.
How to defend against this attack?
EECS 482
7
A
uthentication: who ar
e y
ou?
Authentication is the process of you proving your identity to
the operating system. It may also include the operatingsystem proving its identity to you.
Many ways to do authenticationPasswords
- a shared secret between the user and the OS• what happens if villain gains access to the list of pass-
words?instead of storing the password, the OS can store a one-way function of the password
- what’s the weakest link in a password system?
Authenticate based on a physical token (that can’t be easily
forged)• e.g. your ticket to the football game• but what if your token is stolen?
Authenticate based on both a physical token and a password
- e.g. your ATM card plus your PIN• PIN is small so it’s easy to remember. Limit guessing by
disabling card after small number of guesses
Authenticate based on biometric token
- e.g. retina, thumbprint, signature
How do companies authenticate customers?
EECS 482
8
A
uthorization: what can y
ou do?
Access control matrixTwo approaches for how to store this information: access con-
trol lists (ACLs) and capabilities
Access control lists
- at each object, store a list of who can access the object
and in what ways they can access it
- e.g. at file2, store <user1 rw; user2 r>• on each access, check that the user (whose identity is
authenticated a login time) has permissions to access thefile
- can make things more convenient by having user groups.
e.g. aprakash, pmchen both belong to the “faculty”group, and file3 could have ACL <faculty, rw>
- villain can attack ACL systems by fooling the system into
thinking he is someone else. E.g. sendmail runs as root.Attacker can subvert sendmail and get it to run attackcode. System allows arbitrary access, because the sys-tem thinks this code is root’s code.
Capabilities
- at each user, store a list of objects the user is allowed to
access and how they are allowed to access it
- e.g. at user2, store <file2 r, file3 rw>• on each access, check that the user has a capability for
this type of access
- possession of the capability gives the power to access the
file
- capabilities are like car keys. If you possess the door key
to a car, you have the power to enter the car. If you pos-sess the ignition key to a car, you have the power todrive the car.
- villain can attack a capability system by forging a capa-
bility (especially since capabilities are stored at theuser).
- solution is to make the capabilities self-authenticating
(unforgeable). e.g. the capability might includeencrypt(file name, system key).
How does the owner of an object revoke permissions for a user
in an ACL system?
How does the owner of an object revoke permissions for a user
in a capability system?
file
file
file
user
rw
rw
rw
user
-^
r^
rw
EECS 482
10
Buffer overflow
- program reads input into an on-stack buffer. Program
fails to check the length of that input
- villain can give a long input and corrupt your stack. If
they corrupt the return address on the stack, they canforce the program to jump to their code.
Trojan horse
- give somebody that is apparently useful, but have it do
something evil
- e.g. replace the login program to e-mail your password to
the villain
- e.g. send someone a Word document (or an e-mail attach-
ment) with a macro that runs when the document isopened (it runs with the user’s identity)
Example
Ken Thompson (creator of Unix) wrote a self-replicating piece
of attack code
goal: put a backdoor into the login program to allow “ken” to
login as root without knowing password1. make it possible (easy)2. hide it (tricky)
Step 1: modify login.c
(code A) if (name
==
“ken”)
login
as
root
But this is really obvious to anyone looking at login.c How to
hide the attack code?
Step 2: modify C compiler
(code B) if (compiling login.c) compile code A
into
binary
Now you can remove code A from login.c, and still have a
backdoor. But this is now obvious in the compiler. How tohide the compiler attack code?
Step 3: distribute a buggy C compiler binary
(code C) if (compiling
C
compiler),
compile
code
B
into
binary
