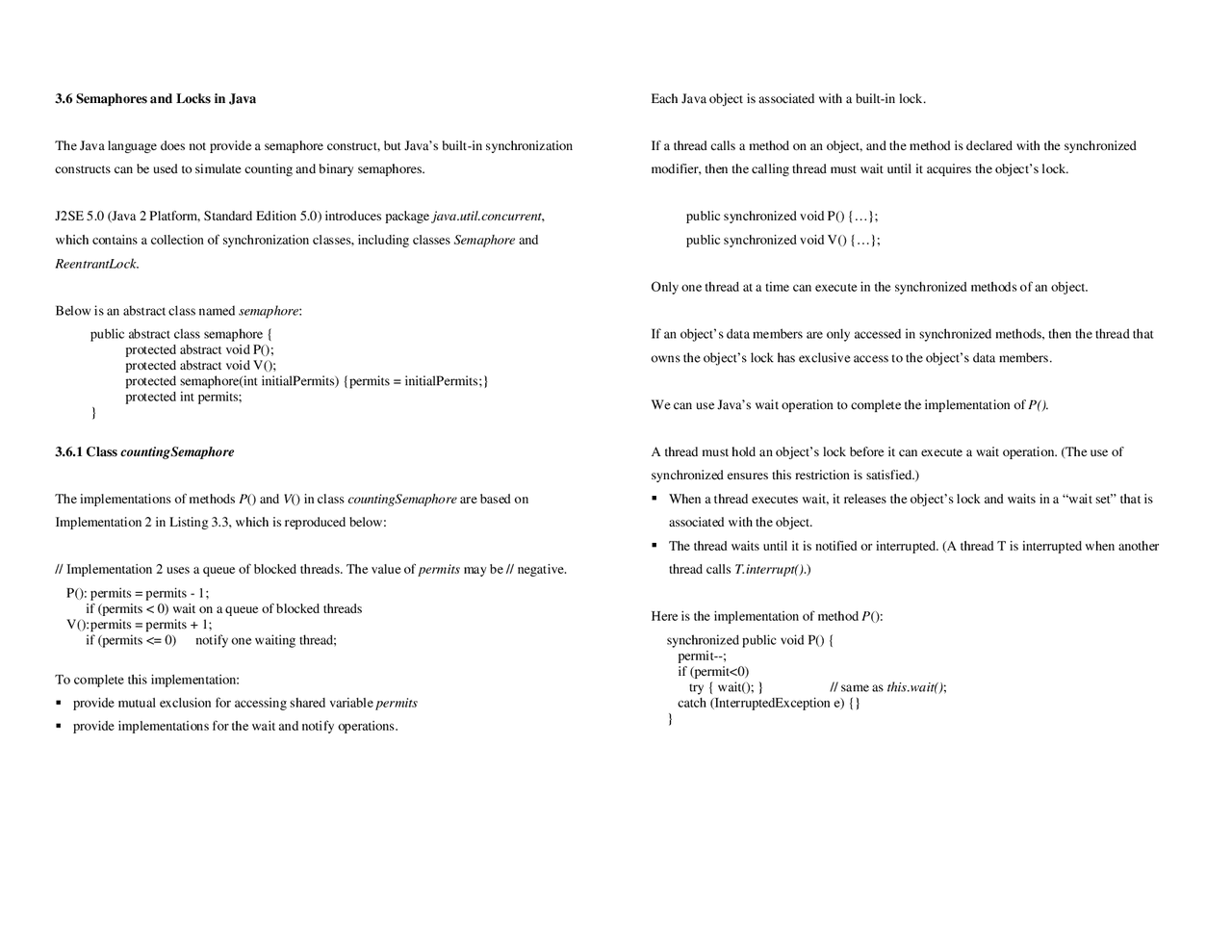

3.6 Semaphores and Locks in Java The Java language does not provide a semaphore construct, but Java’s built-in synchronizationconstructs can be used to simulate counting and binary semaphores.J2SE 5.0 (Java 2 Platform, Standard Edition 5.0) introduces package
java.util.concurrent
which contains a collection of synchronization classes, including classes
Semaphore
and
ReentrantLock
Below is an abstract class named
semaphore
public abstract class semaphore {
protected abstract void P();protected abstract void V();protected semaphore(int initialPermits) {permits = initialPermits;}protected int permits;
3.6.1 Class
countingSemaphore
The implementations of methods
P
() and
V
() in class
countingSemaphore
are based on
Implementation 2 in Listing 3.3, which is reproduced below:// Implementation 2 uses a queue of blocked threads. The value of
permits
may be // negative.
P(): permits = permits - 1;
if (permits < 0) wait on a queue of blocked threads V():
permits = permits + 1;if (permits <= 0)
notify one waiting thread;
To complete this implementation:^
provide mutual exclusion for accessing shared variable
permits
provide
implementations for the wait and notify operations.
Each Java object is associated with a built-in lock.If a thread calls a method on an object, and the method is declared with the synchronizedmodifier, then the calling thread must wait until it acquires the object’s lock.
public synchronized void P() {…};public synchronized void V() {…};
Only one thread at a time can execute in the synchronized methods of an object.If an object’s data members are only accessed in synchronized methods, then the thread thatowns the object’s lock has exclusive access to the object’s data members.We can use Java’s wait operation to complete the implementation of
P()
A thread must hold an object’s lock before it can execute a wait operation. (The use ofsynchronized ensures this restriction is satisfied.)^
When a thread executes wait, it releases the object’s lock and waits in a “wait set” that isassociated with the object.
The thread waits until it is notified or interrupted. (A thread T is interrupted when anotherthread calls
T.interrupt()
Here is the implementation of method
P
synchronized public void P() {
permit--;if (permit<0)
try { wait(); }
// same as
this.wait()
catch (InterruptedException e) {} }
If a thread is interrupted before it is notified, the thread returns from wait by throwing InterruptedException
. This is why wait usually appears in a try-catch block.
Since none of our programs use interrupts, we have elected to catch
InterruptedException
with
an empty catch block instead of adding the clause “
throws InterruptedException
” to the header
of method
P()
A notify operation notifies one of the waiting threads, but not necessarily the one that has beenwaiting the longest or the one with the highest priority.If no threads are waiting, a notify operation does nothing. Here is method
V
() using Java’s
notify operation:
synchronized public void V() {
++permits;if (permits <= 0)
notify();
// same as
this.notify()
A notified thread must reacquire the lock before it can begin executing in the method.^
notified threads that are trying to reacquire an object’s lock compete with any threads thathave called a method of the object and are trying to acquire the lock for the first time.
the order in which these notified and calling threads obtain the lock is unpredictable.
The complete implementation of class
countingSemaphore
is shown in Listing 3.15. Notice that
this implementation does not allow threads that call
P
() to barge ahead of waiting threads and
“steal” permits:^
When a waiting thread is notified, it may compete with other threads for the object’s lock,
but when it eventually reacquires the lock, it will not execute wait again.
Instead, it will start executing in
P()
after the wait operation, which means it will definitely
be allowed to complete its
P()
operation
public final class countingSemaphore extends semaphore {
public countingSemaphore(int initialPermits) {super(initialPermits);}synchronized public void P() {
permits--;if (permits<0)
try { wait(); } catch (InterruptedException e) {}
} synchronized public void V() {
++permits;if (permits <=0)
notify();
} } Listing 3.15 Java class
countingSemaphore
This Java implementation of
countingSemaphore
does not guarantee a FCFS notification policy
among waiting threads. That is, the order in which threads are notified is not necessarily thesame order in which the threads waited.Java implementations are permitted to perform “spurious wakeups”, i.e., wakeup threadswithout there having been any explicit Java instructions to do so. If spurious wakeups occur,class
countingSemaphore
may fail (since the awakend thread will not execute
wait()
again).
3.6.3 Class
Semaphore
Package
java.util.concurrent
contains class
Semaphore
Class
Semaphore
is a counting semaphore with operations
acquire()
and
release()
instead of
P()
and
V()
The constructor for class
Semaphore
optionally accepts a fairness parameter:
When this fairness parameter is false, class
Semaphore
makes no guarantees about the order
in which threads acquire permits, as barging is permitted.
When the fairness parameter is set to true, the semaphore guarantees that threads invoking acquire()
obtain permits in FCFS order.
Semaphore mutex = new Semaphore(1,true);// FCFS semaphore initialized to 1Thread
Thread
mutex.acquire();
mutex.acquire();
/* critical section */
/* critical section */
mutex.release();
mutex.release();
Class
Semaphore
also provides method
tryAcquire()
, which acquires a permit only if one is
available at the time of invocation. Method
tryAcquire()
returns true if a permit was acquired
and false otherwise.
if (mutex.tryAcquire()) { … }// does not honor the fairness setting - immediately acquire a permit if one is// available, whether or not other threads are currently waiting.
A limit can be placed on the amount of time a thread will wait for a permit:
if ( mutex.tryAcquire(50L, TimeUnit.MILLISECONDS) ) {…}
Acquires a permit if one becomes available within 50 milliseconds and the current thread hasnot been interrupted.
3.6.4 Class
ReentrantLock
Package
java.util.concurrent.locks
provides a mutex lock class called
RentrantLock
with
methods
lock()
and
unlock()
Class
ReentrantLock
has the same behavior and semantics as the implicit monitor lock accessed
using synchronized methods and statements.Like class
Semaphore
, the constructor for class
ReentrantLock
accepts an optional fairness
parameter. When set to true, priority is given to the longest-waiting thread.Class
ReentrantLock
also provides untimed and timed
tryLock()
methods that behave the same
as the untimed and timed
tryAcquire()
methods of class
Semaphore
It is recommended to immediately follow a call to
lock()
with a try block:
class illustrateTryBlock {
private final ReentrantLock mutex = new ReentrantLock();public void foo() {
mutex.lock();try {
/* body of method
foo()
} finally { // ensures that
unlock()
is executed
mutex.unlock() } }
}
3.6.5 Example: Java Bounded Buffer Listing 3.17 is a Java solution to the bounded buffer problem for two producers and twoconsumers.public final class boundedBuffer {
public static void main (String args[]) {
final int size = 3;
Buffer b = new Buffer(size);
mutexLock mutexD = new mutexLock();
// exclusion for Producers
mutexLock mutexW = new mutexLock();
// exclusion for Consumers
countingSemaphore emptySlots = new countingSemaphore(size);countingSemaphore fullSlots = new countingSemaphore(0);Producer pl = new Producer (b,emptySlots,fullSlots,mutexD,1);Producer p2 = new Producer (b,emptySlots,fullSlots,mutexD,2);Consumer cl = new Consumer (b,emptySlots,fullSlots,mutexW,1);Consumer c2 = new Consumer (b,emptySlots,fullSlots,mutexW,2);pl.start(); cl.start(); p2.start(); c2.start(); } } final class Producer extends Thread {
private Buffer b = null;
private int num;
private countingSemaphore emptySlots; private countingSemaphore fullSlots;private mutexLock mutexD;Producer (Buffer b, countingSemaphore emptySlots,
countingSemaphore fullSlots, mutexLock mutexD, int num) { this.b = b;
this.num = num;
this.emptySlots = emptySlots;
this.fullSlots = fullSlots; this.mutexD = mutexD; } public void run () {
System.out.println ("Producer Running");for (int i = 0; i < 3; i++) {
emptySlots.P();mutexD.lock();b.deposit(i); System.out.println("Producer # "+num+" deposited "+i);System.out.flush();mutexD.unlock();fullSlots.V(); } } }
final class Consumer extends Thread {
private Buffer b;
private int num;
private countingSemaphore emptySlots;
private countingSemaphore fullSlots;
private mutexLock mutexW;Consumer (Buffer b, countingSemaphore emptySlots,
countingSemaphore fullSlots, mutexLock mutexW, int num) { this.b = b; this.num = num; this.emptySlots = emptySlots;this.fullSlots = fullSlots; this.mutexW = mutexW; } public void run () {
System.out.println ("Consumer running");int value = 0;for (int i = 0; i < 3; i++) { fullSlots.P();mutexW.lock();value = b.withdraw();System.out.println ("Consumer # " + num + " withdrew " + value);System.out.flush();mutexW.unlock();emptySlots.V(); }
} } final class Buffer {
private int[] buffer = null;
private int in = 0, out = 0; private int capacity;
public Buffer(int capacity) {
this.capacity = capacity; buffer = new int[capacity]; } public int withdraw () {
int value = buffer[out];out = (out + 1) % capacity; //
out
is shared by consumers
return value; } public void deposit (int value) {
buffer[in] = value;in = (in + 1) % capacity; //
in
is shared by producers
} Listing 3.17 Java bounded buffer using semaphores and locks.
