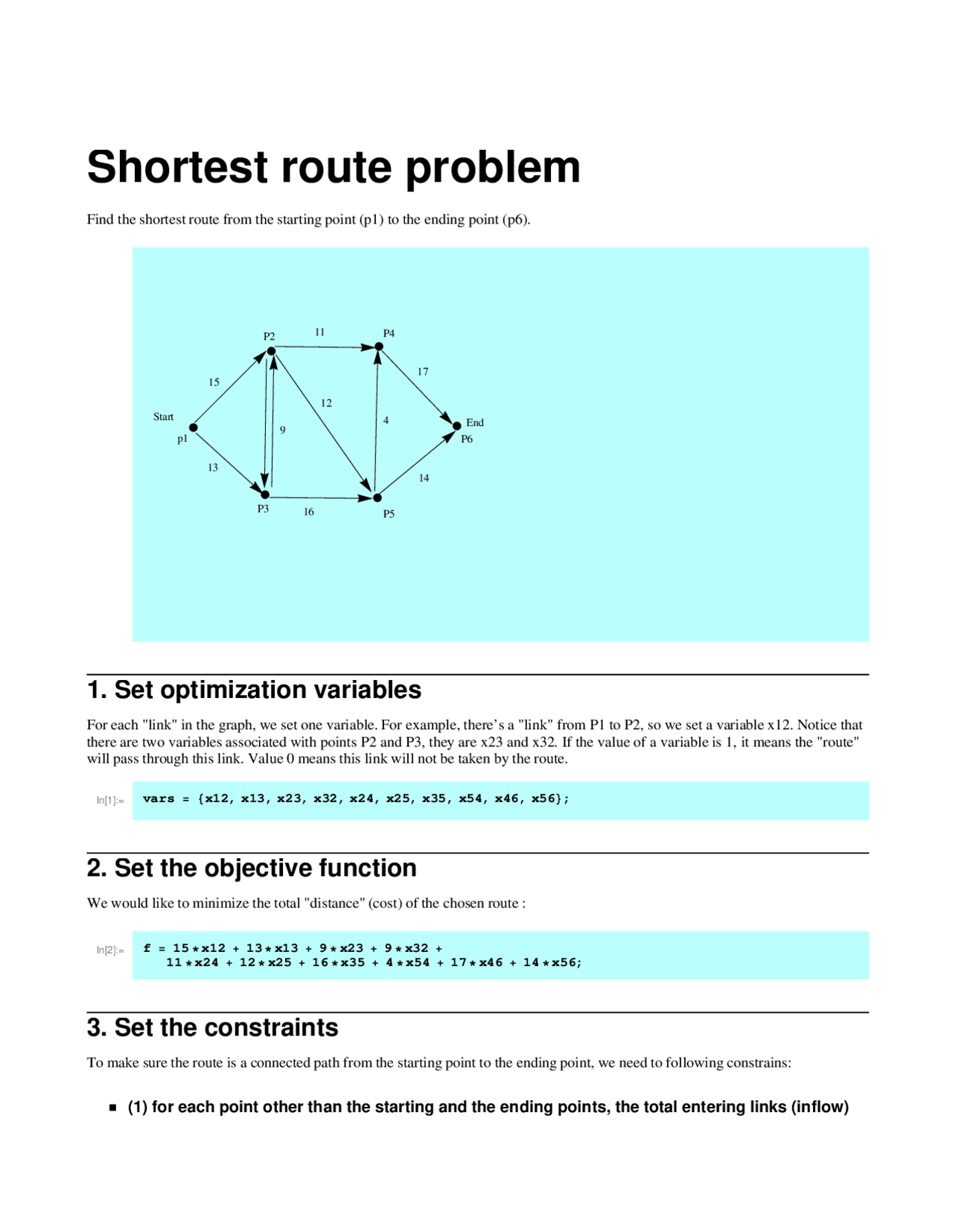

Shortest route problem
Find the shortest route from the starting point (p1) to the ending point (p6).
Start
End
15
13
11
9
16
12
4
17
14
p
P
P
P
P
P
1. Set optimization variables
For each "link" in the graph, we set one variable. For example, there’s a "link" from P1 to P2, so we set a variable x12. Notice that
there are two variables associated with points P2 and P3, they are x23 and x32. If the value of a variable is 1, it means the "route"
will pass through this link. Value 0 means this link will not be taken by the route.
In[1]:= vars = 8 x12, x13, x23, x32, x24, x25, x35, x54, x46, x56<;
2. Set the objective function
We would like to minimize the total "distance" (cost) of the chosen route :
In[2]:= f = 15 * x12 + 13 * x13 + 9 * x23 + 9 * x32 +
11 * x24 + 12 * x25 + 16 * x35 + 4 * x54 + 17 * x46 + 14 * x56;
3. Set the constraints
To make sure the route is a connected path from the starting point to the ending point, we need to following constrains:
ü (1) for each point other than the starting and the ending points, the total entering links (inflow)
should be equal to the total leaving links (outflow).
ü
(1) for each point other than the starting and the ending points, the total entering links (inflow)
should be equal to the total leaving links (outflow).
In[3]:= g2 = x12 + x32 ä x24 + x25 + x23;
g3 = x13 + x23 ä x32 + x35;
g4 = x24 + x54 ä x46;
g5 = x35 + x25 ä x54 + x56;
ü (2) for the starting point, out flow - inflow = 1
In[7]:= g1 = x12 + x13 ä 1;
ü (3) for the ending point, inflow - outflow = 1
In[8]:= g6 = x46 + x56 ä 1;
ü (4) we also need to set all variables greater than or equal to 0
In[9]:= NonNegativeness = And ûû Thread@vars ≥ 0 D
Out[9]= x12 ≥ 0 && x13 ≥ 0 && x23 ≥ 0 && x32 ≥ 0 && x24 ≥ 0 && x25 ≥ 0 && x35 ≥ 0 && x54 ≥ 0 && x46 ≥ 0 && x56 ≥ 0
4. Solve the problem
ü (1) First, we can use the command "Minimize", which accepts equations/inequalities as inputs
In[10]:= Minimize@8f, g1 && g2 && g3 && g4 && g5 && g6 && NonNegativeness<, varsD
Out[10]= 8 41, 8 x12 Æ 1, x13 Æ 0, x23 Æ 0, x32 Æ 0, x24 Æ 0, x25 Æ 1, x35 Æ 0, x54 Æ 0, x46 Æ 0, x56 Æ 1 <<
The aboce solution tells us that the shortest route is P1 -> P2 -> P5 -> P6, and the total cost is 41.
ü (2) Mathematica also provides a function "LinearProgramming", which is more efficient.
However, it only accepts matrices/vectors in the standard LP form as inputs. Therefore, we first
need to derive the coefficients in the standard form minimizing f = c
t
x , subject to constraints
Ax >= b, x>=0. Notice that Mathematica uses Ax >= b, different from the Ax=b in the text book.
Hence when we feed the command with inputs, we have to specify for each RHS value b
i
that it
is an exact "equal". This can be down by setting a matrix of the form 88 b
1
, 0}, 8 b
2
, 0}, ... 8 b
k
In[11]:= c = Normal@CoefficientArrays@f, varsD D @@ 2 DD
Out[11]= 8 15, 13, 9, 9, 11, 12, 16, 4, 17, 14<
