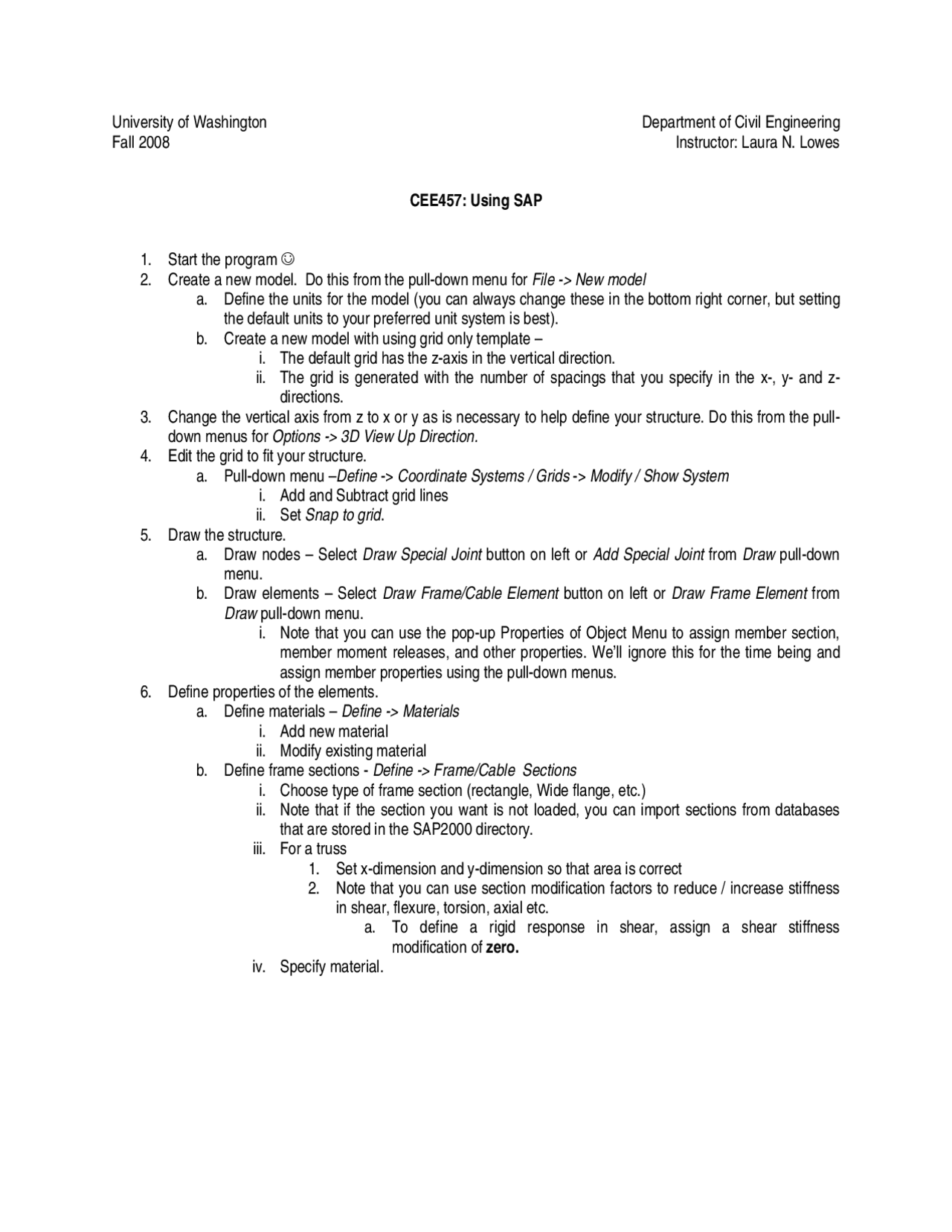

University of Washington Department of Civil Engineering
Fall 2008 Instructor: Laura N. Lowes
CEE457: Using SAP
1. Start the program โ˜บ
2. Create a new model. Do this from the pull-down menu for File -> New model
a. Define the units for the model (you can always change these in the bottom right corner, but setting
the default units to your preferred unit system is best).
b. Create a new model with using grid only template โ€“
i. The default grid has the z-axis in the vertical direction.
ii. The grid is generated with the number of spacings that you specify in the x-, y- and z-
directions.
3. Change the vertical axis from z to x or y as is necessary to help define your structure. Do this from the pull-
down menus for Options -> 3D View Up Direction.
4. Edit the grid to fit your structure.
a. Pull-down menu โ€“Define -> Coordinate Systems / Grids -> Modify / Show System
i. Add and Subtract grid lines
ii. Set Snap to grid.
5. Draw the structure.
a. Draw nodes โ€“ Select Draw Special Joint button on left or Add Special Joint from Draw pull-down
menu.
b. Draw elements โ€“ Select Draw Frame/Cable Element button on left or Draw Frame Element from
Draw pull-down menu.
i. Note that you can use the pop-up Properties of Object Menu to assign member section,
member moment releases, and other properties. Weโ€™ll ignore this for the time being and
assign member properties using the pull-down menus.
6. Define properties of the elements.
a. Define materials โ€“ Define -> Materials
i. Add new material
ii. Modify existing material
b. Define frame sections - Define -> Frame/Cable Sections
i. Choose type of frame section (rectangle, Wide flange, etc.)
ii. Note that if the section you want is not loaded, you can import sections from databases
that are stored in the SAP2000 directory.
iii. For a truss
1. Set x-dimension and y-dimension so that area is correct
2. Note that you can use section modification factors to reduce / increase stiffness
in shear, flexure, torsion, axial etc.
a. To define a rigid response in shear, assign a shear stiffness
modification of zero.
iv. Specify material.
