bg1
1

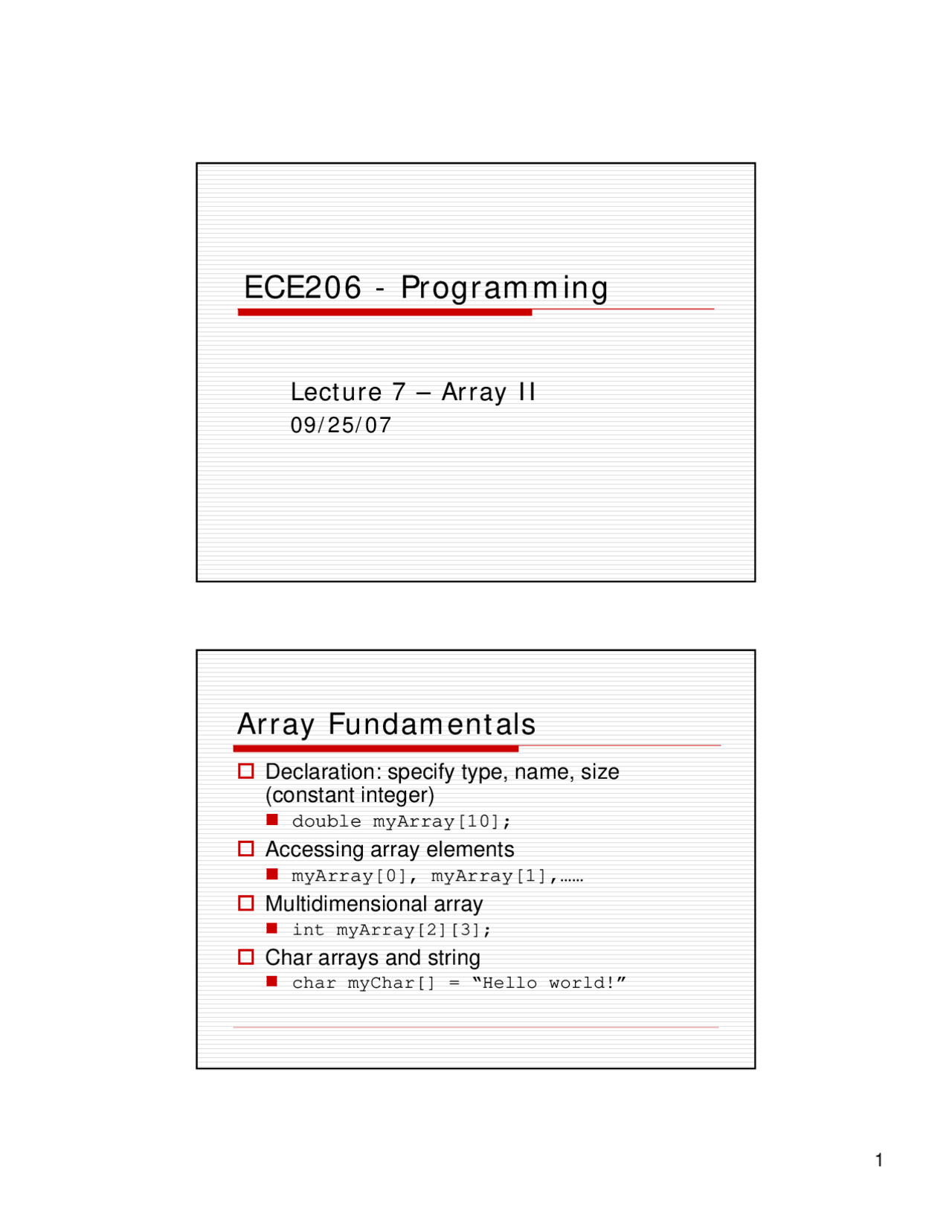

ECE206 - Programming
Lecture 7 – Array II
09/25/07
Array Fundamentals
Declaration: specify type, name, size
(constant integer)
double myArray[10];
Accessing array elements
myArray[0], myArray[1],……
Multidimensional array
int myArray[2][3];
Char arrays and string
char myChar[] = “Hello world!”
pf3
pf4
pf5

Partial preview of the text

Download Array Programming: Declaration, Access, Passing, and Sorting and more Study notes Electrical and Electronics Engineering in PDF only on Docsity!

ECE206 - Programming

Lecture 7 – Array II

Array Fundamentals

† Declaration: specify type, name, size

(constant integer)

„ double myArray[10];

† Accessing array elements

„ myArray[0], myArray[1],……

† Multidimensional array

„ int myArray[2][3];

† Char arrays and string

„ char myChar[] = “Hello world!”

#include #include using namespace std;

void modifyArray( int [], int );

void main() { const int arraySize = 5; int i, a[arraySize] = {0, 1, 2, 3, 4};

cout << "The values of the original array are:\n"; for (i = 0; i < arraySize; i++) cout << setw(3) << a[i]; cout << endl;

modifyArray(a, arraySize);

cout << "The values of the modified array are:\n"; for ( i = 0; i < arraySize; i++ ) cout << setw(3) << a[i]; cout << endl; }

void modifyArray( int b[], int sizeOfArray ) { for (int j = 0; j < sizeOfArray; j++ ) b[j] *= 2; }

Passing array to functions

Return arrays from functions

† Array can NOT be returned from a

function

† Array cannot be assigned

int a[5] = {1, 2, 3};

int b[5];

b = a; //Wrong

Bubble sort - pseudocode

† Search for adjacent pairs that are out

of order.

† Switch the out-of-order keys.

† Repeat this n-1 times.

† After the first iteration, the last key is

guaranteed to be the largest.

† If no switches are done in an

iteration, we can stop.

Example

First pass

Second pass

Bubble sort - source code // This program sorts an array’s values into ascending order #include #include using namespace std; int main() { int arraySize = 5; int a[arraySize] = {10, 12, 8, 68, 45}; int pass, i, temp;

for (i=0; i<arraySize; i++) cout << setw(4) << a[i];

for (pass=0; pass<arraySize-1; pass++) for (i=0; i<arraySize-1; i++) { if (a[i] > a[i+1]) { temp = a[i]; a[i] = a[i+1]; a[i+1] = temp; } }

for (i=0; i<arraySize; i++) cout << setw(4) << a[i]; }

How to improve previous code?

† Reduce the number of passes?

† Reduce the comparison in each pass?
