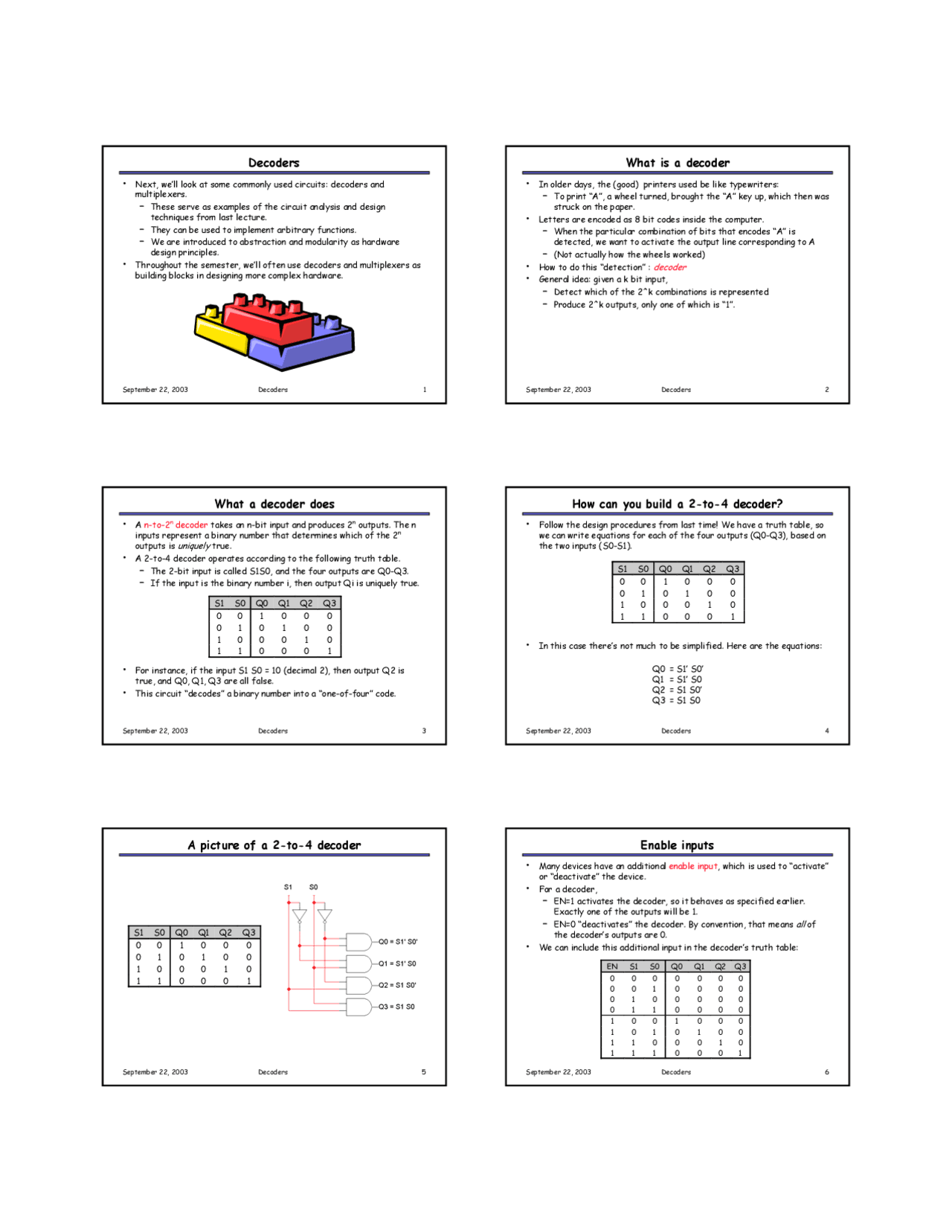

September 22, 2003 Decoders 1

Decoders

•Next, we’ll look at some commonly used circuits: decoders and

multiplexers.

–These serve as examples of the circuit analysis and design

techniques from last lecture.

–They can be used to implement arbitrary functi ons.

–We are introduced to abstraction and modularity as hardware

design principles.

•Throughout the semester, we’ll often use decoders and multiplexers as

building blocks in designing more complex hardware.

September 22, 2003 Decoders 2

What is a decoder

•In older days, the (good) printers used be like typewriters:

–To print “A”, a wheel turned, brought the “A” k ey up, which then was

struck on the paper.

•Letters are encoded as 8 bit codes inside the co mputer.

–When the particular combination of bits that encodes “A” is

detected, we want to activate the output line corresponding to A

–(Not actually how the wheels worked)

•How to do this “detection” :

decoder

•General idea: given a k bit input,

–Detect which of the 2^k combinations is represented

–Produce 2^k outputs, only one of which is “1”.

September 22, 2003 Decoders 3

What a decoder does

•A n-to-2ndecoder takes an n-bit input and produces 2noutpu ts. The n

inputs represent a binary number that deter mines which of the 2n

outputs is

uniquely

true.

•A 2-to-4 decoder operates according t o the following truth table.

–The 2-bit input is called S1S0, and the four outputs are Q0-Q3.

–If the input is the binary number i, then output Q i is uniquely true.

•For instance, if the input S1 S0 = 10 (decimal 2), then output Q2 is

true, and Q0, Q1, Q3 are all false.

•This circuit “decodes” a binary number into a “ one-of-four” code.

S1 S0 Q0 Q1 Q2 Q3

00 1 0 0 0

010 10 0

100 0 1 0

11000 1

September 22, 2003 Decoders 4

How can you build a 2-to-4 decoder?

•Follow the design procedures from last tim e! We have a truth table, so

we can write equations for each of the four ou tputs (Q0-Q3), based on

the two inputs (S0-S1).

•In this case there’s not much to be simplified. Here are the equations:

S1 S0 Q0 Q1 Q2 Q3

00 1 0 0 0

010 10 0

100 0 1 0

11000 1

Q0 = S1’ S0’

Q1 = S1’ S0

Q2 = S1 S0’

Q3 = S1 S0

September 22, 2003 Decoders 5

A picture of a 2-to-4 decoder

S1 S0 Q0 Q1 Q2 Q3

00 1 0 0 0

010100

1000 1 0

11000 1

September 22, 2003 Decoders 6

Enable inputs

•Many devices have an additional enable input, which is used to “activate”

or “deactivate” the device.

•For a decoder,

–EN=1 activates the decoder, so it behaves as specified earlier.

Exactly one of the outputs will be 1.

–EN=0 “deactivates” the decoder. By conven tion, that means

all

the decoder’s outputs are 0.

•We can include this additional input in the decoder’s truth table:

EN S1 S0 Q0 Q1 Q2 Q3

0000 000

001 0 000

0100000

0110 000

1001000

1010100

1100010

1110001
