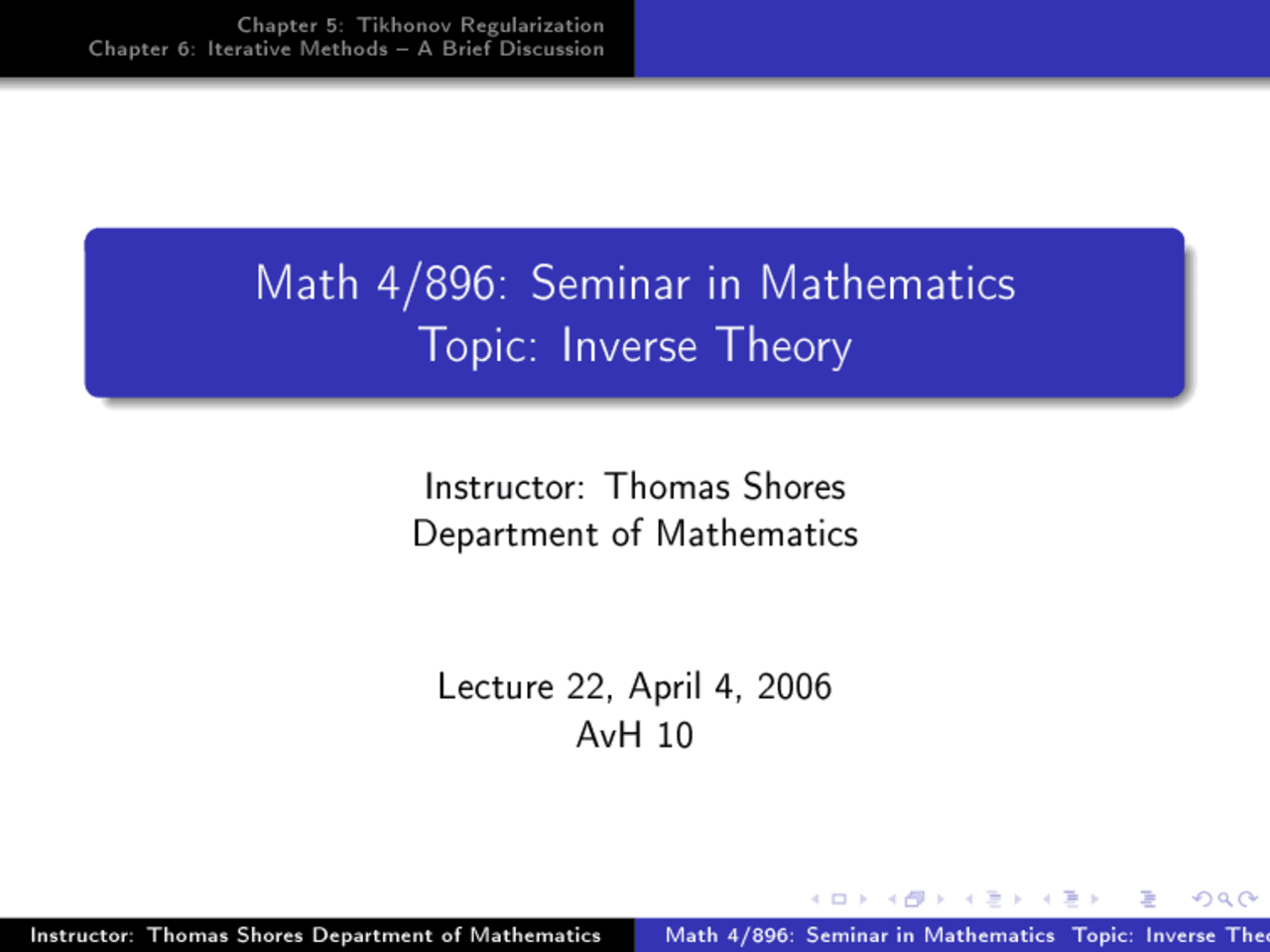

Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion
Instructor: Thomas Shores Department of Mathematics
Lecture 22, April 4, 2006 AvH 10
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
Basic Idea We can think of the regularization term α^2 ‖m‖^22 as favoring minimizing the 0-th order derivative of a function m (x) under the hood. Alternatives: Minimize a matrix approximation to m′^ (x). This is a rst order method. Minimize a matrix approximation to m′′^ (x). This is a second order method. These lead to new minimization problems: to minimize
‖G m − d‖^22 + α^2 ‖Lm‖^22.
How do we resolve this problem as we did with L = I?
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
Basic Idea We can think of the regularization term α^2 ‖m‖^22 as favoring minimizing the 0-th order derivative of a function m (x) under the hood. Alternatives: Minimize a matrix approximation to m′^ (x). This is a rst order method. Minimize a matrix approximation to m′′^ (x). This is a second order method. These lead to new minimization problems: to minimize
‖G m − d‖^22 + α^2 ‖Lm‖^22.
How do we resolve this problem as we did with L = I?
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
Basic Idea We can think of the regularization term α^2 ‖m‖^22 as favoring minimizing the 0-th order derivative of a function m (x) under the hood. Alternatives: Minimize a matrix approximation to m′^ (x). This is a rst order method. Minimize a matrix approximation to m′′^ (x). This is a second order method. These lead to new minimization problems: to minimize
‖G m − d‖^22 + α^2 ‖Lm‖^22.
How do we resolve this problem as we did with L = I?
We will explore approximations to rst and second derivatives at the board.
The minimization problem is equivalent to the problem ( G T^ G + α^2 LT^ L
m = G T^ d
which has solution forms
mα,L =
∑^ p
j= 1
γ j^2 γ^2 j + α^2
UTj d
λj
Xj +
∑^ n
j=p+ 1
UTj d
Xj
Filter factors: fj =
γ j^2 γ^2 j + α^2
, j = 1 ,... , p, fj = 1 , j = p + 1 ,... , n.
Thus
mα,L =
∑^ n
j= 1
fj
UTj d
λj
Xj.
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
The Experiment: Place sensors at vertical depths zj , j = 1 ,... , n, in a borehole, then: Generate a seizmic wave at ground level, t = 0. Measure arrival times dj = t (zj ), j = 1 ,... , n. Now try to recover the slowness function s (z), given
t (z) =
∫ (^) z
0
s (ξ) d ξ =
0
s (ξ) H (z − ξ) d ξ
It should be easy: s (z) = t′^ (z). Hmmm.....or is it?
Do Example 4-5 from the CD.
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
The Experiment: Place sensors at vertical depths zj , j = 1 ,... , n, in a borehole, then: Generate a seizmic wave at ground level, t = 0. Measure arrival times dj = t (zj ), j = 1 ,... , n. Now try to recover the slowness function s (z), given
t (z) =
∫ (^) z
0
s (ξ) d ξ =
0
s (ξ) H (z − ξ) d ξ
It should be easy: s (z) = t′^ (z). Hmmm.....or is it?
Do Example 4-5 from the CD.
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
The Experiment: Place sensors at vertical depths zj , j = 1 ,... , n, in a borehole, then: Generate a seizmic wave at ground level, t = 0. Measure arrival times dj = t (zj ), j = 1 ,... , n. Now try to recover the slowness function s (z), given
t (z) =
∫ (^) z
0
s (ξ) d ξ =
0
s (ξ) H (z − ξ) d ξ
It should be easy: s (z) = t′^ (z). Hmmm.....or is it?
Do Example 4-5 from the CD.
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
The Experiment: Place sensors at vertical depths zj , j = 1 ,... , n, in a borehole, then: Generate a seizmic wave at ground level, t = 0. Measure arrival times dj = t (zj ), j = 1 ,... , n. Now try to recover the slowness function s (z), given
t (z) =
∫ (^) z
0
s (ξ) d ξ =
0
s (ξ) H (z − ξ) d ξ
It should be easy: s (z) = t′^ (z). Hmmm.....or is it?
Do Example 4-5 from the CD.
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
Model Resolution Matrix: As usual, Rm,α,L = G \G. Comment 1. Comment 2. Comment 3.
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
Model Resolution Matrix: As usual, Rm,α,L = G \G. Comment 1. Comment 2. Comment 3.
Chapter 5: Tikhonov Regularization Chapter 6: Iterative Methods A Brief Discussion Error Bounds
Model Resolution Matrix: As usual, Rm,α,L = G \G. Comment 1. Comment 2. Comment 3.
