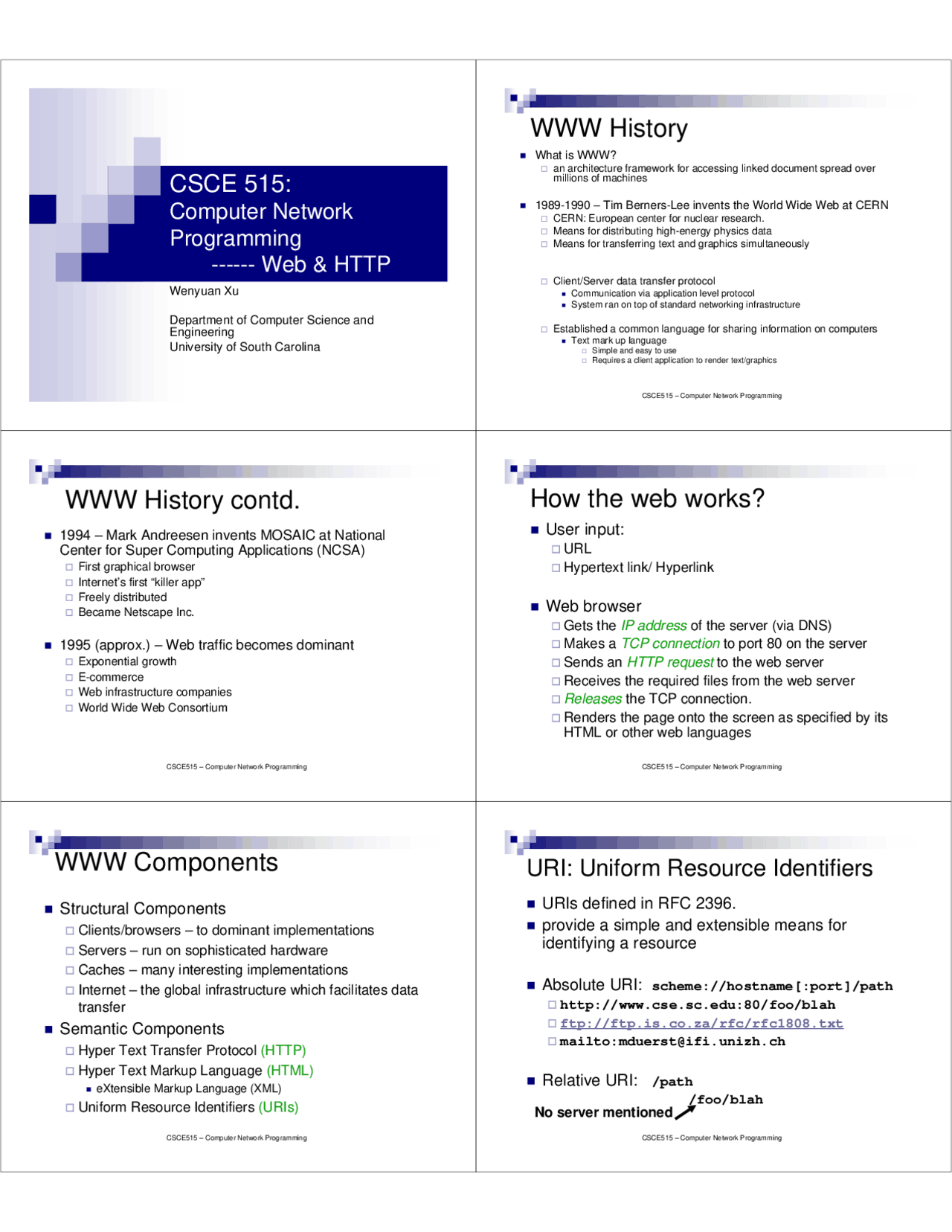

CSCE 515:
Computer Network
Programming
------ Web & HTTP
Wenyuan Xu Department of Computer Science and Engineering University of South Carolina
CSCE515 – Computer Network Programming
WWW History
What is WWW?
an architecture framework for accessing linked document spread over millions of machines 1989-1990 – Tim Berners-Lee invents the World Wide Web at CERN
CERN: European center for nuclear research.
Means for distributing high-energy physics data
Means for transferring text and graphics simultaneously
Client/Server data transfer protocol Communication via application level protocol System ran on top of standard networking infrastructure
Established a common language for sharing information on computers Text mark up language Simple and easy to use
Requires a client application to render text/graphics
CSCE515 – Computer Network Programming
WWW History contd.
1994 – Mark Andreesen invents MOSAIC at National Center for Super Computing Applications (NCSA)
First graphical browser
Internet’s first “killer app”
Freely distributed
Became Netscape Inc.
1995 (approx.) – Web traffic becomes dominant
Exponential growth
E-commerce
Web infrastructure companies
World Wide Web Consortium
CSCE515 – Computer Network Programming
How the web works?
User input:
URL
Hypertext link/ Hyperlink
Web browser
Gets the IP address of the server (via DNS)
Makes a TCP connection to port 80 on the server
Sends an HTTP request to the web server
Receives the required files from the web server
Releases the TCP connection.
Renders the page onto the screen as specified by its HTML or other web languages
WWW Components
Structural Components
Clients/browsers – to dominant implementations
Servers – run on sophisticated hardware
Caches – many interesting implementations
Internet – the global infrastructure which facilitates data transfer
Semantic Components
Hyper Text Transfer Protocol (HTTP)
Hyper Text Markup Language (HTML) eXtensible Markup Language (XML)
Uniform Resource Identifiers (URIs)
URI: Uniform Resource Identifiers
URIs defined in RFC 2396.
provide a simple and extensible means for
identifying a resource
Absolute URI: scheme://hostname[:port]/path
http://www.cse.sc.edu:80/foo/blah
ftp://ftp.is.co.za/rfc/rfc1808.txt
mailto:[email protected]
Relative URI: /path
/foo/blah No server mentioned
CSCE515 – Computer Network Programming
/foo/blah
usr bin www etc
foo fun gif
blah
CSCE515 – Computer Network Programming
URL vs. URI?
Most popular form of a URI is the Uniform
Resource Locator (URL)
What is the difference between URL and URI?
URI = URL+URN
URN: Uniform Resource Name
urn:isbn:0-395-36341-
HTTP
Hypertext
Transfer Protocol
Refs:
RFC 1945 (HTTP 1.0)
RFC 2616 (HTTP 1.1)
CSCE515 – Computer Network Programming
HTTP Basic
HTTP is the protocol that supports
communication between web browsers
and web servers.
A “Web Server” is a HTTP server
Most clients/servers today speak version
1.1, but 1.0 is also in use.
From the RFC
“HTTP is an application-level protocol with
the lightness and speed necessary for
distributed, hypermedia information
systems.”
Transport Independence
The RFC states that the HTTP protocol
generally takes place over a TCP connection,
but the protocol itself is not dependent on a
specific transport layer.
Request - Response
HTTP has a simple structure:
client sends a request
server returns a reply.
HTTP can support multiple request-reply
exchanges over a single TCP connection.
CSCE515 – Computer Network Programming
More Methods
TRACE: used to trace HTTP forwarding through proxies, tunnels, etc.
OPTIONS: used to determine the capabilities of the server, or characteristics of a named resource.
CSCE515 – Computer Network Programming
Common Usage
GET, HEAD and POST are supported everywhere.
HTTP 1.1 servers often support PUT, DELETE, OPTIONS & TRACE.
CSCE515 – Computer Network Programming
HTTP Version Number
“ HTTP/1.0 ” or “ HTTP/1.1 ”
HTTP 0.9 did not include a version number in a request line.
If a server gets a request line with no HTTP
version number, it assumes 0.
CSCE515 – Computer Network Programming
The Header Lines
After the Request-Line come a number (possibly zero) of HTTP header lines.
Each header line contains an attribute name followed by a “:” followed by a space and the attribute value.
The Name and Value are just text.
Host: www.sc.edu Request Headers provide information to the server about the client
what kind of client
what kind of content will be accepted
who is making the request There can be 0 headers (HTTP 1.0) HTTP 1.1 requires a Host: header
Request-Line Headers.. .
Content...
blank line blank line
Example HTTP Headers
Accept: text/html
Host: www.sc.edu
User-Agent: Mozilla/4.
Referer: http://foo.com/blah
End of the Headers
Each header ends with a CRLF (
\r\n )
The end of the header section is
marked with a blank line.
just CRLF
For GET and HEAD requests, the
end of the headers is the end of the
request!
Request-Line Headers.. .
Content...
blank line blank line
CSCE515 – Computer Network Programming
POST
A POST request includes some content
(some data) after the headers (after the blank
line).
There is no format for the data (just raw
bytes).
A POST request must include a Content-
Length line in the headers:
Content-length: 267
CSCE515 – Computer Network Programming
Example GET Request
GET /~wyxu/index.html HTTP/1. Accept: / Host: www.cse.se.edu User-Agent: Internet Explorer From: [email protected] Referer: http://foo.com/
There is a blank line here!
CSCE515 – Computer Network Programming
Example POST RequestExample POST Request
POST /~POST /~wxy/changegrade.cgiwxy/changegrade.cgi HTTP/1.1HTTP/1. Accept: /Accept: / Host:Host:^ www.cse.sc.eduwww.cse.sc.edu UserUser--Agent:Agent:^ SecretAgentSecretAgent^ V2.3V2. ContentContent--Length: 35Length: 35 RefererReferer:: http://monte.cs.rpi.edu/blahhttp://monte.cs.rpi.edu/blah
stuidstuid=6660182722&item=test1&grade=99=6660182722&item=test1&grade=
CSCE515 – Computer Network Programming
Typical Method Usage
GET used to retrieve an HTML document.
HEAD used to find out if a document has changed.
POST used to submit a form.
HTTP Response
ASCII Status Line
Headers Section
Content can be anything (not just text)
typically an HTML document or some kind of
image.
Status-Line
Headers.
Content...
blank lineblank line
Response Status Line
HTTP-Version Status-Code Message
Status Code is 3 digit number (for computers)
Message is text (for humans)
CSCE515 – Computer Network Programming
Content type - More
application/pdf: PDF files;
application/msword: word files
audio/mpeg: MP3 or other MPEG audio;
audio/x-wav: WAV audio
image/gif: GIF image;
image/jpeg: JPEG JFIF image;
image/tiff: Tag Image File Format;
video/mpeg: MPEG-1 video with multiplexed audio; CSCE515 – Computer Network Programming
Web browser
text/html: display directly MIME type is not one of the build-in ones:
consults its table of MIME types
table associate a MIME type with a viewer
To interpret a rapidly growing collection of file types:
Plug-in
helper application
CSCE515 – Computer Network Programming
Plug-in
A code module that the browser fetches
from a special directory on the disk and installs as an extension to itself.
Client machine Browser
Base code plug in
Browser runs as a single process
interface CSCE515 – Computer Network Programming
Helper application
A complete program, running as a separate process.
Client machine Browser
Process
Browser helper
Process
Examples
application/pdf: PDF files;
Æ Acrobat is automatically started
application/msword: word files
Æ Microsoft word
Single Request/Reply
The client sends a complete request. The server sends back the entire reply. The server closes it’s socket.
If the client needs another document it must open a new connection.
This was the default for HTTP 1.
CSCE515 – Computer Network Programming
Persistent Connections
HTTP 1.1 supports persistent connections (this
is the default).
Multiple requests can be handled over a single
TCP connection.
The Connection: header is used to exchange
information about persistence (HTTP/1.1)
1.0 Clients used a Keep-alive: header
CSCE515 – Computer Network Programming
Example
wget www.google.com Using wireshark capture the file
Homework,
Using browser to open www.google.com,
check whether the header is different from
“wget”
HTML
Hyper-Text
Markup Language
CSCE515 – Computer Network Programming
HTML Basics
I assume everyone knows something about HTML.
If not: check the home page for some links.
Documents use elements to “mark up” or identify
sections of text for different purposes or display
characteristics
Mark up elements are not seen by the user when
page is displayed
NOTE: Not all documents in the Web are HTML!
HTML Tables:
start/end a table
,
start/end a table row
| , | start/end a table cell
| , | start/end table header cell
timedate.com Hit Table
**
| hour | number of hits |
| 12-1AM | 4,320 |
| 1-2AM | 18,986 |
**
hour number of hits 12-1AM 4, 1-2AM 18, 2-3AM 246
CSCE515 – Computer Network Programming
Pre fork() ’d Server
- Creating a new process for each client is expensive.
- We can create a bunch of processes, each of which can take care of a client.
- Each child process is an iterative server.
CSCE515 – Computer Network Programming
Pre fork() ’d TCP Server
- Initial process creates socket and binds to well known address.
- Process now calls fork() a bunch of times.
- All children call accept().
- The next incoming connection will be handed to one child.
CSCE515 – Computer Network Programming
listen()
Server
TCP
3-wayhandshake complete
accept
arrivingSYN
Completed connection queue
Incomplete connection queue
Sum of both queuescannot exceed backlog
CSCE515 – Computer Network Programming
Preforking
- As the book shows, having too many preforked children can be bad.
- Using dynamic process allocation instead of a hard-coded number of children can avoid problems.
- The parent process just manages the children, doesn’t worry about clients.
Sockets library vs. system call
- A preforked TCP server won’t usually work the way we want if sockets is not part of the kernel:
calling accept() is a library call, not an atomic
operation.
- We can get around this by making sure only one child calls accept() at a time using some locking scheme.
Prethreaded Server
- Same benefits as preforking.
- Can also have the main thread do all the calls to accept() and hand off each client to an existing thread.
CSCE515 – Computer Network Programming
What’s the best server design
for my application?
expected number of simultaneous clients.
Transaction size (time to compute or lookup
the answer)
Variability in transaction size.
Available system resources (perhaps what
resources can be required in order to run the
service).
CSCE515 – Computer Network Programming
Server Design
- It is important to understand the issues and options.
- Knowledge of queuing theory can be a big help.
- You might need to test a few alternatives to determine the best design.
Assignment & Next time
Reading:
UNP 30
RFC 2396: http://www.ietf.org/rfc/rfc2396.txt
HTTP 1.
HTTP 1.
Next Lecture:
Advanced socket programming
