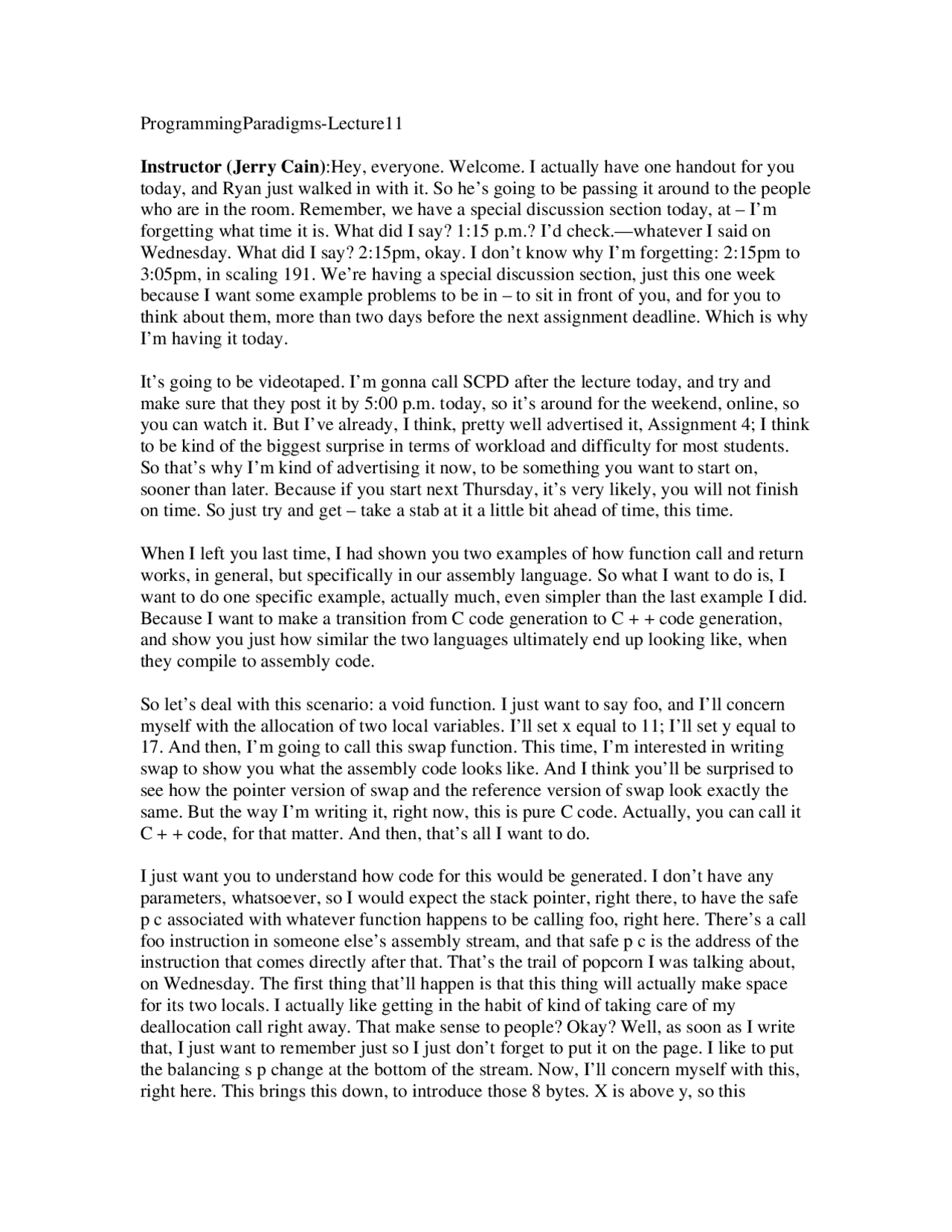

ProgrammingParadigms-Lecture
Instructor (Jerry Cain) :Hey, everyone. Welcome. I actually have one handout for you today, and Ryan just walked in with it. So he’s going to be passing it around to the people who are in the room. Remember, we have a special discussion section today, at – I’m forgetting what time it is. What did I say? 1:15 p.m.? I’d check.—whatever I said on Wednesday. What did I say? 2:15pm, okay. I don’t know why I’m forgetting: 2:15pm to 3:05pm, in scaling 191. We’re having a special discussion section, just this one week because I want some example problems to be in – to sit in front of you, and for you to think about them, more than two days before the next assignment deadline. Which is why I’m having it today.
It’s going to be videotaped. I’m gonna call SCPD after the lecture today, and try and make sure that they post it by 5:00 p.m. today, so it’s around for the weekend, online, so you can watch it. But I’ve already, I think, pretty well advertised it, Assignment 4; I think to be kind of the biggest surprise in terms of workload and difficulty for most students. So that’s why I’m kind of advertising it now, to be something you want to start on, sooner than later. Because if you start next Thursday, it’s very likely, you will not finish on time. So just try and get – take a stab at it a little bit ahead of time, this time.
When I left you last time, I had shown you two examples of how function call and return works, in general, but specifically in our assembly language. So what I want to do is, I want to do one specific example, actually much, even simpler than the last example I did. Because I want to make a transition from C code generation to C + + code generation, and show you just how similar the two languages ultimately end up looking like, when they compile to assembly code.
So let’s deal with this scenario: a void function. I just want to say foo, and I’ll concern myself with the allocation of two local variables. I’ll set x equal to 11; I’ll set y equal to
- And then, I’m going to call this swap function. This time, I’m interested in writing swap to show you what the assembly code looks like. And I think you’ll be surprised to see how the pointer version of swap and the reference version of swap look exactly the same. But the way I’m writing it, right now, this is pure C code. Actually, you can call it C + + code, for that matter. And then, that’s all I want to do.
I just want you to understand how code for this would be generated. I don’t have any parameters, whatsoever, so I would expect the stack pointer, right there, to have the safe p c associated with whatever function happens to be calling foo, right here. There’s a call foo instruction in someone else’s assembly stream, and that safe p c is the address of the instruction that comes directly after that. That’s the trail of popcorn I was talking about, on Wednesday. The first thing that’ll happen is that this thing will actually make space for its two locals. I actually like getting in the habit of kind of taking care of my deallocation call right away. That make sense to people? Okay? Well, as soon as I write that, I just want to remember just so I just don’t forget to put it on the page. I like to put the balancing s p change at the bottom of the stream. Now, I’ll concern myself with this, right here. This brings this down, to introduce those 8 bytes. X is above y, so this
instruction right there, translates to m of s p plus 4 is equal to 11; then m of s p is equal to 17, and then virtually all of the rest is associated with the work that’s necessary to set up and react to – set up a function call, and react to its return. Okay? So what I want to do here is I want to evaluate ampersand of x, and ampersand of y. The fact that they’re an eleven here – oops – an eleven there and a 17, is really immaterial to the evaluation of these two things, right here. This, given that setup right there, is synonymous with a p c plus 4; this is synonymous with p c. Okay? I want to put those values in registers: R 1 is equal to s p – I’m sorry, that’s right – s p y 2 is equal to s p plus 4. This is ampersand of y; this is ampersand of x. I want to further decrement the stack pointer by minus 8. The fact that this is minus 8 is just a coincidence with that being minus 8. There happen to be two 4-byte parameters being passed here; there were two 4-byte parameters – 2 4-byte locals, local to foo. Once I’ve done that, I’ve decremented this by 4 more bytes. That marks the bottom of the foo activation record. I’m now building a partial activation record for the swap function. I want to lay this as a figure, right there. This, as a figure, right there. This first parameter, the zero parameter, actually goes at the bottom. So I want to do this: m of s p, which just changed, is equal to r 2; m of s p plus 4 is equal to r
- Okay? That, basically, gets this right here, to point to that, and this to point to that. So when we go ahead, and call this swap function, we’re just inferring its prototype to take two int stars, it just sees this. Technically, it has the addresses, the locations of the two ints it’s going to be dealing with, but it doesn’t, technically, know that they’re right above it on the stack frame. It actually just has the addresses on their little houses that just happen to be just down the block. Okay?
This, right here, all it has to do is basically clean up the parameters. When the call swap function happens, p c is pointing right there. It can, by protocol, assume that that’s where the safe p c is left – I’m sorry, the stack pointer is left, when it jumps back to this instruction because the return at the end of the swap is responsible for bringing it all the way back up here, just by protocol. Does that make sense? Okay.
So all we need to do: fill in the space. This balances that; that balances that. You could coalesce these to one statement, if you wanted to. I just don’t see a compelling reason to. And then, since there’s nothing being done with the new values of x and y, I can just return. Okay? Does that make sense to people? As far as the code for swap is concerned, this is void swap. I’ll write it to be int star specific; a p int star b p int temp is equal to asterisk a p. There’s actually a little bit of work here, at the assembly code level. I know you’ve seen this implementation, probably 40 times, in the last two quarters, but there’s some value in actually seeing it, one final time, and for me to generate assembly code for it.
It starts executing with the assumption that s p is pointing to a safe p c. In this particular example, it happens to be that address, right there, that’s the safe p c. This is internally referred to as a p, b p. It’s not like the words a p and b p are written on the hardware, but there’s just – the code is generated, in such a way, that a p is always synonymous, at the moment, with s p plus 4; and b p is synonymous with s p plus 8. Okay? The moment the stack pointer points right there, I have to make space for my one local variable. That happens because I do this. I’ll make it clear that this is associated with the label swap that
this again: r 3 is equal to m of s p plus 8. And I don’t want to load m of r 3 because I don’t care about the old value. I want to actually want to set m of r 3 equal to r 2. Okay? Does that sit well with everybody? Just making sure I did that right. Yeah, a p right there. Okay? Making sense? The last line is actually very similar to the first one. I know that temp is sitting right at the base of the entire activation record. Now, what I have to do is I have to load the address associated with b p into r 2. That’s stored at m of s p plus 12. And then I have to do m of r 2 – I’m sorry, yeah – m of r 2 is equal to r 1. That realizes this, right here. So in those three blocks, I’ve achieved the algorithm that is the rotation of these three—of these two-byte patterns, actually, through a third. Right before I clean this up here, I have to do an s p is equal to s p plus 4. Internally, I have to bring the stack pointer up to the place where it was before I executed any code for this function. Okay? That means that s p is now pointing to the safe p c. Which is perfect because in response to this return instruction, our return actually knows, just procedurally, to go ahead and pull that value out, populate it with the – place it into the real p c register and simultaneously, or just after that, bring this back up to there. Okay? That’s exactly where the s p pointer was pointing before that call statement. Does that make sense? Okay.
So I went through that exhaustively because pointers are still mysterious for some people, and understandably, because they’re difficult. So if you start to understand them, at the hardware level, you have some idea as to what the pointers are trying to achieve. They really are raw locations of figures being moved around, or at least, manipulated. Okay? What I want to do now is, I want to show you what the activation record and the function call and return mechanisms would be for the C + + version of swap. This is very close. I’ll write it again and leave it as an open question, for about two minutes, as to what the activation record must look like. I’ll just do a int ampersand b. So just pretend we’re dealing with pure C, except that we’ve integrated the reference feature from C + +. Okay? Int temp is equal to – what did I see over there?—a, and a is equal to b, and then b is equal to temp. Algorithmically, it looks similar, and it even sort of has the same side effect. But you may question how things are actually working behind the scenes, in order to swap things by reference, as by opposed address. Let me draw the activation record for you. This is the thing that’s referred to as a; this is the thing that’s referred to as b. This is always below that. That’s just the rule for parameters to a function or a method call. There’s a safe p c, right here, pointing to the instruction that comes right after the call to the swap function. And then, ultimately, the very first instruction does an s p is equal to s p minus 4. So that, this is the entire activation record that is in place before swap actually does anything in terms of byte moving around. Okay? This a and this b, just because we refer to them as if they’re direct integers doesn’t mean that, behind the scenes, they have to actually be real integers. The way pointer – I’m sorry – the way references work is that they are basically just automatically dereferenced pointers. Okay? So without writing assembly code for this, when I do this, and I do this, just because I’m passing in x and y – that’s the way you’re familiar with the swap function from 106b and 106x – just because you’re not putting the ampersands in front of those xs and ys, doesn’t mean that compiler is blocked from passing their addresses.
This, right here, has to be an L value; this has to be an L value, as well. It means it actually has to name a space in memory, okay, that can be involved in an update or an
exchange by reference. When this, right here, is compiled to cs107 assembly language, it actually does exactly the same thing that that does, right there. C + + would say, “Oh, this is x and y, but I’m not supposed to evaluate x and y because I can tell, from the prototype, that they’re being evaluated – they’re being passed by reference.” So the way it does it is, on your behalf, just secretly says, “Okay, they need – they really need this x and this y to be updated in response to the swap call.” That’s only gonna happen if this, as a function, knows where x and y are. Okay? So the illusion is that a and b, as stand- alone integers, are second names for what was originally referred to as x and y. Behind the scenes, what happens is that this lays down a pointer and this lays down a pointer. You don’t have to use the word pointer to understand references; you can just say it’s magic and somehow, it actually does update the original values. It lays down the address of these things. The assembly code that is generated for this function, right here, understands even though you don’t necessarily know this. It understands that it’s passing around pointers wherever references are expected. And so it automatically does the dereferencing of the raw pointers that implement those references, for you. The assembly code for this function is exactly the same as this, like, down to the instruction, down to the offsets; everything is exactly the same. Okay? Do you understand how that’s possible? Just because you don’t put ampersands in there, doesn’t leave the compiler clueless because it knows, from the prototype, that it’s expecting references. It’s just this second flavor of actually passing things around by address. You’re just not required to deal with the ampersands and the asterisks. Okay?
It knows because of the way you declared these, that every time you refer to a and b in the code, that you’re really referring to whatever is accessible from the address that’s stored inside the space for a. Okay? Does that sit well with everybody? Okay, that’s good. So people freaked out a little bit on Assignment 1, I think – or Assignment 2 – when they saw local variables declared as references. Like, you’re used to the whole parameter being a reference, as if this data type and that data type, you’re only allowed to put them in parameter lists. That’s just not true. If you want to do this, if you do this right here, then that’s just traditional allocation of a second variable that happens to be initialized to the x variable – I’m sorry – to whatever x evaluates to. Okay? And that’s just normal. If you want to do this, you can. Okay? And this isn’t a very compelling reason because ints are small, and there’s no algorithm attached to this code. So you’re not necessarily clear why it would do that. The was this is set up, is that x really is set aside as an integer, with a 17; y is really set aside with it’s own copy of the 17. But z is declared – you drew them in 106b and 106x, this way. And the picture is totally relevant to the actual compilation measures because it really does associate the address of y inside the space that’s set aside for z. Okay? Does that make sense? If I were to do this, you would totally draw that without the shaded box. Right? This and this, from an assembly code standpoint, are precisely the same. At the C and C + + language level, you’re required to put the explicit asterisk in here; you’re not there. Okay?
You may say, “Well, why would I ever use actual pointers, if references just become pointers?” Well, references are convenient, in the sense that they give the illusion of second names for original figures that are declared elsewhere. The thing is, with references, you can’t rebind the references to new L values. Do you understand what I
And then, privately, let’s say that I have an int called winky, a char star called blinky, and let’s say I have a wedged character array of size 8, called slinky. And let’s just get all these semicolons to look like semicolons. And that is it. And those are the only data fields I push inside. Every single time you declare one of these binky records, or binky objects, you do this. It shouldn’t be that alarming that you really get a blob of memory that packs all the memory needed for these three fields into one rectangle. And it uses exactly the same layout rules because of all the fields, winky is declared before whatever I called it, blinky. And then, on top of that, is an array of 8 characters called slinky, that this entire thing is the b type. It’s laid out that way because if you look at this, and think of it as a struct, the layout rules are exactly the same. Winky is stacked at offset zero; this is stacked on top of that, and this resides on top. This is an exposed pointer, which is why there 4 bytes for that rectangle. This is an array that’s wedged inside the struct/class, which is why it looks like that for the upper 50 percent of it. When you do something like this – forget about constructors, let’s just invent a method, right here. Let’s just assume that I have this method, int and some other thing, donkey where I pass in – let’s say a [inaudible] x and an int y. Okay? And let me actually declare another method, char star – I’m running out of consonants – minky, and all I want to do is I want to pass in, I’ll say, an int star called z. And I will inline the implementation of this thing to do this: int y – I don’t want to do that – int w is equal to asterisk z. And then, I want to return slinky plus whatever I get by calling this donkey method.
I’m not going to implement all the code for this, but I will do this: Winky, winky, and that’s gonna be good enough. It’s a very short method. You don’t normally inline it in the dot h; I’m just putting all the code in one board. Okay? Just look at this from an implementation standpoint, and let me ask something I know you know the answer to. Z right there, is explicitly passed in as a parameter; w is some local variable, okay, that’s clearly gonna be part of the activation record for this minky thing. Why does it have access to winky right there, or slinky right there? Because you know that it has the address of the object that’s being operated on. Does that make sense? The this pointer is always passed around as the negative 1th argument, or the 0th argument, where everything is slided over to make space for the this pointer. It’s always implicitly passed on your behalf. Okay? Do you know how, for like vector-nu, and vector-dispose, and vector-nth, vector-append, you always pass in the address of the relevant struct, as the explicit 0th parameter. Okay? Well, they just don’t bother being explicit about it in C + + because if they know that you’re using this type of – if you’re using that type of notation, you’re really dealing with object orientation. What really happens, on your behalf, is that it basically calls the minky function, not with one variable, but with two. It actually the address of something that has to be a binky class, or a binky struct, as the 0th argument. So whenever you see this in C + +, what’s really happening is that it’s doing this: it’s calling the minky function, passing in the ampersand of b, and the ampersand of n. Okay? That happens to be an elaborately named function. And I’m just going with the name spacing to make it clear that minky is defined inside binky. Okay? And I’m writing it this way because even though we don’t call it using that – that we don’t use it – call it using this structure, right here, this is precisely how it’s called at the assembly code level. Okay?
There’s certainly an address of the first assembly code instruction that has anything to do with the allocation of this w variable. There’s going to be an s p is equal to s p minus 4, at the top of the assembly code that gets admitted on behalf of this. People believe that, I’m assuming? Yes, no? Okay? The reason that C + + compilers can just be augmented, at least the code admission port of it, can be augmented to really accommodate some parts of C + + fairly easily, references and traditional method calls against an object, is that, whenever it see this, it says, “Okay, I know they mean this because they’re being all LL about it. But they’re really calling a block of code, okay, associated with the minky function inside the minky class, and I have to not only pass in ampersand of m as an explicit argument, but before that I have to splice in the address of the receiving object.” Does that make sense? Okay. So the activation record that exists on behalf of any normal method inside a class, it always has one more parameter than you think But it still is gonna have a safe p c – I’ll write it right there – it’s gonna have two parameters, on top of it. This right there, this would be the thing that is locally referred to as z. Okay? Below that, it would make space for this variable uptight int called w. This right here might point to something like that; it certainly would point to something like that in this scenario, right here. Does that make sense to people?
Because n – I’m not using pure stack frame picture here – but because n is declared with a 17 right there, this would obviously be declared and initialized that way. Okay? Make sense? This would point to some assembly kind code instruction associated with after that call, right there. So there’s a little bit more to keep track of, but as long as you just understand that k argument methods – k just being some number – k argument methods really are just like k plus 1 argument functions. Okay? When we’re thinking in terms of a paradigm, we don’t actually wonder about how C and C + + are similar. But when we have to write assembly code for something, we say, “Okay, I want to use the same code admission scheme for both C structs, with functions, and C + + objects, with methods.” You can use exactly the same scheme, the same memory model, for structs and classes, and function call, and function call and return, by just looking at k algorithmic methods, as if they’re k plus 1 arguments functions, knowing that the 0th argument always becomes the address of the relevant object. Okay? Does that make sense to people? When this, ultimately, calls this function right here, you understand that it’s really equivalent to that. We just don’t bother putting in the this pointer. Does that make sense? So internally, when I set up function call, or assembly code to actually jump to the binky colon colon donkey method, I actually have to make space for 12 bytes of parameters, 8 bytes for two copies of winky. Make sense? And also, the this pointer. And because there’s nothing in front of this method call, it just knows to propagate whatever value this is, and replicate it down here for the second method call that comes within the first one. Does that sit well with everybody? Okay?
Had I had a variable of type binky reference here, then – and I had done, like let’s say I had done this – I can’t change the picture, but I’m just improvising this one point. If I had done something like this: binky of d – binky reference d, and done this, then the address of whatever binky object d refers to would have to be the thing that’s laid down in the this portion of the activation portion of the record for the donkey method. Okay? That make sense to every body? Yes, no. Got a nod; it doesn’t tell me. Okay. So even though
section cycle, you will get a section handout, where you’ll have some elaborate – I don’t want to say elaborate – some meaty examples on C and C + + code generation. I’m only gonna test you on C code generation, with no objects, and no references on the mid-term, although it’ll be fair game on the final.
Next Wednesday, I will give out Assignment 5; it will not be a programming assignment. It’ll be a written problem set, where you’re not required to hand it in. You’re just required to do it, and make sure that your answers sync up with the answers that I give out in the key. And it’ll be totally testable material. You’re not – you’re just required to effectively do it by 6:59pm, on Wednesday, May 7th. Okay? Does that make sense? So you have a full week to do this one assignment, which means you’ll all do it on Tuesday, May 6th. But you’ll have a week to actually kind of recover from the Assignment 4 experience, and learn all the pointer stuff. Okay? This make sense? What I want to do is I want to start talking, a little bit, about how compilation and linking works. We completely disguise compilation and linking with this one word called make. And it’s just like – it’s this magic verb like, “Just do it, and make it work for me.” And somehow, it actually, usually does do that for us. But when you compile C code – C + + codes as well – but C Code, I’ll focus on. It normally invokes the preprocessor, which is dedicated to dealing with pound define and pound includes. Then it invokes what is truly called the compiler. That’s what’s responsible for taking your dot C files, and your dot C C files, and generating all those dot o files, that happen to appear in your directory, after you type make. Make sense? And then, after compilation, there’s this one thing you don’t think about because code warrior, and x code, and visual studio C + +, they all make compilation look like it’s the full effort to create an executable. But once all those dot o files are created, and one of the dot o files has code for the main function inside, there is this step called linking, which is responsible for taking a list of dot o files; stacking them on top of one another; making sure that any function call that could possibly ever happen during execution, is accounted for because there’s code for that function one of the dot o files.
And then, it just wraps a dot out, or 6 degrees, or my executable, or whatever you want to call it, around the bundle of all of those dot o files. Does that make sense? Okay. Somebody had mentioned, the other day, that a line like this, why wouldn’t it be replaced by call of, like, p c plus 480, or p c minus 1760? To actually jump to the actual p c relative address where the swap function starts, that actually will happen in response to the linking phase because everything’s supposed to be available to build the executable file. And so if it knows where everything is, in every single dot o file, and it knows how they’re being stacked up one on top of one another, they can replace things like this, with their p c relative addresses. Maybe, at the time that things are linked together, it knows that swap function happens to be the one defined rate above this. So when it calls swap, it actually calls p c minus , let’s say 96, or something like that. Okay? Make sense? Okay. Let me get some clean board space, and just spend five minutes, that’s all I’ll be able to do, really, talking about the preprocessor.
And I’m doing – okay, five minutes. Whenever you’re dealing with pure C, if you wanted to declare global constants, traditionally until recently, you only had pound defines as the
option for defining nice, meaningful top-level names for these magic numbers, or these magic strings. So something like this: pound define – I’ll just do k with, let’s say it’s 480 pixels, so I write down 480. And then I have something like this, k height 720. And then, I have some pound includes; I’ll talk about those later. And then, there’s all this code right here, where usually, it’s the case that some part of it is framed in terms of that and/or that. So maybe it’s the case that you have a printout statement with is percent d backslash n –oops, right there – and then, you feed it the value of k width. Maybe a more meaningful thing might be something like int area is equal to k width times k height. And it exists in your code somewhere. When you feed, or when a dot C file is fed to GCC or G + +, there’s a component of either GCC or G + + called the preprocessor that doesn’t do very much in terms of compilation. It doesn’t do compilation, as you know it. It actually reads your – the dot C file that’s fed to it, from top to bottom, left to right, like we would read a page. And every time it sees a pound define, it really only pays attention to these words. What it’ll normally do is, it’ll read in a line. And if there’s nothing that has a hash at the beginning of the line, so it doesn’t involve any pound defines or pound includes, it’ll just say, “Okay, I just read this one line, and I don’t care about it. So I’m just gonna publish it again as part of my output.” When it reads something like this, it internally has something like a hash set, although it’s probably – I don’t want to say it’s strong, eh, but it’s probably strongly typed.
It associates this as a key with this string of text; it doesn’t even really know that it’s a number. Okay? It just says, “Everything between the white space that comes right after width, and the white space that comes after the first token, that’s associated as a text stream with that identifier, right there.” Okay? It does the same thing for that, right there, and as the preprocessor continues to read, every time it finds either that or that, in your code – the one exception being within a string constant – but everywhere else, it says, “Okay. Well, when I see that, they really meant that number right there.” So it lays down 480, as if you typed it there explicitly. Does that make sense? Okay? You know the alternative would be to put lots of 480s all over the code base, without using a pound define, or lots of 720s around the code base, without using a pound define. But then you change the dimensions of your rectangle, in your graphics program, or whatever. And then, you have to go through and search and replace all the 480s, to make them 520s or whatever. It makes some sense to consolidate that 480 to a pound define, if the pound define is the only thing that is available to you. But the pound define is really very little more than pure token, search, and replace. Okay? Does that make sense to everybody? So the responsibility of the preprocessor is to read into the dot C file, and to actually output the same dot C file, where all the pound defines and other things, like pound includes, have been stripped out. And the side effects that come with pound defines have been implanted into the output. So this, right here, would be missing these two lines. Anything right here, that doesn’t involve those two pound defines, would be output verbatim. This one line would be output verbatim, except that would have a 480 replaced, right there. Okay? And this, right here, would have [inaudible], and that right there, it would probably have a 480 times 720. Although, the compiler might actually do the multiplication for you, if it’s a very good compiler. Okay? Does that make sense? Actually, the – I’m sorry – the preprocessor would not do that, though. This would just become 480 times 720. Okay? And the fact that it happens to be text – it is really text, at
