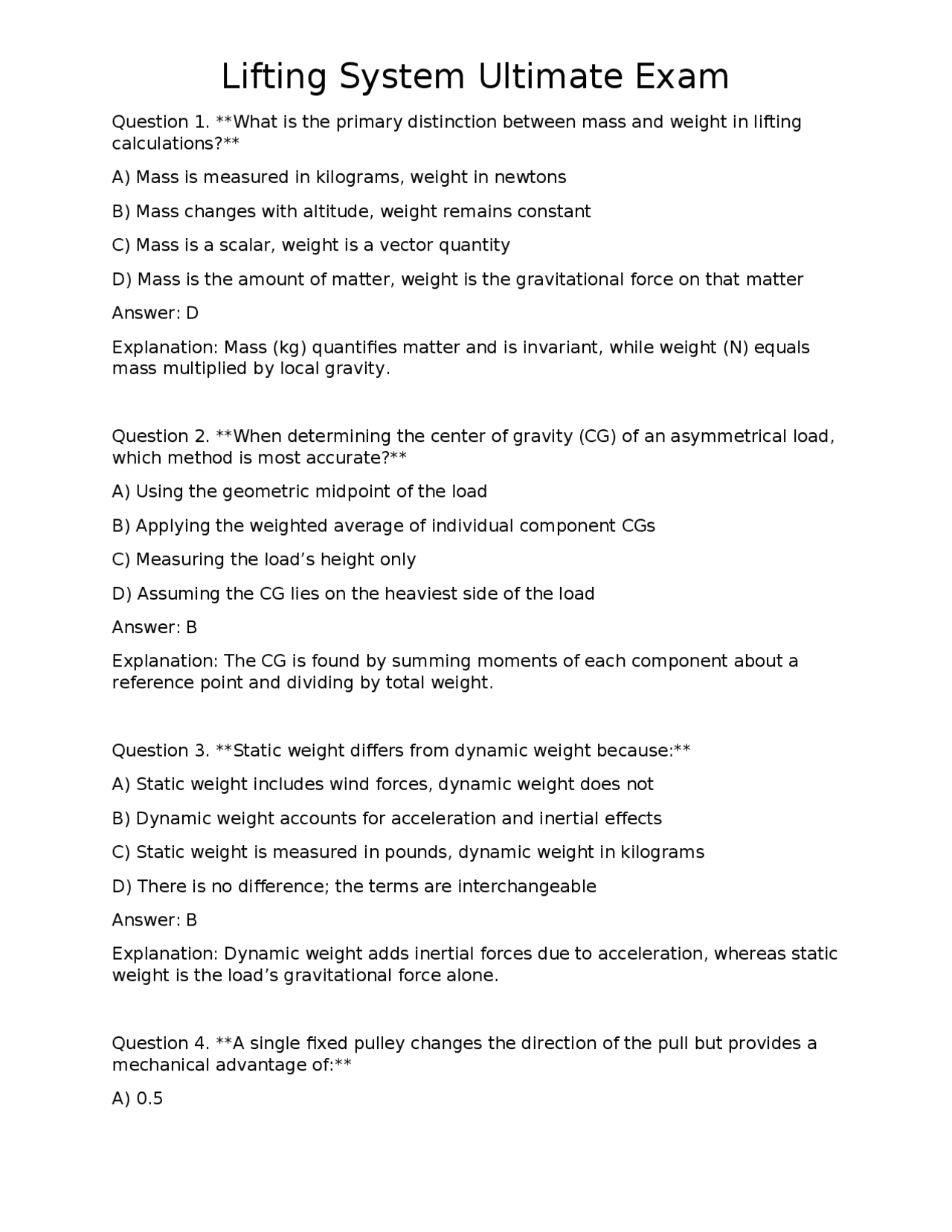

Question 1. What is the primary distinction between mass and weight in lifting calculations? A) Mass is measured in kilograms, weight in newtons B) Mass changes with altitude, weight remains constant C) Mass is a scalar, weight is a vector quantity D) Mass is the amount of matter, weight is the gravitational force on that matter Answer: D Explanation: Mass (kg) quantifies matter and is invariant, while weight (N) equals mass multiplied by local gravity. Question 2. When determining the center of gravity (CG) of an asymmetrical load, which method is most accurate? A) Using the geometric midpoint of the load B) Applying the weighted average of individual component CGs C) Measuring the load’s height only D) Assuming the CG lies on the heaviest side of the load Answer: B Explanation: The CG is found by summing moments of each component about a reference point and dividing by total weight. Question 3. Static weight differs from dynamic weight because: A) Static weight includes wind forces, dynamic weight does not B) Dynamic weight accounts for acceleration and inertial effects C) Static weight is measured in pounds, dynamic weight in kilograms D) There is no difference; the terms are interchangeable Answer: B Explanation: Dynamic weight adds inertial forces due to acceleration, whereas static weight is the load’s gravitational force alone. Question 4. A single fixed pulley changes the direction of the pull but provides a mechanical advantage of: A) 0.
B) 1
C) 2
D) 3
Answer: B Explanation: A fixed pulley only redirects force; it does not multiply the input force, so the mechanical advantage (MA) is 1. Question 5. In a movable-pulley system with two rope segments supporting the load, the mechanical advantage is: A) 1 B) 2 C) 3 D) 4 Answer: B Explanation: The load is supported by two rope sections, halving the required input force, resulting in an MA of 2. Question 6. When analyzing forces in a lifting rig, which vector component represents the force that tends to elongate a member? A) Compression B) Shear C) Tension D) Bending Answer: C Explanation: Tension acts along the axis of a member pulling it apart, whereas compression pushes it together. Question 7. Shear force in a sling primarily occurs when: A) The sling is loaded vertically B) The sling experiences a horizontal component of load C) The load is perfectly balanced over the crane hook
Explanation: Mobile hydraulic cranes can be positioned close to the load and have a compact footprint, ideal for tight sites. Question 11. A gantry crane differs from a bridge crane primarily in that: A) The gantry crane’s runway beams are supported on the ground, not on elevated columns B) The bridge crane uses a trolley, while the gantry crane does not C) Gantry cranes cannot lift more than 5 t D) Bridge cranes are always permanent installations Answer: A Explanation: Gantry cranes have the supporting structure on the ground, allowing operation over open floor spaces. Question 12. Which hoist type is most appropriate for precise positioning of a load in a confined space? A) Electric wire-rope hoist B) Manual lever block C) Chain hoist with a hand chain D) Pneumatic winch Answer: A Explanation: Electric wire-rope hoists provide fine speed control and can be operated remotely, enabling precise positioning. Question 13. The primary advantage of a chain hoist over a wire-rope hoist is: A) Higher lifting capacity per weight of the hoist B) Ability to lift loads vertically only C) Lower cost of operation D) No need for regular inspection Answer: A Explanation: Chain hoists have a higher strength-to-weight ratio, allowing greater capacities in a compact form.
Question 14. When selecting a winch drum, the “line pull rating” must be: A) Equal to or greater than the maximum expected load B) Exactly 10 % higher than the load weight C) Half the breaking strength of the drum material D) Determined by the winch’s motor horsepower alone Answer: A Explanation: The line pull rating indicates the maximum continuous pull the winch can safely exert; it must meet or exceed the load demand. Question 15. A brake that fails to hold the drum after power loss is most likely a: A) Mechanical parking brake B) Hydraulic pressure-release brake C) Electromagnetic “hold-in-place” brake D) Friction disc brake with worn pads Answer: C Explanation: Electromagnetic brakes rely on power to stay engaged; loss of power releases the brake, causing a hold-in-place failure. Question 16. Synthetic web slings are preferred over wire rope slings when: A) The load requires high temperature resistance B) The load is sharp-edged and may cut the sling C) The lift needs minimal stretch and high stiffness D) The sling must be inspected for broken wires Answer: B Explanation: Synthetic slings are flexible and less likely to damage or be damaged by sharp edges compared to wire rope. Question 17. During a visual inspection, a wire rope sling shows a “bird-cage” defect. This indicates: A) Corrosion on the outer strands B) Broken or missing core wires causing the rope to collapse inward
Explanation: Self-locking hooks have a latch or cam that engages under load, preventing the hook from opening unintentionally. Question 21. The Working Load Limit (WLL) of a lifting component is calculated by: A) Dividing the breaking strength by the safety factor B) Multiplying the breaking strength by the safety factor C) Adding a 10 % margin to the breaking strength D) Subtracting the safety factor from the breaking strength Answer: A Explanation: WLL = Breaking Strength ÷ Safety Factor, ensuring a conservative load rating. Question 22. If a crane’s safety factor is 5 and its hook’s breaking strength is 25 t, the WLL is: A) 5 t B) 25 t C) 125 t D) 1 t Answer: A Explanation: WLL = 25 t ÷ 5 = 5 t. Question 23. In wire rope construction, the term “IWRC” stands for: A) Independent Wire Rope Core B) Integrated Wire Rope Cable C) Internal Wire Rope Coating D) Interwoven Wire Rope Composite Answer: A Explanation: IWRC indicates a rope with a separate steel core that provides additional strength and flexibility.
Question 24. A “lay pattern” of a wire rope defines: A) The color coding of the rope strands B) The direction and number of twists of the strands around the core C) The type of lubricant used on the rope D) The length of the rope per spool Answer: B Explanation: Lay pattern describes how strands are twisted (e.g., right-hand regular lay, left-hand Lang lay) affecting flexibility and fatigue resistance. Question 25. The fleet angle on a drum must be kept below approximately: A) 5° B) 12° C) 20° D) 30° Answer: B Explanation: A fleet angle > 12° can cause rope damage and uneven winding; design aims to keep it below this limit. Question 26. In a hydraulic cylinder, the force generated is calculated by: A) Pressure × Piston Area B) Pressure ÷ Piston Area C) Flow Rate × Pressure D) Volume × Pressure Answer: A Explanation: F = P × A, where P is hydraulic pressure and A is the piston’s effective area. Question 27. A pressure relief valve on a hydraulic system is set to open at: A) The system’s maximum operating pressure B) 10 % above the normal operating pressure C) The lowest possible pressure
Explanation: Elevated temperatures reduce the tensile strength of steel and synthetic materials, requiring a reduction in allowable load. Question 31. The most common hand signal for “Stop” in crane operations is: A) Arms raised above the head, palms facing forward B) One arm extended forward, palm down C) Both arms crossed over the chest D) Thumbs up Answer: C Explanation: Crossing both arms over the chest is universally recognized as “Stop” for crane operators. Question 32. During a blind lift, the primary communication method should be: A) Shouting across the site B) Hand signals only C) Two-way radio with clear phraseology D) Whistling Answer: C Explanation: Radios provide reliable, audible communication when the operator cannot see the load or riggers. Question 33. When the sling angle between two legs of a spreader bar is reduced from 90° to 45°, the tension in each leg: A) Decreases by 50 % B) Remains the same C) Increases by 41 % D) Increases by 100 % Answer: C Explanation: Tension = Load ÷ (2 × sin θ). At 45°, sin 45° = 0.707, so tension rises compared to 90° (sin 90° = 1), resulting in roughly a 41 % increase.
Question 34. In a basket hitch, the load is shared by how many sling legs? A) One B) Two C) Three D) Four Answer: C Explanation: A basket hitch uses three legs, each taking a portion of the load. Question 35. A choke hitch is most appropriate for which type of load? A) A long, flexible load that needs to be wrapped tightly B) A rigid, rectangular load that requires even distribution C) A load with a single attachment point D) A load that must be lifted vertically without any horizontal component Answer: A Explanation: The choke hitch wraps the sling around the load, tightening as the load is lifted, ideal for irregular or flexible items. Question 36. When a vertical sling is used to lift a load directly beneath the hook, the tension in the sling is: A) Equal to the load weight divided by the number of sling legs B) Equal to the load weight (ignoring friction) C) Greater than the load weight due to leverage D) Zero because the load is directly under the hook Answer: B Explanation: With a vertical lift, the sling carries the full load weight without additional angle-induced forces. Question 37. The term “critical lift” generally refers to lifts that: A) Exceed 10 t in weight B) Involve hazardous materials or complex rigging that could cause severe consequences if failed
Answer: B Explanation: Exceeding 10 % wear reduces the chain’s strength below safe limits. Question 41. Which of the following is a primary hazard when working near overhead power lines? A) Slip hazards on the ground B) Electrical arcing due to proximity C) Noise exposure from crane operation D) Heat stress from the sun Answer: B Explanation: Proximity to energized lines can cause arcing or contact, resulting in severe electric shock. Question 42. The term “pinch point” in lifting operations refers to: A) The area where a load may be caught between moving parts, causing injury or damage B) The spot where the rope touches the drum C) The location of the hydraulic pump vent D) The place where the operator stands during a lift Answer: A Explanation: Pinch points are dangerous zones where body parts or equipment can be trapped between moving components. Question 43. During a load test, a crane is required to lift 125 % of its rated SWL. This test verifies: A) The crane’s ability to lift beyond its rating for emergencies B) The accuracy of the crane’s load-moment indicator C) The crane’s structural safety factor and compliance with standards D) The operator’s skill level Answer: C Explanation: Over-loading the crane to 125 % of SWL demonstrates that the safety factor is adequate per regulatory requirements.
Question 44. Non-Destructive Testing (NDT) of a wire rope typically includes which method? A) Visual inspection only B) Magnetic particle inspection C) Ultrasonic testing to detect internal flaws D) Chemical etching of the rope surface Answer: C Explanation: Ultrasonic NDT can detect internal wire breakage, corrosion, and core defects without damaging the rope. Question 45. A “bird-cage” defect in a wire rope is most reliably detected by: A) Visual inspection of the outer lay B) Magnetic flux leakage testing C) Measuring rope diameter with a caliper D) Listening for a metallic sound when the rope is struck Answer: B Explanation: Magnetic flux leakage can reveal internal core failures that are not visible externally. Question 46. The recommended interval for a full hydraulic system inspection on a crane is: A) Every lift B) Daily before operation C) Every 250 operating hours or annually, whichever comes first D) Only when a leak is observed Answer: C Explanation: Regular intervals based on operating hours or time ensure early detection of wear and prevent failures. Question 47. When lubricating a crane’s sheave bearings, the appropriate grease type is:
C) Reduced drum capacity D) Faster drum rotation Answer: B Explanation: High fleet angles lead to the rope rubbing on the drum edges, accelerating wear and possible failure. Question 51. When using a spreader bar, the purpose of the bar is to: A) Reduce the load weight B) Increase the sling angle to reduce tension on each leg C) Provide a decorative element for the load D) Convert a vertical lift into a horizontal one Answer: B Explanation: The spreader bar widens the attachment points, improving sling angles and decreasing leg tension. Question 52. A crane’s load chart shows a maximum boom length of 30 m at a 20 t SWL. Extending the boom to 35 m without reducing load would: A) Be permissible if the wind speed is low B) Exceed the crane’s rated capacity and is unsafe C) Increase the crane’s lifting height proportionally D) Reduce the required hydraulic pressure Answer: B Explanation: Load charts are based on specific boom lengths; exceeding them violates safety limits. Question 53. In a three-legged sling arrangement, the angle between each leg is 120°. If the load is 9 t, the tension in each leg is: A) 3 t B) 4.5 t C) 6 t D) 9 t
Answer: A Explanation: For equally spaced legs, each leg carries one-third of the load (9 t ÷ 3 = 3 t). Question 54. A “self-adjusting” turnbuckle is used in rigging to: A) Automatically compensate for load stretch and maintain tension B) Lock the sling permanently in place C) Convert a chain into a rope D) Provide a decorative finish to the rigging Answer: A Explanation: Self-adjusting turnbuckles have a spring mechanism that takes up slack as the sling stretches. Question 55. The primary reason for using a “soft-edge” hook on a crane is to: A) Reduce impact forces on the load during hookup B) Increase the hook’s load capacity C) Allow the hook to be used as a wrench D) Prevent the hook from rusting Answer: A Explanation: Soft-edge hooks have rounded mouths that minimize damage to the load and reduce shock loading. Question 56. When a crane operator receives a “green” signal from the rigger, it indicates: A) Proceed with the lift B) Stop the lift immediately C) Lower the load slowly D) Increase the hoist speed Answer: A Explanation: In standard hand-signal protocols, a green flag or arm indicates “go” or “proceed”.
Question 60. A hydraulic pump’s flow rate directly affects which aspect of crane operation? A) The maximum boom length B) The speed at which the hoist raises or lowers a load C) The crane’s fuel consumption D) The color of the crane’s paint Answer: B Explanation: Higher flow rates increase cylinder speed, allowing faster hoisting or lowering. Question 61. When a crane’s load is lifted with a “vertical” sling angle of 0°, the tension factor is: A) 1. B) 1. C) 1. D) 2. Answer: A Explanation: At 0° (vertical), sin θ = 1, so tension equals the load; the factor is 1.0. Question 62. A “choker” hitch will increase sling tension as the load is lifted because: A) The sling length shortens, tightening the loop around the load B) The hitch is designed to slip under load C) The load is lifted vertically without any angle D) The choker uses a mechanical advantage device Answer: A Explanation: The choker tightens around the load as it is raised, increasing tension proportionally. Question 63. In a “basket” hitch, the sling legs are positioned so that the load is: A) Suspended directly beneath the hook with no angle
B) Wrapped around the load, forming a “basket” shape that distributes load evenly C) Attached to a single point on the load D) Lifted using a single vertical leg only Answer: B Explanation: The basket hitch spreads the load across three legs, creating a stable load distribution. Question 64. The most common cause of “hydraulic seal failure” in crane cylinders is: A) Over-filling the reservoir with water B) Contamination of the hydraulic fluid with particles C) Using synthetic oil instead of mineral oil D) Operating the crane at low altitude Answer: B Explanation: Particulate contamination abrades seals, leading to leaks and loss of pressure. Question 65. A “load-break” test for a crane is performed to verify: A) The crane’s ability to stop a load suddenly without damage B) The crane’s maximum travel speed C) The accuracy of the crane’s GPS system D) The operator’s certification level Answer: A Explanation: Load-break testing demonstrates that the crane can safely arrest a falling load without exceeding design limits. Question 66. The term “sheave” in a crane’s hoist system refers to: A) The hydraulic pump housing B) A grooved wheel that guides the rope or chain C) The control panel for the hoist D) The electrical wiring conduit
