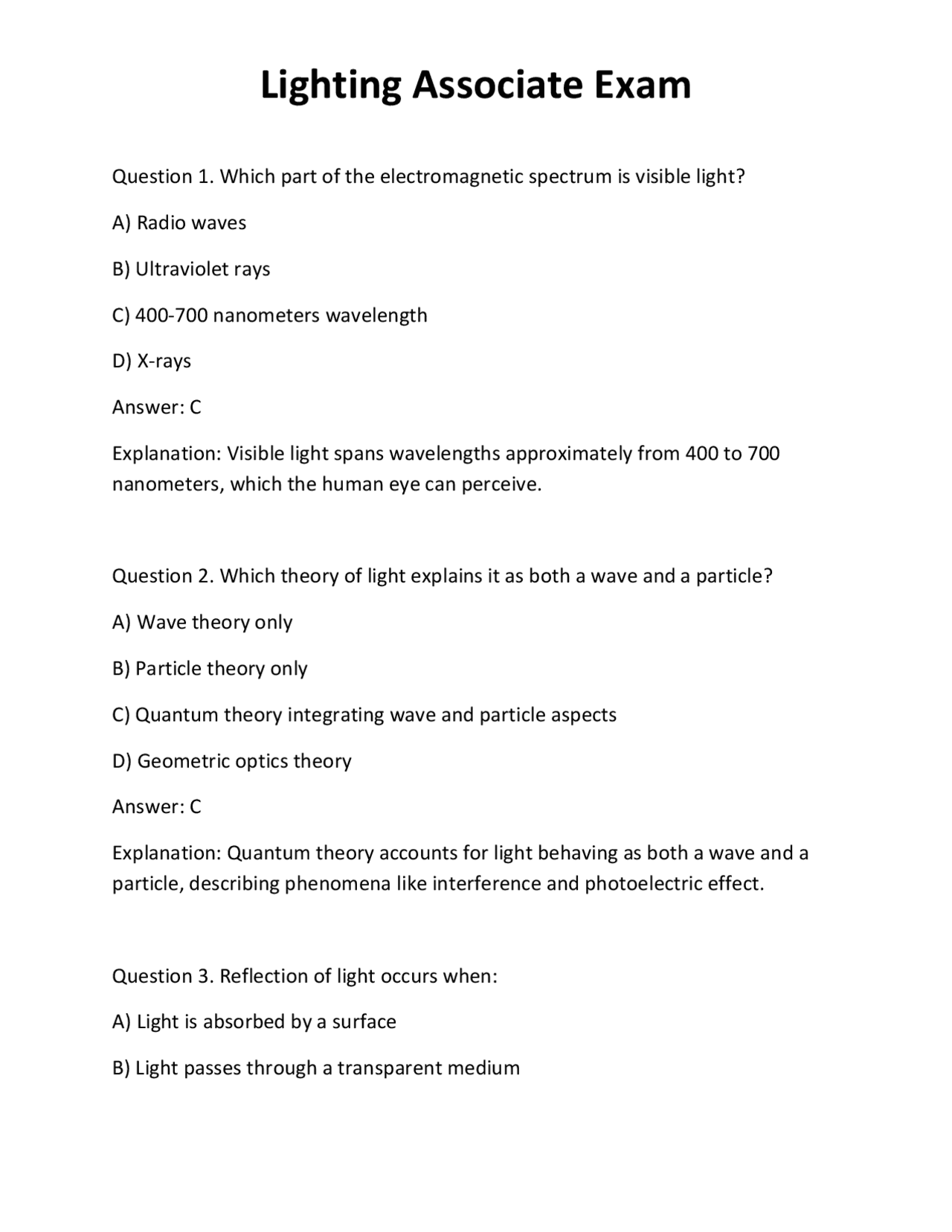

Question 1. Which part of the electromagnetic spectrum is visible light? A) Radio waves B) Ultraviolet rays C) 400-700 nanometers wavelength D) X-rays Answer: C Explanation: Visible light spans wavelengths approximately from 400 to 700 nanometers, which the human eye can perceive. Question 2. Which theory of light explains it as both a wave and a particle? A) Wave theory only B) Particle theory only C) Quantum theory integrating wave and particle aspects D) Geometric optics theory Answer: C Explanation: Quantum theory accounts for light behaving as both a wave and a particle, describing phenomena like interference and photoelectric effect. Question 3. Reflection of light occurs when: A) Light is absorbed by a surface B) Light passes through a transparent medium
C) Light bounces off a surface at an angle equal to the incident angle D) Light spreads out after passing through a diffuser Answer: C Explanation: Reflection involves light bouncing off a surface, following the law of reflection where the angle of incidence equals the angle of reflection. Question 4. Refraction of light is best described as: A) Light bouncing off a surface B) Light bending when passing through different media C) Light being absorbed by a surface D) Light diffusing in all directions Answer: B Explanation: Refraction occurs when light changes direction as it passes between media with different densities, due to changes in speed. Question 5. The photometric quantity that measures total visible light emitted by a source is: A) Luminous intensity B) Illuminance C) Luminous flux D) Luminance Answer: C
Question 8. The Lambert's Cosine Law describes the relationship between: A) Illuminance and the angle of incidence B) Luminous intensity and distance C) Spectral power distribution and color temperature D) Luminance and surface reflectance Answer: A Explanation: Lambert's Cosine Law states that illuminance on a surface is proportional to the cosine of the angle between the incident light and the surface normal. Question 9. Color temperature (CCT) is measured in: A) Kelvin B) Lumens C) Candela D) Lux Answer: A Explanation: CCT is measured in Kelvin and indicates whether a light source appears warm or cool. Question 10. A high CRI value indicates: A) Poor color rendering B) Good color rendering
C) Low luminous efficacy D) Shorter lamp life Answer: B Explanation: A high CRI (Color Rendering Index) value indicates that a light source renders colors more accurately, close to natural light. Question 11. The spectral power distribution (SPD) of a light source describes: A) The distribution of energy across different wavelengths B) The physical size of the lamp C) The electrical power consumption D) The beam angle of the luminaire Answer: A Explanation: SPD details how much power a light source emits at each wavelength, influencing color appearance and rendering. Question 12. In the CIE 1931 chromaticity diagram, the x and y axes represent: A) Luminance and illuminance B) Red-green and blue-yellow chromaticities C) Spectral power distribution peaks D) Color temperature and CRI Answer: B
Question 15. Discomfort glare is primarily caused by: A) Excessively bright sources within the visual field B) Low illuminance levels C) Uniform lighting conditions D) Proper lighting design Answer: A Explanation: Discomfort glare results from bright lights that cause visual discomfort, even if they don't impair vision. Question 16. Which lamp type is characterized by a high efficacy and long rated life, often used in residential and commercial lighting? A) Incandescent lamps B) Fluorescent lamps C) Halogen lamps D) Incandescent A-lamps Answer: B Explanation: Fluorescent lamps have high efficacy and long rated life, making them suitable for energy-efficient lighting. Question 17. High-Intensity Discharge (HID) lamps include all the following EXCEPT: A) Metal halide
B) High-pressure sodium C) Mercury vapor D) LED Answer: D Explanation: LEDs are solid-state light sources, not HID lamps, which are gas- discharge lamps. Question 18. The main advantage of LED lighting over traditional incandescent lamps is: A) Lower efficacy B) Longer lifespan and higher energy efficiency C) Higher heat output D) Limited dimming capabilities Answer: B Explanation: LEDs typically offer longer lifespan and higher efficacy compared to incandescent lamps. Question 19. The optical component in a luminaire that directs light and improves distribution is called: A) Diffuser B) Reflector C) Lamp holder
Explanation: Dimmers allow continuous adjustment of light levels, providing variable lighting control. Question 22. Forward-phase dimming operates by: A) Cutting off the voltage at the beginning of each AC cycle B) Cutting off the voltage at the end of each AC cycle C) Using a 0-10V control signal D) Modulating the current in a DALI network Answer: A Explanation: Forward-phase dimming (leading-edge dimming) cuts off the beginning of each AC cycle to reduce light output. Question 23. Which sensor type is most effective for detecting occupancy based on motion through thermal imaging? A) PIR sensor B) Ultrasonic sensor C) Dual-technology sensor D) Infrared camera sensor Answer: D Explanation: Infrared camera sensors detect thermal signatures and can track motion based on heat emitted by objects.
Question 24. Daylight harvesting involves: A) Using daylight to reduce electric lighting energy consumption B) Increasing artificial lighting during cloudy days C) Installing large windows for aesthetic purposes only D) Using only daylight without electric lighting Answer: A Explanation: Daylight harvesting reduces electric lighting when sufficient natural light is available, saving energy. Question 25. A wireless lighting control protocol that uses Zigbee technology is: A) DALI B) DMX C) Zigbee D) Ethernet Answer: C Explanation: Zigbee is a wireless protocol used in smart and networked lighting control systems. Question 26. The primary purpose of lighting design documentation is to: A) Ensure compliance and guide installation B) Increase the cost of the project
Explanation: Glare control aims to reduce discomfort and improve visual comfort by managing light sources and brightness levels. Question 29. A typical application of task lighting is: A) General ambient lighting in a room B) Focused light on a work surface, such as a desk or kitchen counter C) Decorative lighting on walls D) Exterior landscape lighting Answer: B Explanation: Task lighting provides focused illumination for specific activities like reading or cooking. Question 30. Which code primarily governs electrical wiring and safety for lighting installations in the US? A) IEC B) NEC (National Electrical Code) C) ASHRAE 90. D) LEED Answer: B Explanation: The NEC is the standard for electrical wiring and safety in the United States.
Question 31. The lumen method for lighting calculations is primarily used to: A) Determine the number of luminaires needed based on average illuminance B) Calculate energy consumption of fixtures C) Assess color rendering properties D) Evaluate glare levels Answer: A Explanation: The lumen method estimates the number of luminaires required to achieve a specified average illuminance. Question 32. Which organization publishes the Recommended Practices for lighting design? A) IEEE B) Illuminating Engineering Society (IES) C) ISO D) OSHA Answer: B Explanation: The IES provides guidelines, standards, and recommended practices for lighting design. Question 33. The purpose of a lighting schedule in a lighting plan is to: A) List fixtures, quantities, and specifications for installation and maintenance B) Show only the electrical wiring diagram
Explanation: LEDs are durable and long-lasting, not fragile or short-lived. Question 36. The main function of a reflector in a luminaire is to: A) Protect the lamp from dust B) Redirect and shape the light beam C) Dampen sound D) Dissipate heat Answer: B Explanation: Reflectors direct and shape the emitted light to improve distribution and efficiency. Question 37. The IP rating IP65 indicates: A) Complete dust ingress protection and water jets from any direction B) No protection against dust and water C) Full immersion protection only D) Only protection against accidental contact Answer: A Explanation: IP65 signifies high protection against dust and water jets, suitable for outdoor environments. Question 38. Which control system protocol enables digital communication between lighting components and supports complex scene setting?
A) DALI
B) Zigbee C) DMX D) Both A and C Answer: D Explanation: Both DALI and DMX support digital control and complex scene setting in lighting systems. Question 39. Which lighting control device is most suitable for scheduling lighting based on time of day? A) Occupancy sensor B) Timer or time clock C) Photocell D) Dimmer Answer: B Explanation: Timers or time clocks automate lighting based on pre-set schedules. Question 40. In lighting design, the term "lux" refers to: A) Luminous flux emitted by a light source B) Illuminance or incident light on a surface C) Luminance of a surface
Explanation: Accent lighting emphasizes specific objects or features to create visual interest. Question 43. When designing lighting for a retail store, which principle helps attract customer attention? A) Uniform ambient lighting only B) Layered lighting with focal points and accent lights C) Minimal lighting to save energy D) Only natural daylight Answer: B Explanation: Layered lighting with accent and focal points draws attention to displays and merchandise. Question 44. The process of verifying lighting system performance after installation is called: A) Commissioning B) Documentation C) Maintenance D) Specification Answer: A Explanation: Commissioning involves testing and adjusting the system to ensure it meets design intents.
Question 45. Which of the following best describes "light pollution"? A) Excessive or misdirected artificial light that causes environmental or astronomical issues B) Insufficient outdoor lighting for safety C) The natural glow of the night sky D) The use of low CRI lighting in urban areas Answer: A Explanation: Light pollution refers to excessive, misdirected, or intrusive artificial light impacting environment and visibility. Question 46. The primary benefit of integrating daylight with electric lighting is: A) Increased energy consumption B) Reduced energy costs and enhanced occupant comfort C) Increased heat gain only D) Decreased natural light availability Answer: B Explanation: Combining daylight with electric lighting reduces energy use and improves visual comfort. Question 47. Which of the following is NOT a typical component of a luminaire? A) Lamp holder
