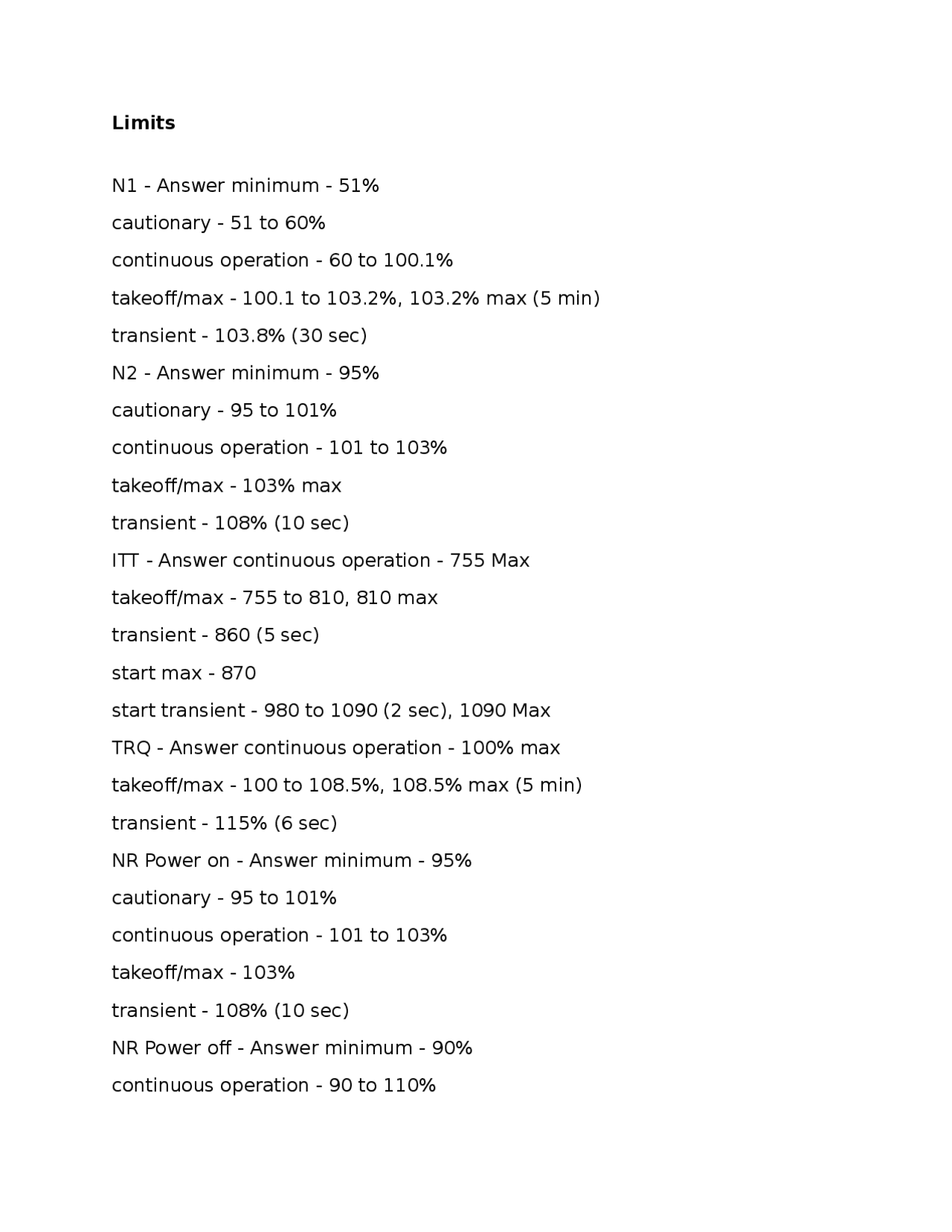

Limits
N1 - Answer minimum - 51%
cautionary - 51 to 60%
continuous operation - 60 to 100.1%
takeoff/max - 100.1 to 103.2%, 103.2% max (5 min)
transient - 103.8% (30 sec)
N2 - Answer minimum - 95%
cautionary - 95 to 101%
continuous operation - 101 to 103%
takeoff/max - 103% max
transient - 108% (10 sec)
ITT - Answer continuous operation - 755 Max
takeoff/max - 755 to 810, 810 max
transient - 860 (5 sec)
start max - 870
start transient - 980 to 1090 (2 sec), 1090 Max
TRQ - Answer continuous operation - 100% max
takeoff/max - 100 to 108.5%, 108.5% max (5 min)
transient - 115% (6 sec)
NR Power on - Answer minimum - 95%
cautionary - 95 to 101%
continuous operation - 101 to 103%
takeoff/max - 103%
transient - 108% (10 sec)
NR Power off - Answer minimum - 90%
continuous operation - 90 to 110%
