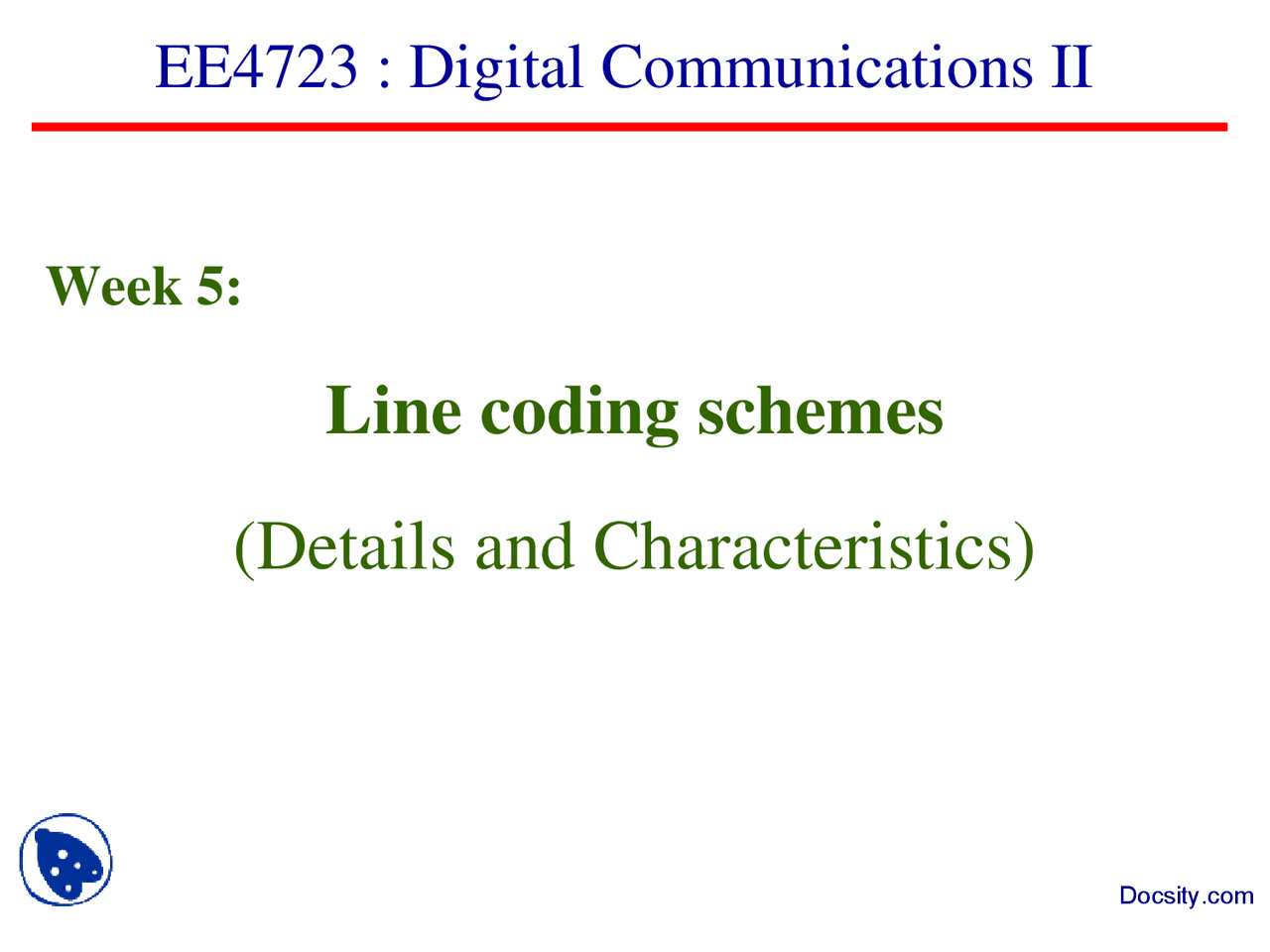

EE4723 : Digital Communications II

Week 5:

Line coding schemes

(Details and Characteristics)

Line coding and decoding

Synchronization

 Receiver’s clock Setting must match the sender’s one

 Effect of lack of synchronization

Considerations for PCM Waveforms

 DC components

 Transmission bandwidth

 Power efficiency

 Error detection and correction capability

 Favorable power spectral density

 Adequate timing content – Self Synchronization

 Noise and Interference Immunity

 Cost and Complexity

Example

 A system is using NRZ-I to transfer 1-Mbps data. What are the average signal rate and minimum bandwidth?

 Solution

  • The average signaling rate is S = N/2 = 500 k baud. The minimum bandwidth for this average baud rate is Bmin = S = 500 kHz.

RZ scheme

 Return to zero

 Self clocking

Bipolar schemes: AMI and pseudoternary

 In bipolar encoding, we use three levels: positive, zero, and negative.

 Pseudoternary:

  • 1 represented by absence of line signal
  • 0 represented by alternating positive and negative

 DS1, E

PSD of various line codes

HDB

 The timing information is preserved by embedding it in the line signal even when long sequences of zeros are transmitted, which allows the clock to be recovered properly on reception.

 The DC component of a signal that is coded in HDB3 is null.

Bipolar 8-Zero Substitution (B8ZS)

 Adds synchronization for long strings of 0s  North American system  Same working principle as AMI except for eight consecutive 0s

 Evaluation

  • Adds synchronization without changing the DC balance
  • Error detection possible  Used in T

Amplitude

Time

1 0 0 0 0 0 0 0 0 0 1

Violation Violation

10000000001+000+-0-+01 in general 00000000000V(-V)0(-V)V

Multilevel: 2B1Q scheme

 Integrated Services Digital Network ISDN

Multitransition: MLT-3 scheme
