Ultimate Exam

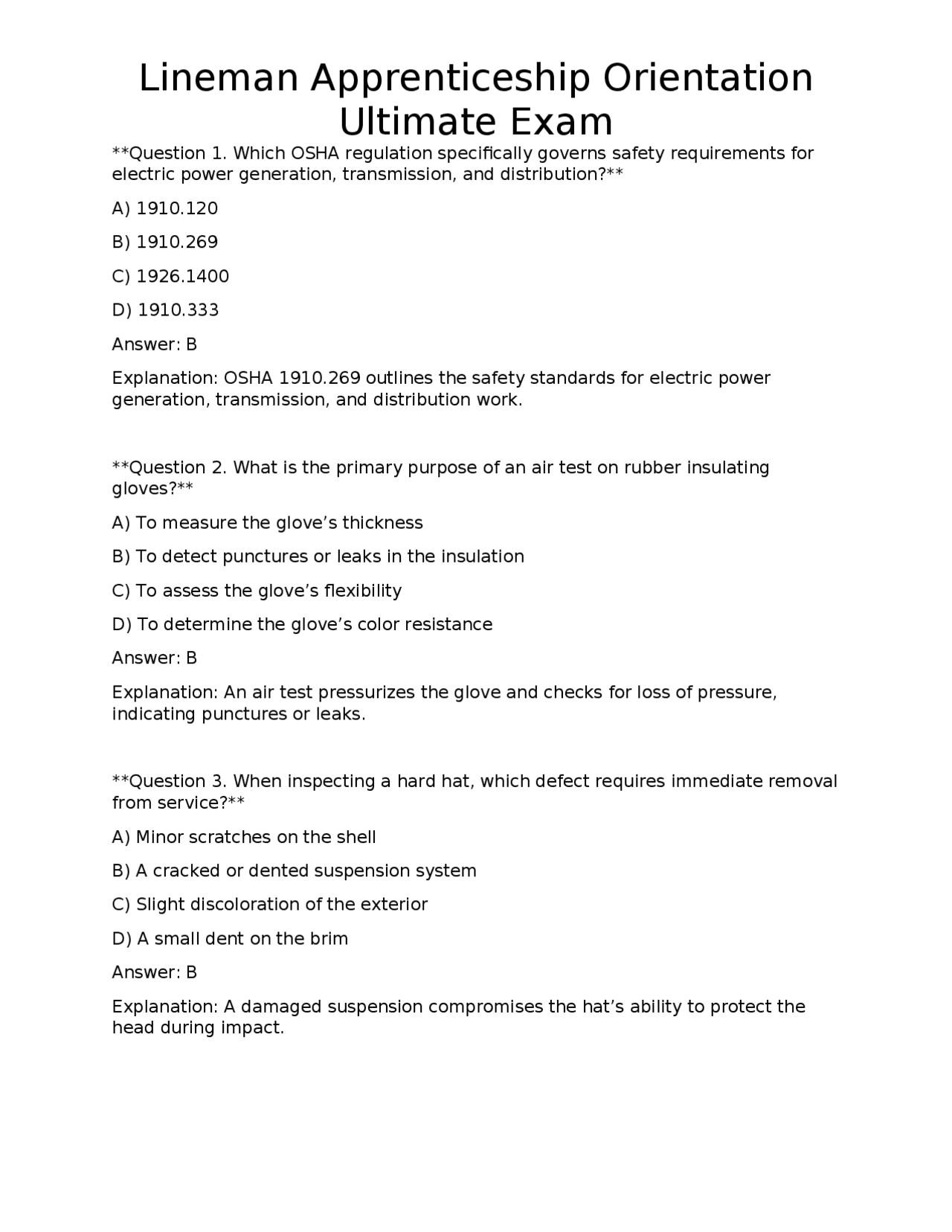

Question 1. Which OSHA regulation specifically governs safety requirements for electric power generation, transmission, and distribution? A) 1910. B) 1910. C) 1926. D) 1910. Answer: B Explanation: OSHA 1910.269 outlines the safety standards for electric power generation, transmission, and distribution work. Question 2. What is the primary purpose of an air test on rubber insulating gloves? A) To measure the glove’s thickness B) To detect punctures or leaks in the insulation C) To assess the glove’s flexibility D) To determine the glove’s color resistance Answer: B Explanation: An air test pressurizes the glove and checks for loss of pressure, indicating punctures or leaks. Question 3. When inspecting a hard hat, which defect requires immediate removal from service? A) Minor scratches on the shell B) A cracked or dented suspension system C) Slight discoloration of the exterior D) A small dent on the brim Answer: B Explanation: A damaged suspension compromises the hat’s ability to protect the head during impact.
Ultimate Exam
**Question 4. Which type of PPE is required for protection against arc flash hazards? ** A) Non-conductive boots B) Arc-rated (FR) clothing C) Standard cotton shirt D) Rubber gloves only Answer: B Explanation: Arc-rated clothing is designed to withstand the thermal energy of an arc flash, reducing burn injuries. Question 5. The “body belt” used in fall protection is most appropriate for which situation? A) Working on a mobile ladder B) Performing rescue from a pole top C) Climbing a metal transmission tower D) Working on a roof with a full-body harness Answer: B Explanation: Body belts are intended for rescue or low-height work where a full-body harness is not practical. Question 6. Which component of a fall protection system limits a worker’s descent speed? A) Shock absorber B) Lanyard C) Anchor point D) Carabiner Answer: A Explanation: Shock absorbers dissipate kinetic energy, controlling the rate of fall arrest.
Ultimate Exam
B) P = V × I
C) P = V / I
D) P = I² – V
Answer: B Explanation: Power (P) equals voltage (V) multiplied by current (I). Question 11. In the United States, the standard frequency for AC utility power is: A) 25 Hz B) 50 Hz C) 60 Hz D) 75 Hz Answer: C Explanation: Most U.S. power systems operate at 60 Hz. Question 12. In a series circuit, the total resistance is: A) The sum of each individual resistance B) The product of each individual resistance C) The reciprocal of the sum of reciprocals D) Always less than any individual resistor Answer: A Explanation: Series resistances add directly: R_total = R1 + R2 + …. Question 13. In a parallel circuit, the voltage across each branch is: A) The same as the source voltage B) Half the source voltage C) Varying based on branch resistance D) Zero if any branch is open Answer: A Explanation: Parallel branches share the same voltage equal to the source voltage.
Ultimate Exam
Question 14. Which principle explains how a transformer transfers energy between its primary and secondary windings? A) Ohmic heating B) Electromagnetic induction C) Static electricity D) Photoelectric effect Answer: B Explanation: Transformers rely on electromagnetic induction to induce voltage in the secondary winding. Question 15. The main purpose of grounding a power system is to: A) Reduce line voltage B) Provide a path for fault current to the earth C) Increase system efficiency D) Prevent corrosion of conductors Answer: B Explanation: Grounding offers a low-impedance path for fault current, helping to clear faults safely. Question 16. Which conductor is commonly used for high-strength, low-resistance overhead lines? A) Aluminum Conductor Steel Reinforced (ACSR) B) Copper-clad aluminum (CCA) C) Pure aluminum (AA) D) Nickel-copper alloy Answer: A Explanation: ACSR combines aluminum’s conductivity with steel’s strength, making it ideal for overhead lines.
Ultimate Exam
A) 2,000 lb B) 5,000 lb C) 10,000 lb D) 20,000 lb Answer: B Explanation: Standard ½-inch grade 80 chain has a WLL of approximately 5,000 lb when used with a rated chain jack. Question 21. Which component on a utility pole provides electrical isolation for the conductor? A) Crossarm B) Insulator C) Brace D) Anchor bolt Answer: B Explanation: Insulators prevent current from flowing from the conductor to the pole structure. Question 22. The correct sequence for climbing a wooden pole using the “stroked” method is: A) Hook, step, pull, repeat B) Step, hook, pull, repeat C) Pull, step, hook, repeat D) Hook, pull, step, repeat Answer: A Explanation: The “stroked” method involves hooking the pole with a hand, stepping with the opposite foot, pulling the body upward, then repeating. Question 23. When “sounding” a pole to detect rot, which tool combination is most effective? A) Hammer and screwdriver
Ultimate Exam
B) Wrench and pliers C) Knife and tape measure D) Saw and level Answer: A Explanation: Tapping (hammer) and feeling resistance with a screwdriver can reveal internal decay or hollow spots. Question 24. In a pole-top rescue, which knot is recommended for securing a victim to a lowering device? A) Square knot B) Bowline (running) C) Clove hitch D) Figure-eight knot Answer: B Explanation: A running bowline creates a secure loop that will not slip under load, ideal for rescue. Question 25. Maintaining “3-point contact” while climbing a pole helps to: A) Increase climbing speed B) Reduce the chance of falling C) Save energy for the next shift D) Keep hands free for tools Answer: B Explanation: Three points of contact (two feet and one hand, or two hands and one foot) improve stability and reduce fall risk. Question 26. The primary winding of a transformer is connected to: A) The load side of the circuit B) The source (high-voltage) side C) Ground only
Ultimate Exam
Answer: A Explanation: Standard utility symbols use a circle with a “T” to denote a transformer. Question 30. The first step in providing CPR to an unconscious lineman is: A) Check for a pulse B) Begin rescue breaths C) Call for emergency medical services (EMS) D) Apply a defibrillator pad Answer: C Explanation: Immediate activation of EMS ensures professional help is on the way while you begin lifesaving measures. Question 31. Electrical burns are classified by the depth of tissue damage. Which type indicates the most severe injury? A) First-degree (superficial) B) Second-degree (partial thickness) C) Third-degree (full thickness) D) Fourth-degree (involving bone) Answer: D Explanation: Fourth-degree burns penetrate through skin, muscle, and can affect bone, representing the most severe category. Question 32. When treating an entry-point electrical burn, the most important immediate action is: A) Apply ice directly to the wound B) Remove any jewelry near the site C) Cover the burn with a sterile dressing without applying pressure D) Use a tourniquet to stop bleeding Answer: C
Ultimate Exam
Explanation: Covering the burn protects it from contamination; applying pressure or ice can worsen tissue damage. Question 33. Which OSHA standard addresses bloodborne pathogen exposure? A) 1910. B) 1910. C) 1910. D) 1910. Answer: A Explanation: OSHA 1910.1030 outlines the Bloodborne Pathogens Standard for protecting workers from exposure. Question 34. A lineman showing signs of heatstroke should be immediately: A) Given a caffeinated beverage B) Moved to a cooler environment and hydrated with water or electrolyte solution C) Asked to continue work to “tough it out” D) Provided with a cold pack only on the forehead Answer: B Explanation: Rapid cooling and rehydration are essential to treat heatstroke and prevent organ damage. Question 35. Frostbite prevention for a crew working in sub-zero temperatures includes: A) Wearing only cotton clothing to stay dry B] Using wind-breaker outer layers and insulated gloves, and scheduling frequent warm-up breaks C) Applying petroleum jelly to exposed skin D) Drinking hot coffee continuously Answer: B Explanation: Proper layered clothing and regular warm-up periods reduce the risk of frostbite.
Ultimate Exam
Question 39. A “full-body harness” provides protection against falls by: A) Distributing arrest forces across the shoulders, hips, and thighs B) Supporting only the waist C) Allowing free movement without any restraints D) Acting as a decorative safety item Answer: A Explanation: Full-body harnesses spread the load during a fall, reducing injury risk. Question 40. When setting up a traffic control zone, the minimum distance between a warning sign and the work area should be: A) 10 ft B) 30 ft C) 100 ft D) 200 ft Answer: C Explanation: OSHA and DOT guidelines typically require a minimum of 100 ft to give drivers sufficient warning. Question 41. In a three-phase delta system, the line-to-line voltage is: A) Equal to the line-to-neutral voltage B) √3 times the line-to-neutral voltage C) 1.732 times the line-to-neutral voltage only in wye systems D) Not applicable because delta has no neutral Answer: D Explanation: Delta configurations do not have a neutral point; line voltage is the same as phase voltage. Question 42. Which type of conduit is most commonly used for underground residential distribution? A) Rigid metal conduit (RMC)
Ultimate Exam
B) PVC Schedule 40 C) Flexible metal conduit (FMC) D) EMT (Electrical Metallic Tubing) Answer: B Explanation: PVC Schedule 40 is corrosion-resistant, lightweight, and approved for underground use. Question 43. The “working distance” for a lineman handling a live line is defined as: A) The distance from the worker’s eyes to the line B) The distance between the worker’s body and the energized conductor C) The length of the hot stick used D) The distance between two poles Answer: B Explanation: Working distance is the minimum safe clearance between a worker and a live conductor. Question 44. Which of the following is a symptom of electric shock that indicates possible cardiac involvement? A) Tingling in fingertips only B) Loss of consciousness C) Localized muscle twitching D) Minor skin redness Answer: B Explanation: Loss of consciousness can signal severe shock affecting the heart’s rhythm. Question 45. When rigging a load with a sling, the angle between the sling legs should not exceed: A) 30° B) 45°
Ultimate Exam
Answer: B Explanation: Outriggers extend outward to widen the support footprint, preventing tip-over while the bucket is elevated. Question 49. Which material is preferred for a pole-top climbing harness due to its high strength-to-weight ratio? A) Leather B) Nylon webbing with polyester stitching C) Cotton rope D) Steel chain Answer: B Explanation: Modern harnesses use nylon webbing and polyester stitching for durability and reduced weight. Question 50. The “cutout” device on a distribution line primarily functions to: A) Provide a visual indicator of line voltage B) Automatically open the circuit when fault current exceeds a set value C) Reduce line resistance during normal operation D) Act as a permanent switch for load control Answer: B Explanation: Cutouts contain fuses that open the circuit during overcurrent conditions, isolating the fault. Question 51. What is the recommended minimum distance between a live overhead conductor and a tree branch to prevent arcing? A) 1 ft B) 3 ft C) 6 ft D) 10 ft Answer: C
Ultimate Exam
Explanation: A 6-ft clearance reduces the risk of flashover from vegetation contacting energized conductors. Question 52. Which of the following best describes a “phase” in a three-phase system? A) The neutral line that carries return current B) One of three alternating currents offset by 120° in time C) The ground conductor D) A single-phase transformer winding Answer: B Explanation: A three-phase system consists of three sinusoidal voltages each displaced by 120°. Question 53. When using a “shotgun stick,” the primary safety advantage is: A) It reduces the weight of the tool B) It provides a longer insulated reach than a regular hot stick C) It can be operated with one hand D) It automatically detects voltage levels Answer: B Explanation: Shotgun sticks are longer versions of hot sticks, allowing work from a greater distance. Question 54. Which of the following is NOT a proper method for de-energizing a line before work? A) Opening the upstream breaker B) Lockout/Tagout (LOTO) the circuit C) Relying solely on a visual “dead-line” sign D) Verifying the line is voltage-free with a calibrated meter Answer: C Explanation: Visual signs alone are insufficient; physical isolation and verification are required.
Ultimate Exam
Question 58. The correct procedure for removing a stuck bolt from a pole hardware is: A) Hammer the bolt until it breaks B) Apply penetrating oil, allow it to soak, then use a wrench with proper torque C) Heat the bolt with a torch and then pull it out with pliers D) Twist the bolt with bare hands until it loosens Answer: B Explanation: Penetrating oil reduces friction and corrosion; proper torque prevents damage. Question 59. Which type of fire extinguisher is appropriate for an electrical fire on a utility pole? A) Class A (water) B) Class B (foam) C) Class C (dry chemical) D) Class D (metal) Answer: C Explanation: Class C extinguishers are safe for energized electrical equipment. Question 60. A “running bowline” knot is preferred in rescue because: A) It tightens under load, preventing slippage B) It can be easily untied after being loaded C) It requires only one hand to tie D) It creates a fixed loop that cannot be adjusted Answer: B Explanation: The running bowline forms a secure loop that remains untied even after being loaded, facilitating quick release. Question 61. In the context of electrical safety, “lockout” refers to: A) Securing a tool to prevent theft
Ultimate Exam
B) Placing a physical lock on a circuit-breaking device to keep it in the OFF position C) Locking a gate to a work site D) Using a password on a computer system Answer: B Explanation: Lockout physically isolates energy sources, preventing accidental re-energization. Question 62. When performing a “hot line” repair, the minimum approach distance for a 13.8 kV line is: A) 3 ft B) 6 ft C) 10 ft D) 15 ft Answer: B Explanation: OSHA and utility standards typically require a minimum of 6 ft approach distance for 13.8 kV. Question 63. The purpose of a “ground rod” installed near a transformer is to: A) Increase the transformer’s output voltage B) Provide a low-impedance path to earth for fault currents C) Support the transformer physically D) Act as a lightning rod for nearby structures Answer: B Explanation: Ground rods help dissipate fault currents safely into the earth. Question 64. Which of the following best describes “creep” in the context of a pole’s wooden structure? A) Gradual deformation under sustained load over time B) Sudden breakage due to impact C) Rot caused by moisture
