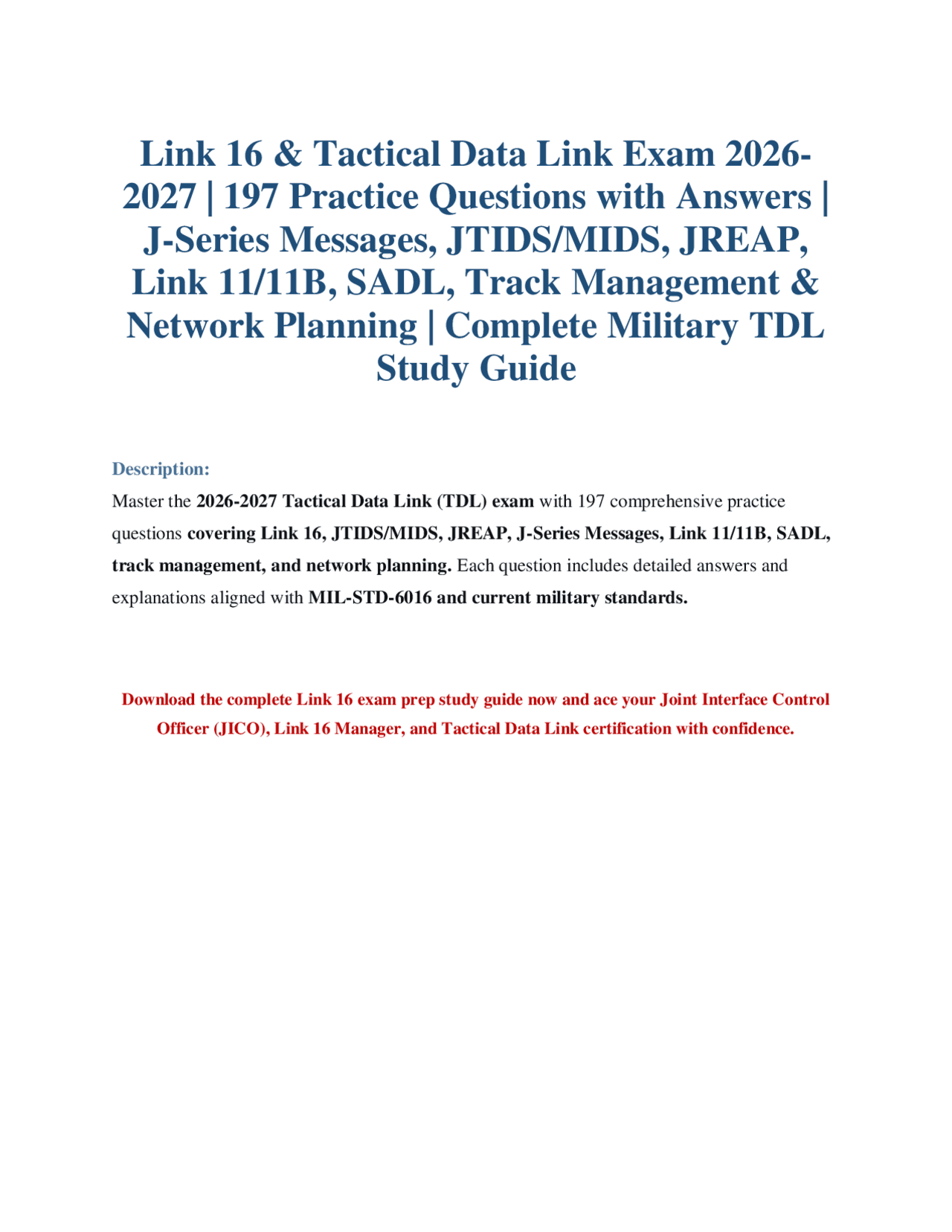

Link 16 & Tactical Data Link Exam 2026-
2027 | 197 Practice Questions with Answers |
J-Series Messages, JTIDS/MIDS, JREAP,
Link 11/11B, SADL, Track Management &
Network Planning | Complete Military TDL
Study Guide
Description: Master the 2026 - 2027 Tactical Data Link (TDL) exam with 197 comprehensive practice questions covering Link 16, JTIDS/MIDS, JREAP, J-Series Messages, Link 11/11B, SADL, track management, and network planning. Each question includes detailed answers and explanations aligned with MIL-STD-6016 and current military standards. Download the complete Link 16 exam prep study guide now and ace your Joint Interface Control Officer (JICO), Link 16 Manager, and Tactical Data Link certification with confidence.
Link 16 Exam Prep 2026-2027 | 197 Questions & Answers
SECTION A: LINK 16 TIMESLOT COMPONENTS
Question 1 Match the component of a Link 16 timeslot to the correct definition. Component Definition
- Jitter A. Time allowed for transmission to reach potential receivers, determining maximum point-t point range
- Propagation B. Contains the majority of information, consisting of 186 or 372 pulses depending on packin structure
- Data C. Variable wait time before data pulses are transmitted that contributes to jam resistance
Sync/Header D. Consists of 72 pulses and provides time refinement and timeslot-specific information Answer: 1 - C, 2-A, 3-B, 4-D Explanation: The Link 16 timeslot structure consists of four main components that work together to ensure reliable communication. Jitter provides a variable wait time that enhances anti- jam capabilities. Propagation delay accounts for signal travel time, determining maximum operational range. The Data component carries the primary payload information. The Sync/Header section provides essential synchronization and timeslot identification data.
_________ produce and transmit surveillance tracks. A. Tactical Data Processors B. C2IUs C. Sensor Platforms D. Relay Nodes Answer: B Explanation: Command and Control Interface Units (C2IUs) are responsible for producing and transmitting surveillance tracks across the tactical data link network. These units process sensor data, correlate tracks, and disseminate track information to other network participants to maintain shared situational awareness. Question 5 If a Track Number (TN) is in use, operators should be alerted and prohibited from assigning that TN. A. True B. False Answer: A Explanation: Track numbers must be unique to prevent dual designation conflicts. If a TN is already in use, operators must receive alerts and be prevented from assigning duplicate TNs to avoid track ambiguity and correlation errors that could degrade the common operational picture. Question 6 The legal Link 11/11B Track Qualities (TQs) are _____ while Link 16 TQs range from _____. A. 0-7, 0- 15 B. 0-15, 0- 7
C. 1-8, 0- 16
D. 0-10, 0- 20
Answer: A Explanation: Link 11/11B uses Track Quality values ranging from 0 to 7, with higher values indicating greater positional reliability. Link 16 employs a more granular TQ scale from 0 to 15, reflecting the system's enhanced precision and greater data capacity for track quality reporting. Question 7 The only tracks that cannot be manually correlated are: (Select all that apply) A. A local track and a remote track B. Simulated to live C. Different environments of track with active environment conflict D. Two remote tracks Answer: B, C Explanation: Manual correlation is restricted for tracks that are simulated-to-live comparisons and tracks in different environments with active environment conflicts. Simulated-to-live tracks have fundamentally different characteristics that prevent meaningful correlation, while environment conflicts indicate incompatible operational contexts that make manual correlation inappropriate. Question 8 _______ exist when the same track number is used by two or more IUs for two or more different tracks. A. Environmental conflicts B. Dual designations C. Track number conflicts D. Correlation failures
The ____________ pseudo-randomly assigns a center frequency to each pulse. A. Pulse Frequency Generator B. Transmission Security (TSEC) crypto variable C. Frequency Hopping Algorithm D. Message Security (MSEC) crypto variable Answer: D Explanation: The Message Security (MSEC) crypto variable determines the pseudo-random frequency assignment for each transmitted pulse. This process contributes to Link 16's anti-jam and low probability of intercept characteristics by creating unpredictable frequency patterns. Question 11 What portion of the electromagnetic spectrum do Link 16 terminals operate? A. 960 - 1215 MHz frequency band B. 225 - 400 MHz frequency band C. 175 - 255 MHz frequency band D. 1 - 2 GHz frequency band Answer: A Explanation: Link 16 terminals operate within the 960 to 1215 MHz frequency band, which encompasses a portion of the L-band. This frequency allocation provides favorable propagation characteristics while supporting the spread spectrum and frequency hopping capabilities essential to Link 16's robust performance.
What is the link margin value that must be achieved to force an enemy jammer at equal distance to a receiving Link 16 terminal to use 128 times more power than the transmitting terminal? A. 21 dB B. 31 dB C. 16 dB D. 72 dB Answer: A Explanation: A link margin of 21 dB forces an enemy jammer at the same distance to employ 128 times more power than the transmitting terminal to achieve successful jamming. The decibel scale operates logarithmically, with a 3 dB increase representing a doubling of power; a 21 dB margin corresponds to a 128:1 power ratio. Question 13 Which of the following IS NOT true of the use of the Link 16 information assurance feature known as double pulse transmissions? A. Receiving terminal will decode the redundant information as normal B. Provides redundancy to prevent against jamming-induced data loss C. Increases data throughput by transmitting two pulses simultaneously D. Each pulse occurs on identical frequencies Answer: C Explanation: Double pulse transmissions provide redundancy by transmitting the same information on two pulses with identical frequencies. This feature does not increase data throughput; rather, it sacrifices potential capacity for enhanced reliability by ensuring that if one pulse is lost to jamming, the other may still be received.
Link 16 line-of-sight connectivity is limited by what type of signal propagation? A. Tropospheric scatter B. Skywave propagation C. Ground wave propagation D. Free-space line-of-sight propagation Answer: D Explanation: Link 16 operates based on free-space line-of-sight propagation, meaning communications are limited by the horizon and require direct visibility between transmitting and receiving terminals. This characteristic constrains operational range and necessitates relay mechanisms for extended coverage. Question 17 Each JTIDS/MIDS transmission contains a ____________ pulse stream. A. 51, 255 or 444 pulses B. 72, 258 or 444 pulses C. 64, 256 or 512 pulses D. 80, 260 or 448 pulses Answer: B Explanation: JTIDS/MIDS transmissions contain pulse streams of either 72, 258, or 444 pulses, depending on the transmission type and packing structure. The pulse stream length varies based on message type, data content requirements, and the specific format needed for successful communication.
Which of the following are characteristics of a frame in Link 16 communications? (Select all that apply) A. There are 112.5 frames in an epoch B. The basic reoccurring unit of time C. Each frame contains 1,536 timeslots D. Each frame is 12 seconds in duration Answer: B, C, D Explanation: The Link 16 frame structure consists of 64 frames per epoch, not 112.5. Each frame serves as a basic reoccurring time unit, containing 1,536 timeslots and lasting 12 seconds in duration. This structure provides the fundamental timing architecture for Link 16 network operations. Question 19 How many timeslots are in a frame in Link 16 communications? A. 1, B. 64 C. 128 D. 512 Answer: A Explanation: Each Link 16 frame contains exactly 1,536 timeslots. These timeslots represent the fundamental unit of access to the network, with each timeslot providing a brief interval for transmission and reception according to the Time Division Multiple Access (TDMA) protocol.
Which type of relay requires only that at least one platform be assigned relay timeslots and has enabled the relay function? A. Conditional Relay B. Selective Relay C. Unconditional Relay D. Adaptive Relay Answer: C Explanation: Unconditional Relay operates automatically once at least one platform is assigned relay timeslots and has enabled the relay function. This type of relay requires no additional triggering conditions and continuously forwards transmissions to extend network coverage. Question 23 What JTIDS/MIDS protocol dictates that platforms take turns transmitting and receiving data according to time? A. Code Division Multiple Access (CDMA) B. Frequency Division Multiple Access (FDMA) C. Time Division Multiple Access (TDMA) D. Joint Range Extension Application Protocol (JREAP) Answer: C Explanation: Time Division Multiple Access (TDMA) is the fundamental protocol governing Link 16 operations. Under TDMA, each participant is assigned specific timeslots for transmission, ensuring orderly and collision-free access to the shared communications medium.
Which of the following are disadvantages of Indirect (Relay) connectivity? (Select all that apply) A. Increases overall anti-jam strength through increased signal level at the receiver B. Multiplies the time slot requirements C. Increased Time Slot Duty Factor (TSDF) D. Provides a robust connectivity through multiple paths Answer: B, C Explanation: Indirect relay connectivity imposes additional time slot requirements for retransmission and increases Time Slot Duty Factor (TSDF), reducing overall network capacity. While relay connectivity provides valuable coverage extension and path diversity, these operational costs must be balanced against tactical benefits. Question 25 How many JTIDS/MIDS net numbers are there? A. 127 B. 177 C. 256 D. 64 Answer: A Explanation: There are 127 JTIDS/MIDS net numbers, ranging from 0 to 126. These net numbers differentiate frequency-hopping patterns and allow multiple networks to operate simultaneously within the same geographic area without mutual interference.
Which JTIDS/MIDS access mode can be either operator-controlled or machine-controlled? A. Contention access B. Dedicated access C. Timeslot Reallocation (TSR) D. Multi-nets Answer: C Explanation: Timeslot Reallocation (TSR) can be implemented through either operator control or machine-controlled automation. This flexibility allows dynamic adjustment of network resources based on changing operational requirements while maintaining efficient spectrum utilization. Question 29 Which JTIDS/MIDS access mode allows units to automatically and dynamically assign surveillance capacity based on platform need? A. Contention access B. Dedicated access C. Timeslot Reallocation (TSR) D. Multi-nets Answer: C Explanation: Timeslot Reallocation (TSR) enables automatic and dynamic assignment of surveillance capacity based on real-time platform requirements. This adaptive approach optimizes network resource utilization by allocating additional capacity to units with increased surveillance needs.
Which JTIDS/MIDS access technique requires the assignment of a net number of 1-126 in the OPTASK LINK but is identified as the specific access mode in the Network Description Document (NDD) as net 127? A. Dedicated Timeslot Reuse B. Multi-nets C. Stacked Nets D. Contention access Answer: B Explanation: Multi-nets are identified by net numbers between 1-126 in the OPTASK LINK message. However, in the Network Description Document (NDD), multi-net operations are specifically designated as net 127, indicating the use of multiple nets operating within the same timeslots. Question 31 Which are the two ways to achieve a multi-net? (Select all that apply) A. Contention access B. Dedicated Timeslot Reuse C. Frequency division D. Stacked Nets Answer: B, D Explanation: Multi-net operations can be achieved through two primary methods: Dedicated Timeslot Reuse, which allows the same timeslot to be used by multiple nets, and Stacked Nets, which assigns different nets to different groups within shared timeslots. Both approaches increase overall network capacity.
In which Link 16 security mode is a discrete Crypto Variable Logic Labels (CVLLs) assigned to only the TSEC which is used for message encryption as well? A. Common Variable Mode (CVM) B. Discrete Variable Mode (DVM) C. Dual Variable Mode D. Combined Variable Mode Answer: B Explanation: Discrete Variable Mode (DVM) assigns discrete Crypto Variable Logic Labels (CVLLs) to the TSEC, which is also used for message encryption. This mode provides enhanced security through separation of different cryptographic functions. Question 35 A(n) ______________ is a number between 1 and 127 that the network designer assigns to the TSEC and MSEC for each time slot. A. Crypto Variable Logic Label (CVLL) B. Key Identifier C. Encryption Label D. Security Designator Answer: A Explanation: Crypto Variable Logic Labels (CVLLs) are numerical identifiers between 1 and 127 that network designers assign to the TSEC and MSEC variables for each timeslot. CVLLs enable organized management of cryptographic variables across the network.
What two methods can be used for Link 16 network deconfliction? (Select all that apply) A. Sufficient geographic separation B. Employing a network time offset C. Using different net numbers D. Implementing different crypto variables Answer: C, D Explanation: Link 16 network deconfliction is achieved through two primary methods: using different net numbers to differentiate frequency-hopping patterns, and implementing different crypto variables (TSEC and MSEC) to create unique transmission characteristics that prevent interference between co-located networks. Question 37 Which of the following IS NOT a factor when choosing crypto key for a network? (Select all that apply) A. Different requirements for operational and training architectures B. Service and nationality of network participants C. Deconfliction of JTIDS/MIDS Networks D. Employment of Dedicated Timeslot Reuse Answer: A, B, C, D Explanation: All of these options are actual factors that must be considered when selecting cryptographic keys for a Link 16 network. Operational versus training requirements, participant service and nationality, network deconfliction needs, and timeslot reuse strategies all influence cryptographic key selection.
