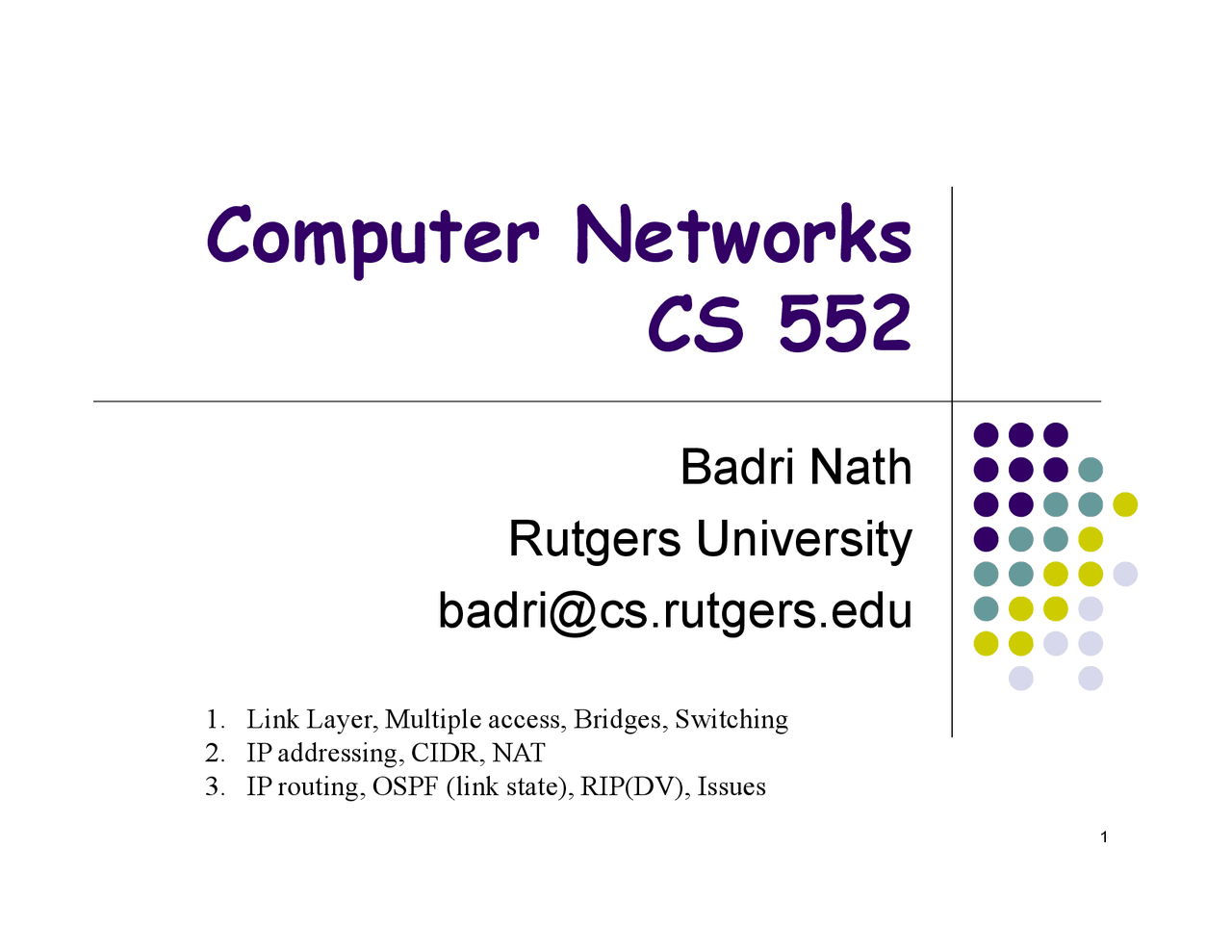

Computer Networks
CS 552
Badri Nath
Badri Nath
Rutgers University
[email protected]
1.^
Link Layer, Multiple access, Bridges, Switching
2.^
IP addressing, CIDR, NAT
3.^
IP routing, OSPF (link state), RIP(DV), Issues
Energy proportionality of anenterprise network
Paper in Green networking workshop, August^2010
Looks at power consumption in network^ switchesswitches
Switches, line cards, ports
A disabled port consumes no power
Enabled port consumes power fixed basedon line rates^
Ports Not energy-proportional
Is it possible?
Built a tool to collecttraces of switch traffic
Data analyzed
Ports used at different
Ports used at different^ speeds (can beclassified into bins)
Most of them workbelow peak utilization
Making switches energy-proportional
Disable unused ports^
Enabling delay
Port rate adaptation
May be a local H/W mechanism
May be a local H/W mechanism
Maximize ports used per linecard^
May not be possible due to Load balancing etc
Use fewer switches^
Network configuration, cost, rack issues
Data Link Layer Functionality
Convert bits to signals and recover bits fromreceived signals
^
Encoding
Decide on a minimum unit for sending bits
^
Cannot send bit by bit (too much overhead) ^
Cannot send bit by bit (too much overhead) ^
Frame creation
Error detection and/or correction of frames
^
Parity, CRC
Flow control
^
ARQ, Sliding WINDOW
Addressing
^
MAC address
Encoding^
Signals propagate over a physical medium^
modulate electromagnetic waves e.g., vary voltage
^
Encode binary data onto signals
^
e.g., 0 as low signal and 1 as high signal
^
known as Non-Return to zero (NRZ)
^
Problem: consecutive 1s and 0s , noise levels
Bits NRZ
0
0
1
0
1
1
1
1
0
1
0
0
0
0
1
0
Framing
The data unit at the data link layer is called a “frame”
A frame is a group of bits, typically in sequence
Issues:
^
Frame creation ^
Frame creation^
How many bits (size of frame) Overhead
^
Frame delineation ^
Have meta tags^
start and stop characters or bit sequence
^
What if the meta tags appear in the message?
stuffing
Character stuffing ($, #)^
$# this prof is good $^ ^
$# this prof s$^ks $^
.. Meta tag in message
^
$# this prof s$$^ks $^
at sender
^
$# this prof s$^ks $^
at receiver, remove stuffing
^
$# this prof s$^ks $^
at receiver, remove stuffing
Bit stuffing: have a unique bit sequence^
01111110 this prof is good 01111110 ^
01111110 this prof is 01111110 good 01111110 ^
01111110 this prof is 011111010 good 0111110 -- sender ^
Receiver checks for 5 1s, if next bit is 0 – stuff ^
If next bits are 10 end of frame else error
Error Detection
^
Parity bits^
For a fixed sequence, add a 1 bit (0/1) to have odd 1s (oddparity) or even 1s (even parity) Extra bits are overhead, multiple bit errors
^
Checksum
Divide msg into fixed size (
- bit) chunks
^
Divide msg into fixed size (
- bit) chunks
^
Add chunks (using 1s complement) and send check sum(complement of total ) with message
^
Receiver add msg + checksum
^
Complement (result) = 0 accept else reject
^
Polynomial codes or CRC^
Divide the MSG by polynomial, add R to get CRC bits Receiver : divides MSG + R, check if zero
Flow Control
What happens if the sender tries to transmitfaster than the receiver can accept?
Data will be lost unless flow control is^ implemented
implemented
Has to be dynamic?
Can sender learn the receiver rate apriori
Handling errors
GO back N^
Receiver rejects any message in error or out oforder
Only acks in
- sequence
Only acks in
- sequence
Selective repeat^
Receiver buffers correctly (out-of-sequence)received messages but acks only the last in-sequence message received correctly
Sender retransmits only the lost packet,
Addressing
Hosts need to be identified at the link layer
MAC address^
48 bits unique address (permanent with adapter) ^
24 bits: manufacturer; 24 bits Serial number No relationships between MAC addresses hosts
No relationships between MAC addresses hosts^ connected by a link^
No grouping or hierarchy possible
Fixed length address^
Look up is efficient but table size = number of hosts on thenetwork ^
Scaling
Contention Access Methods
Determine when to transmit, sense the channel
CSMA
^
1-Persistent CSMA^
Transmit if idle, else wait until idle and then transmit
^
Non-Persistent CSMA ^
Transmit if idle, else wait for random time, and then repeat^
Spreads arrival times
^
P-Persistent CSMA ^
Transmit with probability p if idle, else wait until idle
CSMA/CD
In CSMA protocols
^
If two stations begin transmitting at the same time, eachwill transmit its complete packet, thus wasting the channelfor an entire packet time
In CSMA/CD protocols
In CSMA/CD protocols
^
The transmission is terminated immediately upon thedetection of a collision ^
CD = Collision Detect
In wired links, transreceiver can send and receivesimultaneously
