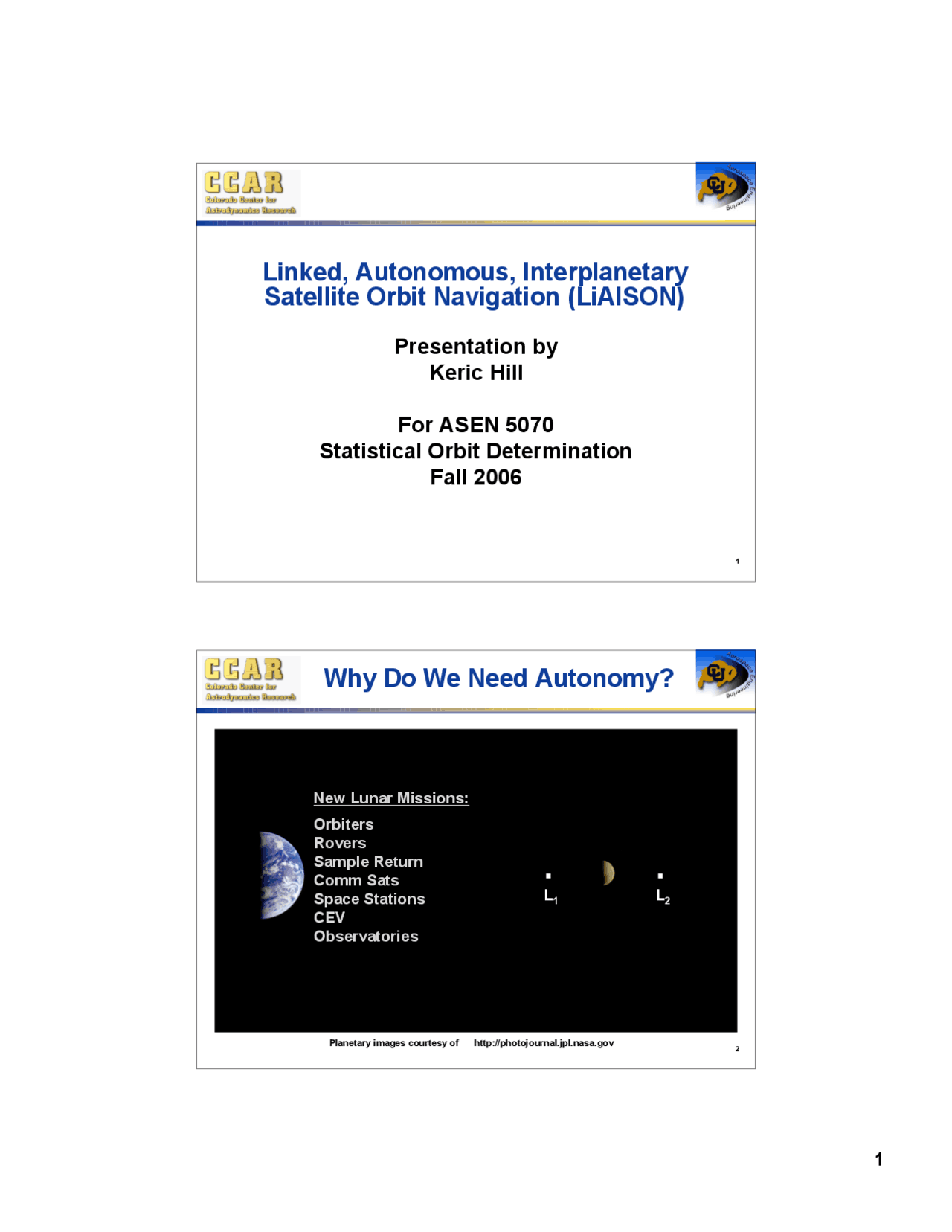

Linked, Autonomous, Interplanetary
Satellite Orbit Navigation (LiAISON)
Presentation by
Keric Hill
For ASEN 5070
Statistical Orbit Determination
Fall 2006
Why Do We Need Autonomy?
Planetary images courtesy of http://photojournal.jpl.nasa.gov
L 1 L 2
New Lunar Missions:
Orbiters
Rovers
Sample Return
Comm Sats
Space Stations
CEV
Observatories
Circular Restricted Three-body
Problem
P 1 P
x
y
Barycenter
z
r 1
r 2
spacecraft
Lagrange Points
x
y
L 1 L 2
L 4
L 5
L 3
P 1 P 2
Types of Autonomy
• Individual Autonomy
– Earth limb sensors
– Sun sensors
– Star trackers
– Magnetic field sensors
– GPS receiver (in LEO)
– Optical Navigation
• Constellation Autonomy
using Satellite-to-Satellite
Tracking (SST)
– SST optical tracking
– SST crosslink ranging
Satellite-to-Satellite Tracking
(SST)
SST picture
Image courtesy of
http://www.centennialofflight.gov/essay/Dictionary/TDRSS/
• Scalar measurements
(range or range-rate)
• Estimate size, shape of
orbits
• Estimate relative
orientation of the
orbits.
Satellite-to-Satellite Tracking
(SST)
• Scalar measurements
(range or range-rate)
• Estimate size, shape of
orbits
• Estimate relative
orientation of the
orbits.
Image courtesy of
http://www.centennialofflight.gov/essay/Dictionary/TDRSS/
Two-body Problem SST
Two-Body Symmetry
The vector field of accelerations in the x-y plane for the two-body problem.
Three-body Symmetry
The vector field of accelerations in the x-z plane for the three-body problem.
Three-body Solutions
Strength of the Asymmetry
Liaison Navigation
• Linked, Autonomous, Interplanetary
Satellite Orbit Navigation (LiAISON)
– SST only is used to determine the
orbits of multiple spacecraft when at
least one is in a locally unique orbit.
– li-ai-son: Communication for mutual
understanding. -Merriam-Webster
(www.m-w.com)
Orbit Determination Techniques
• Two spacecraft.
• Batch processor :
– Householder transformation.
• Observation type: SST Range.
– Gaussian noise 1 σ = 1.0 m.
• Fit span = 1.5 halo orbit periods (~18 days).
• Infinite a priori covariance.
• Observations every ~ 6 minutes.
• LOS checks.
LL 1 Family
Observability
• The state vector is observable if all the parameters can
be estimated independently using with the available
observations.
• If the H matrix is not full rank, or if the information
matrix is singular (not positive definite), then the state
vector is unobservable.
• A priori covariance can make it seem like the state is
observable when it is not.
• The eigenvectors corresponding to the zero
eigenvalues of the information matrix show the vector
along which the state is unobservable.
Position Along the Halo
Initial Positions
Sat 1
Spacecraft Separation
Out of Plane Component
LL 1 Halo 2 constellations
Other Tests
• Estimated Range Bias
• Limited tracking periods
• SST Doppler
• Larger interval between observations
• Constant Force Model Errors
• Sinusoidal Observation Error
• Varied Fit Spans
• Simulation Results
Monte Carlo Analysis
JPL Ephemeris Model
• JPL’s Planetary Ephemerides:
– DE403 better for the Moon
– DE405 better for the other planets
– Solar System Barycenter Coordinates
– Julian Ephemeris Date Time Scale (TDB)
• Generating Halo Orbits:
– Multiple Shooting Method
• Numerical Precision Problems
– JED 2,454,069.37575443 (Nov 29, 2006 2100 UTC)
– R_Moon = 148,376,285.478218 km
Halo Orbiter:
4 Δ v’s per period 5% Δ v errors cR error -> 1 x 10-9^ m/s^2 position error RSS ≈ 80 m
Two-Satellite Liaison Navigation
Simulation
Lunar Orbiter:
50x 95 km, polar orbit cR error -> 1 x 10-9^ m/s^2 5% Δ v errors 1 σ gravity field clone position error RSS ≈ 7 m
Propagation:
RK78 with JPL DE ephemeris, SRP, LP100K Lunar Gravity (20x20)
Orbit Determination:
Extended Kalman Filter
Observations:
Crosslink range with 1 m noise every 60 seconds
Moon
Earth
The lunar orbiter could hold science
instruments and be tracked to
estimate the far side gravity field.
References
[1] Chory, M.A., Hoffman, D.P., and J.L. LeMay, “Satellite Autonomous Navigation – Status and
History,” Proceedings of the IEEE Position, Location and Navigation Symposium, Las Vegas,
Nevada, 1986, p. 110-121.
[2] Psiaki, M.L., “Autonomous Orbit and Magnetic Field Determination Using Magnetometer and
Star Sensor Data,” Journal of Guidance, Control, and Dynamics, Vol. 18, No. 3, May-June 1995,
pp. 584-592.
[3] Menn, M., “Autonomous Navigation for GPS via Crosslink Ranging,” Proceedings of the IEEE
Position, Location, and Navigation Symposium, Las Vegas, Nevada, 1986, pp. 143-146.
[4] M.L. Psiaki, “Autonomous Orbit Determination for Two Spacecraft from Relative Position
Measurements,” Journal of Guidance, Control, and Dynamics, Vol. 22, No. 2, March-April 1999,
pp. 305-312.
[5] J.R. Yim, J.L. Crassidis, and J.L. Junkins, “Autonomous Orbit Navigation of Two Spacecraft
System Using Relative Line of Sight Vector Measurements,” Paper AAS 04-257, Proceedings of
the AAS/AIAA Spaceflight Mechanics Meeting, Maui, Hawai’i, 2004.
[6] Y. Liu and L. Liu, “Orbit Determination Using Satellite-to-Satellite Tracking Data,” Chinese
Journal of Astronomy and Astrophysics , Vol. 1, No. 3, 2001, pp. 281-286.
[7] B.D. Tapley, B.E. Schutz, and G.H. Born, Statistical Orbit Determination , Elsevier Academic
Press, 2004, pp. 237-240.
