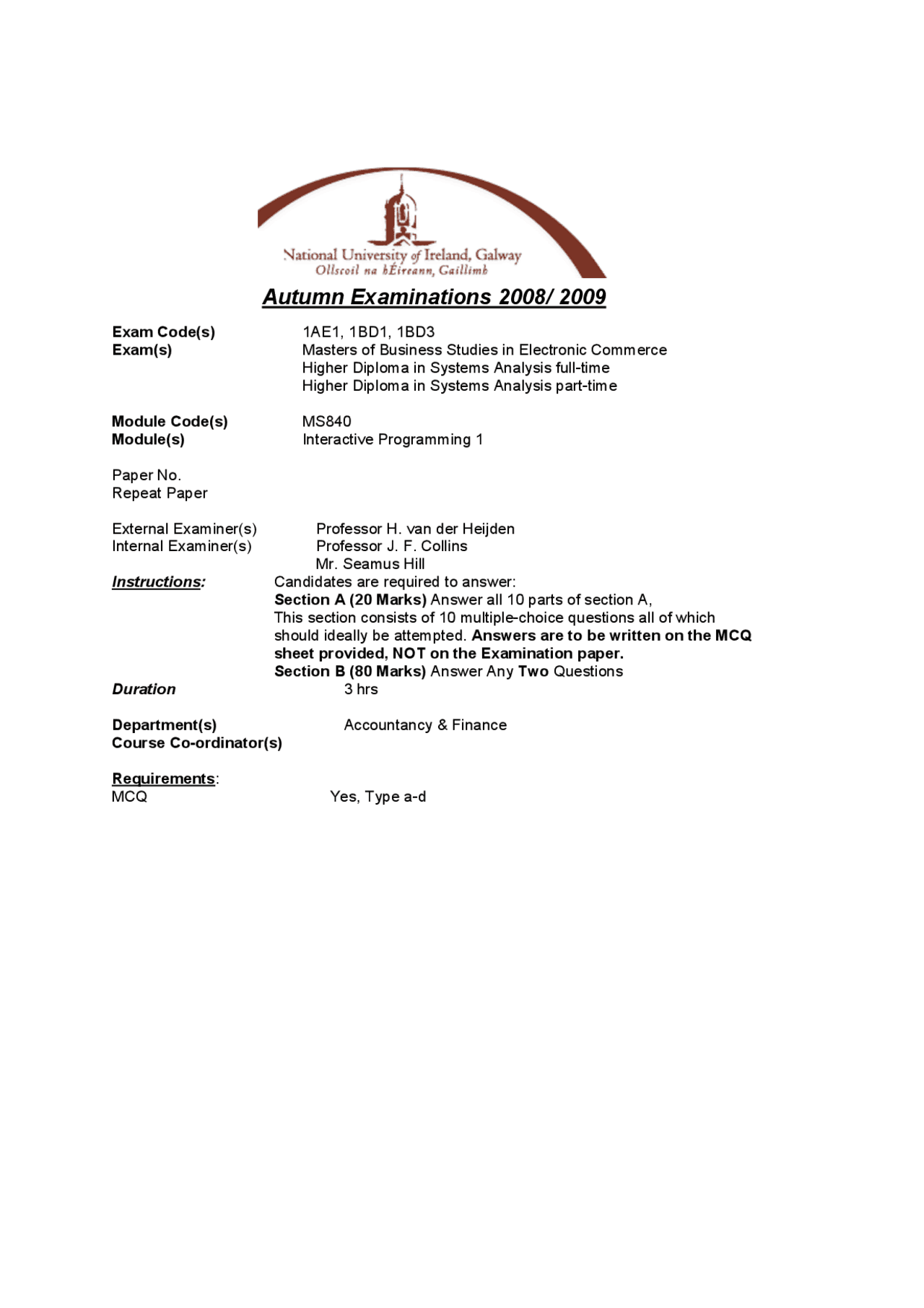

Autumn Examinations 2008/ 2009
Exam Code(s) 1AE1, 1 BD1, 1 BD Exam(s) Masters of Business Studies in Electronic Commerce Higher Diploma in Systems Analysis full-time Higher Diploma in Systems Analysis part-time Module Code(s) MS Module(s) Interactive Programming 1 Paper No. Repeat Paper External Examiner(s) Professor H. van der Heijden Internal Examiner(s) Professor J. F. Collins Mr. Seamus Hill Instructions: Candidates are required to answer: Section A (20 Marks) Answer all 10 parts of section A, This section consists of 10 multiple-choice questions all of which should ideally be attempted. Answers are to be written on the MCQ sheet provided, NOT on the Examination paper. Section B (80 Marks) Answer Any Two Questions Duration 3 hrs Department(s) Accountancy & Finance Course Co-ordinator(s) Requirements : MCQ Yes, Type a-d
Section A (20 Marks)
Attempt all 10 questions
Mark your answers on the MCQ sheet provided
1) The individual variables in an array are accessed by their _______, which is their
position in the array.
a) dimension
b) ListCount property
c) subscript
d) ItemCount property
2) How many elements are contained in the array created with the following code?
Dim EmployeeString(25) As String.
a) 0 (The code is incorrect to create an array.)
b) 24
c) 25
d) 26
3) Values for the items in a list _______.
a) can be entered in the Items collection in the Properties window
b) can be entered in the Values collection in the Properties window
c) can be entered in the AddItem collection in the Properties window
d) must be entered in alphabetical order
4) Items can be added to a list during run time using the _________ method.
a) AddLists
b) Lists
c) ItemsAdd
d) Items.Add
5) Use the _______ to display a form as modeless.
a. Show method
b. ShowDialog method
c. Modeless method
d. Mode method
Section B (80 Marks)
Answer Any TWO Questions
Question 2
Review the following application and explain the purpose of the application and how it works.
Explain, line by line, the purpose of each class and procedure. Where possible sketch the relevant
forms and outputs. Use the line numbers for reference purposes.
1 Public Class BillingForm 2 3 Const TAX_RATE_Decimal As Decimal = 0.08D 4 Const CAPPUCCINO_PRICE_Decimal As Decimal = 2D 5 Const ESPRESSO_PRICE_Decimal As Decimal = 2.25D 6 Const LATTE_PRICE_Decimal As Decimal = 1.75D 7 Const ICED_PRICE_Decimal As Decimal = 2.5D 8 9 Private SubtotalDecimal, TotalDecimal, GrandTotalDecimal As Decimal 10 Private CustomerCountInteger As Integer 11 12 Private Sub CalculateButton_Click(ByVal sender As System.Object, _ 13 ByVal e As System.EventArgs) Handles CalculateButton.Click 14 15 Dim PriceDecimal, TaxDecimal, ItemAmountDecimal As Decimal 16 Dim QuantityInteger As Integer 17 18 If CappuccinoRadioButton.Checked Then 19 PriceDecimal = CAPPUCCINO_PRICE_Decimal 20 ElseIf EspressoRadioButton.Checked Then 21 PriceDecimal = ESPRESSO_PRICE_Decimal 22 ElseIf LatteRadioButton.Checked Then 23 PriceDecimal = LATTE_PRICE_Decimal 24 ElseIf IcedCappuccinoRadioButton.Checked Or _ 25 IcedLatteRadioButton.Checked Then 26 PriceDecimal = ICED_PRICE_Decimal 27 End If ...continued
29 Try 30 QuantityInteger = Integer.Parse(QuantityTextBox.Text) 31 ItemAmountDecimal = PriceDecimal * QuantityInteger 32 SubtotalDecimal += ItemAmountDecimal 33 If TaxCheckBox.Checked Then 34 TaxDecimal = SubtotalDecimal * TAX_RATE_Decimal 35 Else 36 TaxDecimal = 0 37 End If 38 TotalDecimal = SubtotalDecimal + TaxDecimal 39 ItemAmountTextBox.Text = ItemAmountDecimal.ToString("C") 40 SubTotalTextBox.Text = SubtotalDecimal.ToString("N") 41 TaxTextBox.Text = TaxDecimal.ToString("N") 42 TotalTextBox.Text = TotalDecimal.ToString("C") 43 ' Allow a change only for new order. 44 TaxCheckBox.Enabled = False 45 ' Allow Clear after an order is begun. 46 ClearButton.Enabled = True 47 NewOrderButton.Enabled = True 48 Catch QuantityException As FormatException 49 MessageBox.Show("Quantity must be numeric.", "Data Entry Error", _ 50 MessageBoxButtons.OK, MessageBoxIcon.Information) 51 With QuantityTextBox 52 .Focus() 53 .SelectAll() 54 End With 55 End Try 56 End Sub 57 58 Private Sub ClearButton_Click(ByVal sender As System.Object, _ 59 ByVal e As System.EventArgs) Handles ClearButton.Click 60 61 CappuccinoRadioButton.Checked = True ' All others are false. 62 ItemAmountTextBox.Clear() 63 With QuantityTextBox 64 .Clear() 65 .Focus() 66 End With 67 End Sub ...continued
102 Private Sub SummaryButton_Click(ByVal sender As System.Object, _ 103 ByVal e As System.EventArgs) Handles SummaryButton.Click 104 105 Dim AverageDecimal As Decimal 106 Dim MessageString As String 107 108 If TotalDecimal <> 0 Then 109 NewOrderButton_Click(sender, e) 110 End If 111 112 If CustomerCountInteger > 0 Then 113 AverageDecimal = GrandTotalDecimal / CustomerCountInteger 114 115 MessageString = "Number of Orders: " _ 116 & CustomerCountInteger.ToString() _ 117 & Environment.NewLine & Environment.NewLine _ 118 & "Total Sales: " & GrandTotalDecimal.ToString("C") _ 119 & Environment.NewLine & Environment.NewLine _ 120 & "Average Sale: " & AverageDecimal.ToString("C") 121 MessageBox.Show(MessageString, "Coffee Sales Summary", _ 122 MessageBoxButtons.OK, MessageBoxIcon.Information) 123 Else 124 MessageString = "No sales data to summarize." 125 MessageBox.Show(MessageString, "Coffee Sales Summary", _ 126 MessageBoxButtons.OK, MessageBoxIcon.Information) 127 End If 128 End Sub 129 130 Private Sub ExitButton_Click(ByVal sender As System.Object, _ 131 ByVal e As System.EventArgs) Handles ExitButton.Click 132 133 Me.Close() 134 End Sub 135 End Class 136
(40 Marks)
Question 3
Part a)
In relation to VB .NET discuss with appropriate examples each of the following
terms:
i) Parameter passing By Value and By Reference
ii) Scope and lifetime of module-level, local, and static variables
(10 Marks)
Part b)
Create a project to keep track of concert ticket sales by your club. Tickets prices are
based on the seating location. Your program should calculate the price for each sale,
accumulate the total number of tickets sold in each section and display the price schedule
(see below).
The form should contain a list box of the sections for seating. Do not allow the user to
receive an exception for subscript out-of-range.
(30 Marks)
