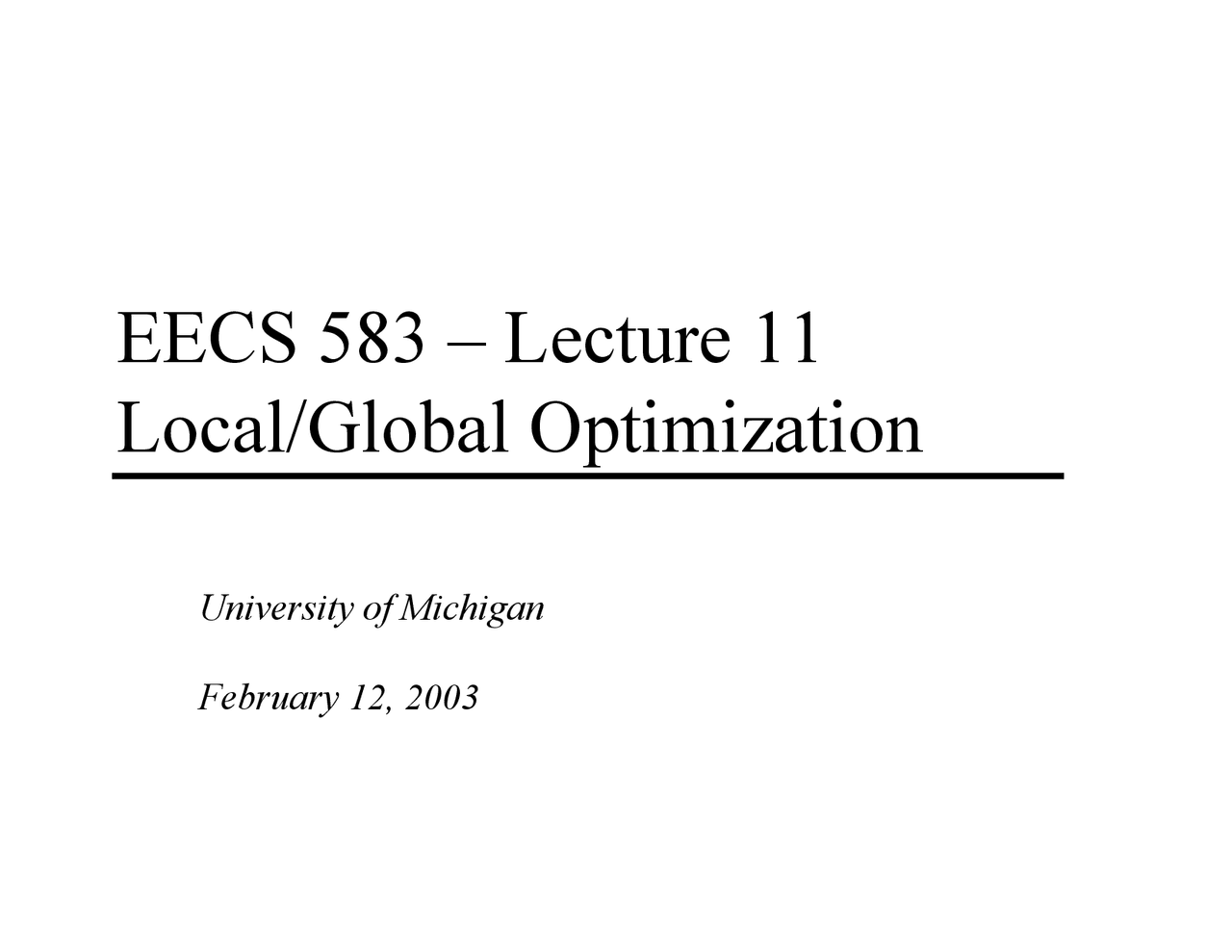

EECS 583 – Lecture 11 Local/Global Optimization

University of Michigan February 12, 2003

• 1 -

Representing Predicate Expressions

Y

1-disjunctive normal form (1-dnf)^ »

Restrict predicate expressions to simple form^ y

Code efficiency, complexity

»^

Make conservative approximations when form does not allow theexact answer to be expressed

»^

Disjunctions of individual symbols^ y

P + Q

• 3 -

Implementing PQS Functions in 1-dnf (2) lub_diff(E, p) = return Sum(qi-p) for all qi in E. 4 subcases

1. qi <= p

Æ

qi removed, E += NULL

2. p <= qi

Æ

E += rel_cmpl(p,qi)

3. p,qi disjoint

Æ

E += qi

4. otherwise

Æ

E += approx_diff(p,q)

/* q – p */ approx_diff(p,q)

relative_complement(p, lca(p,q)) relative_complement(p,q)

find a path from q to p E = false for each edge r

Æ

s on path do

let R = S|Ti be the partition

containing r

Æ

s

add Ti to E return E

1 p^

q r^

s

t

Examples: {q} – r =? {q} – p =? {t} – r =? {t} – s =?

• 4 -

Predicate-Sensitive Dataflow Analysis

Y

Use liveness as representative example

Y

Representation without predicates^ »

On region entry/exit edges

»^

Set of live variables, {r1, r4, r10, r11}

»^

Could represent as a bitvector

Y

Now with predicates^ »

Variable no longer live/not-live

»^

Live for a set of executions

»^

For each variable, have predicate expression in each set^ y

Bitvector becomes vector of predicate expressions

• 6 -

What About UN/UC CMPP’s?

Destination operands

GEN’

GEN’(p) = GEN(p) – true = false KILL’(p) = KILL(p) + true = true

p = cmpp.un(a<1) if q

Source (data) operands GEN’(a) = GEN(a) + true = true KILL’(a) = KILL(a) – true = false

GEN

Source (predicate) operands

backward analysis

GEN’(q) = GEN(q) + true = true KILL’(q) = KILL(q) – true = false

• 7 -

What About ON/OC CMPP’s?

Destination operands

GEN’

GEN’(p) = GEN(p) – (a<1)Q KILL’(p) = KILL(p) + (a<1)Q

p = cmpp.on(a<1) if q

Source (data) operands GEN’(a) = GEN(a) + Q KILL’(a) = KILL(a) – Q

GEN

Source (predicate) operands

backward analysis

GEN’(q) = GEN(q) + true = true KILL’(q) = KILL(q) – true = false

• 9 -

Global Predicate Analysis

Y

Compute local GEN/KILL info^ »

Derive predicate expression per variable via backwards walk ofthe operations

»^

Round predicate expression to T/F at the block entrance^ y

If GEN(x) != false, GEN(x) = true, else = false y If KILL(x) = true, KILL(x) = true, else = false y Conservative y But, global solver does not need to know about predicates !!

»^

Can also extend entire global solver to use predicate expressions^ y

More accurate y Slower y Elcor uses the approximate method

• 10 -

Class Problem^ r = pclear^ x =^ p,q = cmpp.un.uc (a == b)^ x =

if p

x =

if q

r,s = cmpp.on.uc(c < d)

if p

r,t = cmpp.on.uc(e > f)

if s

u,v = cmpp.un.uc

if r

x =

if s

x =

if v

= x

if r

x =

if t

= x Compute liveness GEN/KILL of x at each point in the block Compute UD chain for “=x if True”, “=x if r”

• 12 -

Classical Optimizations Y

Operation-level – 1 operation in isolation^ »

Constant folding, strength reduction

Y

Dead code elimination (global, but 1 op at a time)

Y

Local/Global – Pairs of operations^ »

Constant propagation »^

Forward copy propagation »^

Backward copy propagation »^

CSE

»^

Constant combining »^

Operation folding

Y

Loop – Body of a loop^ »

Invariant code removal »^

Global variable migration »^

Induction variable strength reduction »^

Induction variable elimination

• 13 -

Caveat

Y

Traditional compiler class^ »

Fancy implementations of optimizations, efficient algorithms

»^

Bla bla bla

»^

Spend entire class on 1 optimization

Y

For this class – Go over concepts of each optimization^ »

What it is

»^

When can it be applied (set of conditions that must be satisfied)

• 15 -

Strength Reduction

Y

Replace expensive ops with cheaper ones»

Constant propagation creates opportunities for this

Y

Power of 2 constants»

Multiply by power of 2, replace with left shift^ y

r1 = r2 * 8

Æ

r1 = r2 << 3

»^

Divide by power of 2, replace with right shift^ y

r1 = r2 / 4

Æ

r1 = r2 >> 2

»^

Remainder by power of 2, replace with logical and^ y

r1 = r2 REM 16

Æ

r1 = r2 & 15

Y

More exotic»

Replace multiply by constant by sequence of shift and adds/subs^ y

r1 = r2 * 6

X^

r100 = r2 << 2; r101 = r2 << 1; r1 = r100 + r

y^

r1 = r2 * 7^ X

r100 = r2 << 3; r1 = r100 – r

• 16 -

Dead Code Elimination Y

Remove any operation who’sresult is never consumed

Y

Rules^ »

X can be deleted^ y

no stores or branches

»^

DU chain empty or destregister not live

Y

This misses some dead code!!^ »

Especially in loops »^

Critical operation^ y

store or branch operation

»^

Any operation that does notdirectly or indirectly feed acritical operation is dead »^

Trace UD chains backwardsfrom critical operations »^

Any op not visited is dead

r1 = 3 r2 = 10 r4 = r4 + 1 r7 = r1 * r

r2 = 0

r3 = r3 + 1

r3 = r2 + r1 store (r1, r3)

• 18 -

Constant Propagation Y

Forward propagation of movesof the form^ »

rx = L (where L is a literal) »^

Maximally propagate »^

Assume no instructionencoding restrictions

Y

When is it legal?^ »

SRC: Literal is a hard codedconstant, so never a problem »^

DEST: Must be available^ y

Guaranteed to reach y^

May reach not good enough

r1 = 5r2 = r1 + r

r1 = r1 + r

r7 = r1 + r

r8 = r1 + 3

r9 = r1 + r

• 19 -

Local Constant Propagation Y

Consider 2 ops, X and Y in aBB, X is before Y^ »

1. X is a move »^
   2. src1(X) is a literal »^
      3. Y consumes dest(X) »^
         4. There is no definition ofdest(X) between X and Y »^
            5. No danger betw X and Y^ y

When dest(X) is a Macroreg, BRL destroys the value

r1 = 5 r2 = ‘_x’ r3 = 7 r4 = r4 + r1 r1 = r1 + r2 r1 = r1 + 1 r3 = 12 r8 = r1 - r2 r9 = r3 + r5 r3 = r2 + 1 r10 = r3 – r
