Controls

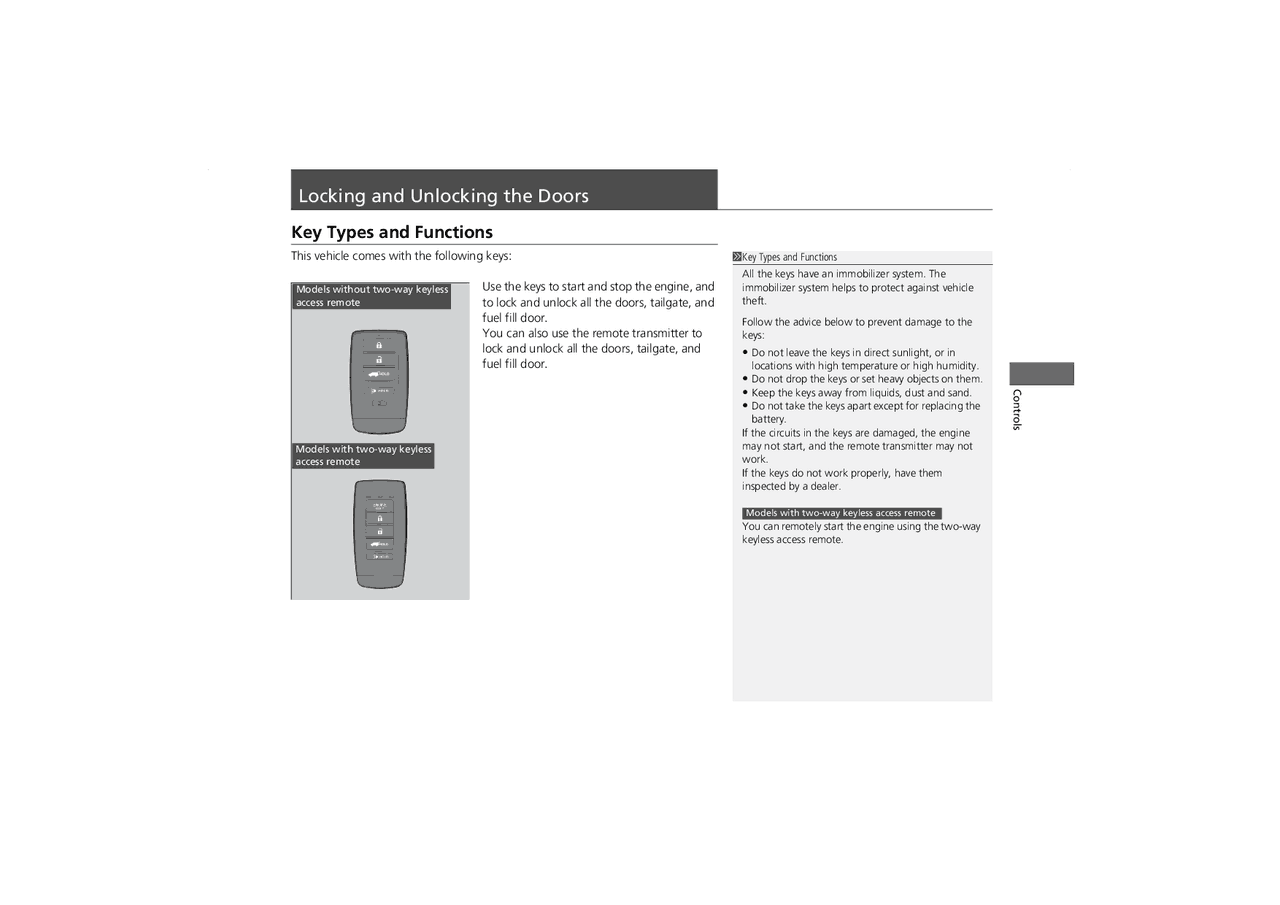

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the keys to start and stop the engine, and
to lock and unlock all the doors, tailgate, and
fuel fill door.
You can also use the remote transmitter to
lock and unlock all the doors, tailgate, and
fuel fill door.
1 Key Types and Functions All the keys have an immobilizer system. The immobilizer system helps to protect against vehicle theft.
Follow the advice below to prevent damage to the keys:
- Do not leave the keys in direct sunlight, or in locations with high temperature or high humidity.
- Do not drop the keys or set heavy objects on them.
- Keep the keys away from liquids, dust and sand.
- Do not take the keys apart except for replacing the battery. If the circuits in the keys are damaged, the engine may not start, and the remote transmitter may not work. If the keys do not work properly, have them inspected by a dealer.
You can remotely start the engine using the two-way keyless access remote.
Models with two-way keyless access remote
HOLD
HOLD
Models without two-way keyless access remote
Models with two-way keyless access remote
uuLocking and Unlocking the DoorsuKey Types and Functions
Controls
The built-in key can be used to lock/unlock the
doors when the keyless access remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
keyless access remote until it clicks.
■ Built-in Key
Models without two-way keyless access remote
Models with two-way keyless access remote
Built-in Key
Release Knob
Built-in Key
Release Knob
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
Locking/Unlocking the Doors from the Outside
When you carry the keyless access remote,
you can lock/unlock the doors, fuel fill door,
and open the tailgate.
You can lock/unlock the doors, fuel fill door,
and tailgate within a radius of about 32 inches
(80 cm) of the outside door handle or tailgate
outer handle.
■ Using the Keyless Access System^1 Locking/Unlocking the Doors from the Outside If the DOOR button is pressed, the interior light comes on when you unlock the doors and tailgate. No doors opened: The light fades out after 30 seconds. Doors and tailgate relocked: The light goes off immediately.
1 Using the Keyless Access System If you do not open a door or the tailgate within 30 seconds of unlocking the vehicle with the keyless access system, the doors and tailgate will automatically relock.
You can lock or unlock doors using the keyless access system only when the power mode is in VEHICLE OFF.
Models without rear door touch sensor
Models with rear door touch sensor
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
■ Locking the doors and tailgate
Touch the door lock sensor on the front or
rear *door, or press the door lock button on
the tailgate.
u Some exterior lights flash; the beeper
sounds; all the doors, fuel fill door, and
tailgate lock; and the security system
sets.
1 Using the Keyless Access System
- Do not leave the keyless access remote in the vehicle when you get out. Carry it with you.
- Even if you are not carrying the keyless access remote, you can lock/unlock the doors and tailgate while someone else with the remote is within range.
- The door may be unlocked if the door handle is covered with water in heavy rain or in a car wash if the keyless access remote is within range.
- If you grip a door handle or touch a door lock sensor wearing gloves, the door sensor may be slow to respond or may not respond by locking or unlocking the doors.
- After locking the door, you have up to two seconds during which you can pull the door handle to confirm whether the door is locked. If you need to unlock the door immediately after locking it, wait at least two seconds before gripping the handle, otherwise the door will not unlock.
- The door might not open if you pull it immediately after gripping the door handle. Grip the handle again and confirm that the door is unlocked before pulling the handle.
- Even within the 32 inches (80 cm) radius, you may not be able to lock/unlock the doors with the keyless access remote if it is above or below the outside handle.
- The keyless access remote may not operate if it is too close to the door and door glass.
Door Lock Sensor
Lock Button
* Not available on all models
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
■ Locking the doors and tailgate (Walk
away auto lock ® )
When you walk away from the vehicle while
carrying the keyless access remote, the doors
will automatically lock.
The auto lock function activates when all
doors and tailgate are closed, and the keyless
access remote is within about 5 feet (1.5 m)
radius of the outside door handle.
Exit vehicle while carrying keyless access
remote and close door(s).
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the keyless access remote beyond
about 5 feet (1.5 m) from the vehicle and
remain outside this range for 2 or more
seconds.
u Some exterior lights flash; the beeper
sounds; all doors and tailgate will then
lock.
1 Locking the doors and tailgate (Walk away auto lock®) The auto lock function is set to OFF as the factory default setting. The auto lock function can be set to ON using the audio/information screen. If you set the auto lock function to ON using the audio/information screen, only the remote transmitter that was used to unlock the driver’s door prior to the setting change can activate auto lock.
After the auto lock function has been activated, when you stay within the locking/unlocking operation range, the indicator on the keyless access remote will continue to flash until the doors are locked.
When you stay beside the vehicle within the operation range, the doors will automatically lock approximately 30 seconds after the auto lock function activating beeper sounds.
When you open a door after the auto lock function activating beeper sounds, the auto lock function will be delayed until all doors and tailgate are closed.
Under the following circumstances, the auto lock function will not activate:
- The keyless access remote is inside the vehicle.
- The keyless access remote is taken out of its operational range before all the doors and tailgate are closed.
uThe beeper will not sound.
uThe beeper will sound.
The activation range of the auto lock function is about 5 feet (1.5 m)
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driver’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds and the function is
deactivated.
To restore the function:
- Set the power mode to ON.
- Lock the vehicle without using the auto lock
function.
- With the keyless access remote on you,
move out of the auto lock function
operation range.
1 Locking the doors and tailgate (Walk away auto lock®) You must wait until the power tailgate fully closes before the auto lock function will be activated.
The auto lock function does not operate when any of the following conditions are met.
- The keyless access remote is inside the vehicle.
- A door or the hood is not closed.
- The power mode is set to any mode other than OFF.
- The keyless access remote is not located within a radius of about 5 feet (1.5 m) from the vehicle when you get out of the vehicle and close the doors.
Auto lock function operation stop beeper After the auto lock function has been activated, the auto lock operation stop beeper sounds for approximately two seconds in the following cases.
- The keyless access remote is put inside the vehicle through a window.
- You are located too close to the vehicle.
- The keyless access remote is put inside the tailgate. If the warning beeper sounds, check that you are carrying the keyless access remote. Then, open/close a door and confirm the auto lock activation beeper sounds once.
