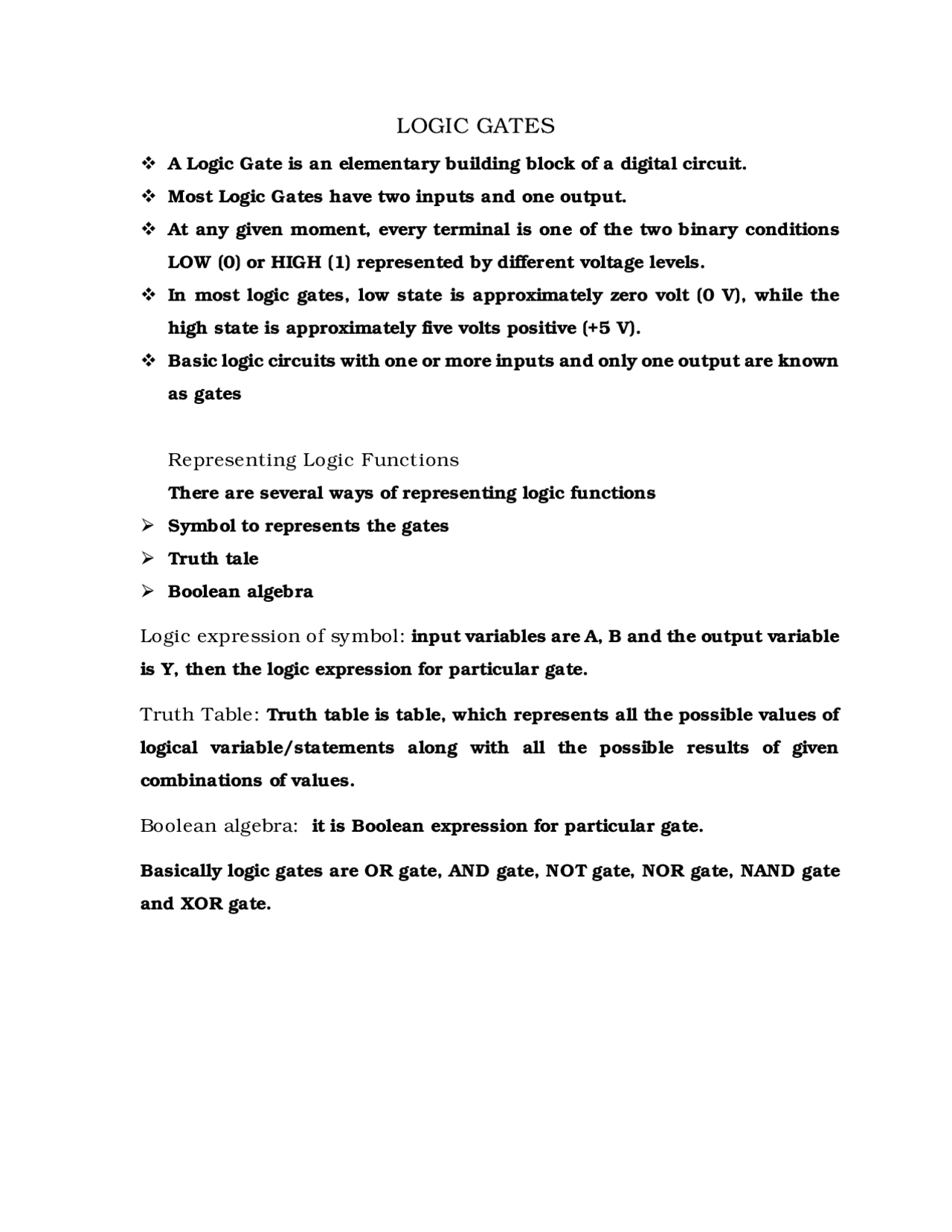

LOGIC GATES
A Logic Gate is an elementary building block of a digital circuit.
Most Logic Gates have two inputs and one output.
At any given moment, every terminal is one of the two binary conditions
LOW (0) or HIGH (1) represented by different voltage levels.
In most logic gates, low state is approximately zero volt (0 V), while the
high state is approximately five volts positive (+5 V).
Basic logic circuits with one or more inputs and only one output are known
as gates
Representing Logic Functions
There are several ways of representing logic functions
Symbol to represents the gates
Truth tale
Boolean algebra
Logic expression of symbol: input variables are A, B and the output variable
is Y, then the logic expression for particular gate.
Truth Table: Truth table is table, which represents all the possible values of
logical variable/statements along with all the possible results of given
combinations of values.
Boolean algebra: it is Boolean expression for particular gate.
Basically logic gates are OR gate, AND gate, NOT gate, NOR gate, NAND gate
and XOR gate.
pf3
pf4
pf5

Partial preview of the text

Download Logic Gates: Fundamentals and Applications in Digital Circuits and more Exercises Logic in PDF only on Docsity!

LOGIC GATES

 A Logic Gate is an elementary building block of a digital circuit.  Most Logic Gates have two inputs and one output.  At any given moment, every terminal is one of the two binary conditions LOW (0) or HIGH (1) represented by different voltage levels.  In most logic gates, low state is approximately zero volt (0 V), while the high state is approximately five volts positive (+5 V).  Basic logic circuits with one or more inputs and only one output are known as gates Representing Logic Functions There are several ways of representing logic functions  Symbol to represents the gates  Truth tale  Boolean algebra Logic expression of symbol: input variables are A, B and the output variable is Y, then the logic expression for particular gate. Truth Table: Truth table is table, which represents all the possible values of logical variable/statements along with all the possible results of given combinations of values. Boolean algebra: it is Boolean expression for particular gate. Basically logic gates are OR gate, AND gate, NOT gate, NOR gate, NAND gate and XOR gate.

OR – GATE

OR gate symbol is Boolean expression is A+B (“A or’ d with B”) Logic expression: Input variable are A,B and the output variable is Y, then the logic expression for OR gate is Y = A+B. Circuit diagram: Truth table:  This circuit will give high output (1), if any input is high (1) , otherwise the output is low (0) Input (A) Input (B) Output (Y= A+B) 0 0 0 0 1 1 1 0 1 1 1 1

NOT – GATE

OR gate symbol is Boolean expression is A invert Logic expression: Input variable is A and the output variable is Y, then the logic expression for NOT gate is YA Circuit diagram: Truth table:  This is the simplest gate it just inverts the input, if input is high the output will be low and conversely Input (A) (^) Output (Y= A ) 0 1 1 0 YA

NOR Gate  NOR is a combination of OR gate and NOT gate  i.e., OR gate +NOT gate = NOR gate  The NOR gate works opposite to the OR gate  Its Boolean algebra representation is Y A^ B Logic Symbol: or Truth table:  This circuit will give high output (1), if both inputs is low (0), otherwise the output is low (0)  The symbol is an OR gate with a small circle on the output. The small circle represents inversion. Input (A) Input (B) (^) Output( ) 0 0 1 0 1 0 1 0 0 1 1 0

Y A  B

Y A  B Y A^ B

XOR- Gate  XOR gate also refer to represented as exclusive - OR gate  it is a digital logic gate with two or more inputs and one output that performs exclusive disjunction  One element clearly missing from the set of Boolean operations is that of Exclusive-OR, often represented as XOR. Whereas the OR function is equivalent to Boolean addition, the AND function to Boolean multiplication, and the NOT function (inverter) to Boolean complementation, there is no direct Boolean equivalent for Exclusive-OR. Logic Symbol: Truth Table: The output of an XOR gate is high (1) only when exactly one of its inputs is high (1). If both of an XOR gate's inputs are low (0), or if both of its inputs are high (1), then the output of the XOR gate is low. Input (A) Input (B) Output

Y  A  B

B

A

Y  A  B
