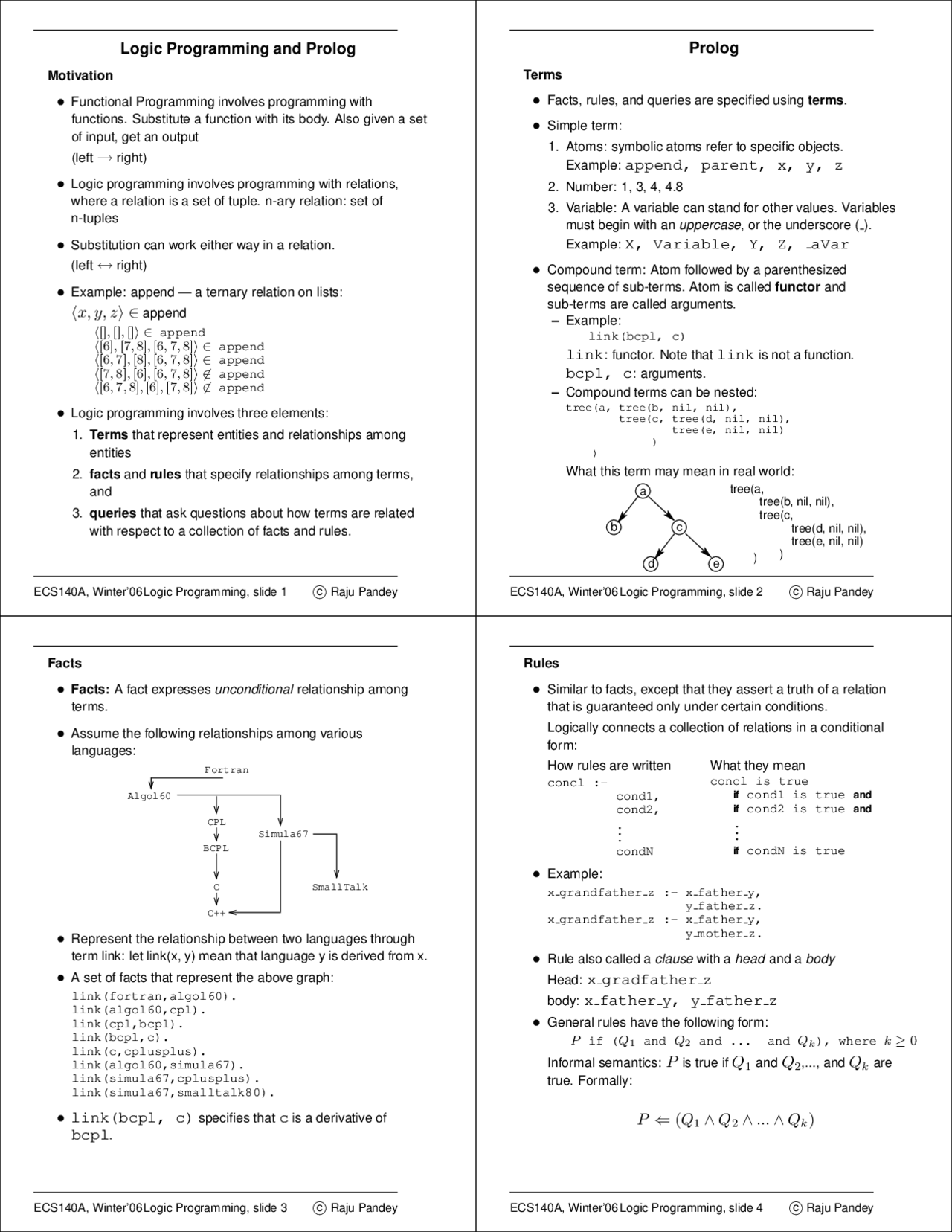

Logic Programming and Prolog
Motivation
• Functional Programming involves programming with
functions. Substitute a function with its body. Also given a set of input, get an output
(left → right)
• Logic programming involves programming with relations,
where a relation is a set of tuple. n-ary relation: set of n-tuples
• Substitution can work either way in a relation.
(left ↔ right)
• Example: append — a ternary relation on lists:
〈x, y, z〉 ∈ append
〈[], [], []〉 ∈ append 〈[6], [7, 8], [6, 7 , 8]〉 ∈ append 〈[6, 7], [8], [6, 7 , 8]〉 ∈ append 〈[7, 8], [6], [6, 7 , 8]〉 6 ∈ append 〈[6, 7 , 8], [6], [7, 8]〉 6 ∈ append
• Logic programming involves three elements:
- Terms that represent entities and relationships among entities
- facts and rules that specify relationships among terms, and
- queries that ask questions about how terms are related with respect to a collection of facts and rules.
ECS140A, Winter’06 Logic Programming, slide 1 ©c Raju Pandey
Prolog
Terms
• Facts, rules, and queries are specified using terms.
• Simple term:
- Atoms: symbolic atoms refer to specific objects.
Example: append, parent, x, y, z
- Number: 1, 3, 4, 4.
- Variable: A variable can stand for other values. Variables must begin with an uppercase , or the underscore ( ).
Example: X, Variable, Y, Z, aVar
• Compound term: Atom followed by a parenthesized
sequence of sub-terms. Atom is called functor and sub-terms are called arguments.
- Example: link(bcpl, c)
link: functor. Note that link is not a function.
bcpl, c: arguments.
- Compound terms can be nested: tree(a, tree(b, nil, nil), tree(c, tree(d, nil, nil), tree(e, nil, nil) ) ) What this term may mean in real world: a
b c
d e
tree(a, tree(b, nil, nil), tree(c, tree(d, nil, nil), tree(e, nil, nil) ) )
ECS140A, Winter’06 Logic Programming, slide 2 ©c Raju Pandey
Facts
• Facts: A fact expresses unconditional relationship among
terms.
• Assume the following relationships among various
languages:
Algol
Fortran
Simula
CPL
BCPL
C
C++
SmallTalk
• Represent the relationship between two languages through
term link: let link(x, y) mean that language y is derived from x.
• A set of facts that represent the above graph:
link(fortran,algol60). link(algol60,cpl). link(cpl,bcpl). link(bcpl,c). link(c,cplusplus). link(algol60,simula67). link(simula67,cplusplus). link(simula67,smalltalk80).
• link(bcpl, c) specifies that c is a derivative of
bcpl.
Rules
• Similar to facts, except that they assert a truth of a relation
that is guaranteed only under certain conditions.
Logically connects a collection of relations in a conditional form: How rules are written concl :- cond1, cond2, .. . condN
What they mean concl is true if cond1 is true and if cond2 is true and .. . if condN is true
• Example:
x grandfather z :- x father y, y father z. x grandfather z :- x father y, y mother z.
• Rule also called a clause with a head and a body
Head: x gradfather z
body: x father y, y father z
• General rules have the following form:
P if (Q 1 and Q 2 and ... and Qk ), where k ≥ 0
Informal semantics: P is true if Q 1 and Q 2 ,..., and Qk are
true. Formally:
P ⇐ (Q 1 ∧ Q 2 ∧ ... ∧ Qk)
Queries
• A functional program is defined by a set of functions. Its
execution is driven by evaluation of expressions. A logic program, on the other hand, is defined as a set of rules ; its execution answers a certain query.
• Given the database of relationships, query the database
regarding the existence of certain relationships.
• A query has the following form: t 1 , t 2 , t 3 · · · tk.
Formal semantics: t 1 ∧ t 2 ∧ ...tk
Informally: can we prove that t 1 , t 2 , ..., and tk are true from
the database of facts?
• Queries are also called goals and individual terms subgoals.
• The prolog runtime system will use the database of facts to
deduce a goal. If it is successful, it will return yes , otherwise no.
Yes ⇒ Prolog can deduce some fact No ⇒ a failure to
deduce a fact. Rules cannot be used to deduce negative facts.
• Simple queries:
?- link(c, cplusplus). yes
?- link(algol60, simula67), link(bcpl, c). yes
?- link(c, bcpl), link(bcpl, c). no
ECS140A, Winter’06 Logic Programming, slide 5 ©c Raju Pandey
Relations containing variables
• Recall: predicate x grandfather y used to signify that
x is grandfather of y.
Not a very succinct way of representing facts; will need to enumerate all such facts one by one. Quite tedious.
• What we need is some way to define relationships among
generic terms, that is terms that can stand for other terms.
• Variables achieve those.
gradfather(X, Z) :- father(X, Y), father (Y, Z). gradfather(X, Z) :- father(X, Y), mother (Y, Z).
Here, X, Y, and Z can take any value.
• Important points:
- All occurrences of same variable name within a single statement denote the same variable.
- A fact containing variables asserts that all instances of the fact that result from consistently instantiating all variables are true.
• Example instantiations of variables and their meaning:
grandfather(bill, mary) :- father(bill, Y), father(Y, mary). grandfather(bill, Z) :- father(bill, Y), mother(Y, Z). grandfather(john, jim) :- father(john, bob), father(bob, jim).
• Anonymous variables( ): A variable that takes matches
anything, but never takes any value. Example: check if bill has a father. We don’t care who the father is. ?- father(bill, _).
ECS140A, Winter’06 Logic Programming, slide 6 ©c Raju Pandey
Unification
• Logic programming’s fundamental operation: How does
Prolog bind variables to values?
Unification is an attempt (by Prolog interpreter) to match two terms, by instantiating the variables contained in two terms.
• Example: When do two terms f(X, b) and f(a, Y)
match?
For X=a, and Y=b, the two terms are equal.
So unification will involve assigning these values to the variables.
Term f(a, b) is called an instance of f(X, b).
• Two terms t1 and t2 unify if they have a common instance
U.
• Where does unification take place?
- when two terms are checked if they are equal, through the equality operator f(X, a) = f(b, Y)
- Unification occurs implicitly when a rule is applied: identity(Z, Z). ?- identity(f(X, b), f(a, Y)). X = a Y = b Note each occurrence of a given variable gets the same instantiation. g(a, a) ∈ g(X, X) g(f(a, b), f(a, b)) ∈ g(X, X) g(a, b) 6 ∈ g(X, X)
Queries
• Queries with variables:
Algol
Fortran
Simula
CPL
BCPL
C
C++
SmallTalk
?- link(cpl, X). X = bcpl; no means set of all X such that <cpl, X> ∈ link
?- link(X, cplusplus). X = C; X = simula67; means set of all X such that <X, cplusplus> ∈ link
?- link(X, smalltalk80), link(X, cpluscplus). X = simula67. means set of all X such that <X, smalltalk80> ∈ link ∧ <X, cpluscplus> ∈ link
?- link(algol60, X), link(X, Y). X = cpl Y = bcpl;
X = simula Y = cplusplus;
X = simula Y = smalltalk80; no
Arithmetic in Prolog
• Prolog defines usual +, -, *, etc operators for performing
arithmetic. Use infix notation for specifying expressions.
• An expression is like any other term
• They are not evaluated unless explicitly asked to. Unification
rules apply on them as well: ?- X = 2 + 3. X = 2 + 3
Binds X to term 2 + 3.
• In order to evaluate an expression, use is:
?- X is 2 + 3. X = 5
• Check the following:
?-X is 2+3, X = 2 + 3. no
term 2+3 does not unify with term 5
• Example 1:
sum(1, 1). sum(N, Res) :- N > 1, N1 is N - 1, sum(N1, Res1), Res is Res1 + N.
?- sum(5, X). X = 15
• Example 2: close_enough succeeds if two numbers are
equal to within 0.0001. close_enough(X, X) :-. close_enough(X, Y) :- X < Y, Y-X < 0.0001. close_enough(X, Y) :- X > Y, close_enough(Y, X).
ECS140A, Winter’06Logic Programming, slide 13 ©c Raju Pandey
Logical operators
• true: goal always succeeds
• fail: always fails
• Equality (=): A term X = Y succeeds if X and Y match.
Prolog will try to match them: ?- X = 5. X = 5.
• Inequality(=): = is opposite of =
• Negation: The term not(X) succeeds if an attempt to
satisfy X fails.
?- X = 2, not(X = 1). X = 2.
Unify X with 2 first, and use that X to check if X = 1. ?- not (X = 1), X = 2. no
(X = 1) succeeds by unifying X with 1. Negation term
fails causing the whole clause to fail.
• X ; Y: specifies disjunction (or) of goals. The goal succeeds if
X succeeds or Y succeeds. Fails when both fail. person(X) :- (X = adam; X=eve; mother(X, Y)).
ECS140A, Winter’06Logic Programming, slide 14 ©c Raju Pandey
Control in Prolog
• A prolog program contains
- A sequence of clauses (forming the data base), and
– a query of the form A:- B 1 , B 2 ,... , Bn.
• Program evaluation strategy: characterized by two decisions:
– Goal order: Subgoals are processed left → right
– Rule order: Rules are applied top → bottom.
Response to a query is affected both by goal order within the query and by rule order within database of facts and rules
• Algorithm for control:
Start with a query as the current goal; while the current goal is nonempty do let the current goal = G 1 , ..., Gk , where k ≥ 1 choose the leftmost goal G 1 ; if a rule applies to G 1 then select first such rule A :- B 1 , ..., Bj , where j ≥ 0 let σ be most general unifier of A and B 1 current goal = B 1 σ, B 2 σ, ...Bj σ, G 2 σ, ..., Gk σ else backtrack; end while success
Example
• Example: Let rules be
append([], Y, Y). append([H|X], Y, [H|Z]) :- append(X, Y, Z).
prefix(X, Z) :- append(X, Y, Z).
suffix(Y, Z) :- append(X, Y, Z).
sublist1(S, L):- prefix(X, L), suffix(S, X). sublist2(S, L):- suffix(S, X), prefix(X, L).
X S Z
How does search take place?
• Example query:
?- suffix([a], L), prefix(L, [a,b,c]). L = [a].
• Search tree with no backtracking:
{_1−>[], L−>[a]} append([], [a], [a]).
{_2−>[b,c]} append([],[b,c],[b,c]).
suffix([a], L), prefix(L, [a, b, c])
append([a],_2, [a,b,c])
prefix([a], [a,b,c])
append([], _2, [b, c])
append(_1, [a], L), prefix(L, [a, b, c])
yes
prefix([a],[a,b,c]) if append([a],_2, [a,b,c]).
suffix([a], L) if append(_1, [a], L).
append([a],_2,[a,b,c]) if append([],_2,[b,c]).
ECS140A, Winter’06Logic Programming, slide 17 ©c Raju Pandey
How does search take place?
• Example query:
?- suffix([b], L), prefix(L, [a,b,c]). L = [a, b].
• Search tree with backtracking:
{_1−>[], L−>[b]}
{_1−>[_3|_4], L−>[_3|_5]}
{_3−>a}
{_6−>[c]}
...
suffix([b], L), prefix(L, [a, b, c])
append(_1, [b], L), prefix(L, [a, b, c])
prefix([b], [a,b,c])
append([b],_2, [a,b,c])
backtrack
append(_4, [b], _5), prefix([_3|_5], [a, b, c])
prefix([_3,b], [a,b,c])
append([_3,b],_6, [a,b,c])
append([b],_6, [a,b,c])
append([],_6, [c])
Yes
ECS140A, Winter’06Logic Programming, slide 18 ©c Raju Pandey
Does goal order matter?
• Order of subgoals within a query affects prolog search tree
?- suffix([a], L), prefix(L, [a, b, c]). L = a ; [ infinite computation ]
• Why? The leftmost subgoal
?- suffix([a], L). L = a ; L = [_1, a] ; L = [_1, _2, a] ; ...
has an infinite number of solutions, only the first of which
satisfies prefix(L, [a, b, c]).
The system first finds a solution without backtracking. A futile search through the rest of infinite tree ensues if we ask for a further solution.
• what about reordered query?
?- prefix(L, [a, b, c]), suffix([a], L). L = a ; no
This query has a finite prolog search tree.
Does rule order matter?
• Yes they do since rule orders change the order in which
solutions are searched. app2([H|X], Y, [H|Z]) :- app2(X, Y, Z). app2([], Y, Y).
?- appen2(X, [c], Z).
• Search tree:
{X−>[], Z−>[c]}
yes
yes
yes
X=[], Z=[c]
X=[_1], Z=[_1,c]
appen2(X, [c], Z)
{X−>[_1|_2], Z−>[_1|_3]} {X−>[], Z−>[c]}
...
appen2(_2, [c], _3)
append(X, [c], Z)
{X−>[_1|_2], Z−>[_1|_3]}
yes
{_2−>[], _3−>[c]}
X=[_1], Z=[_1,c] (^) ...
X=[], Z=[c] append(_2, [c], _3)
{_2−>[], _3−>[c]}
