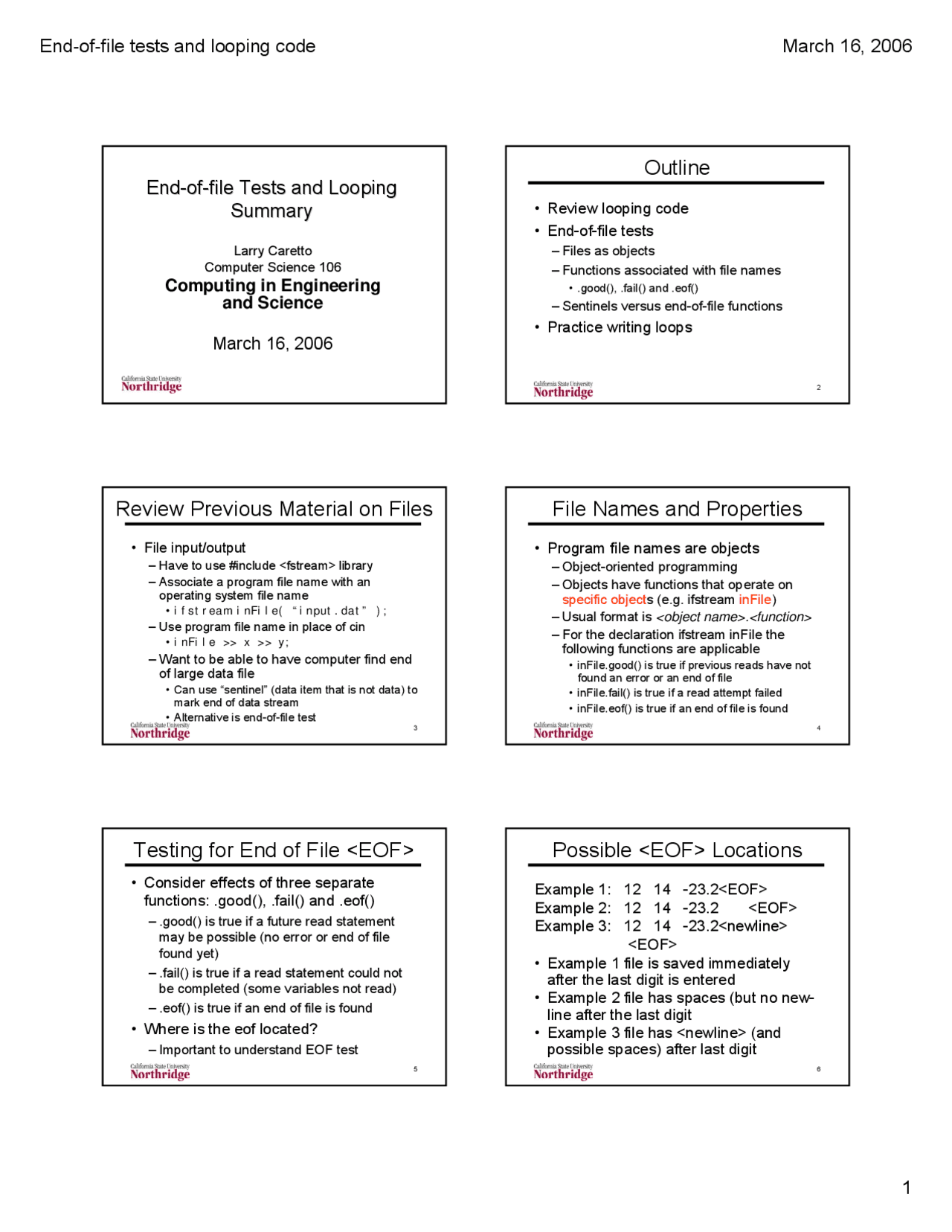

End-of-file tests and looping code March 16, 2006
1
End
End-
-of
of-
-file Tests and Looping
file Tests and Looping
Summary
Summary
Larry Caretto
Computer Science 106
Computing in Engineering
and Science
March 16, 2006
2
Outline
Review looping code
End-of-file tests
Files as objects
Functions associated with file names
.good(), .fail() and .eof()
Sentinels versus end-of-file functions
Practice writing loops
3
Review Previous Material on Files
File input/output
Have to use #include <fstream> library
Associate a program file name with an
operating system file name
ifstream inFile( “input.dat” );
Use program file name in place of cin
inFile >> x >> y;
Want to be able to have computer find end
of large data file
Ca n use “sentinel” (data item that is not dat a) to
mark end of data stream
Alternative is end-of-file test
4
File Names and Properties
Program file names are objects
Object-oriented programming
Objects have functions that operate on
specific objects (e.g. ifstream inFile)
Usual format is <object name>.<function>
For the declaration ifstream inFile the
following functions are applicable
inFile.good() is true if previous reads have not
found an error or an end of file
in File.fail() is true if a read attempt failed
inFile.eof() is true if an end of file is found
5
Testing for End of File <EOF>
Consider effects of three separate
functions: .good(), .fail() and .eof()
.good() is true if a future read statement
may be possible (no error or end of file
found yet)
.fail() is true if a read statement could not
be completed (some variables not read)
.eof() is true if an end of file is found
Where is the eof located?
Important to understand EOF test
6
Possible <EOF> Locations
Example 1: 12 14 -23.2<EOF>
Example 2: 12 14 -23.2 <EOF>
Example 3: 12 14 -23.2<newline>
<EOF>
Example 1 file is saved immediately
after the last digit is entered
Example 2 file has spaces (but no new-
line after the last digit
Example 3 file has <newline> (and
possible spaces) after last digit
pf3
pf4
pf5

Partial preview of the text

Download Looping Code - Computing in Engineering and Science - Lecture Slides and more Slides Computer Science in PDF only on Docsity!

EndEnd--ofof--file Tests and Loopingfile Tests and Looping

SummarySummary

Larry Caretto Computer Science 106

Computing in Engineering

and Science

March 16, 2006

2

Outline

  • Review looping code
  • End-of-file tests
    • Files as objects
    • Functions associated with file names
      • .good(), .fail() and .eof()
    • Sentinels versus end-of-file functions
  • Practice writing loops

3

Review Previous Material on Files

  • File input/output
    • Have to use #include library
    • Associate a program file name with an operating system file name - ifstream inFile( “input.dat” );
    • Use program file name in place of cin
      • inFile >> x >> y;
    • Want to be able to have computer find end of large data file - Can use “sentinel” (data item that is not data) to mark end of data stream - Alternative is end-of-file test 4

File Names and Properties

  • Program file names are objects
    • Object-oriented programming
    • Objects have functions that operate on specific objects (e.g. ifstream inFile)
    • Usual format is .
    • For the declaration ifstream inFile the following functions are applicable - inFile.good() is true if previous reads have not found an error or an end of file - inFile.fail() is true if a read attempt failed - inFile.eof() is true if an end of file is found
    • 5

      Testing for End of File

      • Consider effects of three separate

      functions: .good(), .fail() and .eof()

      • .good() is true if a future read statement may be possible (no error or end of file found yet)
      • .fail() is true if a read statement could not be completed (some variables not read)
      • .eof() is true if an end of file is found
      • Where is the eof located?
      • Important to understand EOF test 6

      Possible Locations

      Example 1: 12 14 -23.2

      Example 2: 12 14 -23.2

      Example 3: 12 14 -23.2

      • Example 1 file is saved immediately

      after the last digit is entered

      • Example 2 file has spaces (but no new-

      line after the last digit

      • Example 3 file has (and

      possible spaces) after last digit

      7

      Result of in >> x >> y >> z;

      Example 1: 12 14 -23.2

      Example 2: 12 14 -23.2

      Example 3: 12 14 -23.2

      Function results for each sample file

      Function: in.good() in.fail() in.eof()

      Example 1: false false true

      Example 2: true false false

      Example 3: true false false

      8

      End of File Test for Sum

      int x, sum = 0, n = 0;

      inFile >> x

      while ( !infile.fail() )

      sum += x; // sum = sum + x

      n++;

      inFile >> x;

      if (n != 0) double average =

      double( sum ) / n;

      9

      End-of-file Exercise

      • Read all the data from a file and

      determine the maximum, minimum, and

      number of data items on the file

      • Hints
        • Use code similar to that on the last chart
        • Read the initial value and set the current minimum and maximum to that value
        • In the loop check each data item against the current minimum and maximum

      10

      End of File Exercise Solution

      double x, xMin, xMax; int count = 0; ifstream inFile ( “input.dat” ); inFile >> x; xMin = x; xMax = x; while ( !infile.fail() ) { count++; if ( x > xMax ) xMax = x; else if ( x < xMin ) xMin = x; inFile >> x; }

      11

      File Buffering

      • Input and output information is placed in

      a buffer and transferred from input to

      code or code to output later

      • Input transfer occurs when user presses

      the enter key

      • If not all characters are read, the

      remaining characters are kept on the

      input buffer

      • Source of funny input results we saw in exercise two

      12

      Testing File Status

      • The result of an input operation, say cin

      >> x >> y, can be tested

      • It is true if there were no errors and no characters left in the input buffer
      • Sample code: if ( !( cin >> x ) )
      • Sample code is true if there is an error condition
      • We can use this test to correct any possible errors, including clearing the input buffer

      19

      Sentinel Exercise

      • Read input data to do calculations until

      a “sentinel” value is read

      • Sentinel is a value that will never be

      used for data

      • Example: a program that reads a list of data on ages from a file can exit if a negative age is entered
      • Write a loop structure to read data from

      a file and stop when input is < 0

      • Get sum and count to compute average

      20

      Sentinel Solution

      ifstream inFile( “age.dat” ); double age, sum = 0; int n = 0; inFile >> age; while ( age >= 0 ) { sum += age; n++; inFile >> age; } if ( n > 0 ) cout << “The average age is “ << sum / n;

      21

      Another Sentinel Solution

      ifstream inFile( “age.dat” ); double age, sum = 0; int n = 0; do { inFile >> age; if ( age >= 0 ) { sum += age; n++; } } while ( age >= 0 ) if ( n > 0 ) cout << “The average age is “ << sum / n; 22

      Looping Problems

      • Midterm (April 7) and April 5 quiz will

      have problems like these

      • For an equation y = f(x) (e.g., y = x 2 ), print a table of x and y for a range of x values
      • For an equation z = f(x,y) (e.g., KE = mV^2 /2), print a table of z for a range of x values and a range of y values
      • Read data from a file or keyboard and take some actions on each data item until the user enters a “sentinel” value ending input

      23

      Another Sample Problem

      • Ask a user for input of two numbers
      • Compute the sum of all even numbers

      in the range input by the user, including

      the user input values

      • E. g. if the user inputs 6 1 your program should compute 2 + 4 + 6 = 12
      • Watch out for larger number as first input and input of odd numbers as either start or finish

      24

      Solution

      int first, last, i, sum = 0; cin << first << last; if ( first > last ) { int temp = first; first = last; last = temp; } if ( first % 2 != 0 ) first++; for ( i = first; i <= last; i += 2 ) sum += i;

      • Makes sure first

      number in sum

      is even

      • What about last

      number?

      25

      Question about Solution

      if ( first % 2 != 0 ) first++;

      for ( i = first; i <= last; i += 2 )

      sum += i;

      • The first statement assures that the initial

      number in the sum is even

      • What about the last number?
        • If last is even, the i <= last continuation condition will include it in the sum
        • If last is odd the condition will include the last even number ( i <= 7 includes 6, not 8)
