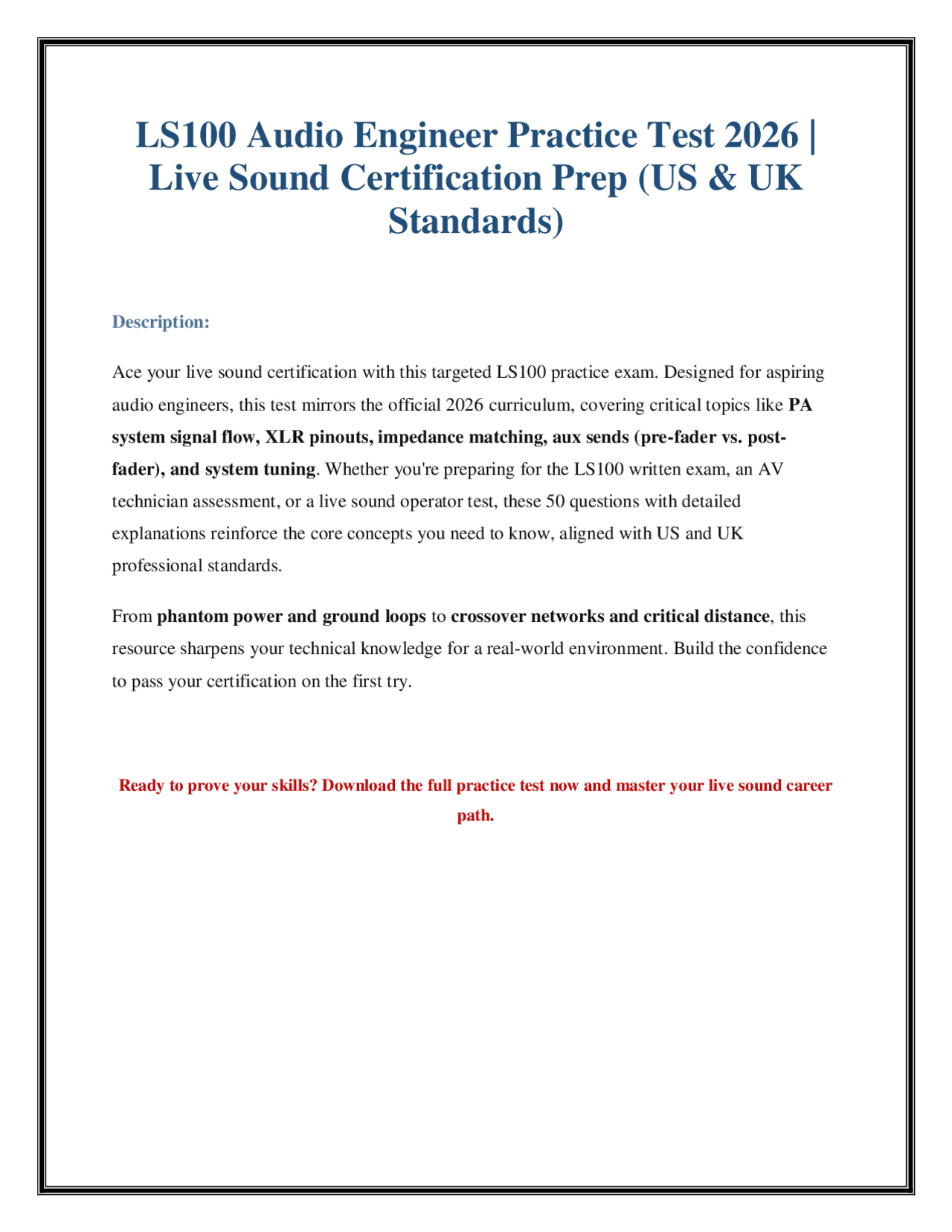

LS100 Audio Engineer Practice Test 2026 |
Live Sound Certification Prep (US & UK
Standards)
Description:
Ace your live sound certification with this targeted LS100 practice exam. Designed for aspiring
audio engineers, this test mirrors the official 2026 curriculum, covering critical topics like PA
system signal flow, XLR pinouts, impedance matching, aux sends (pre-fader vs. post-
fader), and system tuning. Whether you're preparing for the LS100 written exam, an AV
technician assessment, or a live sound operator test, these 50 questions with detailed
explanations reinforce the core concepts you need to know, aligned with US and UK
professional standards.
From phantom power and ground loops to crossover networks and critical distance, this
resource sharpens your technical knowledge for a real-world environment. Build the confidence
to pass your certification on the first try.
Ready to prove your skills? Download the full practice test now and master your live sound career
path.
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download LS100 Audio Engineer Certification Practice Test 2026 and more Exams Digital Sound Processing in PDF only on Docsity!

LS100 Audio Engineer Practice Test 2026 |

Live Sound Certification Prep (US & UK

Standards)

Description: Ace your live sound certification with this targeted LS100 practice exam. Designed for aspiring audio engineers, this test mirrors the official 2026 curriculum, covering critical topics like PA system signal flow, XLR pinouts, impedance matching, aux sends (pre-fader vs. post- fader), and system tuning. Whether you're preparing for the LS100 written exam, an AV technician assessment, or a live sound operator test, these 50 questions with detailed explanations reinforce the core concepts you need to know, aligned with US and UK professional standards. From phantom power and ground loops to crossover networks and critical distance , this resource sharpens your technical knowledge for a real-world environment. Build the confidence to pass your certification on the first try. Ready to prove your skills? Download the full practice test now and master your live sound career path.

LS100 Audio Engineer Certification Practice Test 2026

  1. List the seven essential components of a basic Public Address (PA) system in their typical signal flow order. Answer: 1) Input Device (Microphone/DI), 2) Mixing Console, 3) Graphic Equalizer, 4) Crossover, 5) Power Amplifiers, 6) Loudspeakers, 7) AC Power Source. Explanation: The signal path begins with an input device that converts sound into an electrical signal. This signal is then mixed and amplified to line level by the console. The graphic EQ corrects for room acoustics, and the crossover divides the signal into frequency bands for dedicated amplifiers, which power the loudspeakers. All components require a primary AC power source to function.
  2. In a standard single-phase US power cable, which conductor is typically identified by a white insulation jacket? Answer: The Neutral conductor. Explanation: The National Electrical Code designates white or gray as the standard color for the neutral wire, which completes the circuit by carrying current back to the panel.
  3. Which of the following correctly identifies the standard color coding for a modern US power cord? A) Hot: Black, Neutral: White, Ground: Red B) Hot: Red, Neutral: White, Ground: Green C) Hot: Black, Neutral: White, Ground: Green D) Hot: Blue, Neutral: White, Ground: Green Answer: C) Hot: Black, Neutral: White, Ground: Green Explanation: Standard US color coding for single-phase power is Black for the "Hot" (ungrounded) conductor, White for the "Neutral" (grounded) conductor, and Green (or bare copper) for the "Ground" (equipment grounding) conductor.
  4. What is the typical voltage and frequency supplied by a standard wall outlet in the United States? Answer: 120 Volts AC at 60 Hz. Explanation: The standard residential and commercial power in the US is single-phase Alternating Current (AC) delivered at approximately 120 volts with a frequency of 60 cycles per second (Hertz).
  1. In a mixing console, what is the primary role of a microphone preamplifier? Answer: To amplify a very low-level microphone signal to a stronger, standardized line-level signal. Explanation: The signal from a microphone is extremely weak and susceptible to noise. The preamp provides clean, high-gain amplification to bring this mic-level signal up to line level, which is robust enough for processing by other console sections and outboard gear.
  2. When an engineer at the Front of House (FOH) position is responsible for the stage monitor mixes, which type of auxiliary send is typically used? Answer: Pre-fader Auxiliary (Pre-fade). Explanation: A pre-fade aux send is independent of the channel's fader. This allows the FOH engineer to adjust the main house mix without affecting the level sent to the performers' monitors, ensuring a stable mix for the artists on stage.
  3. What device is typically used by a monitor engineer at their position to privately listen to a single channel or mix? Answer: A dedicated cue wedge or a set of headphones. Explanation: A cue wedge is a small monitor speaker at the mix position that allows the engineer to solo and check individual channels or mixes without affecting what the audience or musicians hear. Headphones are also commonly used for this purpose.
  4. What does the acronym PFL (Pre-Fade Listen) allow an audio engineer to do? Answer: It allows the engineer to solo a channel and listen to its signal before it reaches the channel fader. Explanation: PFL is a solo function that is unaffected by the channel's fader level or mute status. It is primarily used to check for signal presence, set initial gain, and troubleshoot issues upstream of the fader.
  5. Which of the following audio cables typically incorporate a braided or foil shield to protect against electromagnetic interference? (Select all that apply) A) XLR Cable B) Speaker Cable C) TS/Instrument Cable D) Power Cable Answer: A) XLR Cable and C) TS/Instrument Cable.

Explanation: Cables carrying low-level, unbalanced (TS) or balanced (XLR) audio signals use a conductive shield to encase the inner signal conductor(s). This shield blocks external interference. Speaker cables and power cables do not require this type of shielding for their high- power applications.

  1. What is the standardized connector type used for loudspeaker outputs on professional amplifiers and speaker cabinets? Answer: NL4 (Speakon) connectors. Explanation: Speakon connectors are the industry standard for speaker connections as they are robust, lock securely, and can handle high current safely. They are preferred over traditional 1/4" connectors for professional applications.
  2. In a standard US 120V/60Hz power system, what voltage would you expect to measure between any two "hot" legs in a three-phase panel? Answer: 208 Volts AC. Explanation: In a common three-phase "Wye" configuration used in the US, the voltage between any two hot legs (phases) is 208V, while the voltage from any hot leg to neutral remains 120V.
  3. An active loudspeaker is characterized by which two primary features? Answer: 1) It contains an internally integrated power amplifier. 2) It typically processes the audio signal at line level. Explanation: Unlike a passive speaker, an active speaker has built-in amplification and often contains its own active crossover and signal processing, requiring only a line-level input signal and an AC power connection.
  4. What is the primary acoustic purpose of using a graphic equalizer on the main output of a PA system? Answer: To "tune" the PA system to the acoustics of the room by reducing problematic resonant frequencies. Explanation: Every room has a unique acoustic fingerprint that can cause certain frequencies to build up or cancel out. The main output graphic EQ is used to make precise cuts to these problematic frequencies, resulting in a clearer and more balanced sound for the audience.
  1. What is the term for the specific location in a room where the energy of the direct sound from a source equals the energy of the reverberant sound field? Answer: Critical Distance. Explanation: Inside the critical distance, the direct sound from the source dominates, and speech intelligibility is higher. Beyond the critical distance, the reverberant sound field dominates, and clarity decreases.
  2. The polar pattern of a loudspeaker is formally defined by measuring its output and identifying the off-axis points where the level drops by how much? Answer: 6 decibels (dB). Explanation: The - 6 dB points relative to the on-axis response are the standard reference for defining the coverage angle of a loudspeaker, such as a 90°x50° dispersion pattern.
  3. A common audio issue manifests as a series of deep notches in the frequency response at 500 Hz, 150 0 Hz, and 2500 Hz. What phenomenon is most likely the cause? Answer: Comb filtering. Explanation: Comb filtering occurs when a delayed copy of a sound combines with the original. The consistent 1 kHz spacing between the notches (500, 1500, 2500 Hz) indicates a single, fixed delay time, which is a classic signature of this phenomenon, often caused by a speaker misalignment or a reflective surface.
  4. What is the approximate wavelength of a 100 Hz sound wave in air? (Assume the speed of sound is 1130 ft/s or 344 m/s). Answer: Approximately 11.3 feet (or 3.44 meters). Explanation: Wavelength (λ) = Speed of Sound (c) / Frequency (f). Using imperial units: λ = 1130 ft/s / 100 Hz = 11.3 ft. Using metric: λ = 344 m/s / 100 Hz = 3.44 m.
  5. If the period of a sound wave is 2 milliseconds, what is its frequency? Answer: 500 Hz. Explanation: Frequency (f) is the reciprocal of the period (T). f = 1 / T. First, convert milliseconds to seconds: T = 2 ms = 0.002 seconds. Then, f = 1 / 0.002 s = 500 Hz.
  6. What is the primary function of a stage box in a live sound setup? Answer: To serve as a remote connection point for microphone and instrument signals on the stage, which are then routed to the front-of-house mixing console.

Explanation: A stage box, often part of a snake system, allows for shorter cable runs from the performers to a central, robust multi-core cable that carries all signals to the mixing position, improving signal integrity and reducing stage clutter.

  1. Which of the following best describes the Inverse Square Law as it applies to sound? A) Every time you double the distance from a sound source, the level is halved. B) Every time you double the distance from a sound source, the level decreases by 6 dB. C) Every time you double the distance from a sound source, the frequency response changes. Answer: B) Every time you double the distance from a sound source, the level decreases by 6 dB. Explanation: The Inverse Square Law states that sound intensity is inversely proportional to the square of the distance from the source. This relationship results in a 6 dB reduction in sound pressure level each time the distance is doubled in a free field environment.
  2. In amplifier operation, what is the primary characteristic of "Bridge Mono" mode? Answer: It combines two amplifier channels to function as a single, more powerful channel, typically driving one speaker or a single speaker chain. Explanation: In bridge mono mode, the two channels of a stereo amplifier are driven out of phase with each other. The load (speaker) is connected between the positive output terminals of both channels, effectively doubling the voltage swing and potential power output into that load, compared to a single channel.
  3. What is the most effective first step to troubleshoot a suspected ground loop hum in a PA system? Answer: Lift the ground on one end of the audio signal path using a DI box or a console's ground lift switch. Explanation: A ground loop occurs when there are multiple paths to ground, creating a current flow in the cable shield. Lifting the ground at one point (typically on a DI box or an input channel) breaks this loop, eliminating the hum, while maintaining safety through the power ground.
  4. What does the term "AFL" (After Fader Listen) allow an engineer to monitor? Answer: It allows the engineer to solo a channel or bus and listen to its signal after it has passed through the channel fader and any post-fader processing. Explanation: Unlike PFL, AFL is affected by the fader position. It is used to solo a mix bus

Explanation: A de-esser is a dynamic processor that acts as a frequency-specific compressor. It detects high-frequency sibilant sounds and momentarily reduces the gain only in that frequency range, smoothing out the vocal without affecting the rest of the signal.

  1. True or False: Phantom power supplied from a mixing console can power a passive dynamic microphone. Answer: False. Explanation: Phantom power (typically +48V DC) is applied equally to pins 2 and 3 of an XLR connector relative to pin 1. A passive dynamic microphone, which generates its signal via electromagnetic induction, is completely unaffected by phantom power and will function normally. Phantom power is required for condenser microphones, which need it to polarize their capsules and power their internal electronics.
  2. In system optimization, what is the main goal of using "system tuning" software with a measurement microphone? Answer: To analyze the PA system's frequency and phase response in the listening area and create corrective EQ and delay settings. Explanation: System tuning software, used with a calibrated measurement microphone, provides a real-time analysis of how the sound system interacts with the room's acoustics. This data allows the system engineer to make precise, scientific adjustments to the system's processors (like graphic EQs and crossovers) to achieve a flat, coherent, and predictable response throughout the venue.
  3. What is the primary purpose of a "Noise Gate" on a channel strip? Answer: To reduce or eliminate unwanted low-level noise and bleed when the desired source is not active. Explanation: A noise gate is a dynamic processor that mutes a channel when its signal level falls below a set threshold. This is commonly used on drum microphones to silence the channel between hits, cutting out ring, headphone bleed, and other stage noise.
  4. In a digital mixing console, what is the function of a "Scene" or "Snapshot"? Answer: To recall a saved set of console parameters, such as fader levels, EQ settings, and routing. Explanation: Scenes or Snapshots allow an engineer to save the entire state of a mix and

instantly recall it later. This is crucial for live productions with multiple acts or complex shows, enabling quick transitions between different mixer configurations.

  1. Which of the following connectors provides a balanced audio connection? A) 1/4" TS B) RCA C) 1/4" TRS D) Speakon Answer: C) 1/4" TRS Explanation: A 1/4" TRS (Tip-Ring-Sleeve) connector can carry a balanced audio signal with a positive (tip), negative (ring), and ground (sleeve) conductor. TS and RCA connectors are unbalanced, and Speakon is for speaker-level signals.
  2. What is the primary symptom of a "feedback loop" in a PA system? Answer: A sustained, loud ringing or squealing tone. Explanation: Feedback occurs when the sound from a loudspeaker is picked up by a microphone, re-amplified, and sent back through the speaker, creating a regenerative loop. This loop resonates at a specific frequency, producing the characteristic ringing sound.
  3. The "Q" control on a parametric EQ adjusts what parameter of the filter? Answer: The bandwidth of the filter. Explanation: "Q" stands for quality factor. A high Q value creates a very narrow, selective bandwidth, affecting only a small range of frequencies. A low Q value creates a wide, gentle bandwidth, affecting a broader range of frequencies.
  4. What is the standard impedance range for a professional microphone output? Answer: Low impedance (typically 150-200 ohms). Explanation: Low-impedance microphones are the professional standard because they allow for much longer cable runs without significant high-frequency signal loss or susceptibility to electromagnetic interference.
  5. What is the primary function of a "Limiter" on a main output bus? Answer: To prevent the signal from exceeding a maximum level, thus protecting the loudspeakers from damage and preventing distortion. Explanation: A limiter is a compressor with a very high ratio (e.g., 10:1 or infinity:1). It acts as a "ceiling" on the signal level, aggressively preventing any peaks from going over the set
