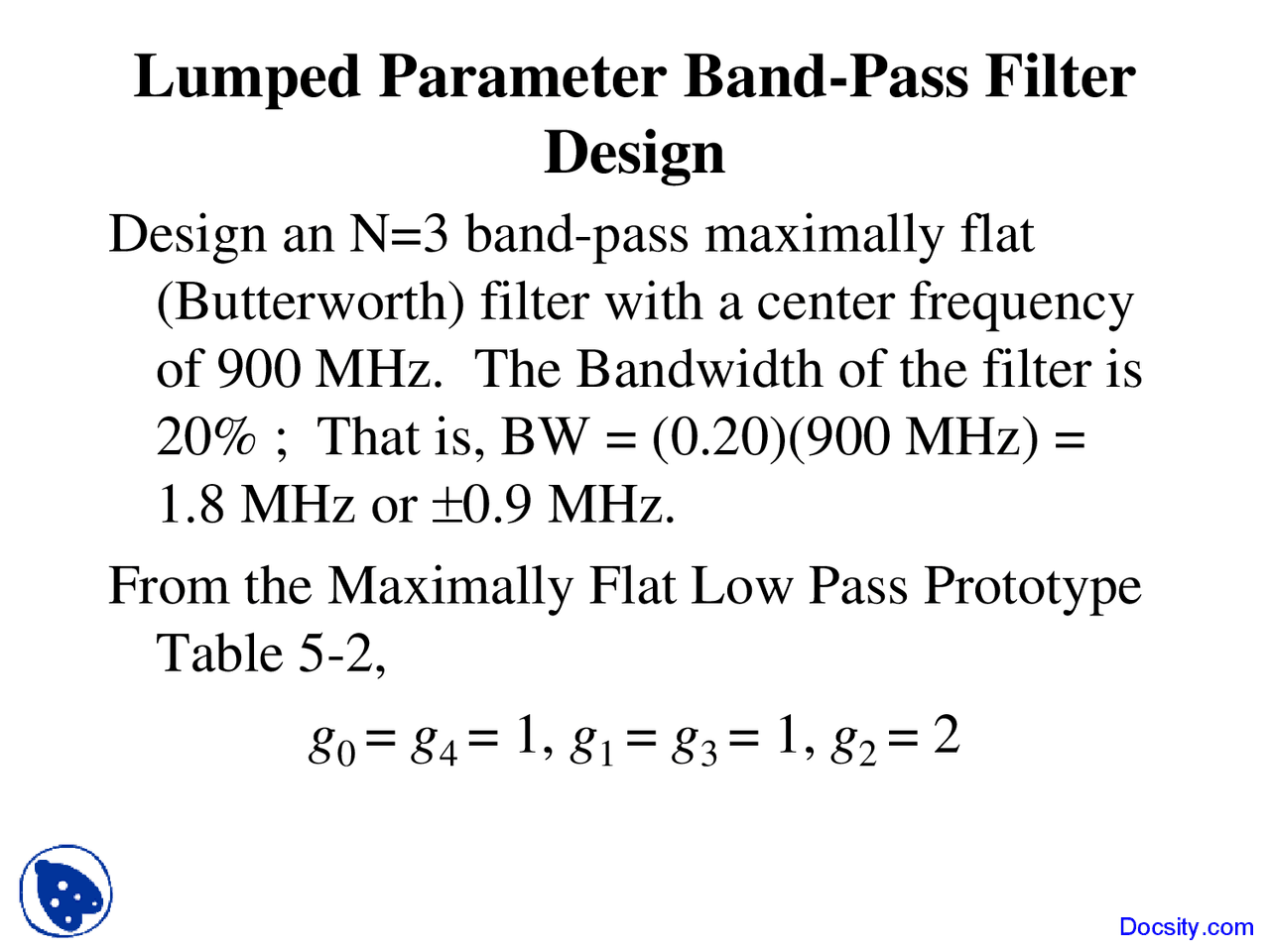

Lumped Parameter Band-Pass Filter
Design
Design an N=3 band-pass maximally flat
(Butterworth) filter with a center frequency
of 900 MHz. The Bandwidth of the filter is
20% ; That is, BW = (0.20)(900 MHz) =
1.8 MHz or ±0.9 MHz.
From the Maximally Flat Low Pass Prototype
Table 5-2,
g0 = g4 = 1, g1 = g3 = 1, g2 = 2
Docsity.com
pf3
pf4
pf5
pf8

Partial preview of the text

Download Lumped Parameter - RF and Microwave Engineering - Lecture Slides and more Slides Electronics engineering in PDF only on Docsity!

Lumped Parameter Band-Pass Filter

Design

Design an N=3 band-pass maximally flat

(Butterworth) filter with a center frequency

of 900 MHz. The Bandwidth of the filter is

20% ; That is, BW = (0.20)(900 MHz) =

1.8 MHz or ±0.9 MHz.

From the Maximally Flat Low Pass Prototype

Table 5-2,

g 0 = g 4 = 1, g 1 = g 3 = 1, g 2 = 2

Low Pass Prototype Filter

R (^) S g 0 =

L (^1) g 1 =

C (^2) g 1 =

L (^3) g 3 =

R (^) L g 4 =

Where the normalized center frequency is

ω c = 1, ω L = 1.1(2π·900 MHz), and

ω U = 0.9(2π·900 MHz)

So that ω U - ω L = 1.13Grad/s and

ω o = ω L ω U = 5. 627 Grad/s

Filter Simulation with Ansoft Designer

Filter Simulation with Ansoft Designer

Richards Transformation:

Lumped to Distributed Circuit Design

jX (^) L

jB (^) C

L

C

λ/ 8 at ω c

λ/ 8 at ω c

Zo = 1/(j ω C)

Zo = j ω L

Kuroda Transforms
