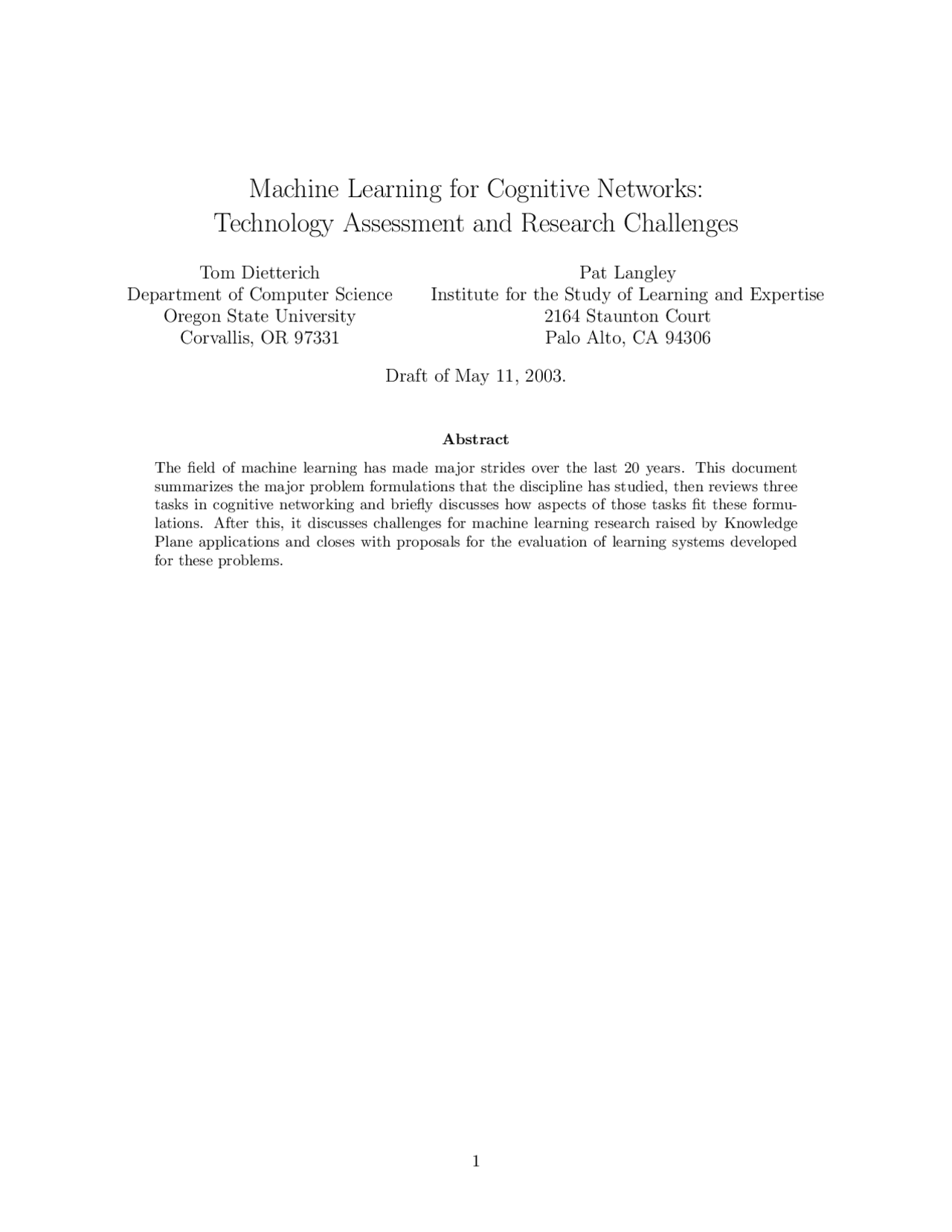

Machine Learning for Cognitive Networks:
Technology Assessment and Research Challenges
Tom Dietterich
Department of Computer Science
Oregon State University
Corvallis, OR 97331
Pat Langley
Institute for the Study of Learning and Expertise
2164 Staunton Court
Palo Alto, CA 94306
Draft of May 11, 2003.
Abstract The field of machine learning has made major strides over the last 20 years. This document summarizes the major problem formulations that the discipline has studied, then reviews three tasks in cognitive networking and briefly discusses how aspects of those tasks fit these formu- lations. After this, it discusses challenges for machine learning research raised by Knowledge Plane applications and closes with proposals for the evaluation of learning systems developed for these problems.
Environment Knowledge
Performance
Learning
Figure 1: Relationship between learning, performance, knowledge, and the environment.
1 Background and Motivation
Recently, Clark (2002) and Partridge (2003) have proposed a new vision for computer network management – the Knowledge Plane – that would augment the current paradigm of low-level data collection and decision making with higher-level processes. One key idea is that the Knowledge Plane would learn about its own behavior over time, making it better able to analyze problems, tune its operation, and generally increase its reliability and robustness. This suggests the incorporation of concepts and methods from machine learning (Langley, 1995; Mitchell, 1997), an established field that is concerned with such issues. Machine learning aims to understand computational mechanisms by which experience can lead to improved performance. In everyday language, we say that a person has ‘learned’ something from an experience when he can do something he could not, or could not do as well, before that experience. The field of machine learning attempts to characterize how such changes can occur by designing, implementing, running, and analyzing algorithms that can be run on computers. The discipline draws on ideas from many other fields, including statistics, cognitive psychology, information theory, logic, complexity theory, and operations research, but always with the goal of understanding the computational character of learning. There is general agreement that representational issues are central to learning. In fact, the field is often divided into paradigms that are organized around representational formalisms, such as de- cision trees, logical rules, neural networks, case libraries, and probabilistic notations. Early debate revolved around which formalism provided the best support for machine learning, but the advent of experimental comparisons around 1990 showed that, in general, no formalism led to better learning than any other. However, it also revealed that the specific features or representational encodings mattered greatly, and careful feature engineering remains a hallmark of successful applications of machine learning technology (Langley & Simon, 1995). Another common view is that learning always occurs in the context of some performance task, and that a learning method should always be coupled with a performance element that uses the knowledge acquired or revised during learning. Figure 1 depicts such a combined system, which ex- periences the environment, uses learning to transform those experiences into knowledge, and makes that knowledge available to a performance module that operates in the environment. Performance refers to the behavior of the system when learning is disabled. This may involve a simple activity, such as assigning a label or selecting an action, but it may also involve complex reasoning, plan- ning, or intepretation. The general goal of learning is to improve performance on whatever task the combined system is designed to carry out.
One can formulate a number of distinct learning tasks that produce knowledge for use in classifi- cation or regression. The most common, known as supervised learning, assumes the learner is given training cases with associated classes or values for the attribute to be predicted. For example, one might provide a supervised learning method with 200 instances of four different types of connection failure, say 50 instances of each class, with each instance described in terms of the attributes to be used later during classification. The analogous version for regression would provide instead the time taken to restore the connection for each training instance. There exist a variety of well-established paradigms for supervised learning, including decision- tree and rule induction (Quinlan, 1993; Clark & Niblett, 1988), neural network methods (Rumelhart et al., 1986), nearest neighbor approaches (Aha et al., 1991), and probabilistic methods (Buntine, 1996). These frameworks differ in the formalisms they employ for representing learned knowledge, as well as their specific algorithms for using and learning that knowledge. What these methods hold in common is their reliance on a target class or response variable to direct their search through the space of predictive models. They also share a common approach to evaluation, since their goal is to induce predictive models from training cases that have low error on novel test cases. A second broad class of tasks, unsupervised learning, assumes that the learner is given training cases without any associated class information or any specific attribute singled out for prediction. For example, one might provide an unsupervised method with the same 200 instances as before, but not include any information about the type of connection failure or the time taken to restore the connection. As with supervised learning, there exist many techniques for learning from unsupervised data, but these fall into two broad classes. One approach, known as clustering (Fisher, 1987; Cheeseman et al., 1988), assumes the goal of learning is to assign the training instances to distinct classes of its own invention, which can be used to classify novel instances and make inferences about them, say through pattern completion. For example, a clustering algorithm might group the 200 training instances into a number of classes that represent what it thinks are different types of service interruption. Another approach, known as density estimation (Priebe & Marchette, 1993), instead aims to build a model that predicts the probability of occurrence for specific instances. For example, given the same data about service interruptions, such a method would generate a probability density function that covers both the training instances and novel ones. A third formulation, known as semi-supervised learning (Blum & Mitchell, 1998), falls between the two approaches we have already discussed. In this framework, some of the training instances come with associated classes or values for predicted attributes, but others (typically the majority) do not have this information. This approach is common in domains such as text classification, where training cases are plentiful but class labels are costly. The goal is similar to that for supervised learning, that is, to induce a classifier or regressor that makes accurate predictions, but also to utilize the unlabeled instances to improve this behavior. For example, even if only 20 of the 200 training instances on service interruption included class information, one might still use regularities in the remaining instances to induce more accurate classifiers. Classification and regression are the most basic capabilities for which learning can occur. As a result, the field has developed robust methods for these tasks and they have been applied widely to develop accurate and useful predictive models from data. Langley and Simon (1995) review some early successes of these methods, and they have since formed the backbone for many commercial applications within the data-mining movement. Methods for classification and regression learning can also play a role in more complex tasks, but such tasks also introduce other factors that require additional mechanisms, as discussed in the next section.
2.2 Learning for Acting and Planning
A second formulation addresses learning of knowledge for selecting actions or plans for an agent to carry out in the world. In its simplest form, action selection can occur in a purely reactive way, ignoring any information about past actions. This version has a straightforward mapping onto classification, with alternative actions corresponding to distinct classes from which the agent can choose based on descriptions of the world state. One can also map it onto regression, with one predicting the overall value or utility of each action in a given world state. Both approaches can also be utilized for problem solving, planning, and scheduling. These involve making cognitive choices about future actions, rather than about immediate actions in the environment. These activities typically involve search through a space of alternatives, which knowledge can be used to constrain or direct. This knowledge may take the form of classifiers for which action to select or regression functions over actions or states. However, it can also be cast as larger-scale structures called macro-operators that specify multiple actions that should be carried out together. As with classification and regression, one can formulate a number of learning tasks that produce knowledge for action selection and search. The simplest approach, known as a learning apprentice (Mitchell et al., 1985) or an adaptive interface (Langley, 1999), embeds the learner within a larger system that interacts with a human user. This system may accept directions from the user about what choices to make or it may make recommendations to the user, who can then accept them or propose other responses. Thus, the user gives direct feedback to the system about each choice, effectively transforming the problem of learning to select actions into a supervised learning task, which can then be handled using any of the methods discussed earlier. A related paradigm, known as programming by demonstration (Cypher, 1993), focuses on learning macro-operators for later invocation by the user to let him accomplish things in fewer steps. For example, one might implement an interactive tool for network configuration that proposes, one step at a time, a few alternative components to incorporate or connections among them. The human user could select from among these recommendations or reject them all and select another option. Each such interaction would generate a training instance for use in learning how to configure a network, which would then be used on future interactions. One can imagine similar adaptive interfaces for network diagnosis and repair. A closely related formulation of action learning, known as behavioral cloning (Sammut et al., 1992), collects traces of a human acting in some domain, but does not offer advice or interact directly. Again, each choice the human makes is transformed into a training case for use by supervised learning. The main difference is that behavioral cloning aims to create autonomous agents for carrying out a sequential decision-making task, whereas learning apprentices and adaptive interfaces aim to produce intelligent assistants. For example, one could watch a human expert execute a sequence of commands in configuring a computer network, transform these into supervised training cases for learning which actions to select or estimating the value of available choices. However, one might also attempt to extract, from the same trace, recurring sets of actions for composition into macro-operators that would let one solve the same problem in fewer steps. A somewhat different formulation involves the notion of learning from delayed reward, more commonly known as reinforcement learning. Here the agent typically carries out action to take in the environment and receives some reward signal that indicates the desirability of the resulting states. However, because many steps may be necessary before the agent reaches a desirable state (e.g., reestablishing a service connection), the reward can be delayed. Research in the reinforcement learning framework falls into two main paradigms. One casts control policies in terms of functions that map state descriptions and available actions onto expected values (Kaelbling et al., 1996;
fewer training examples. One approach (Moore et al., 1998) employs regression to analyze the results of previous experiments and determine a region of interest in which the objective function can be approximated well, then chooses a new test point that is distant from other test points while still lying within this region. An alternative approach (Baluja & Caruana, 1995) is more appropriate for searching discrete parameter spaces such as those that arise in network configuration. Given a set of parameter settings (configurations) for which the performance has been measured, one fits a probability distribution to predict where additional “good” points are located, then samples a new set of configurations according to that distribution, measures their performance, and continues until convergence. Before closing, it is worth making two other points about learning for action selection and planning. First, in many domains, sensing requires active invocation, so that one can view it as a kind of action. Thus, an agent can learn policies for sensing, say to support efficient network diagnosis, just as it can for effectors, such as closing down a link in response to a suspected attack. Second, some methods for plan learning assume the availability of action models that describe the expected effects when actions are invoked. This leads in turn to the task of learning such action models from observations. This has many similarities to the problem of classification and regression learning, but aims to support higher-level learning about policies for acting and planning.
2.3 Learning for Interpretation and Understanding
A third formulation focuses on learning knowledge that lets one interpret and understand situations or events. Classification can be seen as a simple example of this idea, since one can ‘understand’ an instance as being an example of some class. However, more sophisticated approaches attempt to interpret observations in a more constructive manner, by combining a number of separate knowledge elements to explain them. The key difference is that classification and regression are content with models that make accurate predictions, whereas interpretive approaches require models that explain the data in terms of deeper structures. This process of explanation generation is often referred to as abduction. The explanatory or abductive approach is perhaps most easily demonstrated in natural language processing, where a common performance task involves parsing sentences using a context-free gram- mar or some related formalism. Such a grammar contains rewrite rules that refer to nonterminal symbols for types of phrases and parts of speech, and a parse tree specifies how can can derive or explain a sentence in terms of these rules. One can apply similar ideas to other domains, including the interpretation and diagnosis of network behavior. For example, given anomalous data about the transfer rates between various nodes in a network, one might explain these observations using known processes, such as demand for a new movie that is available at one site and desired by others. One can state a number of different learning tasks within the explanatory framework. The most tractable problem assumes that each training case comes with an associated explanation cast in terms of domain knowledge. This formulation is used commonly within the natural language community, where the advent of ‘tree banks’ has made available large corpora of sentences with their associated parse trees. The learning task involves generalizing over the training instances to produce a model that can be used to interpret or explain future test cases. Naturally, this approach places a burden on the developer, since it requires hand construction of explanations for each training case, but it greatly constrains the learning process, as it effectively decomposes the task into a set of separate classification or density estimation tasks, one for each component of the domain knowledge. A second class of learning task assumes that training instances do not have associated explana- tions, but provides background knowledge from which the learner can construct them. This problem
provides less supervision than the first, since the learner must consider alternative explanations for each training case and decide which ones are appropriate. However, the result is again some model that can be applied to interpret or explain future instances. This formulation is less burdesome on the developer, since he need not provide explanations for each training case, but only a domain theory from which the learner can construct them itself. Flann and Dietterich (1989) have referred to this learning task as induction over explanations, but it is also closely related to some work on constructive induction (Drastal et al., 1989). A final variant on learning for understanding provides training cases with neither explanations nor background knowledge from which to construct them. Rather, the learner must induce its own explanatory structures from regularities in the data, which it can then utilize to intepret and understand new test instances. An example from natural language involves the induction of context- free grammars, including both nonterminal symbols and the rewrite rules in which they occur, from legal training sentences (Stolcke & Omohundro, 1994). Clearly, this task requires even less effort on the developer’s part, but places a greater challenge on the learning system. This approach has gone by a variety of names in the machine learning literature, including term generation, representation change, and constructive induction (though this phrase has also been used for the second task). Because learning tasks that produce explanatory models are generally more difficult than those for classification and regression, some researchers have formulated more tractable versions of them. One variant assumes the qualitative structure of the explanatory model is given and that learn- ing involves estimating numeric parameters from the data. Examples of this approach include determining the probabilities in a stochastic context-free grammar, tuning the parameters in sets of differential equations, and inferring conditional probabilities in a Bayesian network. Another variation, known as theory revision, assumes an initial explanatory model that is approximately correct and utilizes training data to alter its qualitative structure. Examples include revising Horn clause programs from classified training cases, improving sets of equations from quantitative data, and altering grammars in response to training sentences.
2.4 Summary of Problem Formulations
In summary, one can formulate machine learning tasks in a variety of ways. These differ in both the manner in which learned knowledge is utilized and, at a finer level, in the nature of the training data that drives the learning process. Table 1 summarizes the main formulations that have been discussed in this section. However, it is important to realize that different paradigms have received different degrees of attention within the machine learning community. Supervised approaches to classification and regression have been the most widely studied by far, with reinforcement learning being the second most common. Yet their popularity in the mainstream community does not imply they are the best ways to approach problems in computer networking, and research on the Knowledge Plane should consider all the available options. Another important point is that one can often formulate a given real-world problem as a number of quite different learning tasks. For example, one might cast diagnosis of network faults as a classification problem that involves assigning the current network state to either a normal condition or one of a few prespecified faulty conditions. However, one could instead formulate it as a problem of understanding anomalous network behavior, say in terms of unobservable processes that, taken together, can explain recent statistics. Yet another option would be to state diagnosis as a problem of selecting active sensors that narrow down alternatives. Each formulation suggests different approaches to the diagnostic task, to learning knowledge in support of that task, and to criteria for evaluating the success of the learning component.
The second activity, fault isolation, requires the manager to identify the locus of an anomaly or fault within the network. For example, if a certain route has an especially heavy load, this may be due to changes at a single site along that route rather than to others. Hence, whereas anomaly detection can be performed locally (e.g., at each router), fault isolation requires the more global capabilities of the Knowledge Plane to determine the scope and extent of the anomaly. The activity of diagnosis involves drawing some conclusions about the cause of the anomalous behavior. Typically, this follows fault isolation, although in principle one might infer the presence of a specific problem without knowing its precise location. Diagnosis may involve the recognition of some known problems, say one the network manager has encountered before, or the characterization of a new problem that may involve familiar components. Supervised learning methods can be applied to allow a network manager to teach the system how to recognize known problems. This could be a prelude to automatically solving them, as discussed below. Both fault isolation and diagnosis may require active measurements to gather information. For example, an anomaly found at a high level of aggregation would typically require making more detailed observations at finer levels of detail to understand the cause. In the “Why?” scenario, one can imagine active probes of both the local computer (e.g., its configuration) and the internet (e.g., “pings” to see if the destination is reachable and up). Diagnosis usually must balance the cost of gathering information against the potential informativeness of the action. For example, if the ping succeeds, it requires little time, but otherwise it can take much longer to time out. If our goal is to diagnose the problem as quickly as possible, then ping might be a costly action to perform.^1 Fault isolation and diagnosis also typically require models of the structure of the system under diagnosis. Much recent effort in network research has sought to provide better ways of under- standing and visualizing the structure of the internet. Machine learning for interpretation could be applied to help automate this process. The resulting structural and behavioral models could then be used by model-based reasoning methods to perform fault isolation and diagnosis. Once a network manager has diagnosed a problem, he is in a position to repair it. However, there may exist different courses of action that would eliminate the problem, which have different costs and benefits. Moreover, when multiple managers are involved in the decision, different criteria may come into play that lead to negotiation. Selecting a repair strategy requires knowledge of available actions, their effects on network behavior, and the tradeoffs they involve. Supervised learning methods could be applied to learn the effects of various repair actions. Methods for learning in planning could be applied to learn repair strategies (or perhaps only to evaluate repair strategies suggested by a human manager). There may be some opportunity here for “collaborative filtering” methods that would provide an easy way for managers to share repair strategies. As stated, the ‘Why’ problem (Clark, 2002; Partridge, 2003) requires diagnosis of an isolated fault, but one can imagine variations that involve answering questions about anomalies, fault loca- tions, and actions taken to repair the system. Each of these also assumes some interface that lets the user pose a specific question in natural language or, more likely, in a constrained query lan- guage. Defining the space of Why questions the Knowledge Plane should support is an important research task that deserves attention early in the research program. (^1) Recent work in an area known as “cost-sensitive learning” addresses this tradeoff between cost and informative- ness.
3.2 Responding to Intruders and Worms
Responding to intruders (human, artificial, or their combination) and keeping networks and ap- plications safe encompasses a collection of tasks that are best explained depending on the time at which they are performed by a network manager. We can group them into tasks that occur before, during or after the occurrence of an intrusion, as the temporal model in Figure 2 depicts.
Monitoring Diagnosing Repairing Analysing
Intrusion Time
Repaired
Detection Response Auditing Detected
Prevention
Appraised window of vulnerability window of penetrability window of compromisibility
Figure 2: Time axis model of incident prevention, detection, and response tasks.
Prevention Tasks. Network managers try to minimize the likeliness of future intrusions by constantly auditing the system and eliminating threats beforehand. A network manager proactively performs security audits testing the computer systems for weaknesses —vulnerabilities or exposures. However scan tools (i.e., Nessus, Satan, and Oval) used for penetration or vulnerability testing only recognize a limited number of vulnerabilities given the ever increasing frequency of newly detected possibilities for breaking into a computer system or disturbing its normal operation. Thus, network managers continuously update scan tools with new plug-ins that permit them to measure new vulnerabilities. Once the existence of a vulnerability or exposure is perceived, network managers assess the convenience of discontinuing the service or application affected until the corresponding patch or intrusion detection signature is available. A tradeoff between risk level and service level is made in every assessment. Network managers aim at shrinking the window of vulnerability, the time gap between when a new vulnerability or exposure is discovered and a preventing solution (patch, new configuration, etc) is provided, as much as possible. A basic strategy to accomplish that objective is based on two conservative tasks: first, minimizing the number of exposures (i.e., disable unnecessary or optional services by configuring firewalls to allow only the use of ports that are necessary for the site to function) and, second, increasing awareness of new vulnerabilities and exposures (i.e., the subscription model that Partridge discusses with relation to worms). Finally, network managers continuously monitor the system so that pre-intrusion behavioral patterns can be understood and used for further reference when an intrusion occurs. Monitoring is an ongoing, preventive task.
Detection Tasks. The sooner an intrusion is detected, the more chances there are for impeding an unauthorized use or misuse of the computer system. Network managers monitor computer activities at different levels of detail: system call traces, operating system logs, audit trail records, resource usage, network connections, etc. Normally, they constantly try to fuse and correlate real-time reports and alerts stemming from different security devices (e.g., firewalls and intrusion detection systems) to stop suspicious activities before they have a negative impact (i.e., degrading
Table 2: Configuration tasks in increasing order of complexity
Global Local Problem: parameters parameters Topology Components Global Parameter Configuration XX Compatible Parameter Configuration XX XX Topological Configuration XX XX XX Component Selection and Configuration XX XX XX XX
3.3.1 A Spectrum of Configuration Tasks
The problem of the design and configuration of engineered systems has been studied in artificial intelligence since the earliest days (Tonge, 1963). Configuration is generally defined as a form of routine design from a given set of components or types of components (i.e., as opposed to designing the components themselves). As such, there is a spectrum of configuration problems of increasing difficulty, as shown in Table 2. The simplest task is parameter selection, where values or chosen for a set of global parameters in order to optimize some global objective function. Two classic examples are the task of setting the temperature, cycle time, pressure, and input/output flows of a chemical reactor and the task of controlling the rate of cars entering a freeway and the direction of flow of the express lanes. If a model of the system is known, this becomes purely an optimization problem, and many algorithms have been developed in operations research, numerical analysis, and computer science to solve such problems. The second task is compatible parameter selection. Here, the system consists of a set of com- ponents that interact with one another to achieve overall system function according to a fixed topology of connections. The effectiveness of the interactions is influenced by parameter settings which must be compatible in order for sets of components to interact. For example, a set of hosts on a subnet must agree on the network addresses and subnet mask in order to communicate using IP. Global system performance can depend in complex ways on local configuration parameters. Of course, there may also be global parameters to select as well, such as the protocol family to use. The third task is topological configuration. Here, the system consists of a set of components, but the topology must be determined. For example, given a set of hosts, gateways, file servers, printers, and backup devices, how should the network be configured to optimize overall performance? Of course, each proposed topology must be optimized through compatible parameter selection. Finally, the most general task is component selection and configuration. Initially, the configu- ration engine is given a catalog of available types of components (typically along with prices), and it must choose the types and quantities of components to create the network (and then, of course, solve the Topological Configuration problem of arranging these components).
3.3.2 The Reconfiguration Process
The discussion thus far has dealt only with the problem of choosing a configuration. However, a second aspect of configuration is determining how to implement the configuration efficiently. When a new computer network is being installed (e.g., at a trade show), the usual approach is to install the gateways and routers; then the file and print servers; and finally individual hosts, network access points, and the like. The reason for this is that this order makes it easy to test and configure each component and it minimizes the amount of re-work. Automatic configuration tools (e.g., DHCP) can configure the individual hosts if the servers are in place first.
A different challenge arises when attempting to change the configuration of an existing network, especially if the goal is to move to the new configuration without significant service interruptions. Most configuration steps require first determining the current network configuration, and then planning a sequence of reconfiguration actions and tests to move the system to its new configuration. Some steps may cause network partitions that prevent further (remote) configuration. Some steps must be performed without knowing the current configuration (e.g., because there is already a network partition, congestion problem, or attack).
3.3.3 Existing AI/ML Work on Configuration
Parameter Selection. As we discussed above, parameter selection becomes optimization (pos- sibly difficult, non-linear optimization) if the model of the system is known. Statisticians have studied the problem of empirical optimization in which no system model is available.
Compatible Parameter Configuration. The standard AI model of compatible parameter con- figuration is known as the constraint satisfaction problem (CSP). This consists of a graph where each vertex is a variable that can take values from set of possible values and each edge encodes a pair-wise constraint between the values of the variables that it joins. A large family of algorithms have been developed for finding solutions to CSPs efficiently (Kumar, 1992). In addition, it is pos- sible to convert CSPs into Boolean satisfiability problems, and very successful randomized search algorithms, such as WalkSAT (Selman et al., 1993), have been developed to solve these problems. The standard CSP has a fixed graph structure, but this can be extended to include a space of possible graphs and to permit continuous (e.g., linear algebraic) constraints. The field of constraint logic programming (CLP) (Jaffar & Maher, 1994) has developed programming languages based on ideas from logic programming that have a constraint solver integrated as part of the run-time system. The logic program execution can be viewed as conditionally expanding the constraint graph, which is then solved by the constraint system. Constraint logic programming systems have been used to specify and solve many kinds of configuration problems. To our knowledge, there has been no work on applying machine learning to help solve compatible parameter configuration problems. There is a simple form of learning that has been applied to CSPs called “nogood learning”, but it is just a form of caching to avoid wasting effort during CSP search. There are many potential learning problems including learning about the constraints relating pairs of variables and learning how to generalize CSP solutions across similar problems.
Topological Configuration. Two principal approaches have been pursued for topological con- figuration problems: refinement and repair. Refinement methods start with a single “box” that represents the entire system to be configured. The box has an attached formal specification of its desired behavior. Refinement rules analyze the formal specification and replace the single box with two or more new boxes with specified connections. For example, a small office network might initially be specified as a box that connects a set of workstations, a file server, and two printers to a DSL line. A refinement rule might replace this box with a local network (represented as a single box connected to the various workstations and servers) and a router/NAT box. A second refinement rule might then refine the network into a wireless access point and a set of wireless cards (or alternatively, into an ethernet switch and a set of ethernet cards and cables). There has been some work on applying machine learning to learn refinement rules in the domain of VLSI design (Mitchell et al., 1985). The repair-based approach to topological configuration starts with an initial configuration (which typically does not meet the required specifications) and then makes repairs to transform
learning that does not require a teacher. In particular, many of the networking applications re- quire looking for anomalies in real-time data streams, which can be formulated as a combination of unsupervised learning and learning for interpretation. Anomaly detection has been studied in machine learning, but usually it has considered only a fixed level of abstraction. For networking, there can be anomalies at the level of individual packets, but also at the level of connections, protocols, traffic flows, and network-wide disturbances. A very interesting challenge for machine learning is to develop methods that can perform simultaneous unsupervised learning at all of these levels of abstraction. At very fine levels of detail, network traffic is constantly changing, and therefore, is constantly novel. The purpose of introducing levels of abstraction is to hide unimportant variation while exposing important variation. Anomaly detection at multiple levels of abstraction can exploit regularities at these multiple levels to ensure that the anomaly is real. A similar idea—multi-scale analysis—has been exploited in computer vision, where it is reasonable to assume that a real pattern will be observable at multiple levels of abstraction. This helps reduce false alarms.
4.2 From Off-Line to On-Line Learning
Most applications of machine learning involve off-line approaches, where data is collected, manually labeled, and then provided to the learning algorithm in a batch process. KP applications involve the analysis of real-time data streams, and this poses new challenges and opportunities for learning algorithms. In the batch framework, the central constraint is usually the limited amount of training data. In contrast, in the data stream setting, new data is available at every time instant, so this problem is less critical. (Nonetheless, even in a large data stream, there may be relatively few examples of a particular phenomenon of interest, so the problem of sparse training data is not completely eliminated.) Moreover, the batch framework assumes that the learning algorithm has essentially unlimited amounts of computing time to search through the space of possible knowledge structures. In the on-line setting, the algorithm can afford only a fixed and limited amount of time to analyze each data point. Finally, in the batch framework, the criterion to be minimized is the probability of error on new data points. In the on-line framework, it makes more sense to consider the response time of the system. How many data points does it need to observe before it detects the relevant patterns? This can be reformulated as a mistake-bounded criterion: how many mistakes does the system make before it learns to recognize the pattern?
4.3 From Fixed to Changing Environments
Virtually all machine learning research assumes that the training sample is drawn from a stationary data source—the distribution of data points and the phenomena to be learned are not changing with time. This is not true in the networking case. Indeed, the amount of traffic and the structure of the network are changing continuously. The amount of traffic continues to rise exponentially and new autonomous systems are added to the internet almost every day. New networking applications (including worms and viruses) are introduced frequently. Research in machine learning needs to formalize new criteria for evaluating of learning systems in order to measure success in these changing environments. A major challenge is to evaluate anomaly detection systems, because by definition they are looking for events that have never been
seen before. Hence, they cannot be evaluated on a fixed set of data points, and measures are needed to quantify the degree of novelty of new observations.
4.4 From Centralized to Distributed Learning
Another important way in which KP applications differ from traditional machine learning problems is that, in the latter, it has usually been possible to collect all of the training data on a single machine and run the learning algorithm over that data collection. In contrast, a central aspect of the Knowledge Plane is that it is a distributed system of sensors, anomaly detectors, diagnostic engines, and self-configuring components. This raises a whole host of research issues. First, individual anomaly detectors can form models of their local traffic, but they would benefit from important traffic models learned elsewhere in the KP. This would help them detect a new event the first time they see it, rather than having to be exposed multiple times before the event pattern emerges. Second, some events are inherently distributed patterns of activity that cannot be detected at an individual network node. The research challenge here is to determine what kinds of statistics can be collected at the local level and pooled at the regional or global level to detect these patterns. This may involve a bi-directional process of information exchange in which local components report summary statistics to larger-scale “think points”. These think points detect a possible pattern that requires additional data to verify. So they need to request the local components to gather additional statistics. Managing this bi-directional statistical reasoning is an entirely new topic for machine learning research.
4.5 From Engineered to Constructed Representations
An important ingredient in the success of existing learning systems is the careful engineering of the attributes describing the training data. This “feature engineering” process is not well understood, but it involves combining background knowledge of the application domain with knowledge about learning algorithms. To illustrate this, consider a very simple example in networking arises in intrusion detection: Rather than describing network traffic using absolute IP addresses, it is better to describe packets according to whether they share the same or different IP addresses. This ensures that the learned intrusion detector is not specific to a single IP address but instead looks for patterns among a set of packets sharing a common address, regardless of the absolute value of the address. A critical challenge for machine learning is to develop more automatic ways of constructing the representations given to the learning algorithms. This requires making explicit the design principles currently used by human data analysts.
4.6 From Knowledge-Lean to Knowledge-Rich Learning
An important factor influencing the development of machine learning has been the relative cost of gathering training data versus building knowledge bases. The constructing and debugging of knowledge bases is a difficult and time-consuming process, and the resulting knowledge bases are expensive to maintain. In contrast, there are many applications where training data can be gathered fairly cheaply. This is why speech recognition and optical character recognition systems have been constructed primarily from training data. Any normal adult human is an expert in speech recognition and optical character recognition, so it is easy for them to label data points to training a learning system.
effectivness of learning in terms of the performance it aims to improve. Note also that the metrics mentioned above are quite vague, and they must be made operational before they can be used in experimental evaluations. In doing so, it may seem natural to use variables associated with one’s selected formulation of the learning problem, such as predictive accuracy for classification or received reward for action selection. We should resist this temptation and instead utilize variables that measure directly what is desired from a networking perspective. An experimental study also require the variation of one or more independent factors to determine their effects on behavior. In general, these can deal with:
- the effects of experience, such as the number of observations available to the learning system;
- the effects of data characteristics, such as the degree of noise or percentage of features missing;
- the effects of task characteristics, such as the complexity of a configuration problem or the number of simultaneous faults;
- the effects of system characteristics, such as the inclusion of specific learning modules or sensitivity to parameter settings; and
- the effects of background knowledge, such as information about network structure and band- width.
Again, which variables are appropriate will depend largely on the networking problem at hand and the specific learning methods being used. However, a full understanding of how machine learning can assist cognitive networking will require studies that examine each of the dimensions above. Of course, one cannot carry out experiments in the abstract. They require specific domains and problems that arise within them. To study the role of learning in network management, we need a number of testbeds that can foster the experimental evaluation of alternative approaches to learning. At least some of these should involve actual network, to ensure the collection of realistic data for training and testing the learning methods. However, these should be complemented with simulated networks, which have the advantage of letting one systematically vary characteristics of the performance task, the learning task, and the available data. Langley (1996) has argued that experiments with both natural and synthetic data are essential, since the former ensures relevance and the latter let one infer source of power and underlying causes. Much of the success of the last 15 years of machine learning research can be traced to the establishment of a collection of data sets at the University of California, Irvine (Murphy & Aha, 1994; Blake & Merz, 1998; Merz & Murphy, 1996). The UCI data sets provided a common set of problems on which to evaluate learning algorithms and greatly encouraged comparative studies. The data sets span a wide range of application problems ranging from basic science and medicine to optical character recognition and speech recognition. Ideally, we want an analog of this repository to enable the careful evaluation of machine learning in networking domains. However, because the Knowledge Plane envisions an adaptive network that learns about itself over time, it is important that this resource not be limited to static data sets, but also include simulated networks that allow learning methods, and their associated performance elements, to interact with the network environment in an on-line manner.
References
Aha, D. W., Kibler, D., & Albert, M. K. (1991). Instance-based learning algorithms. Machine Learning, 6 , 37.
Baluja, S., & Caruana, R. (1995). Removing the genetics from the standard genetic algorithm. The Proceedings of the 12th Annual Conference on Machine Learning (pp. 38–46). San Francisco, CA: Morgan Kaufmann.
Blake, C., & Merz, C. (1998). UCI repository of machine learning databases.
Blum, A., & Mitchell, T. (1998). Combining labeled and unlabeled data with co-training. Proc. 11th Annu. Conf. on Comput. Learning Theory (pp. 92–100). ACM Press, New York, NY.
Boyan, J., & Moore, A. (2000). Learning evaluation functions to improve optimization by local search. Journal of Machine Learning Research, 1 , 77–112.
Boyan, J. A., & Littman, M. L. (1994). Packet routing in dynamically changing networks: A reinforcement learning approach. Advances in Neural Information Processing Systems (pp. 671– 678). Morgan Kaufmann Publishers, Inc.
Buntine, W. (1996). A guide to the literature on learning probabilistic networks from data. IEEE Transactions on Knowledge and Data Engineering, 8 , 195–210.
Cheeseman, P., Self, M., Kelly, J., Taylor, W., Freeman, D., & Stutz, J. (1988). Bayesian classifi- cation. Proceedings of the Seventh National Conference on Artificial Intelligence (pp. 607–611). Cambridge, MA: AAAI Press/MIT Press.
Clark, D. (2002). A new vision for network architecture (Technical Report). MIT.
Clark, P., & Niblett, T. (1988). The cn2 induction algorithm. Machine Learning, 3 , 261.
Cypher, A. (1993). Watch what I do: Programming by demonstration. Cambridge, MA: MIT Press.
Drastal, G., Meunier, R., & Raatz, S. (1989). Error correction in constructive induction. Proceedings of the Sixth International Workshop on Machine Learning (ML 1989), Cornell University, Ithaca, New York, USA, June 26-27, 1989 (pp. 81–83). San Francisco: Morgan Kaufmann.
Fisher, D. H. (1987). Knowledge acquisition via incremental conceptual clustering. Machine Learn- ing, 2 , 139.
Flann, N. S., & Dietterich, T. G. (1989). A study of explanation-based methods for inductive learning. Machine Learning, 4 , 187–226.
Jaffar, J., & Maher, M. J. (1994). Constraint logic programming: A survey. Journal of Logic Programming, 19/20, 503–581.
Kaelbling, L. P., Littman, M. L., & Moore, A. W. (1996). Reinforcement learning: A survey. Journal of Artificial Intelligence Research, 4 , 237–285.
Kibler, D., & Langley, P. (1988). Machine learning as an experimental science. Proceedings of the Third European Working Session on Learning (pp. 81–92). Glasgow: Pittman.
Kumar, V. (1992). Algorithms for constraints satisfaction problems: A survey. The AI Magazine, 13 , 32–44.
Langley, P. (1995). Elements of machine learning. San Francisco: Morgan Kaufmann.
Langley, P. (1996). Relevance and insight in experimental studies. IEEE Expert, 11–12.
