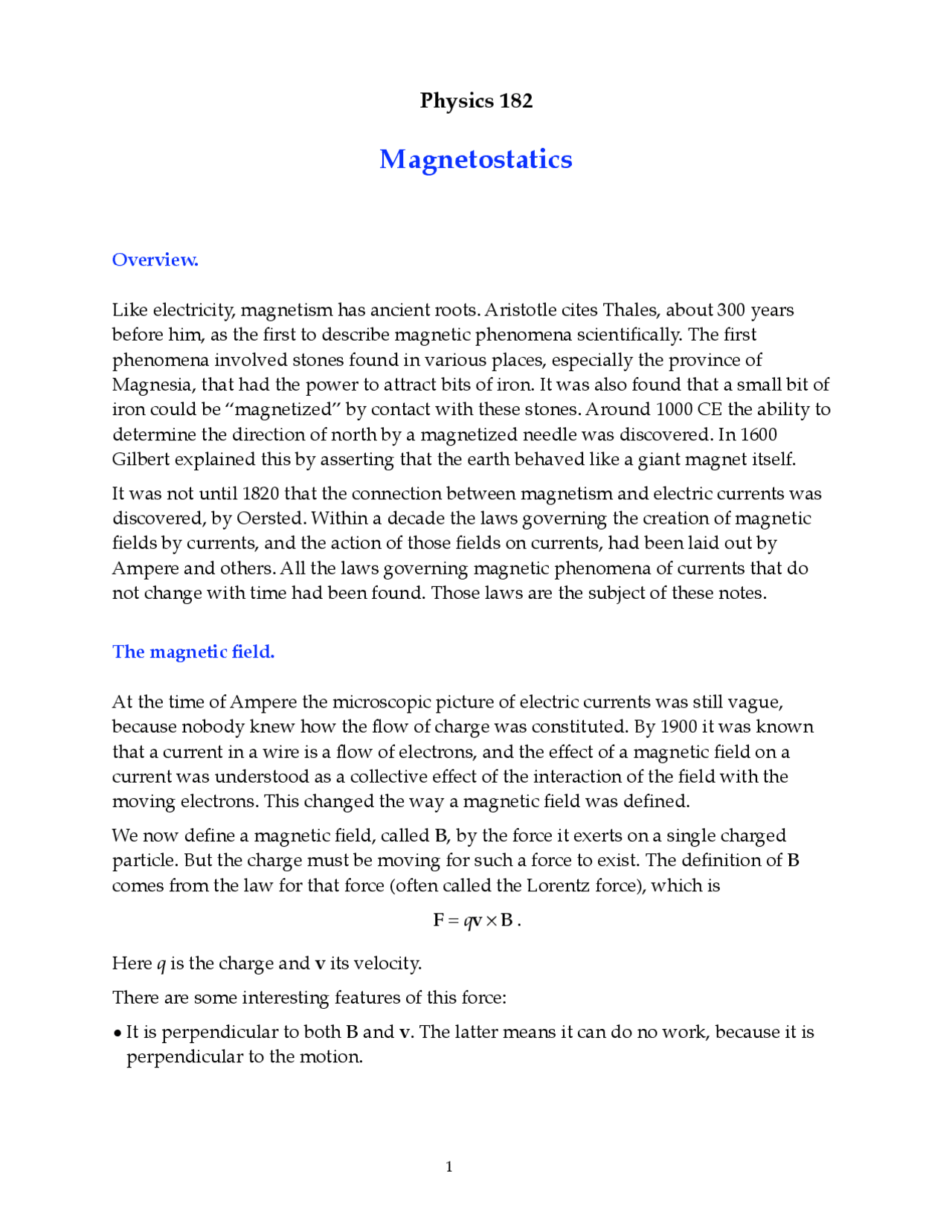

Physics 182
Magnetostatics
Overview.
Like electricity, magnetism has ancient roots. Aristotle cites Thales, about 300 years
before him, as the first to describe magnetic phenomena scientifically. The first
phenomena involved stones found in various places, especially the province of
Magnesia, that had the power to attract bits of iron. It was also found that a small bit of
iron could be “magnetized” by contact with these stones. Around 1000 CE the ability to
determine the direction of north by a magnetized needle was discovered. In 1600
Gilbert explained this by asserting that the earth behaved like a giant magnet itself.
It was not until 1820 that the connection between magnetism and electric currents was
discovered, by Oersted. Within a decade the laws governing the creation of magnetic
fields by currents, and the action of those fields on currents, had been laid out by
Ampere and others. All the laws governing magnetic phenomena of currents that do
not change with time had been found. Those laws are the subject of these notes.
The magnetic field.
At the time of Ampere the microscopic picture of electric currents was still vague,
because nobody knew how the flow of charge was constituted. By 1900 it was known
that a current in a wire is a flow of electrons, and the effect of a magnetic field on a
current was understood as a collective effect of the interaction of the field with the
moving electrons. This changed the way a magnetic field was defined.
We now define a magnetic field, called B, by the force it exerts on a single charged
particle. But the charge must be moving for such a force to exist. The definition of B
comes from the law for that force (often called the Lorentz force), which is
!
F=qv×B
.
Here q is the charge and v its velocity.
There are some interesting features of this force:
•It is perpendicular to both B and v. The latter means it can do no work, because it is
perpendicular to the motion.
!1!
pf3
pf4
pf5

Partial preview of the text

Download Magnetostatics: Understanding Magnetic Fields and Their Interactions with Currents and more Study notes Physics in PDF only on Docsity!

Physics 182

Magnetostatics

Overview. Like electricity, magnetism has ancient roots. Aristotle cites Thales, about 300 years before him, as the first to describe magnetic phenomena scientifically. The first phenomena involved stones found in various places, especially the province of Magnesia, that had the power to attract bits of iron. It was also found that a small bit of iron could be “magnetized” by contact with these stones. Around 1000 CE the ability to determine the direction of north by a magnetized needle was discovered. In 1600 Gilbert explained this by asserting that the earth behaved like a giant magnet itself. It was not until 1820 that the connection between magnetism and electric currents was discovered, by Oersted. Within a decade the laws governing the creation of magnetic fields by currents, and the action of those fields on currents, had been laid out by Ampere and others. All the laws governing magnetic phenomena of currents that do not change with time had been found. Those laws are the subject of these notes. The magnetic field. At the time of Ampere the microscopic picture of electric currents was still vague, because nobody knew how the flow of charge was constituted. By 1900 it was known that a current in a wire is a flow of electrons, and the effect of a magnetic field on a current was understood as a collective effect of the interaction of the field with the moving electrons. This changed the way a magnetic field was defined. We now define a magnetic field, called B , by the force it exerts on a single charged particle. But the charge must be moving for such a force to exist. The definition of B comes from the law for that force (often called the Lorentz force), which is F = q v × B. Here q is the charge and v its velocity. There are some interesting features of this force:

  • It is perpendicular to both^ B^ and^ v. The latter means it can do no work, because it is perpendicular to the motion.
  • In a uniform B-field a charge moving perpendicular to the field will move at constant speed in a circle of radius r = mv / qB. The frequency of revolution in this circle, called the “cyclotron frequency”, is qB /( 2 π m ) , which (for non-relativistic speeds) is independent of v.
  • If^ v^ also has a component along the direction of^ B , that component is unchanged, and the motion will be a helix. It is a straightforward calculation to find the force that a B-field will exert on an infinitesimal bit of current. This is best expressed in terms of the current density j , which is a vector field defined by j = ρ v , where ρ is the charge density and v is the average velocity of the motion of the charges. Then the force on an infinitesimal volume of charge is d F = ρ v × B d^3 r = j × B d^3 r. If the infinitesimal volume is a bit of wire of area A and length dl then this becomes d F = A j × B dl. In ordinary cases the charges move along the wire; we define a vector d l , directed along the wire with magnitude dl , and write j dl = j d l. This gives d F = jA d l × B. The quantity jA is the rate at which charge crosses area A , and is called the current I. This gives the force in a useful form: d F = I d l × B. To find the total force exerted by a magnetic field on a set of currents, one integrates the above expression over all the wires in the system. In formal terms, the current is the flux of j through a surface:

I = ∫ j ⋅ d A.

If the surface is closed, the current outward through it must equal the decrease in charge within the surface, by conservation of charge, so we have

∫^ j^ ⋅^ d A =^ −^

d dt

∫ ρ^ d^3 r.

But by the divergence theorem

∫^ j^ ⋅^ d A =^ ∫ ∇^ ⋅^ j d^3 r ,

so we find ∇ ⋅ j = − ∂ ρ ∂ t

∫ B^ ⋅^ d r =^ μ 0 ∫ j^ ⋅^ d A.

This field equation is usually called Ampere’s law. Because the field has zero divergence it can be written as the curl of another vector field: B = ∇ × A. This field, A , is called the vector potential. Like the electrostatic scalar potential. it is not unique. To it can be added the gradient of any scalar, since the curl of a gradient is identically zero. The choice of such a gradient is called choosing a gauge , and a change of that choice is a gauge transformation. One popular choice is to make ∇ ⋅ A = 0. This choice is called the “Coulomb gauge”, because A satisfies an equation resembling Poisson’s equation: ∇^2 A = − μ 0 j. The solution of this is analogous to the formula for the scalar potential in electrostatics: A ( r ) = μ 0 4 π d^3 r ′ j ( r ′)

∫ R

Example: a uniform B-field. The field A ( r ) = 1 2 B × r gives both ∇ × A = B and ∇ ⋅ A = 0. Exercise: Prove these claims. The integral form of the curl equation, like the integral form of Gauss’s law for electricity, can be used to make formal arguments about the field, and, in a few cases of high symmetry, to calculate the field to a good approximation. This equation reads:

∫^ B^ ⋅^ d r =^ μ 0 ∫ j^ ⋅^ d A =^ μ 0 Ilinked.

Here Ilinked is the net current (the flux of j ) passing through the area bounded by the closed curve over which the line integral is taken. The direction of a positive current is determined by a right hand rule: curl your right hand fingers around the way the closed curve is integrated; your thumb indicates positive current. There are several examples of this use of Ampere’s law worked out in G. Summary of static fields. The field equations, up to now, are these:

• Electricity: ∇ ⋅ E = ρ / ε 0 , ∇ × E = 0 or ε 0 ∫ E ⋅ d A =∫ ρ d^3 r , ∫ E ⋅ d r = 0.

• Magnetism:^ ∇^ ⋅^ B^ =^0 ,^ ∇^ ×^ B^ =^ μ 0 j^ or^ ∫ B^ ⋅^ d A =^0 ,^ ∫ B^ ⋅^ d r =^ μ 0 ∫ j^ ⋅^ d A.

Note that none of the equations involves both E and B. To these must be added the law specifying the force the fields exert on a single point charge: F = q ( E + v × B ). As noted, at this point we require ∇ ⋅ j = 0 , so only steady currents and time independent charge densities are described by these equations. When those restrictions are relaxed, we find additional terms are needed in the field equations, linking E and B.
