7

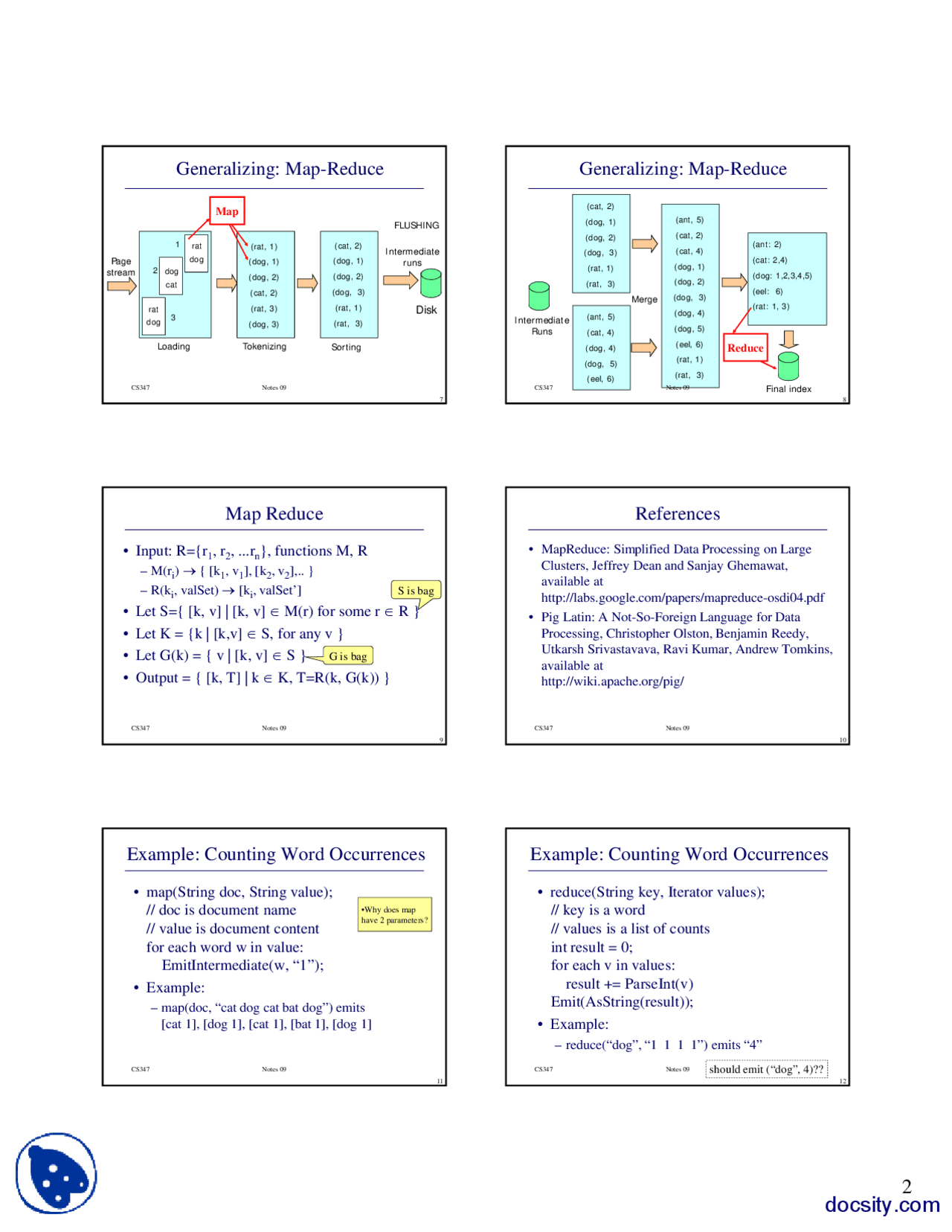

Generalizing: Map-Reduce
rat dog dog cat
rat dog
(rat, 1) (dog, 1) (dog, 2) (cat, 2) (rat, 3) (dog, 3)
(cat, 2) (dog, 1) (dog, 2) (dog, 3) (rat, 1) (rat, 3)
Disk
Page stream
Loading Tokenizing Sorting
FLUSHING
Intermediate runs
Map
CS347 Notes 09 8
Generalizing: Map-Reduce
(cat, 2) (dog, 1) (dog, 2) (dog, 3) (rat, 1) (rat, 3)
Intermediate Runs
Final index
(ant, 5) (cat, 4) (dog, 4) (dog, 5) (eel, 6)
Merge
(ant, 5) (cat, 2) (cat, 4) (dog, 1) (dog, 2) (dog, 3) (dog, 4) (dog, 5) (eel, 6) (rat, 1) (rat, 3)
(ant: 2) (cat: 2,4) (dog: 1,2,3,4,5) (eel: 6) (rat: 1, 3)
Reduce
CS347 Notes 09
9
Map Reduce
- Input: R={r 1 , r 2 , ...r (^) n}, functions M, R
- M(r (^) i ) { [k 1 , v 1 ], [k 2 , v 2 ],.. }
- R(ki , valSet) [k (^) i , valSet’]
- Let S={ [k, v] | [k, v] M(r) for some r R }
- Let K = {k | [k,v] S, for any v }
- Let G(k) = { v | [k, v] S }
- Output = { [k, T] | k K, T=R(k, G(k)) }
S is bag
G is bag
CS347 Notes 09 10
References
- MapReduce: Simplified Data Processing on Large Clusters, Jeffrey Dean and Sanjay Ghemawat, available at http://labs.google.com/papers/mapreduce-osdi04.pdf
- Pig Latin: A Not-So-Foreign Language for Data Processing, Christopher Olston, Benjamin Reedy, Utkarsh Srivastavava, Ravi Kumar, Andrew Tomkins, available at http://wiki.apache.org/pig/
CS347 Notes 09
11
Example: Counting Word Occurrences
- map(String doc, String value); // doc is document name // value is document content for each word w in value: EmitIntermediate(w, “1”);
- Example:
- map(doc, “cat dog cat bat dog”) emits [cat 1], [dog 1], [cat 1], [bat 1], [dog 1]
•Why does map have 2 parameters?
CS347 Notes 09 12
Example: Counting Word Occurrences
- reduce(String key, Iterator values); // key is a word // values is a list of counts int result = 0; for each v in values: result += ParseInt(v) Emit(AsString(result));
- Example:
- reduce(“dog”, “1 1 1 1”) emits “4”
CS347 Notes 09 should emit (“dog”, 4)??
13
Google MR Overview
CS347 Notes 09 14
Implementation Issues
- Combine function
- File system
- Partition of input, keys
- Failures
- Backup tasks
- Ordering of results
CS347 Notes 09
15
Combine Function
worker
worker
[cat 1], [cat 1], [cat 1]... worker
[dog 1], [dog 1]...
worker
worker
[cat 3]... worker
[dog 2]...
Combine is like a local reduce applied before distribution:
CS347 Notes 09 16
Distributed File System
worker must be able to access any part of input file
reduce worker must be able to access local disks on map workers
any worker must be able to write its part of answer; answer is left as distributed file
all data transfers are through distributed file system
CS347 Notes 09
17
Partition of input, keys
- How many workers, partitions of input file?
worker
worker
worker
How many splits?
How many workers? Best to have many splits per worker: Improves load balance; if worker fails, easier to spread its tasks
Should workers be assigned to splits “near” them?
Similar questions for reduce workers
CS347 Notes 09 18
Failures
- Distributed implementation should produce same output as would have been produced by a non- faulty sequential execution of the program.
- General strategy: Master detects worker failures, and has work re-done by another worker.
worker
worker
split j
master ok?
redo j
CS347 Notes 09
25
Questions
- Can MR be made more “declarative”?
- How can we perform joins?
- How can we perform approximate grouping?
- example: for all keys that are similar
reduce all values for those keys
CS347 Notes 09 26
Additional Topics
- Hadoop: open-source Map-Reduce system
- Pig: Yahoo system that builds on MR but is more declarative
CS347 Notes 09
27
Pig & Pig Latin
- A layer on top of map-reduce (Hadoop)
- Pig is the system
- Pig Latin is the query language
- Pig Latin is a hybrid between:
- high-level declarative query language in the spirit of SQL
- low-level, procedural programming à la map- reduce.
CS347 Notes 09 28
Example
- Table urls: (url, category, pagerank)
- Find, for each sufficiently large category, the average pagerank of high-pagerank urls in that category. In SQL:
- SELECT category, AVG(pagerank) FROM urls WHERE pagerank > 0. GROUP BY category HAVING COUNT(*) > 10 6
CS347 Notes 09
29
Example in Pig Latin
- SELECT category, AVG(pagerank)
FROM urls WHERE pagerank > 0. GROUP BY category HAVING COUNT(*) > 10 6
- In Pig Latin:
- good_urls = FILTER urls BY pagerank > 0.2;
groups = GROUP good_urls BY category; big_groups = FILTER groups BY COUNT(good_urls)>10^6 ; output = FOREACH big_groups GENERATE category, AVG(good_urls.pagerank);
CS347 Notes 09 30
z.cnn.com .com 0. y.yale.edu .edu 0. w.uc.edu .edu 0. x.nyt.com .com 0. y.ut.edu .edu 0. w.wh.gov .gov 0.
good_urls = FILTER urls BY pagerank > 0.2;
z.cnn.com .com 0. y.yale.edu .edu 0. x.nyt.com .com 0. y.ut.edu .edu 0. w.wh.gov .gov 0.
urls: url, category, pagerank good_urls: url, category, pagerank
CS347 Notes 09
31
groups = GROUP good_urls BY category;
z.cnn.com .com 0. y.yale.edu .edu 0. x.nyt.com .com 0. y.ut.edu .edu 0. w.wh.gov .gov 0.
.com {(z.cnn.com, .com, 0.9) (x.nyt.com, .com, 0.8)} .edu {(y.yale.edu, .edu, 0.5) (y.ut.edu, .edu, 0.6)} .gov {(w.wh.gov, .gov, .07)}
good_urls: url, category, pagerank
groups: category, good_urls
CS347 Notes 09 32
big_groups = FILTER groups BY COUNT(good_urls)>1;
.com {(z.cnn.com, .com, 0.9) (x.nyt.com, .com, 0.8)} .edu {(y.yale.edu, .edu, 0.5) (y.ut.edu, .edu, 0.6)} .gov {(w.wh.gov, .gov, .07)}
.com {(z.cnn.com, .com, 0.9) (x.nyt.com, .com, 0.8)} .edu {(y.yale.edu, .edu, 0.5) (y.ut.edu, .edu, 0.6)}
groups: category, good_urls
big_groups: category, good_urls
CS347 Notes 09
33
output = FOREACH big_groups GENERATE category, AVG(good_urls.pagerank);
.com {(z.cnn.com, .com, 0.9) (x.nyt.com, .com, 0.8)} .edu {(y.yale.edu, .edu, 0.5) (y.ut.edu, .edu. 0.6)}
.com 0. .edu 0.
big_groups: category, good_urls
output: category, good_urls
CS347 Notes 09 34
Features
- Similar to specifying a query execution plan (i.e., a dataflow graph), thereby making it easier for programmers to understand and control how their data processing task is executed.
- Support for a flexible, fully nested data model
- Extensive support for user-defined functions
- Ability to operate over plain input files without any schema information.
- Novel debugging environment useful when dealing with enormous data sets.
CS347 Notes 09
35
Execution Control: Good or Bad?
spam_urls = FILTER urls BY isSpam(url); culprit_urls = FILTER spam_urls BY pagerank>0.8;
- Should system re-order filters?
CS347 Notes 09 36
User Defined Functions
- Example
- groups = GROUP urls BY category;
- output = FOREACH groups GENERATE
category, top10(urls);
UDF top10 can return scalar or set
.gov {(x.fbi.gov, .gov, 0.7) ...}
.edu {(y.yale.edu, .edu, 0.5) ...}
.com {(z.cnn.com, .com, 0.9) ...}
.gov {(fbi.gov) (cia.gov) ...}
.edu {(yale.edu) ...}
.com {(cnn.com) (ibm.com) ...}
should be groups.url?
CS347 Notes 09
43
Flattening Example (Fill In)
a1 b1, b2 {(c1) (c2)} a1 b3, b4 {(c1) (c2)} a1 b5 {(c1) (c2)} a2 b6 {(c3) (c4)} a2 (b7, b8) {(c3) (c4)}
Y = FOREACH X GENERATE
A, FLATTEN(B), C
Z = FOREACH Y GENERATE
A, B, FLATTEN(C)
Z’ = FOREACH X GENERATE
A, FLATTEN(B),
FLATTEN(C)?
Is Z=Z’ where
CS347 Notes 09 44
Flattening Example
X A B C
Y = FOREACH X GENERATE
A, FLATTEN(B), C
Flatten is not recursive
Note first tuple is (a1, b1, b2, {(c1)(c2)})
Note attribute naming gets complicated. For example, $2 for first tuple is b2; for third tuple it is {(c1)(c2)}.
a1 {(b1, b2) (b3, b4) (b5)} {(c1) (c2)} a2 {(b6, (b7,b8))} {(c3) (c4)}
a1 b1 b2 {(c1) (c2)} a1 b3 b4 {(c1) (c2)} a1 b5 {(c1) (c2)} a2 b6 (b7, b8) {(c3) (c4)}
CS347 Notes 09
45
Flattening Example
a1 b1, b2 {(c1) (c2)} a1 b3, b4 {(c1) (c2)} a1 b5 {(c1) (c2)} a2 b6 {(c3) (c4)} a2 (b7, b8) {(c3) (c4)}
Y = FOREACH X GENERATE
A, FLATTEN(B), C
Z = FOREACH Y GENERATE
A, B, FLATTEN(C)
Z’ = FOREACH X GENERATE
A, FLATTEN(B),
FLATTEN(C)
Note that Z=Z’ where
a1 b1 b2 c a1 b1 b2 c a1 b3 b4 c a1 b3 b4 c a1 b5 c a1 b5 c a2 b6 (b7, b8) c a2 b6 (b7, b8) c
CS347 Notes 09 46
Filter
- real_queries = FILTER queries BY userId neq `bot';
- real_queries = FILTER queries BY NOT isBot(userId);
UDF function
CS347 Notes 09
47
Co-Group
- Two data sets for example:
- results: (queryString, url, position)
- revenue: (queryString, adSlot, amount)
- grouped_data = COGROUP results BY
queryString, revenue BY queryString;
- url_revenues = FOREACH grouped_data GENERATE
FLATTEN(distributeRevenue(results, revenue));
- Co-Group more flexible than SQL JOIN
CS347 Notes 09 48
CoGroup vs Join
CS347 Notes 09
49
Group (Simple CoGroup)
- grouped_revenue = GROUP revenue BY queryString;
- query_revenues = FOREACH grouped_revenue GENERATE queryString, SUM(revenue.amount) AS totalRevenue;
CS347 Notes 09 50
CoGroup Example 1
X A B C Y A B D
Z1 = GROUP X BY A
1 1 d 1 2 d 2 1 d 2 2 d
Z1 A X
1 1 c 1 1 c 2 2 c 2 2 c
CS347 Notes 09
51
CoGroup Example 1
X A B C Y A B D
Z1 = GROUP X BY A
1 1 d 1 2 d 2 1 d 2 2 d
Z1 A X
1 1 c 1 1 c 2 2 c 2 2 c
1 {(1, 1, c1) (1, 1, c2)} 2 {(2, 2, c3) (2, 2, c4)}
CS347 Notes 09 52
CoGroup Example 2
X A B C Y A B D
Z2 = GROUP X BY (A, B)
1 1 d 1 2 d 2 1 d 2 2 d
1 1 c 1 1 c 2 2 c 2 2 c
Z1? X
Syntax not in paper but being added
CS347 Notes 09
53
CoGroup Example 2
X A B C Y A B D
Z2 = GROUP X BY (A, B)
1 1 d 1 2 d 2 1 d 2 2 d
1 1 c 1 1 c 2 2 c 2 2 c
Z1 A/B? X
Syntax not in paper but being added
(1, 1) {(1, 1, c1) (1, 1, c2)} (2, 2) {(2, 2, c3) (2, 2, c4)}
CS347 Notes 09 54
CoGroup Example 3
X A B C Y A B D
Z3 = COGROUP X BY A, Y BY A
1 1 d 1 2 d 2 1 d 2 2 d
1 1 c 1 1 c 2 2 c 2 2 c
Z1 A X Y
CS347 Notes 09
61
MapReduce in Pig Latin
- map_result = FOREACH input GENERATE FLATTEN(map(*));
- key_groups = GROUP map_result BY $0;
- output = FOREACH key_groups GENERATE reduce(*);
all attributes
key is first attribute
CS347 Notes 09 62
Store
- To materialize result in a file:
- STORE query_revenues INTO `myoutput' USING myStore();
custom serializer
output file
CS347 Notes 09
63
Hadoop
- HDFS: Hadoop file system
- How to use Hadoop, examples
- Material covered by David...
CS347 Notes 09
