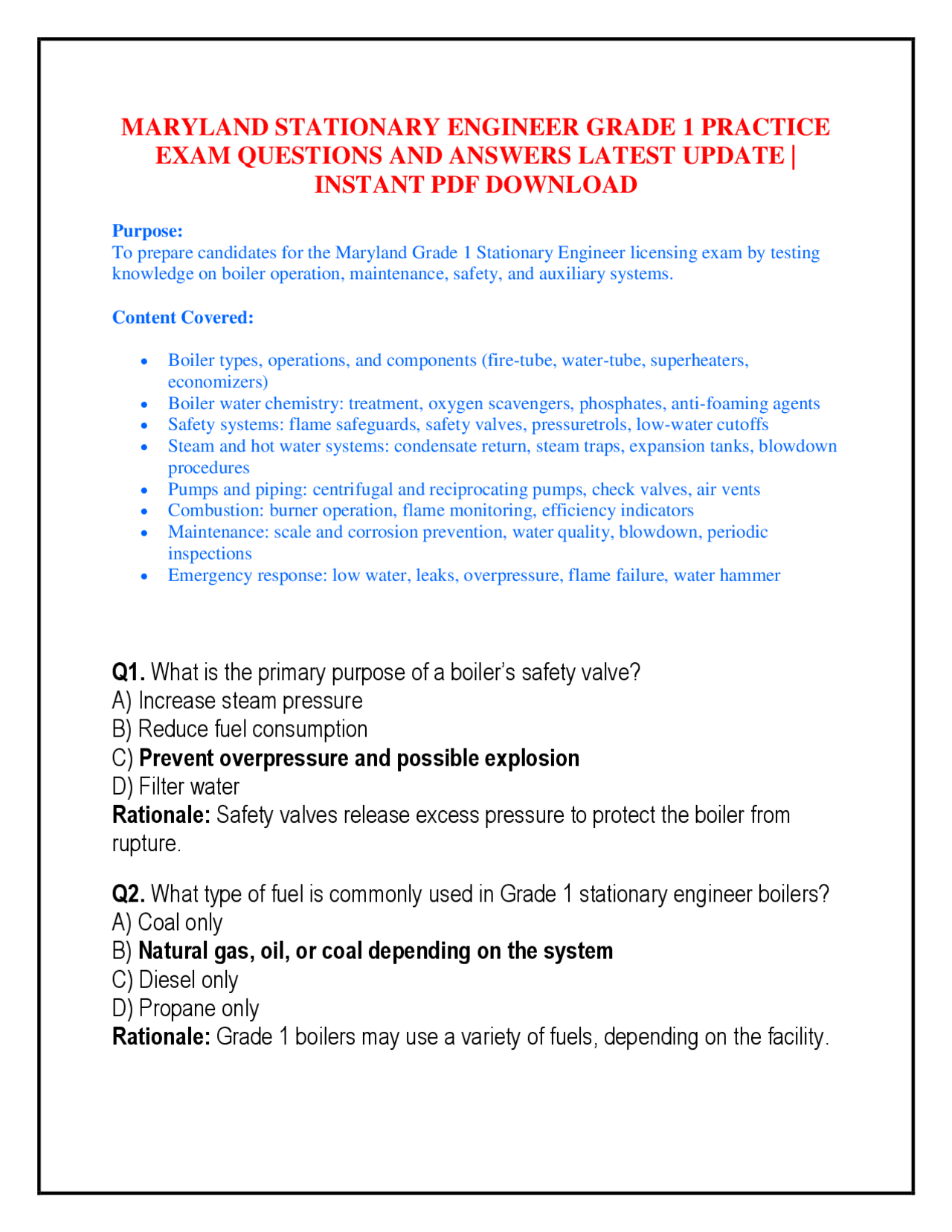

MARYLAND STATIONARY ENGINEER GRADE 1 PRACTICE
EXAM QUESTIONS AND ANSWERS LATEST UPDATE |
INSTANT PDF DOWNLOAD
Purpose: To prepare candidates for the Maryland Grade 1 Stationary Engineer licensing exam by testing knowledge on boiler operation, maintenance, safety, and auxiliary systems. Content Covered: Boiler types, operations, and components (fire-tube, water-tube, superheaters, economizers) Boiler water chemistry: treatment, oxygen scavengers, phosphates, anti-foaming agents Safety systems: flame safeguards, safety valves, pressuretrols, low-water cutoffs Steam and hot water systems: condensate return, steam traps, expansion tanks, blowdown procedures Pumps and piping: centrifugal and reciprocating pumps, check valves, air vents Combustion: burner operation, flame monitoring, efficiency indicators Maintenance: scale and corrosion prevention, water quality, blowdown, periodic inspections Emergency response: low water, leaks, overpressure, flame failure, water hammer Q1. What is the primary purpose of a boiler’s safety valve? A) Increase steam pressure B) Reduce fuel consumption C) Prevent overpressure and possible explosion D) Filter water Rationale: Safety valves release excess pressure to protect the boiler from rupture. Q2. What type of fuel is commonly used in Grade 1 stationary engineer boilers? A) Coal only B) Natural gas, oil, or coal depending on the system C) Diesel only D) Propane only Rationale: Grade 1 boilers may use a variety of fuels, depending on the facility.
Q3. Which instrument measures boiler water pressure? A) Thermometer B) Flow meter C) Pressure gauge D) Level gauge Rationale: Pressure gauges monitor boiler pressure to ensure safe operation. Q4. What is the correct sequence for starting a boiler? A) Open fuel valve, ignite burner, start pump B) Check water level, start feed pump, ignite burner C) Ignite burner, check pressure, fill water D) Turn on feed pump only Rationale: Proper sequence ensures safe operation and prevents damage. Q5. What is the purpose of a boiler water level gauge? A) Measure steam pressure B) Prevent low-water conditions that can damage the boiler C) Control fuel flow D) Measure temperature Rationale: Low water can cause overheating and potential boiler failure. Q6. What is “blowdown” in a boiler? A) Shutting down the burner B) Removing sediment or impurities from the boiler water C) Igniting the fuel D) Venting steam into the atmosphere Rationale: Blowdown prevents scale and corrosion buildup inside the boiler. Q7. Which type of pump is commonly used for boiler feedwater? A) Centrifugal or reciprocating B) Gear pump only C) Centrifugal or reciprocating pumps D) Diaphragm pump only Rationale: These pumps can handle high pressure and ensure consistent water flow.
Rationale: Superheaters improve steam efficiency and reduce condensation in the system. Q13. Which type of boiler is typically used in a Grade 1 facility? A) Fire-tube and water-tube boilers B) Cast iron boilers only C) Fire-tube and water-tube boilers D) Residential hot water boilers only Rationale: Industrial facilities use these designs for steam generation and high- pressure service. Q14. What is the purpose of a deaerator in a boiler system? A) Increase fuel efficiency B) Remove dissolved oxygen and gases from feedwater C) Control water level D) Vent steam Rationale: Removing oxygen prevents corrosion in the boiler and piping. Q15. What is the primary hazard of low water in a boiler? A) Excess pressure B) Steam condensation C) Overheating and possible boiler failure D) Fuel waste Rationale: Low water exposes boiler metal to excessive heat, causing damage. Q16. Which device indicates water level in a high-pressure boiler? A) Pressure gauge B) Thermometer C) Sight glass / water column D) Flow meter Rationale: Sight glasses allow operators to visually monitor water level safely. Q17. What type of combustion control is common in Grade 1 boilers? A) Manual only B) Modulating or on/off with flame safeguard C) Visual inspection only
D) Automatic fuel shutdown only Rationale: Flame safeguards ensure safe ignition and operation. Q18. Which of the following is a common boiler water treatment chemical? A) Chlorine B) Sodium phosphate or oxygen scavengers C) Sodium bicarbonate D) Sulfuric acid Rationale: These chemicals prevent scale, corrosion, and foaming. Q19. What is the function of a burner management system (BMS)? A) Monitor water flow B) Control safe startup, operation, and shutdown of burners C) Measure steam quality D) Vent excess pressure Rationale: BMS prevents unsafe ignition and monitors boiler operation. Q20. Which is the correct action if a high-pressure boiler safety valve lifts? A) Ignore it B) Close fuel valve immediately C) Check pressure and ensure valve is functioning properly D) Drain water Rationale: Lifting may indicate overpressure; proper inspection ensures safe operation. Q21. What is the purpose of a condensate return system? A) Burn fuel B) Vent steam C) Return condensed steam to the boiler to save water and energy D) Reduce pressure Rationale: Improves efficiency by recycling hot water. Q22. Which type of pump is used for condensate return? A) Centrifugal B) Centrifugal or reciprocating condensate pump C) Diaphragm only
D) Excess fuel Rationale: Scale reduces heat transfer and can cause overheating. Q28. Which is the purpose of a boiler economizer? A) Reduce water level B) Vent excess steam C) Preheat feedwater using flue gas heat D) Increase fuel pressure Rationale: Improves efficiency by recycling heat. Q29. Which is the primary hazard of a fuel oil leak in a boiler room? A) Excess water B) Fire and explosion C) Steam condensation D) Electrical failure Rationale: Fuel leaks are highly flammable and can ignite easily. Q30. How often should boiler safety valves be tested? A) Never B) Annually or per manufacturer/state regulations C) Monthly only D) Daily Rationale: Ensures valves operate reliably in overpressure situations. Q31. Which device measures steam temperature? A) Pressure gauge B) Thermometer or thermocouple C) Level gauge D) Flow meter Rationale: Temperature measurement ensures safe and efficient steam production. Q32. What is the purpose of a deaerator heater? A) Burn fuel B) Remove dissolved gases from feedwater C) Increase steam pressure
D) Vent condensate Rationale: Reduces corrosion risk by removing oxygen and carbon dioxide. Q33. Which chemical prevents boiler corrosion? A) Chlorine B) Oxygen scavenger (e.g., sodium sulfite) C) Sodium chloride D) Sulfuric acid Rationale: Oxygen scavengers neutralize dissolved oxygen in water. Q34. Which type of boiler requires a blowdown at the bottom? A) Fire-tube only B) Water-tube only C) Both fire-tube and water-tube D) Electric only Rationale: Removes sediment and maintains water quality. Q35. Which is a primary indicator of proper boiler combustion? A) Steam temperature only B) Flue gas composition and color C) Water level D) Pump pressure Rationale: Proper combustion produces blue or light flue gas; yellow or smoke indicates issues. Q36. What is the function of a flame scanner? A) Measure water pressure B) Detect flame presence for safe burner operation C) Vent steam D) Control feedwater Rationale: Ensures burner is lit and prevents unburned fuel accumulation. Q37. Which is the main purpose of a boiler drum? A) Vent steam B) Separate steam from water C) Increase fuel efficiency
D) Valve malfunction Rationale: Priming can damage steam equipment downstream. Q43. How is feedwater level maintained automatically? A) Manually only B) Using float or electronic level controls C) Pressure gauge only D) Sight glass only Rationale: Automatic controls prevent low-water conditions. Q44. Which factor affects boiler efficiency the most? A) Color of boiler B) Fuel quality and combustion control C) Size of feedwater pump D) Location of sight glass Rationale: Proper combustion and fuel efficiency are critical to overall performance. Q45. Which device prevents backflow in a hot water system? A) Boiler drum B) Thermometer C) Check valve D) Pressure gauge Rationale: Ensures water flows in the correct direction and protects pumps. Q46. What is the normal operating temperature for a hot water heating system? A) 50–100°F B) 180 – 200°F C) 250–300°F D) 100–150°F Rationale: Provides sufficient heat while remaining below dangerous pressure levels. Q47. Which type of fuel control improves efficiency? A) On/off only B) Modulating control
C) Manual valve only D) Visual inspection Rationale: Modulating control adjusts fuel to load, reducing waste. Q48. What is the function of a steam trap? A) Vent air only B) Increase fuel supply C) Remove condensate while retaining steam D) Reduce pressure Rationale: Prevents water hammer and improves system efficiency. Q49. Which condition indicates water hammer? A) Low pressure B) Normal flow C) Loud banging or knocking in pipes D) High temperature only Rationale: Sudden condensate movement causes shock waves in piping. Q50. Which is the first step in boiler shutdown? A) Drain boiler B) Turn off fuel and allow pressure to drop safely C) Open safety valves D) Turn off pumps only Rationale: Safe shutdown prevents overpressure and potential hazards. Q51. What is the main purpose of a boiler economizer? A) Reduce water level B) Vent excess steam C) Preheat feedwater using flue gas heat D) Increase fuel pressure Rationale: Improves efficiency by using waste heat from flue gases to preheat feedwater. Q52. Which chemical is used to control alkalinity in boiler water? A) Sodium chloride B) Sodium phosphate
C) Yellow flame or soot in flue gases D) Normal water level Rationale: Indicates incomplete combustion and potential carbon monoxide production. Q58. Which device automatically stops the fuel supply if the flame goes out? A) Thermometer B) Pressuretrol C) Flame safeguard or flame scanner D) Level gauge Rationale: Prevents unburned fuel accumulation and potential explosions. Q59. What is the purpose of a boiler feedwater pump? A) Vent steam B) Increase fuel flow C) Supply water to the boiler at required pressure D) Measure water level Rationale: Ensures the boiler maintains proper water level for safe operation. Q60. What is the proper action when a sight glass shows low water? A) Continue operation B) Blowdown immediately C) Shut down the boiler and investigate D) Reduce fuel Rationale: Low water can damage the boiler; immediate shutdown is critical. Q61. What is the normal operating pressure range for a high-pressure steam boiler? A) 0–15 psi B) 50–100 psi C) 100 – 300 psi D) 500–700 psi Rationale: High-pressure boilers operate safely at 100–300 psi depending on design.
Q62. Which is the function of a feedwater regulator? A) Vent steam B) Maintain proper water level automatically C) Control fuel flow D) Blowdown water Rationale: Keeps water level within safe operating range to prevent low or high- water conditions. Q63. What is the purpose of a pressuretrol? A) Measure temperature B) Vent steam C) Control boiler pressure and regulate burner operation D) Measure water level Rationale: Maintains pressure within desired range for safe operation. Q64. Which is a key safety concern when operating a boiler? A) Lighting fixtures B) Water hammer C) Low water, overpressure, and fuel leaks D) Paint color Rationale: These are primary hazards that can cause equipment damage or injury. Q65. What does a steam trap do in a steam system? A) Heat water B) Increase pressure C) Remove condensate without letting steam escape D) Measure flow Rationale: Prevents water accumulation and maintains steam system efficiency. Q66. What is the function of a burner management system? A) Vent steam B) Heat water C) Control safe startup, operation, and shutdown of burners D) Monitor water level Rationale: Ensures safe boiler operation and prevents dangerous conditions.
Q72. Which type of pump is used to circulate hot water in a heating system? A) Diaphragm pump B) Gear pump C) Centrifugal or reciprocating pump D) Screw pump Rationale: Provides consistent flow at appropriate pressure. Q73. What is the normal operating temperature for a hot water heating boiler? A) 50– 10 0°F B) 180 – 200°F C) 250–300°F D) 100–150°F Rationale: Maintains system heat while preventing overpressure hazards. Q74. Which device prevents backflow in a feedwater system? A) Expansion tank B) Pressure gauge C) Check valve D) Flow meter Rationale: Ensures water flows only toward the boiler, protecting pumps and lines. Q75. What is “priming” in a boiler? A) Normal operation B) Water droplets carried with steam C) Fuel leakage D) Valve malfunction Rationale: Can damage steam equipment; indicates water level issues or poor water quality. Q76. What is a symptom of water hammer in steam piping? A) High steam temperature B) Low water pressure C) Loud banging or knocking noises D) Normal flow Rationale: Sudden condensate movement creates shock waves in piping.
Q77. Which type of control improves boiler fuel efficiency? A) On/off only B) Modulating control C) Manual valve only D) Visual inspection Rationale: Adjusts fuel based on load, reducing waste. Q78. Which device detects flame presence for burner safety? A) Pressure gauge B) Thermometer C) Flame scanner D) Sight glass Rationale: Prevents fuel from flowing if flame is not present, avoiding explosions. Q79. Which is a key responsibility of a Grade 1 stationary engineer? A) Paint boiler room B) Operate, maintain, and troubleshoot boilers and auxiliary systems C) Deliver fuel only D) Clean pumps only Rationale: Ensures safe operation and efficiency of plant systems. Q80. Which chemical is used to remove dissolved oxygen from boiler water? A) Chlorine B) Sodium phosphate C) Sodium sulfite or hydrazine D) Sodium chloride Rationale: Scavenger chemicals prevent oxygen-induced corrosion. Q81. Which boiler requires a bottom blowdown? A) Fire-tube B) Water-tube C) Both fire-tube and water-tube D) Electric only Rationale: Removes sediment and maintains water quality.
Q87. What is the purpose of a blowdown tank? A) Burn fuel B) Collect and cool blowdown water before disposal C) Vent steam D) Increase pressure Rationale: Prevents damage or hazards from hot, pressurized blowdown water. Q88. Which type of flame indicates proper combustion? A) Yellow B) Orange C) Blue D) Red Rationale: Blue flame indicates complete combustion with minimal soot. Q89. Which device protects the boiler from overpressure? A) Sight glass B) Flow meter C) Safety valve D) Thermometer Rationale: Releases steam automatically if pressure exceeds safe limits. Q90. Which maintenance task prevents scale formation? A) Reduce fuel B) Regular chemical treatment and blowdown C) Open safety valve D) Shut down boiler Rationale: Removes minerals and prevents deposits on tubes. Q91. What is the main purpose of a steam drum? A) Vent condensate B) Separate steam from water C) Increase fuel efficiency D) Heat feedwater Rationale: Provides dry steam to the system.
Q92. Which indicates a malfunctioning flame scanner? A) Proper water level B) Boiler running normally C) Burner fails to start or shuts down unexpectedly D) Normal pressure Rationale: Flame scanners detect flame presence; malfunction prevents safe operation. Q93. Which device controls water level automatically in a boiler? A) Flow meter B) Thermometer C) Float or electronic level control D) Sight glass only Rationale: Maintains safe water levels, preventing low- or high-water hazards. Q94. What is the proper action if condensate backs up into the boiler? A) Ignore it B) Reduce fuel C) Shut down and troubleshoot the condensate return system D) Increase pressure Rationale: Prevents damage to pumps and boiler tubes. Q95. Which type of pump is used for condensate return? A) Diaphragm pump B) Gear pump C) Centrifugal or reciprocating pump D) Screw pump Rationale: Handles hot water and pressure safely. Q96. Which parameter is monitored to ensure proper combustion? A) Steam temperature only B) Flue gas composition and temperature C) Water level only D) Fuel pressure only Rationale: Indicates complete combustion and safe operation.
