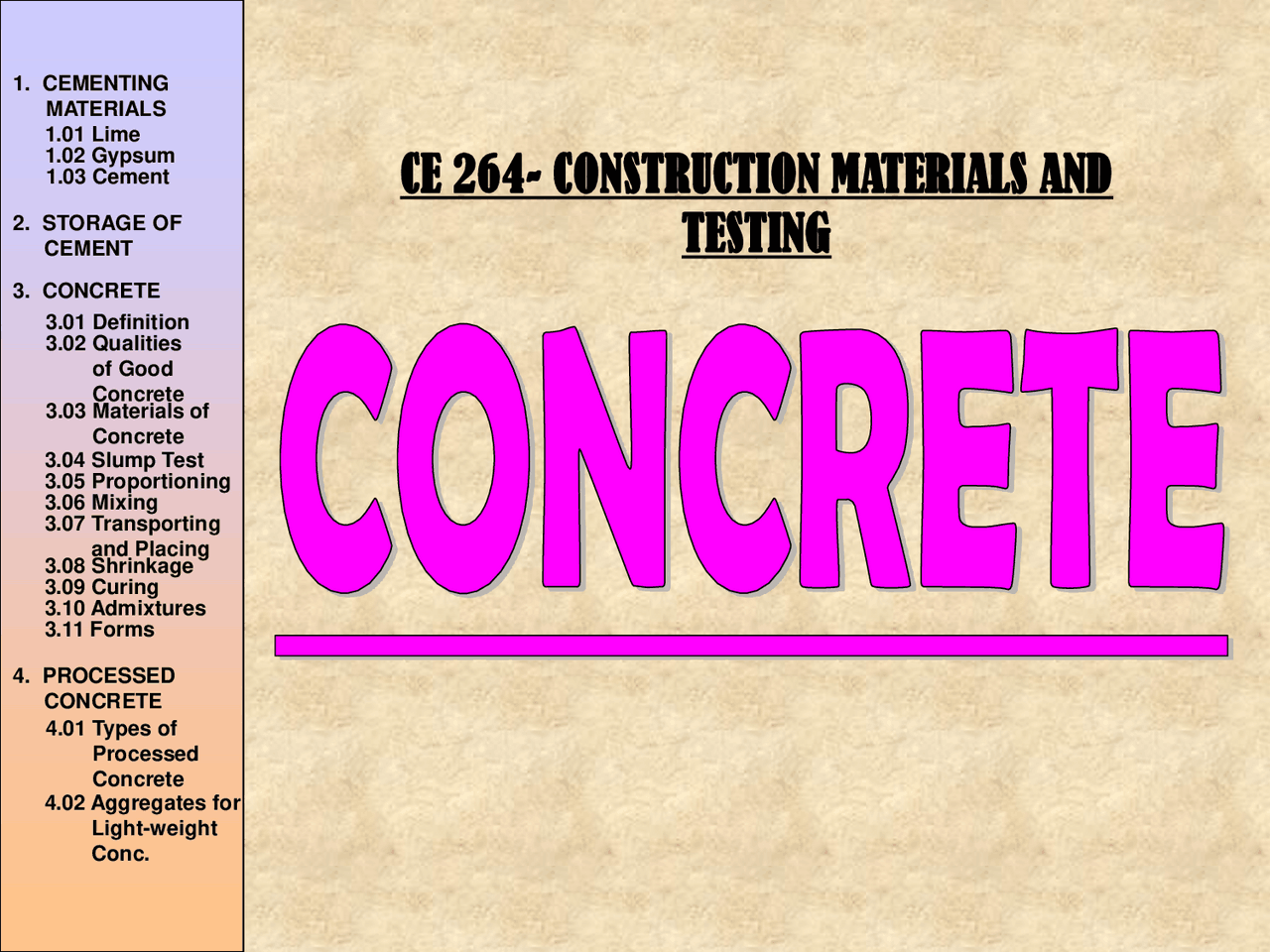

CE 264- CONSTRUCTION MATERIALS AND
TESTING
- CEMENTING MATERIALS 1.01 Lime 1.02 Gypsum 1.03 Cement
- STORAGE OF CEMENT
- CONCRETE 3.01 Definition 3.02 Qualities of Good Concrete 3.03 Materials of Concrete 3.04 Slump Test 3.05 Proportioning 3.06 Mixing 3.07 Transporting and Placing 3.08 Shrinkage 3.09 Curing 3.10 Admixtures 3.11 Forms
- PROCESSED CONCRETE 4.01 Types of Processed Concrete 4.02 Aggregates for Light-weight
1.01 LIME
One of the oldest manufactured building materials used as a mortar and plaster by all the early civilizations:
1. CEMENTING MATERIALS
- Egyptians used lime plaster before 2600 B.C.
- Greeks used it extensively for mortars and plasters
- Romans developed a mixture of lime putty and volcanic ash for the first real cement. Manufactured by the calcination of limestone (carbonates of calcium and magnesium).
