Mass Spectroscopy 1
Mass Spectroscopy
How do we know isotopes exist?
Why?
When John Dalton proposed the first formal atomic theory, he stated “Atoms of the same element are
identical.” Today we know that is not true—many elements contain several different isotopes, or atoms
that differ in mass. Mass spectroscopy is the principle technique used to study isotopes. It is used to both
“count” and “weigh” atoms in a sample, just not in the traditional sense.

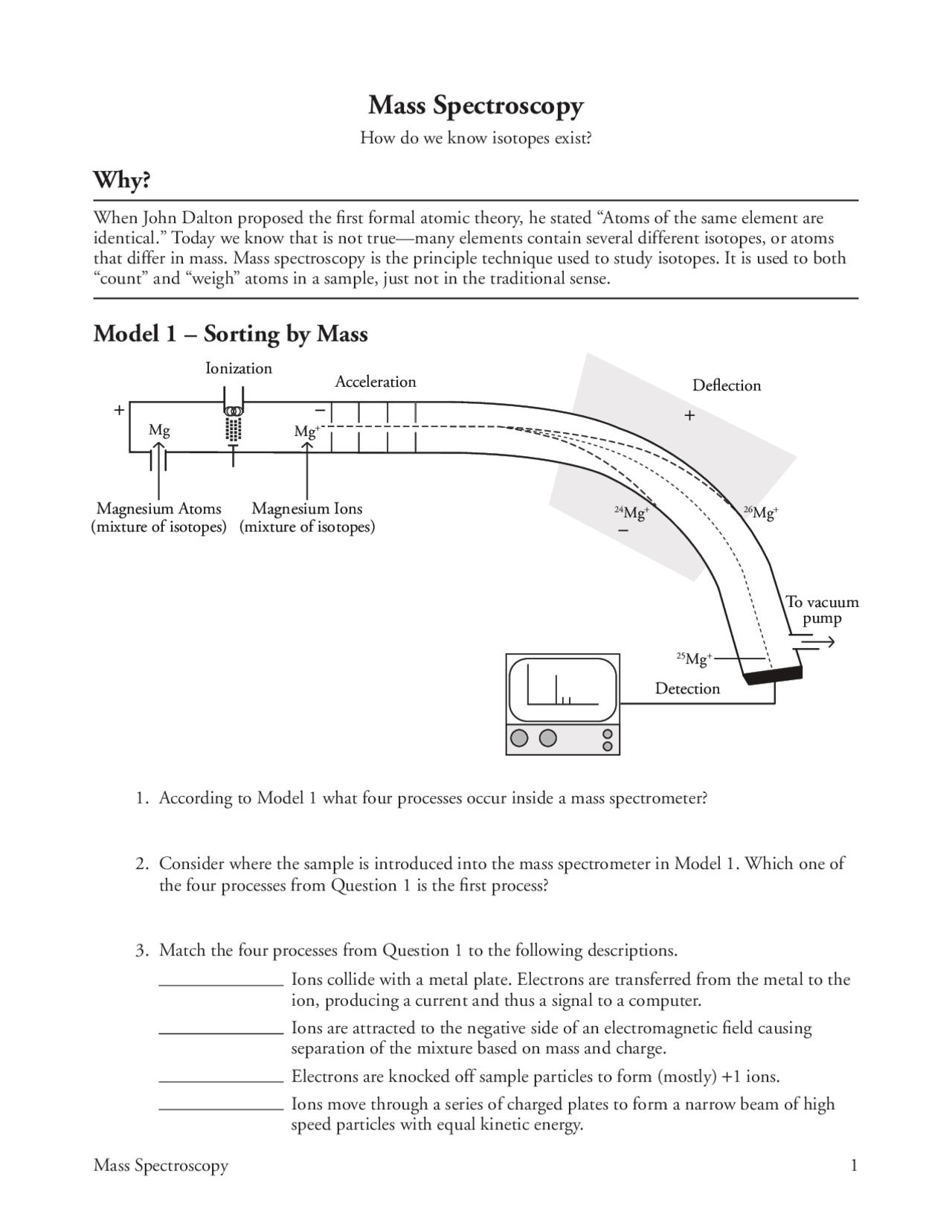

Model 1 – Sorting by Mass
1. According to Model 1 what four processes occur inside a mass spectrometer?
2. Consider where the sample is introduced into the mass spectrometer in Model 1. Which one of
the four processes from Question 1 is the first process?
3. Match the four processes from Question 1 to the following descriptions.
Ions collide with a metal plate. Electrons are transferred from the metal to the
ion, producing a current and thus a signal to a computer.
Ions are attracted to the negative side of an electromagnetic field causing
separation of the mixture based on mass and charge.
Electrons are knocked off sample particles to form (mostly) +1 ions.
Ions move through a series of charged plates to form a narrow beam of high
speed particles with equal kinetic energy.
+
−
+−
Ionization Acceleration Deflection
Magnesium Atoms
(mixture of isotopes)
Magnesium Ions
(mixture of isotopes)
Detection
To vacuum
pump
Mg Mg+
24Mg+26Mg+
25Mg+
