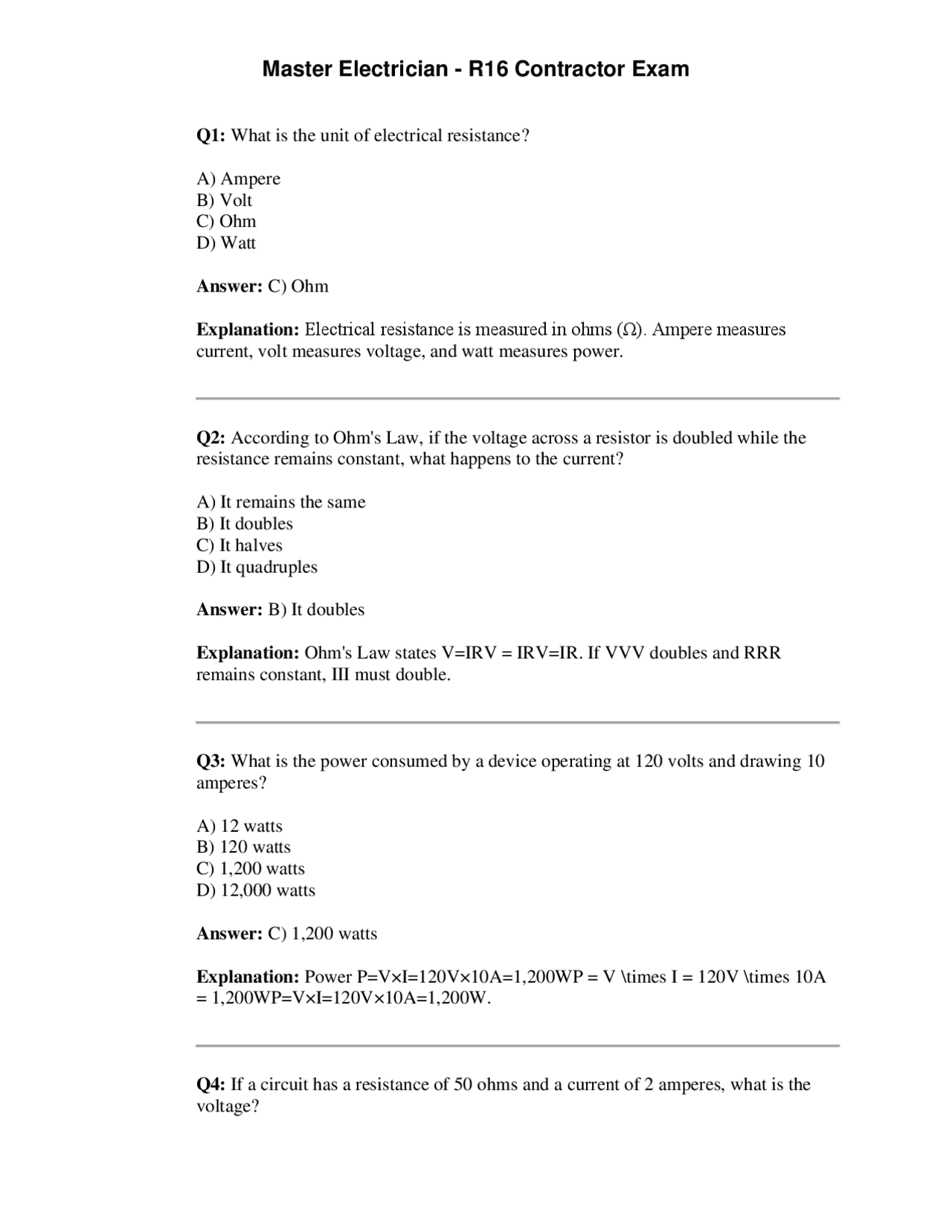

Q1: What is the unit of electrical resistance? A) Ampere B) Volt C) Ohm D) Watt Answer: C) Ohm Explanation: Electrical resistance is measured in ohms (Ω). Ampere measures current, volt measures voltage, and watt measures power. Q2: According to Ohm's Law, if the voltage across a resistor is doubled while the resistance remains constant, what happens to the current? A) It remains the same B) It doubles C) It halves D) It quadruples Answer: B) It doubles Explanation: Ohm's Law states V=IRV = IRV=IR. If VVV doubles and RRR remains constant, III must double. Q3: What is the power consumed by a device operating at 120 volts and drawing 10 amperes? A) 12 watts B) 120 watts C) 1,200 watts D) 12,000 watts Answer: C) 1,200 watts Explanation: Power P=V×I=120V×10A=1,200WP = V \times I = 120V \times 10A = 1,200WP=V×I=120V×10A=1,200W. Q4: If a circuit has a resistance of 50 ohms and a current of 2 amperes, what is the voltage?
A) 25 volts B) 50 volts C) 100 volts D) 150 volts Answer: C) 100 volts Explanation: Using Ohm's Law V=IR=2A×50Ω=100VV = IR = 2A \times 50Ω = 100VV=IR=2A×50Ω=100V. Q5: What happens to the power consumption if both voltage and current are doubled? A) Power remains the same B) Power doubles C) Power quadruples D) Power increases eightfold Answer: C) Power quadruples Explanation: Power P=V×IP = V \times IP=V×I. If both VVV and III are doubled, P=2V×2I=4VIP = 2V \times 2I = 4VIP=2V×2I=4VI, quadrupling the power. Q6: A device uses 60 watts of power at 120 volts. What is the current drawn? A) 0.5 amperes B) 1 ampere C) 2 amperes D) 4 amperes Answer: A) 0.5 amperes Explanation: I=P/V=60W/120V=0.5AI = P / V = 60W / 120V = 0.5AI=P/V=60W/120V=0.5A. Q7: The energy efficiency of a device is defined as: A) Output power divided by input power B) Input power divided by output power C) Voltage multiplied by current D) Resistance multiplied by current
Q11: What is the total resistance of three resistors connected in series, each of 10 ohms? A) 10 ohms B) 20 ohms C) 30 ohms D) 40 ohms Answer: C) 30 ohms Explanation: In series, resistances add up: 10Ω+10Ω+10Ω=30Ω10Ω + 10Ω + 10Ω = 30Ω10Ω+10Ω+10Ω=30Ω. Q12: In a parallel circuit with two resistors, one 20 ohms and the other 30 ohms, the total resistance is: A) 10 ohms B) 12 ohms C) 50 ohms D) 60 ohms Answer: B) 12 ohms Explanation: For parallel resistors, 1Rtotal=120+130=360+260=560\frac{1}{R_{total}} = \frac{1}{20} + \frac{1}{30} = \frac{3}{60} + \frac{2}{60} = \frac{5}{60}Rtotal 1 =201+301=603+602=605, so Rtotal=12ΩR_{total} = 12ΩRtotal=12Ω. Q13: What type of current flows only in one direction? A) Alternating Current (AC) B) Direct Current (DC) C) Both AC and DC D) Neither AC nor DC Answer: B) Direct Current (DC) Explanation: DC flows in a single direction, while AC periodically reverses direction.
Q14: The energy consumed by a device is measured in: A) Watts B) Volts C) Ampere-hours D) Joules Answer: D) Joules Explanation: Energy is measured in joules (J). However, electrical energy is often billed in kilowatt-hours (kWh). Q15: What is the relationship between power, voltage, and resistance? A) P=V2/RP = V^2 / RP=V2/R B) P=I2RP = I^2 RP=I2R C) P=V×IP = V \times IP=V×I D) All of the above Answer: D) All of the above Explanation: All three formulas are valid expressions of power: P=V×IP = V \times IP=V×I, P=V2/RP = V^2 / RP=V2/R, and P=I2RP = I^2 RP=I2R. Q16: Which device is used to measure electrical current? A) Voltmeter B) Ammeter C) Ohmmeter D) Wattmeter Answer: B) Ammeter Explanation: An ammeter measures electrical current, whereas a voltmeter measures voltage and an ohmmeter measures resistance. Q17: What is the primary function of a transformer?
Answer: b) To protect against electrical fires Explanation: Overcurrent protection devices, such as breakers or fuses, are designed to prevent excessive current that can cause overheating and potentially lead to electrical fires.
2. Which of the following is a requirement for grounding service equipment? a) Using aluminum grounding conductors b) Connecting the grounding conductor to the neutral at the main service panel c) Isolating the grounding system from the building's structure d) Using only copper wires for grounding Answer: b) Connecting the grounding conductor to the neutral at the main service panel Explanation: Grounding service equipment typically involves bonding the grounding conductor to the neutral at the main service panel to ensure a common reference point and enhance safety. 3. What is the minimum size grounding electrode conductor for a service with a rating of 200 amperes? a) 6 AWG copper b) 8 AWG copper c) 4 AWG copper d) 2 AWG copper Answer: a) 6 AWG copper Explanation: According to the National Electrical Code (NEC), for a service size of 200 amperes, the minimum grounding electrode conductor size is typically 6 AWG copper.
4. Which component is responsible for distributing electrical power to various circuits in a building? a) Transformer b) Service entrance c) Service panel d) Generator Answer: c) Service panel Explanation: The service panel, also known as the breaker panel, distributes electrical power from the service entrance to various circuits within a building. 5. When installing a service panel, which of the following must be provided above the panel? a) A light fixture b) Working space and access as per NEC requirements c) A surge protector d) An additional grounding rod Answer: b) Working space and access as per NEC requirements Explanation: The NEC requires adequate working space around the service panel for safe access and maintenance. 6. Which type of overcurrent device is typically used for branch circuits in a residential service panel? a) Circuit breakers b) Fuses c) Ground fault interrupters d) Surge protectors
b) Two c) Three d) Four Answer: a) One Explanation: Typically, only one service disconnecting means is required for a single-family dwelling unless additional conditions necessitate more.
10. When sizing a service panel, which of the following must be considered? a) Aesthetic appearance b) Total load demand c) Distance from the utility pole d) Brand of the panel Answer: b) Total load demand Explanation: The total electrical load demand is critical in determining the appropriate size of the service panel to ensure it can handle the expected current. Service Calculations 11. In load calculations for a residential service, which factor is applied to account for the diversity of appliance use? a) Demand factor b) Voltage drop c) Power factor d) Efficiency rating Answer: a) Demand factor
Explanation: A demand factor accounts for the fact that not all appliances operate simultaneously, allowing for more accurate service sizing.
12. What is the primary purpose of performing a load calculation for a commercial service? a) To determine the color of wiring b) To size the service conductors and equipment appropriately c) To select the brand of circuit breakers d) To calculate the cost of installation Answer: b) To size the service conductors and equipment appropriately Explanation: Load calculations ensure that the service conductors and equipment are adequately sized to handle the electrical demands of the commercial facility. 13. Which of the following is NOT typically considered in residential load calculations? a) Lighting b) HVAC systems c) Industrial machinery d) Kitchen appliances Answer: c) Industrial machinery Explanation: Industrial machinery is not usually part of residential load calculations, which focus on household appliances and systems. 14. How does the NEC define "demand factor"? a) The ratio of the maximum possible load to the actual load b) The voltage drop across a conductor
Feeders (16 Questions) Feeder Sizing and Protection
17. When sizing a feeder conductor, which of the following must be considered? a) The length of the conductor only b) The load current and conductor material c) The color of the insulation d) The manufacturer of the conductor Answer: b) The load current and conductor material Explanation: Feeder conductor sizing depends on the load current, conductor material (copper or aluminum), and temperature rating to ensure adequate capacity and safety. 18. What determines the appropriate size of a feeder conductor? a) The aesthetic preference of the installer b) The load requirements and permissible voltage drop c) The age of the building d) The type of lighting **Section 1: Service Entrance and Equipment (Installation and Maintenance of Service Panels, Overcurrent Protection Devices, Grounding, and Bonding)
- Installation and Maintenance of Service Panels Question 1:** What is the maximum number of spaces allowed for circuit breakers in a standard service panel without using tandem breakers, according to the National Electrical Code (NEC)? A) 20 B) 24 C) 30 D) 42
Answer: B) 24 Explanation: According to the NEC, standard service panels typically allow up to 24 spaces for circuit breakers. Exceeding this may require a larger panel or additional panels. Question 2: Which tool is essential for ensuring that the service panel is de-energized before performing maintenance? A) Multimeter B) Non-contact voltage tester C) Clamp meter D) Insulation resistance tester Answer: B) Non-contact voltage tester Explanation: A non-contact voltage tester is a safe and effective tool to verify that the service panel is de-energized before maintenance begins. Question 3: When replacing a service panel, which of the following must be ensured regarding the main breaker? A) It must be rated higher than the existing panel. B) It must be compatible with the panel's manufacturer specifications. C) It can be omitted if the panel is double-pole. D) It must have an auxiliary power source. Answer: B) It must be compatible with the panel's manufacturer specifications. Explanation: The main breaker must match the manufacturer's specifications to ensure compatibility and safe operation within the service panel.
2. Overcurrent Protection Devices Question 4: What is the primary purpose of an overcurrent protection device in a service panel?
Explanation: For a 200-amp service, the NEC requires a minimum grounding electrode conductor size of #4 AWG copper. Question 7: Bonding in electrical installations primarily ensures: A) Voltage stability B) Current balancing C) Electrical continuity and safety D) Power factor correction Answer: C) Electrical continuity and safety Explanation: Bonding ensures that all metal parts are electrically continuous, which enhances safety by preventing potential differences that could cause electric shocks. Section 2: Service Calculations (Load Calculations, Demand Factors, and Diversity Considerations)
4. Load Calculations for Residential and Commercial Services Question 8: When calculating the total connected load for a residential service, which of the following must be included? A) Only fixed lighting and appliance loads B) Fixed and general lighting, appliance loads, and any continuous loads C) Only non-continuous loads D) Only appliance loads Answer: B) Fixed and general lighting, appliance loads, and any continuous loads Explanation: Total connected load includes all fixed, general lighting, appliance, and continuous loads to ensure the service is adequately sized.
Question 9: For a commercial service, what factor must be considered in load calculations that is less emphasized in residential services? A) Lighting loads B) Diversity factors C) Heating and cooling loads D) Appliance loads Answer: C) Heating and cooling loads Explanation: Commercial services often have more significant heating and cooling loads compared to residential services, which must be factored into load calculations.
5. Demand Factors and Diversity Considerations in Service Sizing Question 10: What is the purpose of applying a demand factor in service sizing? A) To increase the total load B) To account for the likelihood that not all loads will be used simultaneously C) To comply with voltage requirements D) To calculate the exact maximum load Answer: B) To account for the likelihood that not all loads will be used simultaneously Explanation: Demand factors reduce the total calculated load based on the probability that not all connected loads will operate at maximum capacity simultaneously, allowing for more efficient service sizing. Question 11: In a load calculation, a diversity factor greater than 1 indicates that: A) All loads are always on simultaneously B) The total calculated load is reduced C) There is an increased probability of overloading D) The service size should be decreased Answer: B) The total calculated load is reduced
7. Overcurrent Protection for Feeders and Coordination with Upstream Devices Question 14: What is the primary purpose of coordinating overcurrent protection devices between feeder and upstream devices? A) To minimize voltage drops B) To ensure that only the nearest device to the fault trips C) To increase the overall system capacity D) To simplify the electrical system design Answer: B) To ensure that only the nearest device to the fault trips Explanation: Coordination ensures that the overcurrent device closest to the fault trips first, minimizing the disruption to the electrical system and maintaining service to other parts. Question 15: If a feeder is protected by a 60-amp breaker and the calculated feeder load is 48 amps, what minimum size conductor should be used according to NEC? A) #8 AWG B) #6 AWG C) #4 AWG D) #2 AWG Answer: B) #6 AWG Explanation: For a 60-amp breaker, NEC Table 310.16 indicates that a #6 AWG copper conductor is suitable, providing adequate ampacity for the feeder load of 48 amps. **Section 4: Additional Service Entrance and Feeder Questions
- Grounding Electrode Systems Question 16:** Which of the following is considered a grounding electrode according to the NEC?
A) Neutral conductor B) Grounding rod C) Circuit breaker D) Receptacle Answer: B) Grounding rod Explanation: A grounding rod is a recognized grounding electrode used to connect the electrical system to the earth, providing a reference point for system voltages. Question 17: What is the minimum length required for a grounding electrode conductor run from the service panel to the grounding electrode? A) 6 inches B) 8 feet C) 10 feet D) 12 inches Answer: A) 6 inches Explanation: The NEC typically requires a minimum of 6 inches of grounding electrode conductor to ensure a secure and effective connection between the service panel and the grounding electrode.
9. Service Equipment Location Requirements Question 18: Where must the service equipment be located according to the NEC? A) In an attic B) In a detached garage C) In a readily accessible location D) Inside a cabinet Answer: C) In a readily accessible location Explanation: Service equipment must be installed in a readily accessible location to ensure that it can be quickly reached for maintenance or in case of an emergency.
